Here you will find all available parts and drawings of the 'Festool 499599 ( CTLMIDI230VR )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

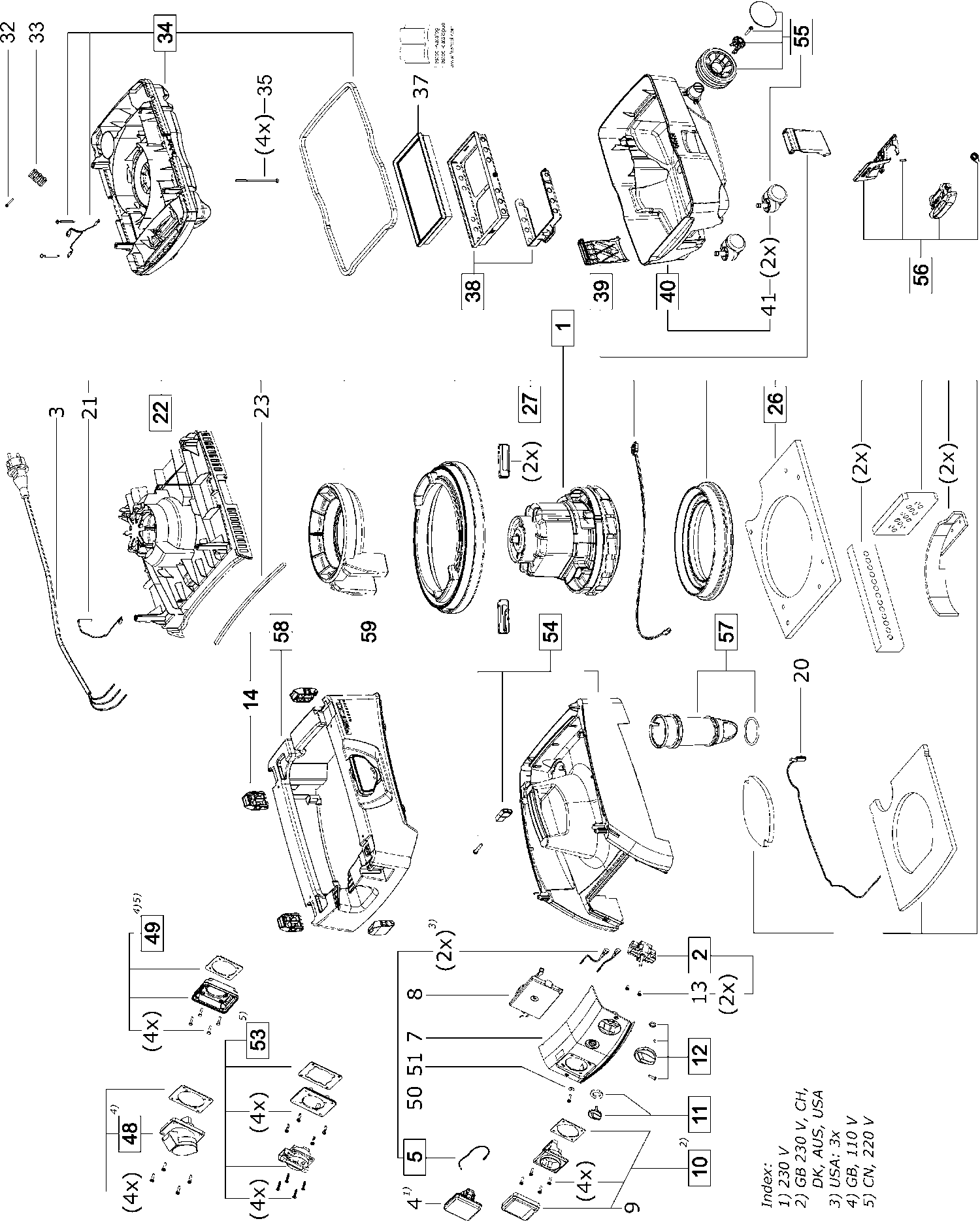

Technical drawing of model Festool 499599 ( CTLMIDI230VR )
Spare parts list of model Festool 499599 ( CTLMIDI230VR )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Turbine ET-BG 230V | ||||
| 1 | 10494018 | 183.07 | 221.51 | |
| SWITCH CT MINI | ||||
| 2 | 456826 | 19.96 | 24.15 | |
| Mains cable CT MINI ET-BG D+KR | ||||
| 3 | 498422 | 72.48 | 87.70 | |
| Plug socket CT MINI 230V Abd. ET-BG | ||||
| 4 | 200531 | 23.60 | 28.56 | |
| WIRE CT MINI | ||||
| 5 | 456822 | 16.70 | 20.21 | |
| Restrictor CT MIDI Elektronik ET-BG | ||||
| 7 | 200560 | 27.59 | 33.38 | |
| Restrictor CTL MIDI Elektronik ET-B | ||||
| 7 | 200559 | 26.38 | 31.92 | |
| Electronics CT MINI 230V ET-BG | ||||
| 8 | 498509 | 69.21 | 83.74 | |
| Cover CT Steckdose mit Rahmen | ||||
| 9 | 200504 | 12.55 | 15.19 | |
| KNOB CT MINI | ||||
| 11 | 456813 | 9.31 | 11.27 | |
| KNOB CT MINI | ||||
| 12 | 456814 | 16.12 | 19.51 | |
| No information available, not orderable | ||||
| 13 | 452452 | |||
| Locking latch SVG-CT MINI ET-BG | ||||
| 14 | 200534 | 9.50 | 11.50 | |
| Spring plate EU / KR ET-BG | ||||
| 20 | 201317 | 15.00 | 18.15 | |
| PTC resistor CT MINI ET-BG | ||||
| 21 | 200422 | 18.27 | 22.11 | |
| Housing 230 V | ||||
| 22 | 456810 | 44.04 | 53.29 | |
| Seal CT MINI vorne ET-BG | ||||
| 23 | 200423 | 11.20 | 13.55 | |
| SOUND INSULATOR CT MINI | ||||
| 26 | 456821 | 40.78 | 49.34 | |
| Brush ET-BG 240v CT26/36 | ||||
| 27 | 496268 | 37.63 | 45.53 | |
| Oval head screw PT-3,5x30-KT15 | ||||
| 32 | 400524 | 1.39 | 1.68 | |
| Clamp rail 3-polig 300V/16 A ET-BG | ||||
| 33 | 200871 | 20.57 | 24.89 | |
| Casing box CT MINI 230V ET-BG | ||||
| 34 | 498637 | 86.15 | 104.24 | |
| Cylinder head screw PT5x140 T25 ET-BG | ||||
| 35 | 10737262 | 1.78 | 2.15 | |
| Main filter | ||||
| 37 | 456790 | 24.60 | 29.77 | |
| Side panel RAHMEN CT MINI FILTER ET | ||||
| 38 | 456820 | 15.37 | 18.60 | |
| CLAMP CT MIDI | ||||
| 39 | 494151 | 12.58 | 15.22 | |
| Container CT MIDI VP | ||||
| 40 | 204881 | 71.63 | 86.67 | |
| TANDEM CASTOR CT 11 D50 | ||||
| 41 | 452945 | 18.84 | 22.80 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 50 | 400584 | 1.39 | 1.68 | |
| Casing box CT MINI/MIDI ET-BG | ||||
| 54 | 499906 | 62.07 | 75.10 | |
| Wheel CT MINI/MIDI ET-BG | ||||
| 55 | 499690 | 34.61 | 41.88 | |
| Brake CT MINI ET-BG | ||||
| 56 | 499689 | 29.89 | 36.17 | |
| Intake pipe CT MINI/MIDI ET-BG | ||||
| 57 | 499725 | 24.80 | 30.01 | |
| Hood CT MINI/MIDI ET-BG | ||||
| 58 | 500118 | 50.34 | 60.91 | |
| Closure SYS TL kpl- SG2-T01-002 | ||||
| 59 | 497819 | 14.11 | 17.07 | |
| No information available, not orderable | ||||
| 60 | 477176 | |||
