Here you will find all available parts and drawings of the 'Festool 202805 (CT26E-HEPAMX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

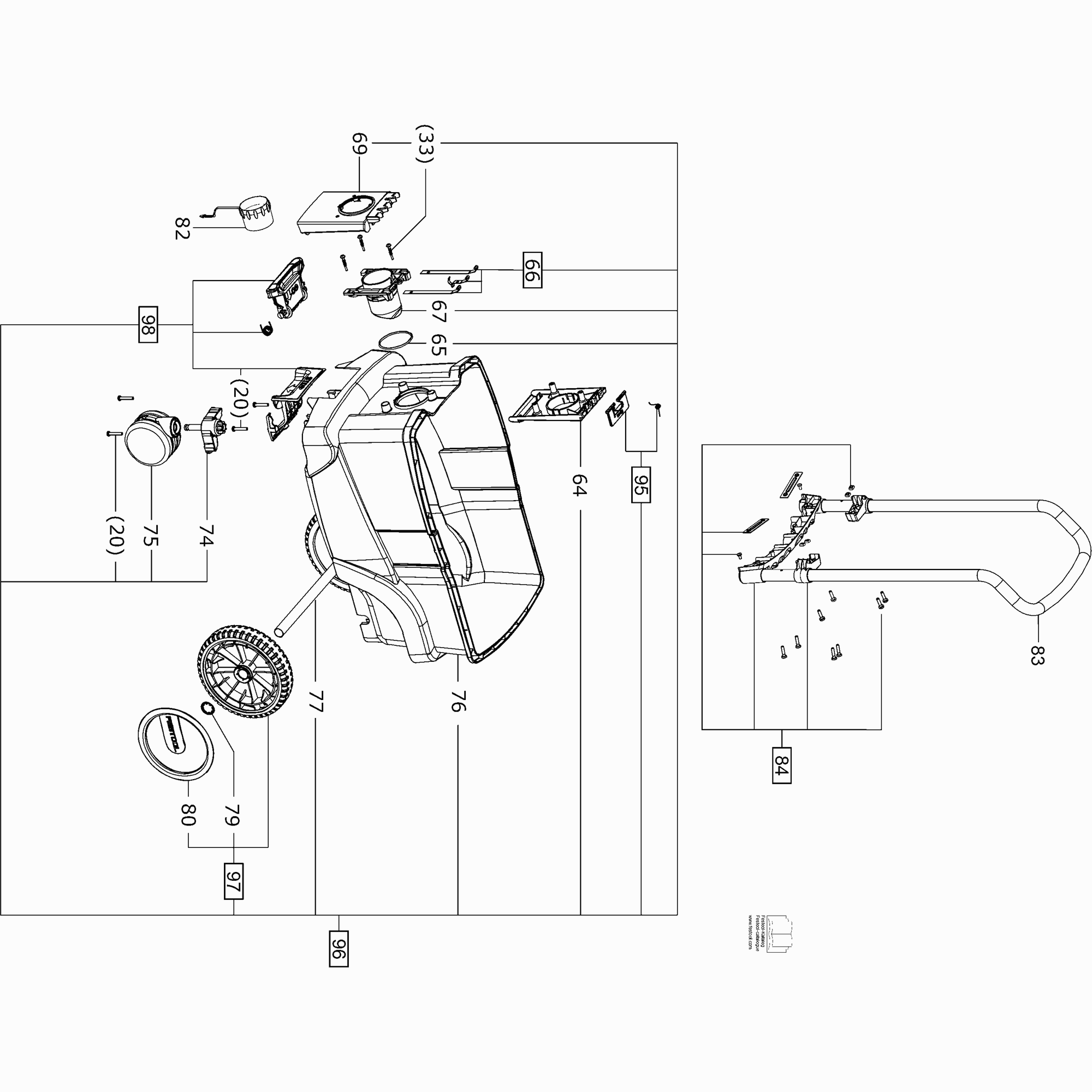

Technical drawing of model Festool 202805 (CT26E-HEPAMX)
Spare parts list of model Festool 202805 (CT26E-HEPAMX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-3,5x14-T15 | ||||
| 1 | 452450 | 1.66 | 2.01 | |
| Cover ET-BG CT26/36 | ||||
| 5 | 496234 | 21.30 | 25.77 | |
| Rotary knob D28_ET-BG CT26/36 | ||||
| 7 | 496249 | 20.45 | 24.74 | |
| Rotary knob D44_ET-BG CT26/36 | ||||
| 9 | 496247 | 19.00 | 22.99 | |
| Restrictor ET-BG CTL 26/36 | ||||
| 12 | 496297 | 27.59 | 33.38 | |
| Board segment CT 26/36 ET-BG | ||||
| 14 | 200599 | 5.40 | 6.53 | |
| Electronics ET-BG 120V CT26/36 | ||||
| 16 | 202317 | 129.59 | 156.80 | |
| Clamp ET-BG CT26/36 | ||||
| 17 | 496236 | 21.30 | 25.77 | |
| Hood CT 26/36 FL VP | ||||
| 18 | 204040 | 63.89 | 77.31 | |
| Cylinder head screw PT5x140 T25 ET-BG | ||||
| 19 | 10737262 | 2.45 | 2.96 | |
| Oval head screw PT-5,0x30-T25 | ||||
| 20 | 452447 | 1.58 | 1.91 | |
| Housing insert ET-BG CT26/36 | ||||
| 22 | 496238 | 36.78 | 44.50 | |
| Handle ET-BG CT26/36 | ||||
| 23 | 496244 | 21.54 | 26.06 | |
| Casing box ET-BG CT26/36 | ||||
| 24 | 496243 | 50.70 | 61.35 | |
| Cable holder CT VP | ||||
| 25 | 203722 | 27.99 | 33.87 | |
| Pan Head Screw PT-5x30-PZV ET-BG | ||||
| 26 | 10737172 | 2.02 | 2.44 | |
| Inlet bush | ||||
| 28 | 200590 | 10.30 | 12.46 | |
| Cable clamp CTN ET-BG | ||||
| 29 | 200586 | 4.03 | 4.88 | |
| Filter holder ET-BG CT26/36 | ||||
| 35 | 496255 | 26.86 | 32.50 | |
| Cover CT26/36 ET-BG | ||||
| 37 | 201975 | 43.80 | 53.00 | |
| Cable harness CTL 120V USA ET-BG | ||||
| 40 | 200822 | 58.20 | 70.42 | |
| Clamp ET-BG CT26/36 | ||||
| 41 | 496262 | 20.33 | 24.60 | |
| Solenoid ring CT 26/36 ET-BG | ||||
| 42 | 200594 | 8.28 | 10.02 | |
| No information available, not orderable | ||||
| 44 | 496270 | |||
| Rest CT 26/36 AC USA ET-BG | ||||
| 52 | 200887 | 42.96 | 51.98 | |
| Rest CT 26/36 AC ET-BG | ||||
| 52 | 200855 | 15.61 | 18.89 | |
| Damper ring CT 26/36 AC ET-BG | ||||
| 53 | 200854 | 20.57 | 24.89 | |
| Solenoid CT 26/36 AC 120V ET-BG | ||||
| 54 | 200874 | 96.68 | 116.98 | |
| Magnetic holder CT 26/36 AC USA ET-BG | ||||
| 55 | 200888 | 16.94 | 20.50 | |
| Rest Filtersack CT N ET-BG | ||||
| 64 | 200591 | 10.01 | 12.11 | |
| Restrictor ET-BG CT26 | ||||
| 69 | 496223 | 19.48 | 23.57 | |
| Tooth ring CT 17 ET-BG | ||||
| 79 | 202484 | 3.67 | 4.44 | |
| Wheel cover D200 CT 26/36 ET-BG | ||||
| 80 | 200570 | 11.02 | 13.33 | |
| Blanking plug | ||||
| 82 | 452899 | 18.00 | 21.78 | |
| Assembly kit SB ET-BG CT 26/36 | ||||
| 84 | 500252 | 94.38 | 114.20 | |
| Assembly kit SB ET-BG CT 48 | ||||
| 84 | 500253 | 66.07 | 79.94 | |
| Locking latch CT N B1 ET-BG | ||||
| 85 | 200873 | 12.71 | 15.38 | |
| Handle CT 36 HD ET-BG | ||||
| 87 | 500318 | 16.34 | 19.77 | |
| Casing box CT 36 HD ET-BG | ||||
| 90 | 500320 | 91.48 | 110.69 | |
| Housing insert CT 36 HD ET-BG | ||||
| 91 | 500319 | 34.49 | 41.73 | |
| Cable clamp CT 36 HD ET-BG | ||||
| 92 | 201023 | 15.00 | 18.15 | |
| Insert CT 26/36 ET-BG | ||||
| 93 | 500321 | 35.21 | 42.60 | |
| Container kompl. CT 48 ET-BG | ||||
| 96 | 500328 | 157.30 | 190.33 | |
| Container kompl. CT 36 ET-BG | ||||
| 96 | 500315 | 151.37 | 183.16 | |
| Container kompl. CT 26 ET-BG | ||||
| 96 | 500327 | 137.82 | 166.76 | |
| Wheel CT 26/36 ET-BG | ||||
| 97 | 500316 | 37.27 | 45.10 | |
| WarningSc indoor ET-BG | ||||
| 99 | 10739444 | 5.26 | 6.36 | |
| Protecting cap CT 26 / 36 VP | ||||
| 105 | 204307 | 17.30 | 20.93 | |
