Here you will find all available parts and drawings of the 'Festool 488556 ( CS70KA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

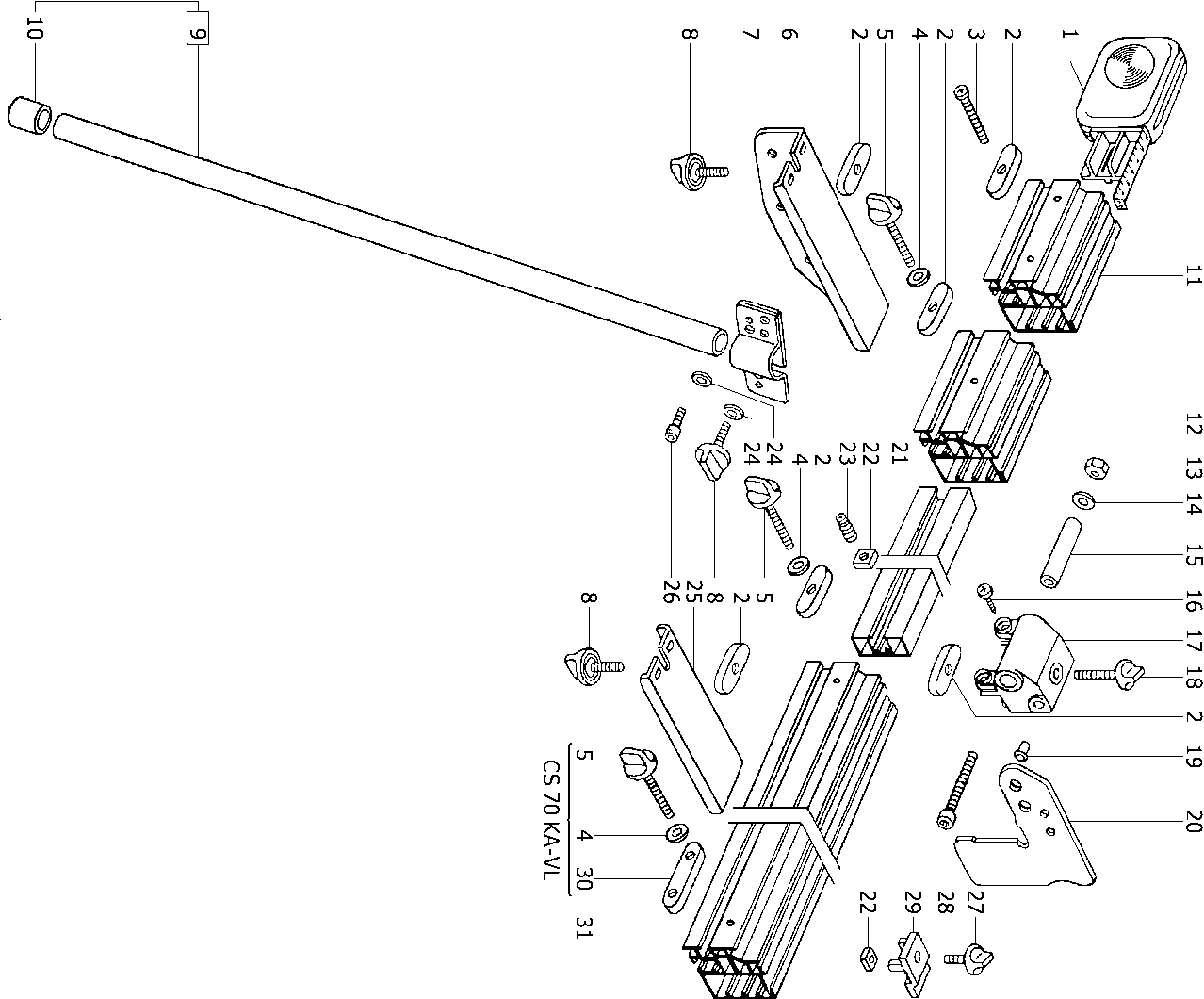

Technical drawing of model Festool 488556 ( CS70KA )
Spare parts list of model Festool 488556 ( CS70KA )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BASIS TAPE MEAS CS 70 KA | ||||
| 1 | 451126 | 75.26 | 91.06 | |
| SPRING CS 70 KA 10x6x25 | ||||
| 2 | 451630 | 4.15 | 5.02 | |
| Oval head screw DIN 7985-M6x40-4.8 | ||||
| 3 | 400523 | 1.39 | 1.68 | |
| Disc DIN 7349-6,4 | ||||
| 4 | 402935 | 1.39 | 1.68 | |
| Rotary knob D34 M6x42,5 blau | ||||
| 5 | 453067 | 3.24 | 3.92 | |
| FIXING PLATE BASIS 1 | ||||
| 6 | 437672 | 34.73 | 42.02 | |
| Bushing FST 660 | ||||
| 7 | 439771 | 9.17 | 11.10 | |
| Rotary knob D34 M6x15,5 blau | ||||
| 8 | 482110 | 2.18 | 2.64 | |
| Support tube CS 70 ET-BG | ||||
| 9 | 10703159 | 22.51 | 27.24 | |
| RUBBER FOOT BASIS 1 | ||||
| 10 | 437674 | 2.11 | 2.55 | |
| Short stop profile CS 70 ST KA ET-BG | ||||
| 11 | 10703299 | 29.28 | 35.43 | |
| No information available, not orderable | ||||
| 12 | xxx | |||
| Hexagon nut DIN 985-M6-04 | ||||
| 13 | 228541 | 1.39 | 1.68 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 14 | 200578 | 1.39 | 1.68 | |
| Axis CS 70 KA | ||||
| 15 | 451132 | 6.94 | 8.40 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 16 | 219031 | 1.39 | 1.68 | |
| Adjustable stop CS 70 KA | ||||
| 17 | 451130 | 3.50 | 4.24 | |
| Rotary knob CS 70 KA D 23 M6x33 bla | ||||
| 18 | 451659 | 2.04 | 2.47 | |
| FLEXIBLE KNIFE CS 70 EB 2208.008 | ||||
| 19 | 400287 | 5.02 | 6.07 | |
| GUIDE FENCE CS 70 KA | ||||
| 20 | 451133 | 8.98 | 10.87 | |
| Limit Stop CS 70 ST KA ET-BG | ||||
| 21 | 10703300 | 52.03 | 62.96 | |
| Square nut DIN 557-M6-05 | ||||
| 22 | 228566 | 1.39 | 1.68 | |
| Grub screw DIN 913-M6x10-45H | ||||
| 23 | 772405 | 1.39 | 1.68 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 24 | 228546 | 1.39 | 1.68 | |
| SUPPORT BASIS 1 | ||||
| 25 | 437671 | 15.61 | 18.89 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 26 | 200684 | 1.39 | 1.68 | |
| Rotary knob SFS-RS 1 D 23 M6x12 blau | ||||
| 27 | 438320 | 8.90 | 10.77 | |
| Ch. head screw DIN 7984-M6x55 | ||||
| 28 | 400501 | 1.39 | 1.68 | |
| Measuring tape MEASURE TAPE CL | ||||
| 29 | 451128 | 2.18 | 2.64 | |
| Feather key CS 70 VB | ||||
| 30 | 448780 | 8.90 | 10.77 | |
| Stop profile CS 70 ST ET-BG | ||||
| 31 | 10703298 | 102.73 | 124.30 | |
