Festool Cs 70 Eg spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 201436 (CS70EG)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

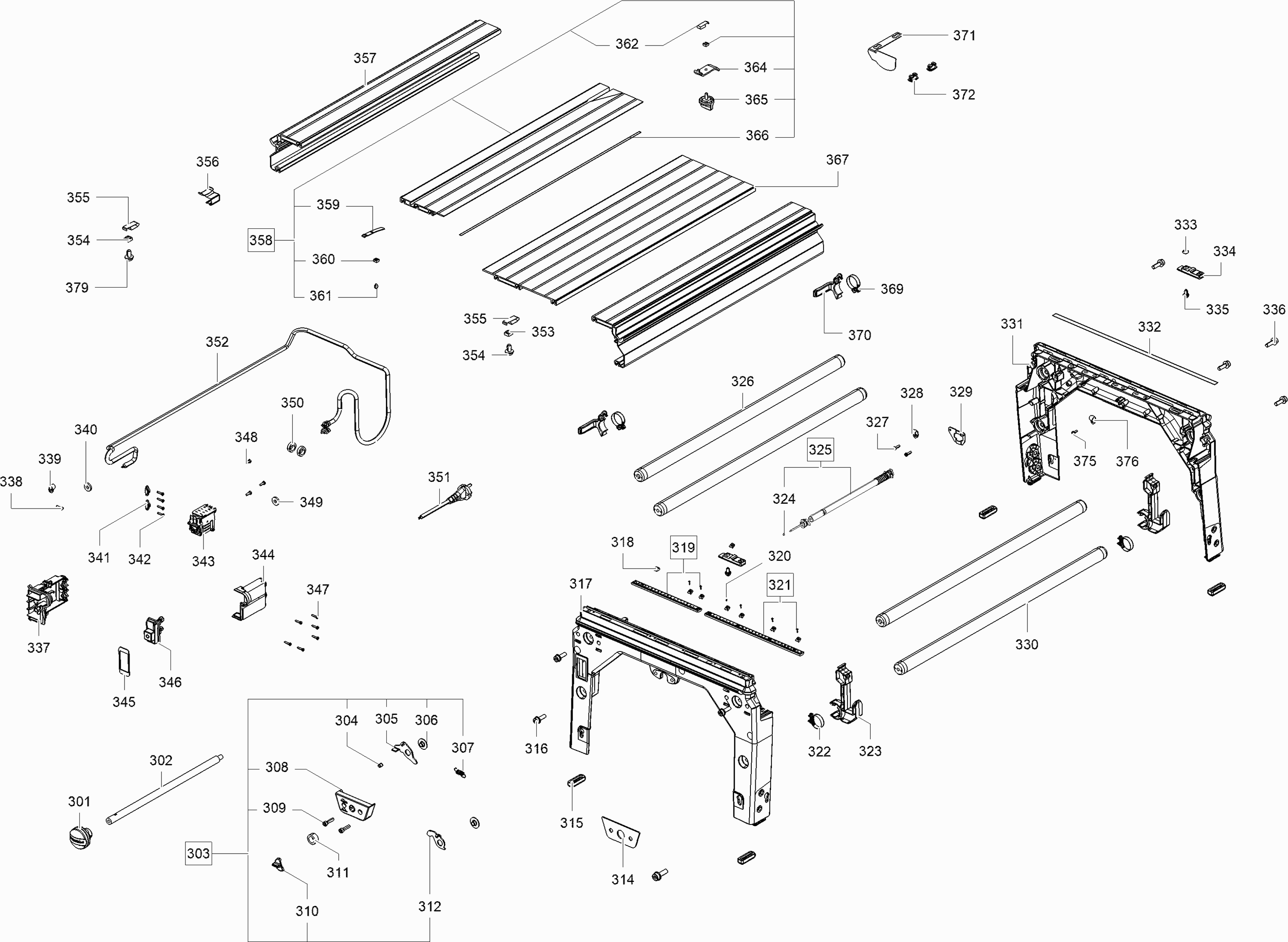

Technical drawing of model Festool 201436 (CS70EG)

Spare parts list of model Festool 201436 (CS70EG)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

PIVOT INSERT CS 70 EB
1	488148	116.77	141.29

Hexagon nut DIN 934-M5-08
2	200717	1.51	1.83

Board segment CS 70 EB
3	446147	7.92	9.58

Ch. head screw DIN 912-M5x18-8.8
4	202824	1.51	1.83

Connect. member CS 70 EB
5	446146	1.66	2.01

Flange bushing 8x10x15x7,5GGB BB0808DP4
6	400253	2.16	2.61

Dowel pin DIN 7346-8x16-ST
7	400259	1.51	1.83

Ch. head screw DIN 912-M5x18-8.8
8	202824	1.51	1.83

Support plate CS 70 EB
9	446704	7.92	9.58

CLAMPING FLANGE CS 70 EB
10	488151	68.24	82.57

Flange bolt CS 70 EB M 8 X 15 LEFT
11	446370	10.08	12.20

Saucer spring AT 65 E
12	444235	1.73	2.09

Circlip DIN 471-24x1,2
13	200414	1.51	1.83

Washer CS 70 EB
14	488465	12.08	14.62

Glide plate CS 70 EB
15	450055	4.68	5.66

Disc CS 70 EB
16	446474	7.42	8.98

LEVER CS 70 EB
17	488149	128.99	156.08

Tooth segment CS 70 EB
18	202847	10.94	13.24

Oval head screw M4x16-TAPTITE-T15
19	219075	1.51	1.83

Needle bushing BK 1015
20	400254	9.14	11.06

Circlip SB 32-SEEGER
21	219855	1.51	1.83

Ball bearing 6002 DDU CM D8 AS2LM
22	789595	10.08	12.20

SPIL CS 70 ET-BG
23	10575127	40.29	48.75

Shaft CS 70 EB
24	202846	39.93	48.32

BALL BEARING 6004 VV-DIN 625 NSK
25	400467	19.48	23.57

Toothed belt wh CS 70 EB Z=28
26	445880	35.57	43.04

Safety nut CS 70 EB M10
26	451484	1.58	1.91

Toothed belt wh CS 70 EB Z=28
27	445880	35.57	43.04

Hexagon nut M 10
27	434017	1.51	1.83

Disc 15-20-3,5
28	449203	2.59	3.13

Ball bearing 6202 2RS DIN 625
29	789775	10.08	12.20

Circlip DIN 472-35x1,5
30	771483	1.51	1.83

GEAR WHEEL 3 CS 70 EB Z=18
31	491936	30.13	36.46

GEAR STOP CS 70 EB
32	488150	24.32	29.43

Oval head screw M4x10-TAPTITE-T15
33	228582	1.51	1.83

AIR CHANNEL CS 70 EB
34	446473	9.58	11.59

Oval head screw M4x16-TAPTITE-T15
35	219075	1.51	1.83

Felt stripe CS 70 EB
36	447962	1.58	1.91

Cog belt CS 70 EB
37	488135	54.93	66.47

Tooth belt CS 70 EB
38	445882	27.23	32.95

Tooth belt CS 70 EB
39	445881	33.03	39.97

TOP CS 70 EB
40	447710	7.27	8.80

Oval head screw M4x16-TAPTITE-T15
41	219075	1.51	1.83

Toothed belt wh CS 70 EB Z=62 VOLLST.
42	445878	34.97	42.31

Driving washer CS 70 EB
43	446937	1.66	2.01

Ch. head screw ZUBEH R
44	401165	1.51	1.83

MOTOR TOP CS 70 EB
45	446469	9.43	11.41

Oval head screw PT-3,5x14-KT15
46	228584	1.51	1.83

Housing CS 70 EB
47	488154	19.36	23.43

Oval head screw PT-3,5x14-KT15
48	228584	1.51	1.83

Lip ring CS 70 EB
49	447968	2.30	2.78

Motor CS 70 EB 230V
50	204904	429.07	519.17

sealing ring CS 70 EB
51	447750	5.11	6.18

SENSOR CS 70 EB COMPLETE
52	487467	8.57	10.37

Motor frame CS 70 EB
53	446309	16.58	20.06

Stator CS 70 ET-BG
54	204882	89.42	108.20

Bearing ring AT 55 E
55	438613	1.51	1.83

BALL BEARING 608 2Z C3 DIN 625
56	228559	4.68	5.66

Anker
57	11233870	205.22	248.32

ARMATURE 230V CS 70 EB 230V
57	493504	205.22	248.32

Air guide washe CS 70 EB
58	469886	3.46	4.19

Oval head screw PT-5,0x80-KT15
59	400264	1.51	1.83

Fan CS 70
60	486880	6.70	8.11

O-ring 98x2,5-NBR
61	400488	1.51	1.83

Motor flange CS 70 EB
62	451454	40.78	49.34

Oval head screw PT-3,5x25-KT15
63	219068	1.51	1.83

Oval head screw M5x40-TAPTITE-T15
64	400255	1.51	1.83

BALL BEARING 6300 DDU DIN 625
65	219021	11.42	13.82

Circlip DIN 472-35x1,5
66	771483	1.51	1.83

Toothed belt wh CS 70 EB Z=18
67	445877	15.25	18.45

Hexagon nut DIN 934-M8-08
68	200719	1.51	1.83

BRUSH CS 70 EB 1 PAIR
69	488134	37.63	45.53

Brush holder CS 70 EB
70	488136	44.29	53.59

Disc DIN 125-B-10,5-140 HV
71	228642	1.51	1.83

Spindle CS 70EBG ET-BG
72	10666107	53.12	64.28

Cover CS 70 ET-BG
101	10031143	69.70	84.34

O-ring 6x5 PERBUNAN
104	400320	1.58	1.91

Disc DIN 9021-6,4-100 HV
105	228546	1.51	1.83

Lock washer Din 6799-5
106	208623	1.51	1.83

Bolt BN 855 3x60h8
108	10023698	1.39	1.68

Torsion spring CS 50 EBG
109	10024820	1.44	1.74

Bolt BN 855 3x35h8
114	10027491	1.39	1.68

Oval head screw PT-3,5x14-KT15
116	228584	1.51	1.83

Board segment CS 70 EB
117	448081	7.70	9.32

Oval head screw PT-3,5x10-KT15
118	219031	7.32	8.86

Cylinder head screw M6 x 20
119	228612	1.51	1.83

Flange bushing CS 70 EB
120	449159	4.18	5.06

Square nut DIN 557-M6-05
121	228566	1.51	1.83

Prot. cover CS 70 EB
122	10023763	28.68	34.70

Splinterguard CS 70 EB
123	448695	2.09	2.53

sealing ring CS 70
124	400271	1.73	2.09

Plug CS 70 EB
125	447770	1.58	1.91

Oval head screw PT-3,5x14-KT15
126	228584	1.51	1.83

Splinterguard CS 70 EB
127	448694	3.17	3.84

Cable clamp RTK-S
128	431899	1.51	1.83

Extr. connector CS 70 EB
130	446588	2.88	3.48

GUARD CS 70 E
131	459077	4.32	5.23

Oval head screw PT-3,5x14-KT15
133	228584	1.51	1.83

Beschermplaat
138	11353075	8.28	10.02

Washer 4.3
139	615015	1.51	1.83

Oval head screw PT-3,5x14-KT15
140	228584	1.51	1.83

Beschermplaat
141	11353096	5.47	6.62

Spac. wedge hol CS 70 ET-BG
142	10031144	79.98	96.78

Ch. head screw DIN 6912-M8x16-8.8
143	774346	1.51	1.83

Spac. wedge pla CS 70 EB
144	445927	7.27	8.80

Riving knife CS 70 EB
145	10023771	45.74	55.35

FLEXIBLE KNIFE CS 70 EB 2208.008
146	400287	5.47	6.62

Ch. head screw DIN 912-M6x14-8.8
147	209354	1.51	1.83

Spac. wedge hol CS 70 EB
148	445926	14.76	17.86

Hexagon nut DIN 934-M8-08
149	200719	1.51	1.83

Oval head screw M4x16-TAPTITE-T15
150	219075	1.51	1.83

Flange bushing CS 70 EB
151	447555	2.30	2.78

Connecting rod CS 70 EB
152	446528	2.09	2.53

Bolt CS 70 EB
153	447358	2.95	3.57

Disc CS 70 EB
154	447702	2.45	2.96

Oval head screw PT-3,5x14-KT15
155	228584	1.51	1.83

Circlip DIN 471-5x0,6
156	200615	1.51	1.83

COVER CS 70 E
157	490424	37.15	44.95

Oval head screw PT-3,5x25-KT15
158	219068	1.51	1.83

Electronic CS 70 E
159	204906	138.42	167.49

Wire CS 70 EB ASSORTMENT
160	488440	24.81	30.02

Guide roll CS 70 EB
201	488868	42.59	51.53

Roller support CS 70 EB
202	488867	40.41	48.90

Roll CS 70 EB
203	488870	30.86	37.34

Disc DIN 125-B-8,4-140 HV
204	228601	1.51	1.83

CYLINDER PIN 6 M6x24 DIN 6325 ST
205	400260	1.51	1.83

Carrier CS 70 EB
206	497196	49.13	59.45

Square nut DIN 557-M6-05
207	228566	1.51	1.83

Supporting shel CS 50 EB
208	465449	10.58	12.80

Draw spring CS 70 EB
209	447263	1.58	1.91

Lever CS 70 EB
210	446671	2.02	2.44

Disc DIN 7349-4,3-100 HV
211	228542	1.51	1.83

Oval head screw M4x16-TAPTITE-T15
212	219075	1.51	1.83

Indicator CS 70 EB
213	446468	2.59	3.13

Oval head screw PT-3,5x14-KT15
214	228584	1.51	1.83

Guide CS 70 EB
215	446470	5.62	6.80

Distance disk CS 70 EB
216	446472	3.31	4.01

Oval head screw PT-3,5x10-KT15
217	219031	7.32	8.86

FLANGE CS 70 EB
218	488147	27.95	33.82

Oval head screw PT-4.0x20-KT15
219	228567	1.51	1.83

Disc CS 70 EB
220	447702	2.45	2.96

Oval head screw M4x16-TAPTITE-T15
221	219075	1.51	1.83

Gearwheel CS 70 EB Z=14
222	446072	4.10	4.96

Lock washer CS 70 EB
223	447961	1.94	2.35

Oval head screw M4x16-TAPTITE-T15
223	219075	1.51	1.83

Roll CS 70 EB
224	488869	47.67	57.68

Hexagon nut DIN 934-M8-08
225	200719	1.51	1.83

Disc DIN 125-B-8,4-140 HV
226	228601	1.51	1.83

Circlip DIN 471-10x1
227	200618	1.51	1.83

Roll CS 70 EB
228	488870	30.86	37.34

Stripper CS 70 EB top
229	496820	13.67	16.54

Felt insert CS 70 EB
230	451917	1.51	1.83

Stripper CS 70 EB down
232	496821	18.39	22.25

Felt insert CS 70 EB
233	451918	1.51	1.83

Handle CS 70 EB
234	487555	7.78	9.41

Hex head cap sc DIN 933-M8x60-8.8
235	400382	1.51	1.83

Ch. head screw DIN 912-M6x40-8.8
236	228653	1.51	1.83

Oval head screw M4x25-TAPTITE-T15
237	400257	1.51	1.83

Car front CS 70 EB
238	497195	76.84	92.98

Knob lever CS 70 EB
239	446063	9.14	11.06

HANDLE CS 70 EB
240	449869	2.16	2.61

Oval head screw PT-3,5x14-KT15
241	228584	1.51	1.83

Draw spring CS 70 EB
242	447263	1.58	1.91

END STOP CS 70 EB
243	449868	8.93	10.81

Disc CS 70 EB
244	447702	2.45	2.96

Ch. head screw DIN 912-M5x18-8.8
245	202824	1.51	1.83

Oval head screw M4x16-TAPTITE-T15
246	219075	1.51	1.83

Eccentric nut CS 70 EB M5
247	449928	8.14	9.85

WINDER CS 70 EB
248	488159	17.30	20.93

Hexagon nut DIN 985-M6-04
249	228541	1.51	1.83

Spring washer DIN 137-A-6
250	200588	1.51	1.83

Disc DIN 9021-8,4-100 HV
251	219049	1.51	1.83

Shim ring DIN 988-8x14x0,5
251	400884	1.51	1.83

Spindle CS 70 EB
252	488271	34.97	42.31

Hexagon nut DIN 985-M6-04
253	228541	1.51	1.83

Scale CS 70 EB
254	446467	13.67	16.54

HANDLE CS 70 EB COMPLETE
301	487569	11.29	13.66

Table Insert Piece/ CS 50 EBG ET-BG
302	10703082	52.51	63.54

Guide CS 70 EB
303	488140	34.97	42.31

FLEXIBLE KNIFE CS 70 EB 2208.006
304	400286	11.22	13.58

Catch lever CS 70 EB
305	446669	4.18	5.06

Collet CS 70 EB
306	449122	1.51	1.83

Draw spring CS 70 EB
307	447263	1.58	1.91

Guide CS 70 EB
308	446675	4.39	5.31

Ch. head screw DIN 912-M6x25-10.9
309	200128	1.51	1.83

Handle CS 70 EB
310	446974	2.09	2.53

Buffer CS 70 EB
311	447528	1.87	2.26

Locking lever CS 70 EB
312	702066	6.55	7.93

Holding plate CS 70 EB COMPLETE
314	447789	7.70	9.32

Rubber foot CS 50 EB
315	492255	18.15	21.96

SAFETY SCREW CS 70 EB M8x25
316	450683	1.73	2.09

Portal CS 70 EB
317	462419	162.50	196.62

Plate nut CS 70 EB
318	448477	1.51	1.83

SCALE LEFT CS 70 EB
319	488137	15.73	19.03

Oval head screw PT-2,5x8-PZV
320	400444	1.51	1.83

SCALE RIGHT CS 70 EB
321	488138	19.48	23.57

Clip CS 70 EB
322	400428	4.32	5.23

Rest CS 70
323	10024165	6.26	7.57

Lock washer Din 6799-3,2
324	222490	1.51	1.83

ABSORBING SPRIN CS 70 EB
325	488139	43.80	53.00

Guide tube CS 50 ET-BG
326	10703295	62.56	75.70

Guide tube CS 70
326	459286	57.11	69.10

Oval head screw M4x16-TAPTITE-T15
327	219075	1.51	1.83

Fastening clip CS 70 EB
328	458614	1.51	1.83

BEARING SHEET CS 70 EB
329	448236	2.30	2.78

Axle tube CS 70
330	459287	57.84	69.99

Portal CS 70 EB
331	462420	162.50	196.62

Adhesive label CS 70 EB
332	448251	7.20	8.71

Square nut DIN 557-M6-05
333	228566	1.51	1.83

Limit stop CS 70 EB
334	448118	2.52	3.05

Allen screw CS 70 EB M6X12 SG-RIPP
335	449888	1.51	1.83

SAFETY SCREW CS 70 EB M8x25
336	450683	1.73	2.09

Switching housi CMS
337	703148	42.83	51.82

Oval head screw PT-3,5x16-KT15
338	228663	1.51	1.83

Fastening clip CS 70 EB
339	458614	1.51	1.83

RUBBER RING CS 70 EB
340	458613	1.51	1.83

Cable clamp RS 3
341	439288	1.51	1.83

Oval head screw PT-3,5x16-KT15
342	228663	1.51	1.83

Switch CMS 230V
343	705171	54.09	65.45

Switch cover CMS
344	703149	25.41	30.75

Seal CS 70 EB
345	447768	1.51	1.83

Depresser CS 70
346	500631	26.86	32.50

Oval head screw PT-3,5x16-KT15
347	228663	1.51	1.83

Oval head screw M4x12-TAPTITE-T15
348	228509	1.51	1.83

RUBBER RING CS 70 EB
349	458613	1.51	1.83

ferrite CS 70
350	10044159	6.84	8.28

CABLE W.CONNECT 230V EU
351	10034007	24.32	29.43

TRAILING CABLE CS 70
352	10032456	24.08	29.14

Square nut DIN 557-M6-05
353	228566	1.51	1.83

Safety screw CS 70EB M6X12VERBUS-RIPP
354	450682	2.09	2.53

Spring CS 70 EB fixIER
355	447262	1.51	1.83

Clamp CS 70 EB
356	449080	2.59	3.13

Profile TKS 80 ET-BG
357	10435240	76.71	92.82

Corner profile CS 70 EB
357	445867	69.33	83.89

Table top insert CS 70 ET-BG
358	10031145	69.09	83.60

Plate spring CS 70 EB
359	448233	2.38	2.88

Square nut DIN 557-M6-05
360	228566	1.51	1.83

Grub screw DIN 913-M6x10-45H
361	772405	1.51	1.83

Spring CS 70 EB fixIER
362	447262	1.51	1.83

Clamp. support CS 70 EB
364	448234	4.75	5.75

Rotary knob D34 M6x15,5 blau
365	482110	2.38	2.88

Adhesive label CS 70 EB
366	10029836	16.94	20.50

Flat Profile CS 70 EB ET-BG
367	10711281	105.63	127.81

Clip CS 70 EB
369	400428	4.32	5.23

CABLE HOLDER CS 70 EB
370	449273	2.81	3.40

fender CS 70 EB
371	10042532	12.21	14.77

Guide CS 50 EBG
372	10018211	2.09	2.53

Oval head screw M4x12-TAPTITE-T15
373	228509	1.51	1.83

Fastening clip CS 70 EB
374	458614	1.51	1.83

Oval head screw M4x12-TAPTITE-T15
375	228509	1.51	1.83

Fastening clip CS 70 EB
376	458614	1.51	1.83

Spring CS 70 EB fixIER
377	447262	1.51	1.83

Square nut DIN 557-M6-05
378	228566	1.51	1.83

Allen screw CS 70 EB M6X12 SG-RIPP
379	449888	1.51	1.83

Foldaway leg CS 70 ET-BG
401	10031146	109.26	132.20

Leg CS 50 EBG
402	10020001	12.08	14.62

Hex head cap sc DIN 931-M8x110-8.8
403	400734	1.58	1.91

Disc DIN 125-B-8,4-140 HV
404	228601	1.51	1.83

Rubber foot CS 50 EB
405	465163	3.60	4.36

Reduction CS 70
406	10024830	2.66	3.22

Screw M6x70 DIN 603
407	10023530	1.51	1.83

Wheel BG-RGP 150
408	766488	19.48	23.57

Safety ring 6 SN 02 2929.05
409	615477	1.51	1.83

Bolt CS 50 EBG
410	10024062	2.66	3.22

Rest CS 50 EBG
411	10024831	2.66	3.22

Nut M8
412	618497	1.51	1.83

Upper section o CS 70 EB
413	447534	1.94	2.35

Hexagon nut DIN 985-M8-04
414	200735	1.51	1.83

Hexagon nut DIN 936-M8-05
415	400563	1.51	1.83

HANDLE DOWN CS 70 EB
416	488523	2.88	3.48

Leg CS 50 EBG
417	10020002	12.08	14.62

Hex head cap sc DIN 933-M8x75-8.8
418	400309	1.66	2.01

Foldaway leg CS 70 EB in front of
419	499888	93.41	113.03

Allen screw CS 70 EB M6X12 SG-RIPP
419	449888	1.51	1.83

Hex head cap sc DIN 933-M8x75-8.8
420	400309	1.66	2.01

Upper section o CS 70 EB
421	447534	1.94	2.35

Hexagon nut DIN 985-M8-04
422	200735	1.51	1.83

Hexagon nut DIN 936-M8-05
423	400563	1.51	1.83

HANDLE DOWN CS 70 EB
424	488523	2.88	3.48

Rubber foot CS 50 EB
425	465163	3.60	4.36

Adjusting wheel CS 70 EB
426	448178	2.74	3.32

FOOT CS 50 EB
427	465883	13.07	15.81

Rotary knob ET-BG CS50/70
428	10494664	4.10	4.96

Plate CS 50 ST
701	465145	1.80	2.18

TRANSPORT BAG CS 50 EBG
702	10032097	28.92	34.99

Cup square bolt DIN 603-M6x40-4.6
703	228534	1.51	1.83

Spacer CS 70 EB
704	448066	9.29	11.24

Allen screw CS 70 EB M6X12 SG-RIPP
705	449888	1.51	1.83

Handle CS 70 EB COMPLETE
706	487893	8.35	10.10

Clamp support CS 70
707	10031568	14.52	17.57

Dowel pin DIN 7346-6x36-ST
708	400289	1.51	1.83

Spring CS 70 EB B.-NR. VD-164
709	448064	2.02	2.44

Binding post CS 50 ET-BG
710	204748	39.93	48.32

Rotary knob BASIS 2 D34 M6/11T
711	483350	7.27	8.80

Rotary knob BASIS 2 D34 M6/11T
712	483350	7.27	8.80

Support device CS 70 EB
713	489181	27.95	33.82

Rotary knob D34 M6/8T blue
714	440713	3.10	3.75

Stud M6x20 DIN 938 5.8
715	464525	1.51	1.83

Disc DIN 9021-6,4-100 HV
716	228546	1.51	1.83

Rotary knob D34 Exz.10 blue
717	487755	9.22	11.16

Disc CS 70 EB
718	448471	3.60	4.36

Countersink M4x8-TAPTITE-T15
719	219043	1.51	1.83

Flat head screw CS 70 EB
720	448065	4.39	5.31

GRADUATED SCALE CS 70 EB
721	488156	22.63	27.38

Swivel Section CS 70 EB ET-BG
722	10699976	43.56	52.71

Swiv. segment CS 70 EB
722	448014	30.13	36.46

Dowel pin DIN 7346-5x12-ST
723	228692	1.51	1.83

Clamping plate CS 50 EB
724	10023711	5.33	6.45

Guide profile CS 50 ET-BG
725	10703140	31.58	38.21

Stop profile CS 50 ET-BG
726	10703085	38.60	46.71

Stop profile CS 50 EB
726	10023710	35.21	42.60

Y-PIECE CS 70 EB
727	450575	25.05	30.31

Hose Ø 27 x 2 M
728	459250	45.13	54.61

Hose CT D36x1,5M
729	459251	43.92	53.14

No information available, not orderable
730	202346

REDUCING SLEEVE D 36 MUFFE
731	452358	25.29	30.60

Slide CS 70 EB
732	10023700	9.79	11.85

Safety device CS 50 EBG
733	10023759	51.30	62.07

Hose clamp CS 70 EB
734	450158	2.02	2.44

Slip piece CS 70 LA
735	450031	4.39	5.31

Oval head screw PT-4.0x20-KT15
736	228567	1.51	1.83

Festool Cs 70 Eg spare parts and technical drawings

Technical drawing of model Festool 201436 (CS70EG)

Spare parts list of model Festool 201436 (CS70EG)

There are 0 items in your shopping basket.
