Here you will find all available parts and drawings of the 'Festool 491304 (CS70E230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

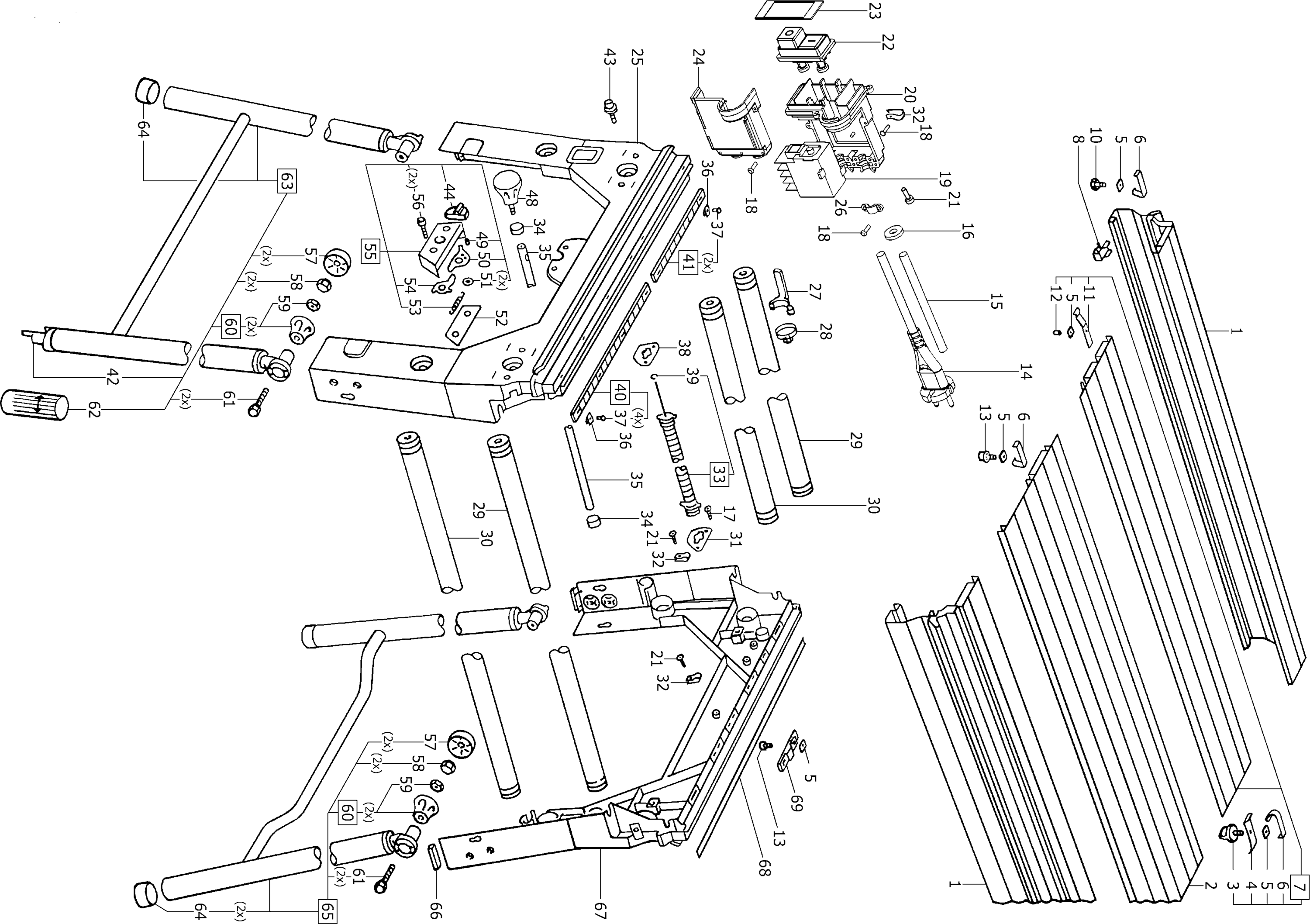

Technical drawing of model Festool 491304 (CS70E230V)
Spare parts list of model Festool 491304 (CS70E230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Profile TKS 80 ET-BG | ||||
| 1 | 10435240 | 76.71 | 92.82 | |
| Corner profile CS 70 EB | ||||
| 1 | 445867 | 69.33 | 83.89 | |
| Flat Profile CS 70 EB ET-BG | ||||
| 2 | 10711281 | 105.63 | 127.81 | |
| Rotary knob D34 M6x15,5 blau | ||||
| 3 | 482110 | 2.38 | 2.88 | |
| Clamp. support CS 70 EB | ||||
| 4 | 448234 | 4.75 | 5.75 | |
| Square nut DIN 557-M6-05 | ||||
| 5 | 228566 | 1.51 | 1.83 | |
| Spring CS 70 EB fixIER | ||||
| 6 | 447262 | 1.51 | 1.83 | |
| Table insert CS 70 EB | ||||
| 7 | 488160 | 83.49 | 101.02 | |
| Clamp CS 70 EB | ||||
| 8 | 449080 | 2.59 | 3.13 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 9 | 228546 | 1.51 | 1.83 | |
| Safety screw CS 70EB M6X12VERBUS-RIPP | ||||
| 10 | 450682 | 2.09 | 2.53 | |
| Plate spring CS 70 EB | ||||
| 11 | 448233 | 2.38 | 2.88 | |
| Grub screw DIN 913-M6x10-45H | ||||
| 12 | 772405 | 1.51 | 1.83 | |
| Allen screw CS 70 EB M6X12 SG-RIPP | ||||
| 13 | 449888 | 1.51 | 1.83 | |
| Cable XXX ET-TEIL | ||||
| 14 | 458753 | 24.81 | 30.02 | |
| CABLE CS 70 EB DIN-H07RN-F | ||||
| 15 | 458756 | 24.81 | 30.02 | |
| RUBBER RING CS 70 EB | ||||
| 16 | 458613 | 1.51 | 1.83 | |
| Oval head screw M4x16-TAPTITE-T15 | ||||
| 17 | 219075 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 18 | 228584 | 1.51 | 1.83 | |
| Contactor CS 70 EB | ||||
| 19 | 455695 | 40.66 | 49.20 | |
| SWITCHING HOUSI CS 70 EB | ||||
| 20 | 447703 | 10.66 | 12.90 | |
| Oval head screw M4x12-TAPTITE-T15 | ||||
| 21 | 228509 | 1.51 | 1.83 | |
| Pusher CS 70 EB | ||||
| 22 | 490211 | 11.52 | 13.94 | |
| Seal CS 70 EB | ||||
| 23 | 447768 | 1.51 | 1.83 | |
| SWITCH COVER CS 70 EB | ||||
| 24 | 447704 | 6.05 | 7.32 | |
| Portal CS 70 EB | ||||
| 25 | 462419 | 162.50 | 196.62 | |
| Cable clamp RS 3 | ||||
| 26 | 439288 | 1.51 | 1.83 | |
| CABLE HOLDER CS 70 EB | ||||
| 27 | 449273 | 2.81 | 3.40 | |
| Clip CS 70 EB | ||||
| 28 | 400428 | 4.32 | 5.23 | |
| Guide tube CS 50 ET-BG | ||||
| 29 | 10703295 | 62.56 | 75.70 | |
| Guide tube CS 70 | ||||
| 29 | 459286 | 57.11 | 69.10 | |
| Axle tube CS 70 | ||||
| 30 | 459287 | 57.84 | 69.99 | |
| BEARING SHEET CS 70 EB | ||||
| 31 | 448236 | 2.30 | 2.78 | |
| Fastening clip CS 70 EB | ||||
| 32 | 458614 | 1.51 | 1.83 | |
| ABSORBING SPRIN CS 70 EB | ||||
| 33 | 488139 | 43.80 | 53.00 | |
| Buffer CS 70 EB | ||||
| 34 | 447528 | 1.87 | 2.26 | |
| Pull rod CS 70 EB | ||||
| 35 | 487568 | 54.81 | 66.32 | |
| Plate nut CS 70 EB | ||||
| 36 | 448477 | 1.51 | 1.83 | |
| Oval head screw PT-2,5x8-PZV | ||||
| 37 | 400444 | 1.51 | 1.83 | |
| BEARING SHEET CS 70 EB | ||||
| 38 | 448236 | 2.30 | 2.78 | |
| Lock washer Din 6799-3,2 | ||||
| 39 | 222490 | 1.51 | 1.83 | |
| SCALE RIGHT CS 70 EB | ||||
| 40 | 488138 | 19.48 | 23.57 | |
| SCALE LEFT CS 70 EB | ||||
| 41 | 488137 | 15.73 | 19.03 | |
| Adjusting wheel CS 70 EB | ||||
| 42 | 448178 | 2.74 | 3.32 | |
| SAFETY SCREW CS 70 EB M8x25 | ||||
| 43 | 450683 | 1.73 | 2.09 | |
| Handle CS 70 EB | ||||
| 44 | 446974 | 2.09 | 2.53 | |
| HANDLE CS 70 EB COMPLETE | ||||
| 48 | 487569 | 11.29 | 13.66 | |
| FLEXIBLE KNIFE CS 70 EB 2208.006 | ||||
| 49 | 400286 | 11.22 | 13.58 | |
| Catch lever CS 70 EB | ||||
| 50 | 446669 | 4.18 | 5.06 | |
| Collet CS 70 EB | ||||
| 51 | 449122 | 1.51 | 1.83 | |
| Holding plate CS 70 EB COMPLETE | ||||
| 52 | 447789 | 7.70 | 9.32 | |
| Draw spring CS 70 EB | ||||
| 53 | 447263 | 1.58 | 1.91 | |
| Locking lever CS 70 EB | ||||
| 54 | 702066 | 6.55 | 7.93 | |
| Guide CS 70 EB | ||||
| 55 | 488140 | 34.97 | 42.31 | |
| Ch. head screw DIN 912-M6x25-10.9 | ||||
| 56 | 200128 | 1.51 | 1.83 | |
| Upper section o CS 70 EB | ||||
| 57 | 447534 | 1.94 | 2.35 | |
| Hexagon nut DIN 985-M8-04 | ||||
| 58 | 200735 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M8-08 | ||||
| 59 | 200719 | 1.51 | 1.83 | |
| HANDLE DOWN CS 70 EB | ||||
| 60 | 488523 | 2.88 | 3.48 | |
| Hex head cap sc DIN 933-M8x75-8.8 | ||||
| 61 | 400309 | 1.66 | 2.01 | |
| FOOT CS 50 EB | ||||
| 62 | 465883 | 13.07 | 15.81 | |
| Foldaway leg CS 70 EB in front of | ||||
| 63 | 499888 | 93.41 | 113.03 | |
| Rubber foot CS 50 EB | ||||
| 64 | 465163 | 3.60 | 4.36 | |
| Foldaway leg CS 70 ET-BG | ||||
| 65 | 10031146 | 109.26 | 132.20 | |
| Rubber foot CS 50 | ||||
| 66 | 701230 | 5.33 | 6.45 | |
| Portal CS 70 EB | ||||
| 67 | 462420 | 162.50 | 196.62 | |
| Adhesive label CS 70 EB | ||||
| 68 | 448251 | 7.20 | 8.71 | |
| Limit stop CS 70 EB | ||||
| 69 | 448118 | 2.52 | 3.05 | |
| Pin key CS 70 EB SW6 | ||||
| 81 | 450935 | 2.66 | 3.22 | |
| COVER CS 70 EB | ||||
| 82 | 488152 | 55.30 | 66.91 | |
| HOUSING CS 70 EB | ||||
| 83 | 460737 | 30.37 | 36.75 | |
| Cylinder head screw M6 x 20 | ||||
| 84 | 228612 | 1.51 | 1.83 | |
| Flange bushing CS 70 EB | ||||
| 85 | 449159 | 4.18 | 5.06 | |
| Splinterguard CS 70 EB | ||||
| 86 | 448695 | 2.09 | 2.53 | |
| Electronic CS 70 E | ||||
| 93 | 488262 | 140.60 | 170.13 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 96 | 219031 | 7.32 | 8.86 | |
| Extr. connector CS 70 EB | ||||
| 98 | 446588 | 2.88 | 3.48 | |
| No information available, not orderable | ||||
| 99 | xxx | |||
| Oval head screw PT-3,5x25-KT15 | ||||
| 100 | 219068 | 1.51 | 1.83 | |
| CLAMPING FLANGE CS 70 EB | ||||
| 102 | 488151 | 68.24 | 82.57 | |
| Flange bolt CS 70 EB M 8 X 15 LEFT | ||||
| 103 | 446370 | 10.08 | 12.20 | |
| Saucer spring AT 65 E | ||||
| 106 | 444235 | 1.73 | 2.09 | |
| Glide plate CS 70 EB | ||||
| 107 | 450055 | 4.68 | 5.66 | |
| LEVER CS 70 EB | ||||
| 108 | 488149 | 128.99 | 156.08 | |
| GEAR STOP CS 70 EB | ||||
| 109 | 488150 | 24.32 | 29.43 | |
| Oval head screw M4x10-TAPTITE-T15 | ||||
| 110 | 228582 | 1.51 | 1.83 | |
| Circlip SB 32-SEEGER | ||||
| 111 | 219855 | 1.51 | 1.83 | |
| Ball bearing 6002 DDU CM D8 AS2LM | ||||
| 112 | 789595 | 10.08 | 12.20 | |
| SPIL CS 70 ET-BG | ||||
| 113 | 10575127 | 40.29 | 48.75 | |
| BALL BEARING 6004 VV-DIN 625 NSK | ||||
| 114 | 400467 | 19.48 | 23.57 | |
| Toothed belt wh CS 70 EB Z=28 | ||||
| 115 | 445880 | 35.57 | 43.04 | |
| Disc DIN 125-B-10,5-140 HV | ||||
| 116 | 228642 | 1.51 | 1.83 | |
| Safety nut CS 70 EB M10 | ||||
| 117 | 451484 | 1.58 | 1.91 | |
| Hexagon nut M 10 | ||||
| 117 | 434017 | 1.51 | 1.83 | |
| AIR CHANNEL CS 70 EB | ||||
| 118 | 446473 | 9.58 | 11.59 | |
| Felt stripe CS 70 EB | ||||
| 119 | 447962 | 1.58 | 1.91 | |
| MOTOR TOP CS 70 EB | ||||
| 120 | 446469 | 9.43 | 11.41 | |
| Cog belt CS 70 EB | ||||
| 121 | 488135 | 54.93 | 66.47 | |
| Ch. head screw ZUBEH R | ||||
| 122 | 401165 | 1.51 | 1.83 | |
| Driving washer CS 70 EB | ||||
| 123 | 446937 | 1.66 | 2.01 | |
| Toothed belt wh CS 70 EB Z=62 VOLLST. | ||||
| 124 | 445878 | 34.97 | 42.31 | |
| TOP CS 70 EB | ||||
| 125 | 447710 | 7.27 | 8.80 | |
| GEAR WHEEL 3 CS 70 EB Z=18 | ||||
| 126 | 491936 | 30.13 | 36.46 | |
| Circlip DIN 472-35x1,5 | ||||
| 127 | 771483 | 1.51 | 1.83 | |
| Disc 15-20-3,5 | ||||
| 128 | 449203 | 2.59 | 3.13 | |
| Ball bearing 6202 2RS DIN 625 | ||||
| 129 | 789775 | 10.08 | 12.20 | |
| Shaft CS 70 EB | ||||
| 131 | 202846 | 39.93 | 48.32 | |
| Needle bushing BK 1015 | ||||
| 132 | 400254 | 9.14 | 11.06 | |
| Disc CS 70 EB | ||||
| 133 | 446474 | 7.42 | 8.98 | |
| Washer CS 70 EB | ||||
| 134 | 488465 | 12.08 | 14.62 | |
| Circlip DIN 471-24x1,2 | ||||
| 135 | 200414 | 1.51 | 1.83 | |
| Support plate CS 70 EB | ||||
| 137 | 446704 | 7.92 | 9.58 | |
| Ch. head screw DIN 912-M5x18-8.8 | ||||
| 138 | 202824 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M5-08 | ||||
| 139 | 200717 | 1.51 | 1.83 | |
| Board segment CS 70 EB | ||||
| 140 | 446147 | 7.92 | 9.58 | |
| PIVOT INSERT CS 70 EB | ||||
| 141 | 488148 | 116.77 | 141.29 | |
| Oval head screw M4x16-TAPTITE-T15 | ||||
| 142 | 219075 | 1.51 | 1.83 | |
| Tooth segment CS 70 EB | ||||
| 143 | 202847 | 10.94 | 13.24 | |
| Flange bushing 8x10x15x7,5GGB BB0808DP4 | ||||
| 144 | 400253 | 2.16 | 2.61 | |
| CYL.PIN 10 M6x30 DIN 6325 ST | ||||
| 145 | 400097 | 1.58 | 1.91 | |
| Flange bushing 8x10x15x7,5GGB BB0808DP4 | ||||
| 146 | 400253 | 2.16 | 2.61 | |
| Connect. member CS 70 EB | ||||
| 147 | 446146 | 1.66 | 2.01 | |
| SENSOR CS 70 EB COMPLETE | ||||
| 148 | 487467 | 8.57 | 10.37 | |
| sealing ring CS 70 EB | ||||
| 149 | 447750 | 5.11 | 6.18 | |
| BRUSH CS 70 EB 1 PAIR | ||||
| 150 | 488134 | 37.63 | 45.53 | |
| Brush holder CS 70 EB | ||||
| 151 | 488136 | 44.29 | 53.59 | |
| Motor frame CS 70 EB | ||||
| 152 | 446309 | 16.58 | 20.06 | |
| Field coil CS 70 EB 230V | ||||
| 153 | 493503 | 89.42 | 108.20 | |
| Bearing ring AT 55 E | ||||
| 154 | 438613 | 1.51 | 1.83 | |
| BALL BEARING 608 2Z C3 DIN 625 | ||||
| 155 | 228559 | 4.68 | 5.66 | |
| Anker | ||||
| 156 | 11233870 | 205.22 | 248.32 | |
| ARMATURE 230V CS 70 EB 230V | ||||
| 156 | 493504 | 205.22 | 248.32 | |
| BALL BEARING 6300 DDU DIN 625 | ||||
| 157 | 219021 | 11.42 | 13.82 | |
| Air guide washe CS 70 EB | ||||
| 158 | 469886 | 3.46 | 4.19 | |
| Oval head screw PT-5,0x80-KT15 | ||||
| 159 | 400264 | 1.51 | 1.83 | |
| Fan CS 70 | ||||
| 160 | 486880 | 6.70 | 8.11 | |
| O-ring 98x2,5-NBR | ||||
| 161 | 400488 | 1.51 | 1.83 | |
| Oval head screw M5x40-TAPTITE-T15 | ||||
| 162 | 400255 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M8-08 | ||||
| 163 | 200719 | 1.51 | 1.83 | |
| Dowel pin DIN 7346-8x16-ST | ||||
| 164 | 400259 | 1.51 | 1.83 | |
| Toothed belt wh CS 70 EB Z=18 | ||||
| 165 | 445877 | 15.25 | 18.45 | |
| Motor flange CS 70 EB | ||||
| 166 | 451454 | 40.78 | 49.34 | |
| Motor CS 70 EB 230V | ||||
| 167 | 488153 | 429.07 | 519.17 | |
| Lip ring CS 70 EB | ||||
| 168 | 447968 | 2.30 | 2.78 | |
| Housing CS 70 EB | ||||
| 169 | 488154 | 19.36 | 23.43 | |
| GUARD CS 70 E | ||||
| 175 | 459077 | 4.32 | 5.23 | |
| Wire CS 70 EB ASSORTMENT | ||||
| 176 | 488440 | 24.81 | 30.02 | |
| Splinterguard CS 70 EB | ||||
| 178 | 448694 | 3.17 | 3.84 | |
| No information available, not orderable | ||||
| 179 | xxx | |||
| No information available, not orderable | ||||
| 180 | xxx | |||
| Cable clamp RTK-S | ||||
| 181 | 431899 | 1.51 | 1.83 | |
| Spac. wedge pla CS 70 EB | ||||
| 182 | 445927 | 7.27 | 8.80 | |
| Ch. head screw DIN 6912-M8x16-8.8 | ||||
| 183 | 774346 | 1.51 | 1.83 | |
| Riving knife CS 70 | ||||
| 184 | 710662 | 46.10 | 55.78 | |
| RIV.KNIFE HOLD. CS 70 EB | ||||
| 185 | 488158 | 84.82 | 102.63 | |
| Ch. head screw DIN 912-M6x14-8.8 | ||||
| 186 | 209354 | 1.51 | 1.83 | |
| Spac. wedge hol CS 70 EB | ||||
| 187 | 445926 | 14.76 | 17.86 | |
| Flange bushing CS 70 EB | ||||
| 188 | 447555 | 2.30 | 2.78 | |
| Bolt CS 70 EB | ||||
| 190 | 447358 | 2.95 | 3.57 | |
| Connecting rod CS 70 EB | ||||
| 191 | 446528 | 2.09 | 2.53 | |
| Disc CS 70 EB | ||||
| 192 | 447702 | 2.45 | 2.96 | |
| Circlip DIN 471-5x0,6 | ||||
| 193 | 200615 | 1.51 | 1.83 | |
| FLEXIBLE KNIFE CS 70 EB 2208.008 | ||||
| 194 | 400287 | 5.47 | 6.62 | |
| Stop Profile CS 70 ET-BG | ||||
| 202 | 10711280 | 29.28 | 35.43 | |
| GUIDE PROFILE CS 70 EB | ||||
| 203 | 465708 | 31.34 | 37.92 | |
| Clamping plate CS 50 EB | ||||
| 204 | 10023711 | 5.33 | 6.45 | |
| Swivel Section CS 70 EB ET-BG | ||||
| 205 | 10699976 | 43.56 | 52.71 | |
| Swiv. segment CS 70 EB | ||||
| 205 | 448014 | 30.13 | 36.46 | |
| GRADUATED SCALE CS 70 EB | ||||
| 206 | 488156 | 22.63 | 27.38 | |
| Oval head screw M4x6-DUO-TAPTITE-PZV | ||||
| 207 | 400348 | 1.51 | 1.83 | |
| Flat head screw CS 70 EB | ||||
| 208 | 448065 | 4.39 | 5.31 | |
| Disc CS 70 EB | ||||
| 209 | 448471 | 3.60 | 4.36 | |
| Rotary knob D34 Exz.10 blue | ||||
| 210 | 487755 | 9.22 | 11.16 | |
| Rotary knob D34 M6/8T blue | ||||
| 211 | 440713 | 3.10 | 3.75 | |
| Countersink M4x8-TAPTITE-T15 | ||||
| 212 | 219043 | 1.51 | 1.83 | |
| Stud M6x20 DIN 938 5.8 | ||||
| 213 | 464525 | 1.51 | 1.83 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 214 | 200684 | 1.51 | 1.83 | |
| Support device CS 70 EB | ||||
| 215 | 489181 | 27.95 | 33.82 | |
| Dowel pin DIN 7346-5x12-ST | ||||
| 218 | 228692 | 1.51 | 1.83 | |
| Cup square bolt DIN 603-M6x40-4.6 | ||||
| 219 | 228534 | 1.51 | 1.83 | |
| Spacer CS 70 EB | ||||
| 220 | 448066 | 9.29 | 11.24 | |
| Clamp. element CS 70 EB | ||||
| 221 | 488433 | 41.75 | 50.52 | |
| Clamp support CS 70 | ||||
| 222 | 10031568 | 14.52 | 17.57 | |
| Handle CS 70 EB COMPLETE | ||||
| 223 | 487893 | 8.35 | 10.10 | |
| Dowel pin DIN 7346-6x36-ST | ||||
| 224 | 400289 | 1.51 | 1.83 | |
| Spring CS 70 EB B.-NR. VD-164 | ||||
| 225 | 448064 | 2.02 | 2.44 | |
| Rotary knob BASIS 2 D34 M6/11T | ||||
| 226 | 483350 | 7.27 | 8.80 | |
| Guide roll CS 70 EB | ||||
| 230 | 488868 | 42.59 | 51.53 | |
| Roller support CS 70 EB | ||||
| 231 | 488867 | 40.41 | 48.90 | |
| Roll CS 70 EB | ||||
| 232 | 488870 | 30.86 | 37.34 | |
| Car front CS 70 EB | ||||
| 233 | 497195 | 76.84 | 92.98 | |
| Ch. head screw DIN 912-M6x40-8.8 | ||||
| 234 | 228653 | 1.51 | 1.83 | |
| Oval head screw M4x25-TAPTITE-T15 | ||||
| 235 | 400257 | 1.51 | 1.83 | |
| Hex head cap sc DIN 933-M8x60-8.8 | ||||
| 236 | 400382 | 1.51 | 1.83 | |
| Handle CS 70 EB | ||||
| 238 | 487555 | 7.78 | 9.41 | |
| Scale CS 70 EB | ||||
| 239 | 446467 | 13.67 | 16.54 | |
| Knob lever CS 70 EB | ||||
| 240 | 446063 | 9.14 | 11.06 | |
| Draw spring CS 70 EB | ||||
| 242 | 447263 | 1.58 | 1.91 | |
| END STOP CS 70 EB | ||||
| 243 | 449868 | 8.93 | 10.81 | |
| HANDLE CS 70 EB | ||||
| 244 | 449869 | 2.16 | 2.61 | |
| Ch. head screw DIN 912-M5x18-8.8 | ||||
| 245 | 202824 | 1.51 | 1.83 | |
| Eccentric nut CS 70 EB M5 | ||||
| 246 | 449928 | 8.14 | 9.85 | |
| WINDER CS 70 EB | ||||
| 247 | 488159 | 17.30 | 20.93 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 248 | 228541 | 1.51 | 1.83 | |
| Spring washer DIN 137-A-6 | ||||
| 249 | 200588 | 1.51 | 1.83 | |
| Shim ring DIN 988-8x14x0,5 | ||||
| 250 | 400884 | 1.51 | 1.83 | |
| Spindle CS 70 EB | ||||
| 251 | 488271 | 34.97 | 42.31 | |
| Guide CS 70 EB | ||||
| 252 | 446470 | 5.62 | 6.80 | |
| Distance disk CS 70 EB | ||||
| 253 | 446472 | 3.31 | 4.01 | |
| Indicator CS 70 EB | ||||
| 254 | 446468 | 2.59 | 3.13 | |
| Felt insert CS 70 EB | ||||
| 255 | 451917 | 1.51 | 1.83 | |
| Felt insert CS 70 EB | ||||
| 256 | 451918 | 1.51 | 1.83 | |
| Stripper CS 70 EB down | ||||
| 257 | 496821 | 18.39 | 22.25 | |
| Lock washer CS 70 EB | ||||
| 258 | 447961 | 1.94 | 2.35 | |
| Stripper CS 70 EB top | ||||
| 259 | 496820 | 13.67 | 16.54 | |
| Circlip DIN 471-10x1 | ||||
| 260 | 200618 | 1.51 | 1.83 | |
| Roll CS 70 EB | ||||
| 261 | 488869 | 47.67 | 57.68 | |
| Gearwheel CS 70 EB Z=14 | ||||
| 262 | 446072 | 4.10 | 4.96 | |
| Disc CS 70 EB | ||||
| 263 | 447702 | 2.45 | 2.96 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 264 | 228567 | 1.51 | 1.83 | |
| Draw spring CS 70 EB | ||||
| 265 | 447263 | 1.58 | 1.91 | |
| Supporting shel CS 50 EB | ||||
| 266 | 465449 | 10.58 | 12.80 | |
| CYLINDER PIN 6 M6x24 DIN 6325 ST | ||||
| 267 | 400260 | 1.51 | 1.83 | |
| Lever CS 70 EB | ||||
| 268 | 446671 | 2.02 | 2.44 | |
| Disc DIN 7349-4,3-100 HV | ||||
| 269 | 228542 | 1.51 | 1.83 | |
| FLANGE CS 70 EB | ||||
| 270 | 488147 | 27.95 | 33.82 | |
| Carrier CS 70 EB | ||||
| 271 | 497196 | 49.13 | 59.45 | |
| Hexagon nut DIN 934-M8-08 | ||||
| 272 | 200719 | 1.51 | 1.83 | |
| Disc DIN 125-B-8,4-140 HV | ||||
| 273 | 228601 | 1.51 | 1.83 | |
| Workpiece hold CS 70 EB | ||||
| 274 | 450199 | 7.20 | 8.71 | |
| GUARD SUPPORT CS 50 | ||||
| 276 | 492132 | 29.04 | 35.14 | |
