Here you will find all available parts and drawings of the 'Festool 492093 ( CS50VL )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

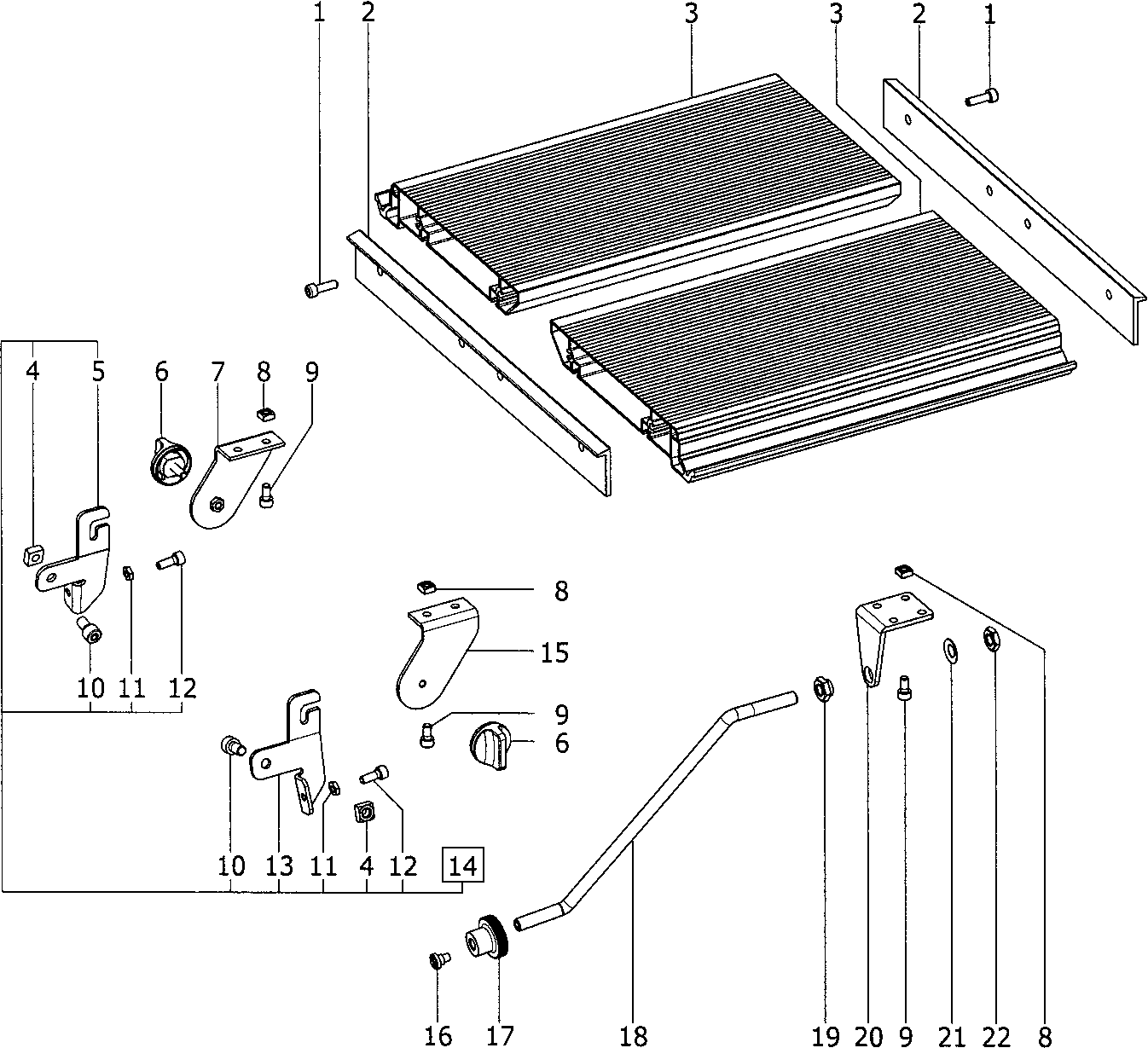

Technical drawing of model Festool 492093 ( CS50VL )
Spare parts list of model Festool 492093 ( CS50VL )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ch. head screw M6x20-TAPTITE | ||||
| 1 | 400343 | 1.39 | 1.68 | |
| Profile CS 50 EB | ||||
| 2 | 463837 | 15.37 | 18.60 | |
| Plate CS 50 EB | ||||
| 3 | 463349 | 52.39 | 63.39 | |
| Square nut DIN 557-M8-05 | ||||
| 4 | 219098 | 1.39 | 1.68 | |
| Support plate CS 50 | ||||
| 5 | 463831 | 9.90 | 11.98 | |
| Rotary knob D34 M6x15,5 blau | ||||
| 6 | 482110 | 2.18 | 2.64 | |
| Holding plate CS 50 | ||||
| 7 | 463833 | 11.07 | 13.39 | |
| Square nut DIN 557-M6-05 | ||||
| 8 | 228566 | 1.39 | 1.68 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 9 | 200684 | 1.39 | 1.68 | |
| Ch. head screw DIN 912-M8x14-8.8 | ||||
| 10 | 228639 | 1.39 | 1.68 | |
| Hexagon nut DIN 439-M6 | ||||
| 11 | 200601 | 1.39 | 1.68 | |
| Ch. head screw DIN 912-M6x16-8.8 | ||||
| 12 | 228664 | 1.39 | 1.68 | |
| Support plate CS 50 | ||||
| 13 | 463834 | 9.90 | 11.98 | |
| FIXING CS 50 VL | ||||
| 14 | 492492 | 27.95 | 33.82 | |
| Holding plate CS 50 | ||||
| 15 | 463832 | 11.42 | 13.82 | |
| Flange bolt CS 70 VB | ||||
| 16 | 448784 | 2.77 | 3.35 | |
| Knob lever CS 50 VB VOLLST. M 10 | ||||
| 17 | 493048 | 2.83 | 3.42 | |
| Support CS 50 VL | ||||
| 18 | 464498 | 30.49 | 36.89 | |
| Flange nut CS 70 VB M10 | ||||
| 19 | 448945 | 3.04 | 3.68 | |
| Board CS 70 VL | ||||
| 20 | 448869 | 7.20 | 8.71 | |
| PLATE SPRING 20x10,2x0,9 | ||||
| 21 | 204996 | 1.39 | 1.68 | |
| Hexagon nut DIN 934-M10-08 | ||||
| 22 | 772975 | 1.39 | 1.68 | |
