Here you will find all available parts and drawings of the 'Festool 492091 ( CS50VB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

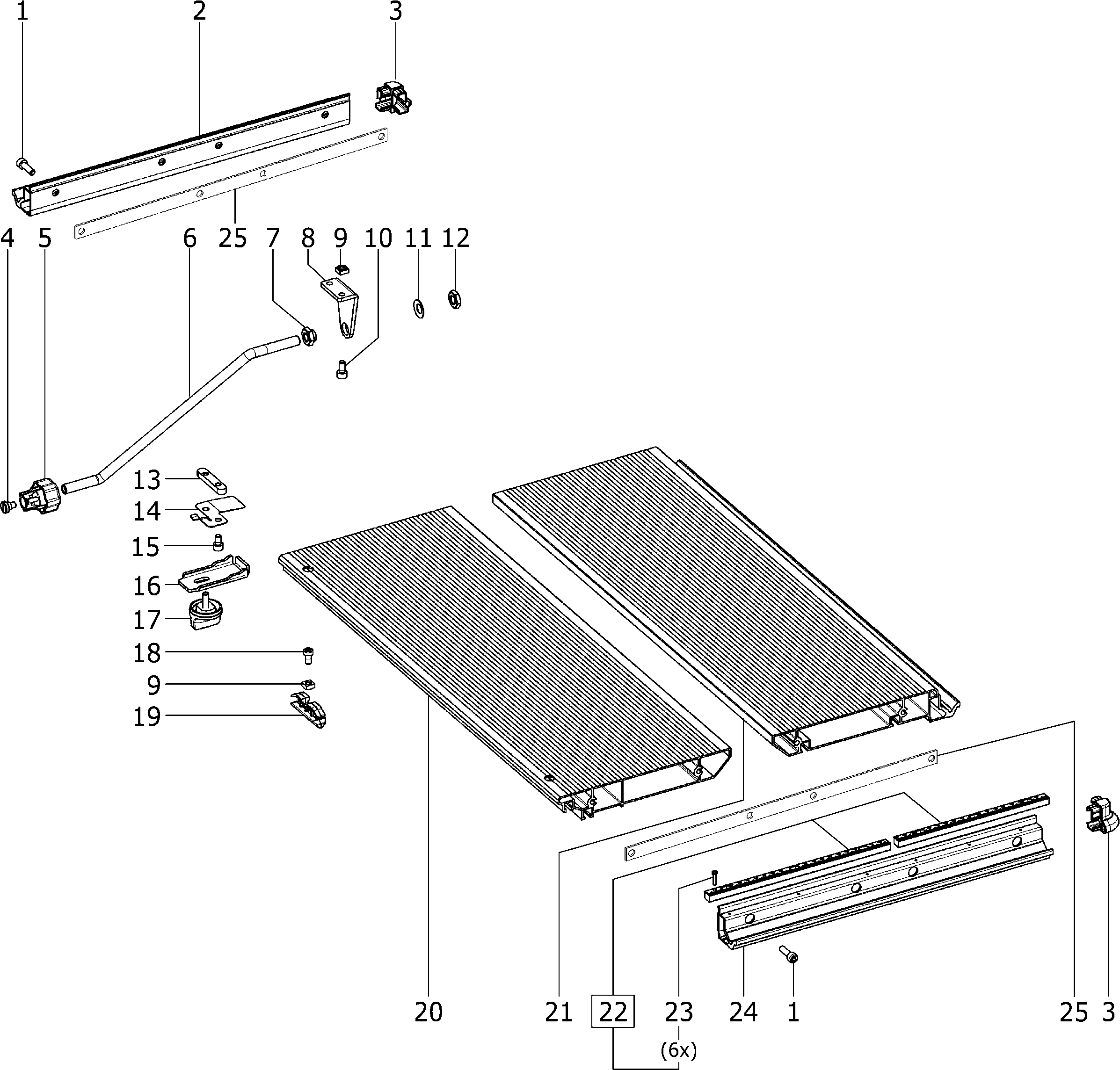

Technical drawing of model Festool 492091 ( CS50VB )
Spare parts list of model Festool 492091 ( CS50VB )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ch. head screw M6x20-TAPTITE | ||||
| 1 | 400343 | 1.39 | 1.68 | |
| Cross section CS 50 VB | ||||
| 2 | 464783 | 48.28 | 58.42 | |
| Clamp support CS 50 EB | ||||
| 3 | 463815 | 6.73 | 8.14 | |
| Flange bolt CS 70 VB | ||||
| 4 | 448784 | 2.77 | 3.35 | |
| Knob lever CS 50 VB VOLLST. M 10 | ||||
| 5 | 493048 | 2.83 | 3.42 | |
| Support CS 50 VB | ||||
| 6 | 463820 | 30.49 | 36.89 | |
| Flange nut CS 70 VB M10 | ||||
| 7 | 448945 | 3.04 | 3.68 | |
| Board CS 70 VB | ||||
| 8 | 448783 | 7.13 | 8.63 | |
| Square nut DIN 557-M6-05 | ||||
| 9 | 228566 | 1.39 | 1.68 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 10 | 200684 | 1.39 | 1.68 | |
| PLATE SPRING 20x10,2x0,9 | ||||
| 11 | 204996 | 1.39 | 1.68 | |
| Hexagon nut DIN 439-M10 | ||||
| 12 | 400342 | 1.39 | 1.68 | |
| Feather key CS 70 VB | ||||
| 13 | 448780 | 8.90 | 10.77 | |
| Spring CS 50 VB | ||||
| 14 | 464877 | 4.42 | 5.35 | |
| Socket head screw DIN 912-M6x10-8.8 | ||||
| 15 | 228547 | 1.39 | 1.68 | |
| Clamp support CS 50 EB | ||||
| 16 | 463815 | 6.73 | 8.14 | |
| Rotary knob D34 M6x15,5 blau | ||||
| 17 | 482110 | 2.18 | 2.64 | |
| Ch. head screw DIN 7984-M6x12-8.8-PR30 | ||||
| 18 | 465131 | 1.39 | 1.68 | |
| Wedge CS 50 | ||||
| 19 | 463814 | 2.51 | 3.04 | |
| Base plate CS 50 ET-BG left | ||||
| 20 | 10703240 | 77.08 | 93.27 | |
| Base plate CS 50 ET-BG right | ||||
| 21 | 10703239 | 87.60 | 106.00 | |
| SCALE CS 50 VB | ||||
| 22 | 492491 | 26.02 | 31.48 | |
| Oval head screw PT-3,0x14-KT10 | ||||
| 23 | 400792 | 1.39 | 1.68 | |
| Cross section CS 50 VB | ||||
| 24 | 463819 | 53.60 | 64.86 | |
| Rail CS 50 | ||||
| 25 | 473192 | 9.11 | 11.02 | |
