Here you will find all available parts and drawings of the 'Festool 10029372 ( CS50LA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

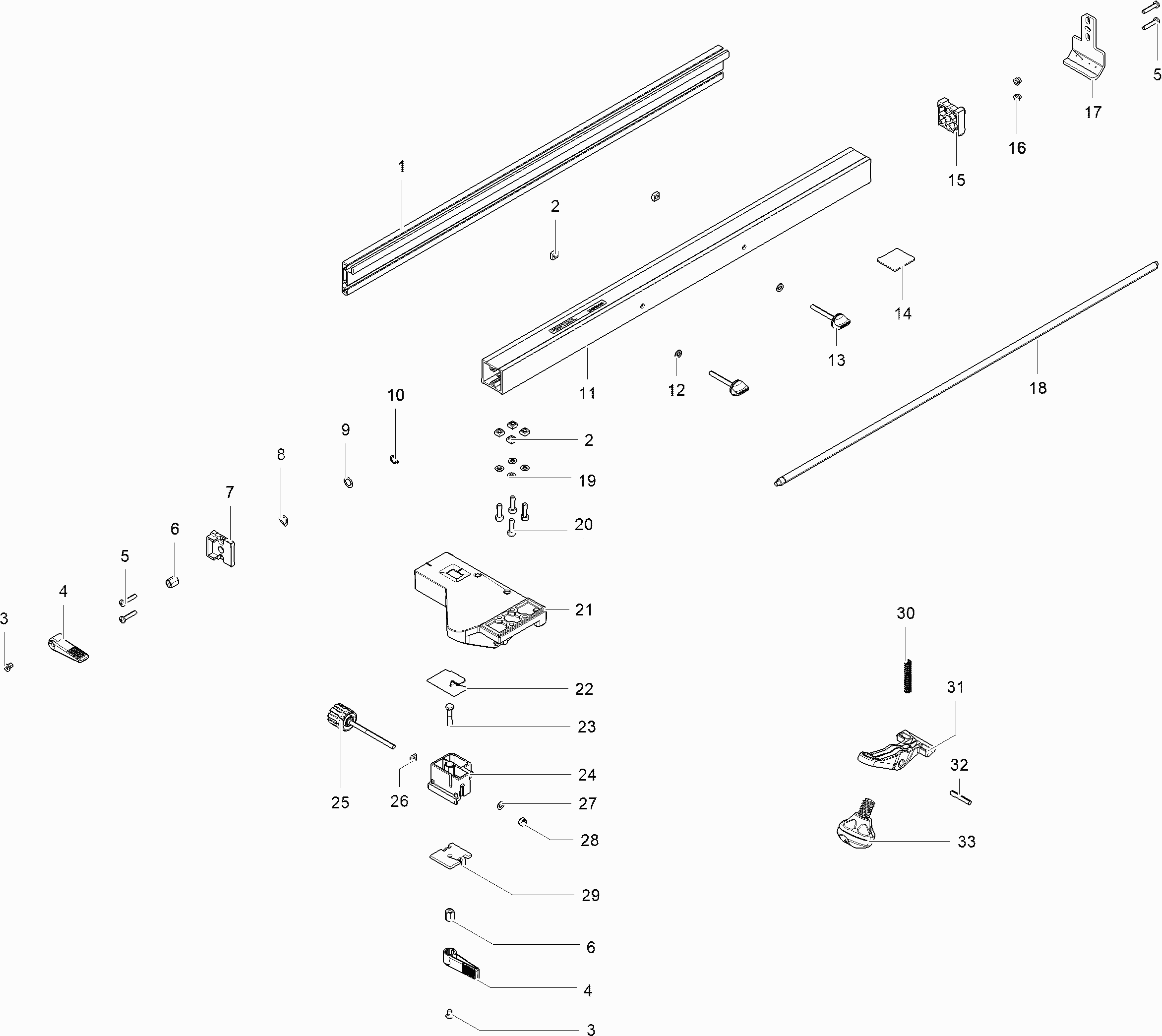

Technical drawing of model Festool 10029372 ( CS50LA )
Spare parts list of model Festool 10029372 ( CS50LA )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Length stop CS 50 ET-BG | ||||
| 1 | 10703142 | 33.52 | 40.56 | |
| Stop profile CS 50 LA | ||||
| 1 | 10023707 | 31.82 | 38.50 | |
| Square nut DIN 557-M6-05 | ||||
| 2 | 228566 | 1.39 | 1.68 | |
| Countersink DIN 965-M6x10-4.8-PR30 | ||||
| 3 | 402365 | 1.39 | 1.68 | |
| Lever AP 55 E | ||||
| 4 | 438944 | 1.51 | 1.83 | |
| Oval head screw M5x25-TAPTITE-T15 | ||||
| 5 | 228516 | 1.39 | 1.68 | |
| Nut CS 70 | ||||
| 6 | 450190 | 6.47 | 7.83 | |
| Locking cap CS 70 LA IN FRONT OF | ||||
| 7 | 449867 | 1.58 | 1.91 | |
| Compens. washer 10,5x15,8x0,3 L+MN 1100 | ||||
| 8 | 400277 | 1.39 | 1.68 | |
| Shim ring DIN 988-10x16x0,5 | ||||
| 9 | 219111 | 1.39 | 1.68 | |
| Circlip DIN 471-10x1 | ||||
| 10 | 200618 | 1.39 | 1.68 | |
| Square Profile CS 50 ET-BG | ||||
| 11 | 10703238 | 49.97 | 60.46 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 12 | 200578 | 1.39 | 1.68 | |
| Rotary knob CS 50 D 23 M6x48 blau | ||||
| 13 | 450573 | 3.10 | 3.75 | |
| Crosshd. guide CS 50 LA | ||||
| 14 | 472661 | 2.45 | 2.96 | |
| cover cap CS 70 LA BEHIND | ||||
| 15 | 450090 | 3.10 | 3.75 | |
| Distance bush CS 70 LA | ||||
| 16 | 450194 | 1.85 | 2.24 | |
| Clamp support CS 70 LA BEHIND | ||||
| 17 | 10033109 | 12.22 | 14.79 | |
| Eccentric shaft CS 50 LA | ||||
| 18 | 464515 | 34.12 | 41.29 | |
| Lock washer 6x10x0,7 Nr.08470108 | ||||
| 19 | 450948 | 1.39 | 1.68 | |
| Cylinder head screw M6 x 20 | ||||
| 20 | 228612 | 1.39 | 1.68 | |
| Clamp Piece CS 70 ST LA ET-BG | ||||
| 21 | 10711282 | 39.20 | 47.43 | |
| Cover CS 70 LA | ||||
| 22 | 450189 | 6.73 | 8.14 | |
| Hex head cap sc DIN 933-M6x30-8.8 | ||||
| 23 | 772794 | 1.39 | 1.68 | |
| Clamp rider CS 70 LA | ||||
| 24 | 449884 | 14.88 | 18.00 | |
| Spindle CS 70 LA COMPLETE | ||||
| 25 | 488327 | 27.59 | 33.38 | |
| Square nut DIN 562-M6-11H | ||||
| 26 | 452453 | 1.39 | 1.68 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 27 | 200578 | 1.39 | 1.68 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 28 | 228541 | 1.39 | 1.68 | |
| Clamping plate CS 70 LA | ||||
| 29 | 450149 | 4.03 | 4.88 | |
| Spring CS 70 EB B.-NR. VD-164 | ||||
| 30 | 448064 | 1.85 | 2.24 | |
| Clamp support CS 70 | ||||
| 31 | 10031568 | 14.16 | 17.13 | |
| Dowel pin DIN 7346-6x36-ST | ||||
| 32 | 400289 | 1.39 | 1.68 | |
| Handle CS 70 EB COMPLETE | ||||
| 33 | 487893 | 7.66 | 9.27 | |
| No information available, not orderable | ||||
| 9999 | xxx | |||
