Festool Cs 50 Eb 230V spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 491966 (CS50EB230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

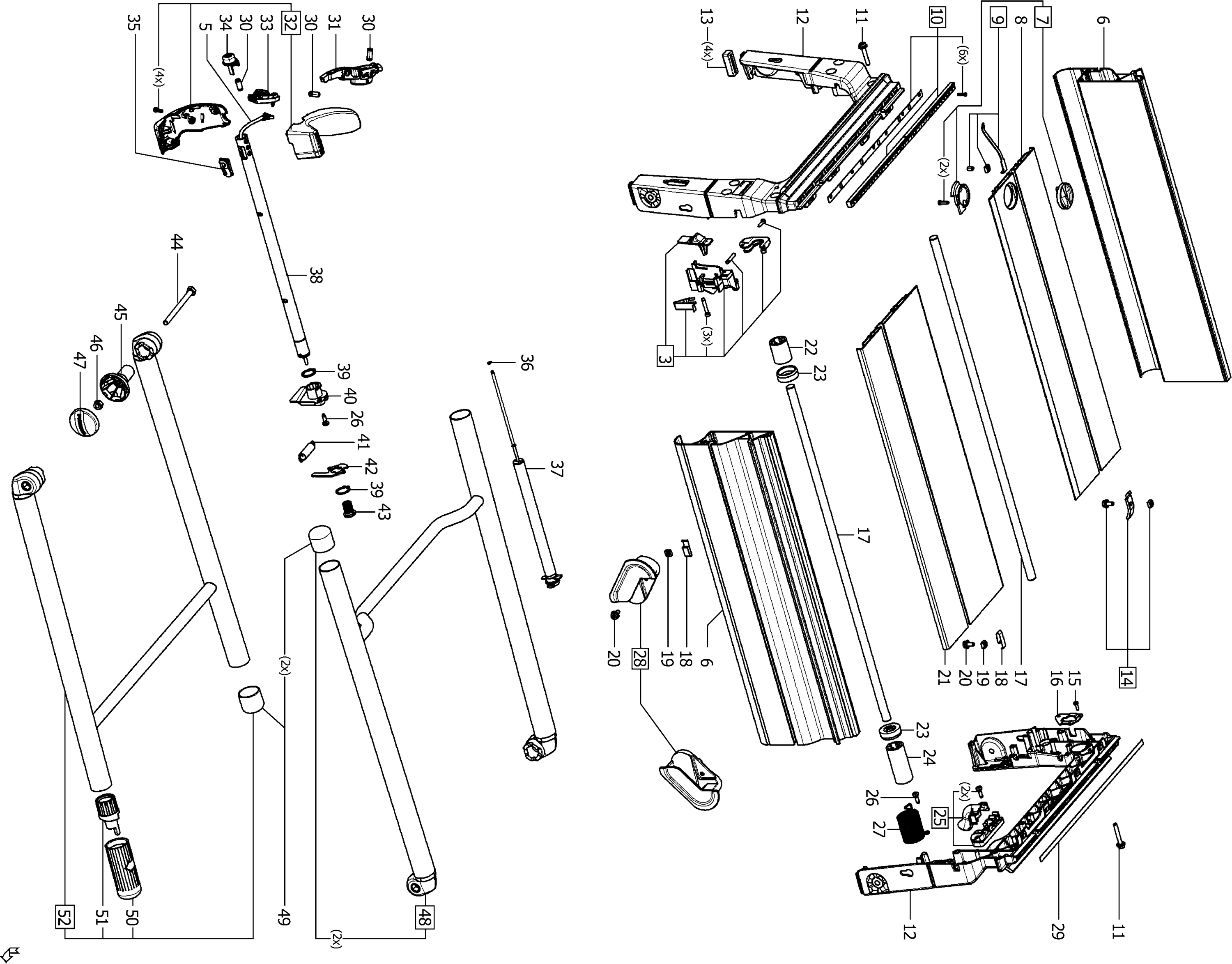

Technical drawing of model Festool 491966 (CS50EB230V)

Spare parts list of model Festool 491966 (CS50EB230V)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Armature CS 50 EB 230V
1	205200	130.92	158.41

Stator TS 55 EBQ
2	491713	64.13	77.60

SWITCH CS 50 EB
3	492254	54.93	66.47

No information available, not orderable
4	466680

Trailing cable CS 50 EB LIYY USA
5	464736	24.32	29.43

Side wall CS 50 EB
6	463205	98.86	119.62

FLANGE CS 50 EB
7	492257	18.39	22.25

Table top inser CS 50 EB
8	463169	69.21	83.74

SPRING CS 50 EB
9	492259	13.67	16.54

Scale CS 50 EB ET-BG
10	492256	27.10	32.79

Oval head screw CS 50-M6x40-DUO-TAPTITE
11	401137	1.51	1.83

Portal CS 50
12	10029970	89.90	108.78

Rubber foot CS 50 EB
13	492255	18.15	21.96

SPRING CS 50 EB
14	492258	13.55	16.40

Screw TS 55 DG 40x12
15	400691	1.51	1.83

BEARING SHEET CS 70 EB
16	448236	2.30	2.78

Axis CS 50 ET-BG
17	10711272	49.61	60.03

Spring CS 70 EB fixIER
18	447262	1.51	1.83

Square nut DIN 557-M6-05
19	228566	1.51	1.83

Allen screw CS 70 EB M6X12 SG-RIPP
20	449888	1.51	1.83

Base plate CS 50 EBG ET-BG
21	10703146	68.12	82.43

Collet CS 50 EB
22	464027	2.02	2.44

Damper CS 50
23	465528	3.02	3.65

Collet CS 50 EB
24	464028	2.30	2.78

CABLE CLAMP CS 50 EB
25	492262	14.16	17.13

Screw CS 50 DG 50x16
26	400709	1.51	1.83

Draw spring CS 50 EB
27	465456	11.75	14.22

Cable holder. CS 50 EB ET-BG
28	492260	14.28	17.28

Adhesive label CS 50
29	463724	4.46	5.40

Compr. spring CS 50 EB
30	463590	1.51	1.83

Switch mechanis CS 50 EB
31	492117	7.20	8.71

HANDLE CS 50 EB
32	492250	15.61	18.89

Switch modul CS 50 EB ET-BAUGRUPPE
33	492274	54.09	65.45

Button CS 50 EB
34	463673	1.51	1.83

Connect. member CS 50 EB
35	463918	13.43	16.25

Lock washer Din 6799-3,2
36	222490	1.51	1.83

ABSORBING SPRIN CS 50
37	491760	33.28	40.27

Pipe CS 50
38	463522	56.39	68.23

Circlip DIN 471-20x1,2
39	200352	1.51	1.83

Flange CS 50
40	463260	5.54	6.70

Draw spring CS 50 EB
41	464031	3.74	4.53

Board CS 50 EB
42	464030	1.87	2.26

No information available, not orderable
43	463180

Hex head cap sc DIN 933-M8x100-8.8
44	464713	1.58	1.91

HANDLE DOWN CS 50 EB
45	492148	4.75	5.75

Hexagon nut DIN 985-M8-04
46	200735	1.51	1.83

Upper section o CS 70 EB
47	447534	1.94	2.35

Folding Leg CS 50 ET-BG
48	10703079	79.01	95.60

Foldaway leg Klappbein
48	10195127	78.53	95.02

Rubber foot CS 50 EB
49	465163	3.60	4.36

FOOT CS 50 EB
50	465883	13.07	15.81

Adjusting wheel CS 70 EB
51	448178	2.74	3.32

Folding Leg CS 50 ET-BG
52	10703045	90.27	109.23

Foldaway leg CS 50
52	10198251	89.66	108.49

No information available, not orderable
53	xxx

Screw CS 50 DG 50X30
54	401038	1.51	1.83

Plunger CS 50
55	463934	1.51	1.83

Seal CS 50
56	463933	2.52	3.05

ELECTRONIC CS 50 EB 230V UMBAUSATZ
57	493785	169.88	205.55

Oval head screw PT-4,0x16-KT15
58	228713	5.94	7.19

Cable clamp SYMMETRIC 70
59	761618	1.51	1.83

CONTACT CS 50 EB
60	463936	33.28	40.27

GUARD SUPPORT CS 50
61	492132	29.04	35.14

Ch. head screw DIN 6912-M8x16-8.8
62	774346	1.51	1.83

Spac. wedge pla CS 50 EB
63	463751	3.38	4.09

Riving knife CS 50 EB
64	463201	24.68	29.86

Ch. head screw DIN 6912-M8x35-8.8
65	400735	1.51	1.83

Spac. wedge hol CS 50 EB
66	492010	17.55	21.24

Adjustment shee CS 50 EB ET-BG
67	492307	14.40	17.42

Glide plate CS 50 EB
68	463197	2.16	2.61

Hexagon nut DIN 934-M8-08
69	200719	1.51	1.83

Lever CS 50 EB
70	470064	3.02	3.65

Clamping nut CS 50 M14x1 LI. BEDRUCKT
71	465326	54.45	65.88

Flange CS 50
72	463195	8.86	10.72

Gear cover CS 50 EB
73	202487	28.31	34.26

Ball bearing 6002 DDU CM D8 AS2LM
74	789595	10.08	12.20

ROLLER BEARING 607 Z DIN 625
75	401518	9.36	11.33

Circlip DIN 472-32x1,2
76	401246	1.51	1.83

Gear shaft CS 50 EB Z=44
77	465606	62.56	75.70

Seal CS 50
78	463990	2.45	2.96

Gear housing CS 50 EB ET-BG
79	492321	84.58	102.34

Oval head screw PT-4,0x70-KT15
80	442415	1.51	1.83

Ball bearing 6001 DDU CM D8SSM
81	401576	8.21	9.93

Circlip DIN 471-12x1
82	200619	1.51	1.83

Fan CS 50 EB
83	463280	4.75	5.75

Air conduction CS 50
84	463512	2.66	3.22

Ball bearing 608 Z1D1 MC5E D8SL
85	400626	5.83	7.05

BALL BEARING 608 2Z C3 DIN 625
85	228559	4.68	5.66

MOTOR HOUSING CS 50 EB
86	463199	11.22	13.58

TACHO TS 55 EBQ
87	491723	29.04	35.14

BRUSH TS 55 EBQ
88	491704	17.30	20.93

Oval head screw PT-3,5x8-T15
89	219047	1.51	1.83

Case lid CS 50
90	463200	9.00	10.89

PTC resistor ET-BG
91	491722	21.05	25.47

COVER CS 50 EB
92	492249	27.59	33.38

HOOD CS 50
93	463190	17.79	21.53

Slide CS 50
94	463350	3.67	4.44

Oval head screw M4x14-TAPTITE-KT15
95	445566	14.59	17.65

Board CS 50 EB
96	463299	1.51	1.83

Supporting shel CS 50 EB
97	465449	10.58	12.80

Restrictor CS 50
98	10023855	24.44	29.57

Knob lever CS 50
99	463178	10.87	13.15

Hexagon nut DIN 985-M6-04
100	228541	1.51	1.83

Disc DIN 125-B-6,4-140 HV
101	200578	1.51	1.83

WINDER CS 70 EB
102	488159	17.30	20.93

Disc CS 70 EB
103	447790	1.51	1.83

Rotary knob Basis Plus D 40 M8 5+12T
104	483162	5.90	7.14

Cover CS 50 BEDRUCKT
105	491925	9.29	11.24

Indicator CS 50
106	463181	1.87	2.26

PUSHER CS 50 EB
107	492248	21.54	26.06

End stop CS 50 EB
108	463281	4.90	5.93

Collet CS 50 EB
109	463400	11.42	13.82

Gearwheel CS 50 EB Z=14
110	463179	8.14	9.85

Hex head cap sc DIN 931-M8x110-8.8
111	400734	1.58	1.91

DEPTH ADJUSTM. CS 50 EB
112	492253	32.31	39.10

Guide rail CS 50
113	463189	2.02	2.44

Clamping plate CS 50 EB
114	463251	2.66	3.22

Sliding block CS 50
115	463176	2.45	2.96

Circlip DIN 471-18x1,2
116	400788	1.51	1.83

PIVOT INSERT CS 50 EB
117	492322	103.21	124.88

Closure CS 50
118	463725	3.67	4.44

CLIP CS 50 EB
119	464456	1.58	1.91

Carrier CS 50 EB
120	202485	94.99	114.94

Bearing sleeve CS 50 EB ET-BG
121	492251	75.38	91.21

Guide tube CS 50 EB
122	202486	42.83	51.82

Rotary knob D34 Exz.10 blue
123	487755	9.22	11.16

Rotary knob D34 M6/8T blue
124	440713	3.10	3.75

Stud M6x20 DIN 938 5.8
125	464525	1.51	1.83

Disc DIN 9021-6,4-100 HV
126	228546	1.51	1.83

Countersink M4x8-TAPTITE-T15
127	219043	1.51	1.83

Ch. head screw DIN 912-M6x12-10.9
128	200684	1.51	1.83

Support device CS 70 EB
129	489181	27.95	33.82

Dowel pin DIN 7346-5x12-ST
130	228692	1.51	1.83

Cup square bolt DIN 603-M6x40-4.6
131	228534	1.51	1.83

Spacer CS 70 EB
132	448066	9.29	11.24

Clamp. element CS 70 EB
133	488433	41.75	50.52

Clamp support CS 70
134	10031568	14.52	17.57

Handle CS 70 EB COMPLETE
135	487893	8.35	10.10

Disc CS 70 EB
136	448471	3.60	4.36

Flat head screw CS 70 EB
137	448065	4.39	5.31

Oval head screw M4x6-DUO-TAPTITE-PZV
138	400348	1.51	1.83

GRADUATED SCALE CS 70 EB
139	488156	22.63	27.38

Swivel Section CS 70 EB ET-BG
140	10699976	43.56	52.71

Swiv. segment CS 70 EB
140	448014	30.13	36.46

Clamping plate CS 50 EB
141	10023711	5.33	6.45

Guide profile CS 50 ET-BG
142	10703236	29.77	36.02

Stop profile CS 50 ET-BG
143	10711276	26.38	31.92

Dowel pin DIN 7346-6x36-ST
144	400289	1.51	1.83

Rotary knob BASIS 2 D34 M6/11T
145	483350	7.27	8.80

Spring CS 70 EB B.-NR. VD-164
146	448064	2.02	2.44

No information available, not orderable
147	202346

Hose Ø 27 x 2 M
148	459250	45.13	54.61

Hose clamp CS 70 EB
149	450158	2.02	2.44

Workpiece hold CS 70 EB
150	450199	7.20	8.71

REDUCING SLEEVE D 36 MUFFE
151	452358	25.29	30.60

Hose CT D36x1,5M
152	459251	43.92	53.14

Y-PIECE CS 70 EB
153	450575	25.05	30.31
