Here you will find all available parts and drawings of the 'Festool 492270 ( CS50AF )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

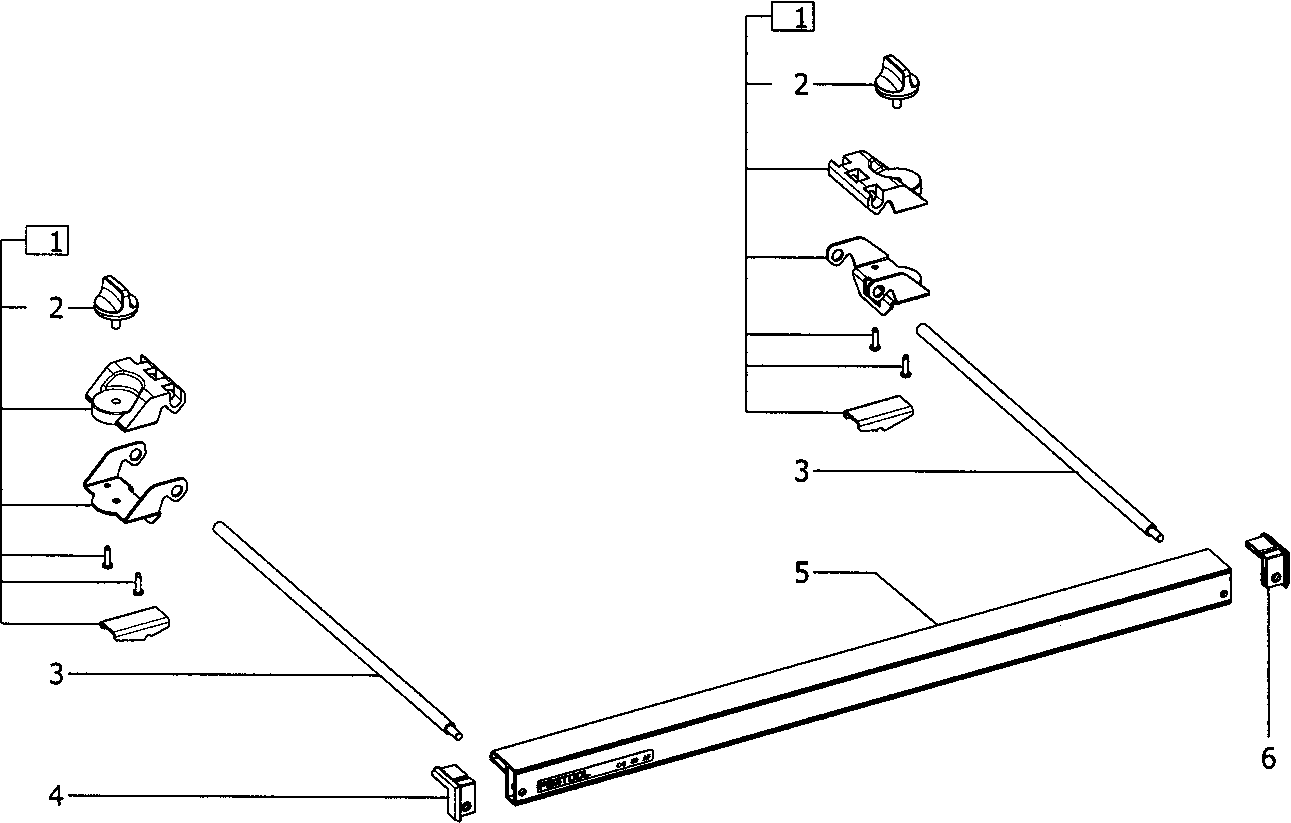

Technical drawing of model Festool 492270 ( CS50AF )
Spare parts list of model Festool 492270 ( CS50AF )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CLAMPING PART CS 50 AF | ||||
| 1 | 492498 | 27.95 | 33.82 | |
| Rotary knob OF1400EBQ D34 M6x17,4bla | ||||
| 2 | 462668 | 3.62 | 4.38 | |
| Rod CS 50 AF | ||||
| 3 | 464787 | 14.52 | 17.57 | |
| Plug PA-TS 55 | ||||
| 4 | 621577 | 1.51 | 1.83 | |
| PROFILE RAIL CS 50 AF | ||||
| 5 | 464788 | 43.44 | 52.56 | |
| Plug PA-TS 55 | ||||
| 6 | 621527 | 1.51 | 1.83 | |
