Here you will find all available parts and drawings of the 'Festool 495530 (CMS-VB)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

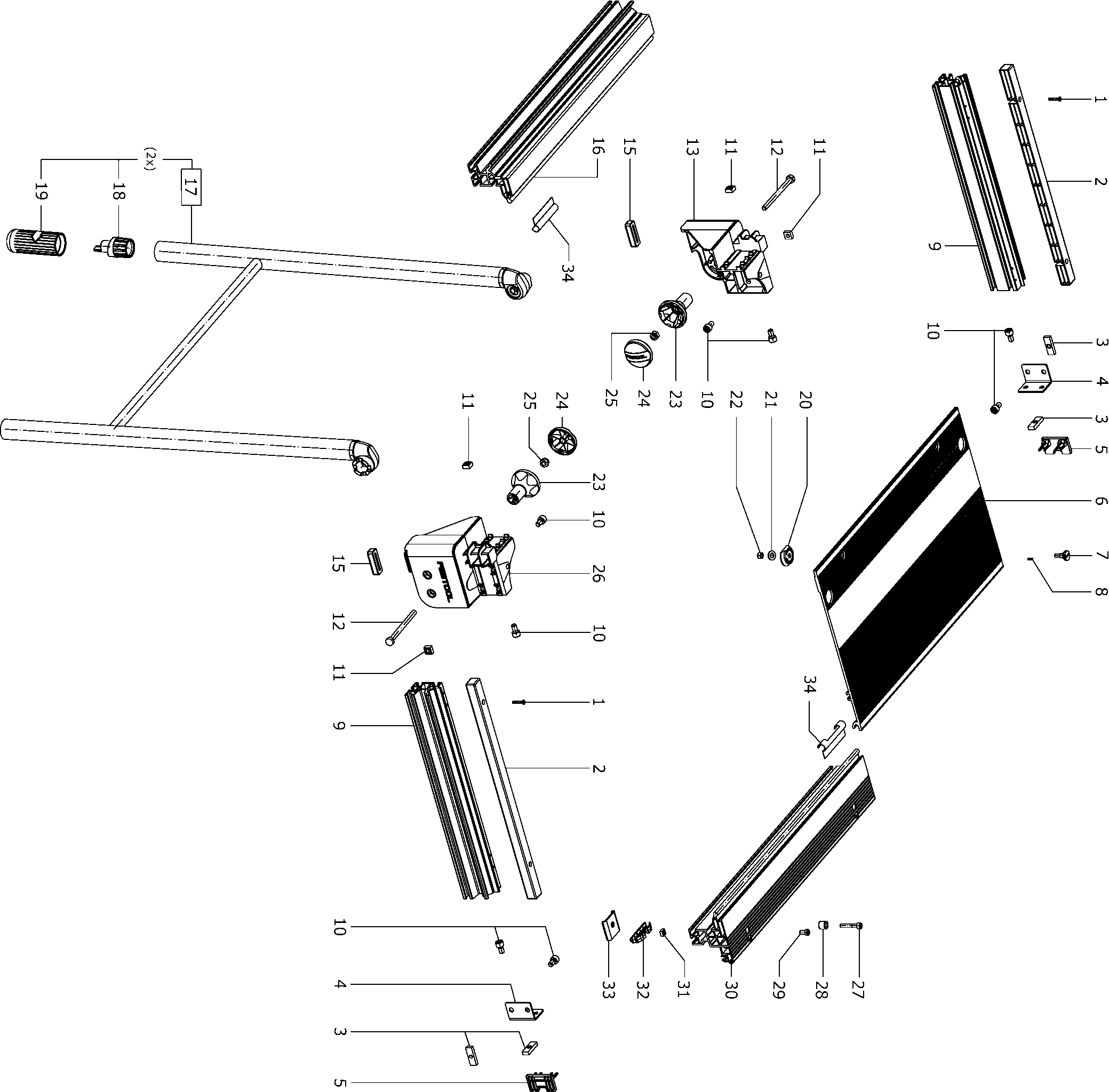

Technical drawing of model Festool 495530 (CMS-VB)
Spare parts list of model Festool 495530 (CMS-VB)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Countersink DIN 963-M4x22-4.8 | ||||
| 1 | 403231 | 1.51 | 1.83 | |
| Cover VL-MFT/3 RECHTS | ||||
| 2 | 474888 | 5.47 | 6.62 | |
| SPRING FS-RAPID | ||||
| 3 | 455488 | 7.70 | 9.32 | |
| Corner joint VL-MFT/3 | ||||
| 4 | 473612 | 7.85 | 9.50 | |
| Distance plate MFT/3-VL | ||||
| 5 | 475748 | 3.17 | 3.84 | |
| Profile plate CMS-VB | ||||
| 6 | 495528 | 159.24 | 192.68 | |
| BOLT BASIS 4 | ||||
| 7 | 437177 | 24.20 | 29.28 | |
| Dowel pin DIN 7343-2x8-ST | ||||
| 8 | 227448 | 1.51 | 1.83 | |
| Profile VL-MFT/3 | ||||
| 9 | 473200 | 53.85 | 65.16 | |
| Ch. head screw DIN 912-M8x14-8.8 | ||||
| 10 | 228639 | 1.51 | 1.83 | |
| Square nut DIN 557-M8-05 | ||||
| 11 | 219098 | 1.51 | 1.83 | |
| Hex head cap sc DIN 933-M8x100-8.8 | ||||
| 12 | 464713 | 1.58 | 1.91 | |
| Voet | ||||
| 13 | 10988299 | 28.80 | 34.85 | |
| Angle base MFT/3 left | ||||
| 13 | 472861 | 27.71 | 33.53 | |
| Rubber foot CS 50 EB | ||||
| 15 | 492255 | 18.15 | 21.96 | |
| Profile VL-MFT/3 | ||||
| 16 | 473600 | 66.31 | 80.24 | |
| Folding leg VB-MFT 3 complete | ||||
| 17 | 10746399 | 118.58 | 143.48 | |
| Foldaway leg CMS-VB | ||||
| 17 | 495461 | 117.85 | 142.60 | |
| Adjusting wheel CS 70 EB | ||||
| 18 | 448178 | 2.74 | 3.32 | |
| FOOT CS 50 EB | ||||
| 19 | 465883 | 13.07 | 15.81 | |
| FLANGE BASIS 4 | ||||
| 20 | 437176 | 2.16 | 2.61 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 21 | 200578 | 1.51 | 1.83 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 22 | 228541 | 1.51 | 1.83 | |
| HANDLE DOWN CS 50 EB | ||||
| 23 | 492148 | 4.75 | 5.75 | |
| Upper section o CS 70 EB | ||||
| 24 | 447534 | 1.94 | 2.35 | |
| Hexagon nut DIN 985-M8-04 | ||||
| 25 | 200735 | 1.51 | 1.83 | |
| Voet | ||||
| 26 | 10988297 | 28.80 | 34.85 | |
| Angle base MFT/3 right | ||||
| 26 | 472860 | 27.71 | 33.53 | |
| Ch. head screw DIN 912-M6x40-8.8 | ||||
| 27 | 228653 | 1.51 | 1.83 | |
| Bush GGB 061210 BP25 | ||||
| 28 | 474741 | 4.10 | 4.96 | |
| Ch. head screw DIN 7984-M6x12-8.8-PR30 | ||||
| 29 | 465131 | 1.51 | 1.83 | |
| Profile CMS-VB | ||||
| 30 | 473514 | 103.82 | 125.62 | |
| Square nut DIN 557-M6-05 | ||||
| 31 | 228566 | 1.51 | 1.83 | |
| Wedge CS 50 | ||||
| 32 | 463814 | 2.88 | 3.48 | |
| Lug support VL-MFT/3 | ||||
| 33 | 473614 | 10.44 | 12.63 | |
| DAMPING STRIP BASIS PLUS VOLLST. | ||||
| 34 | 485333 | 16.46 | 19.92 | |
