Festool Cms-Of spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 494836 (CMS-OF)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

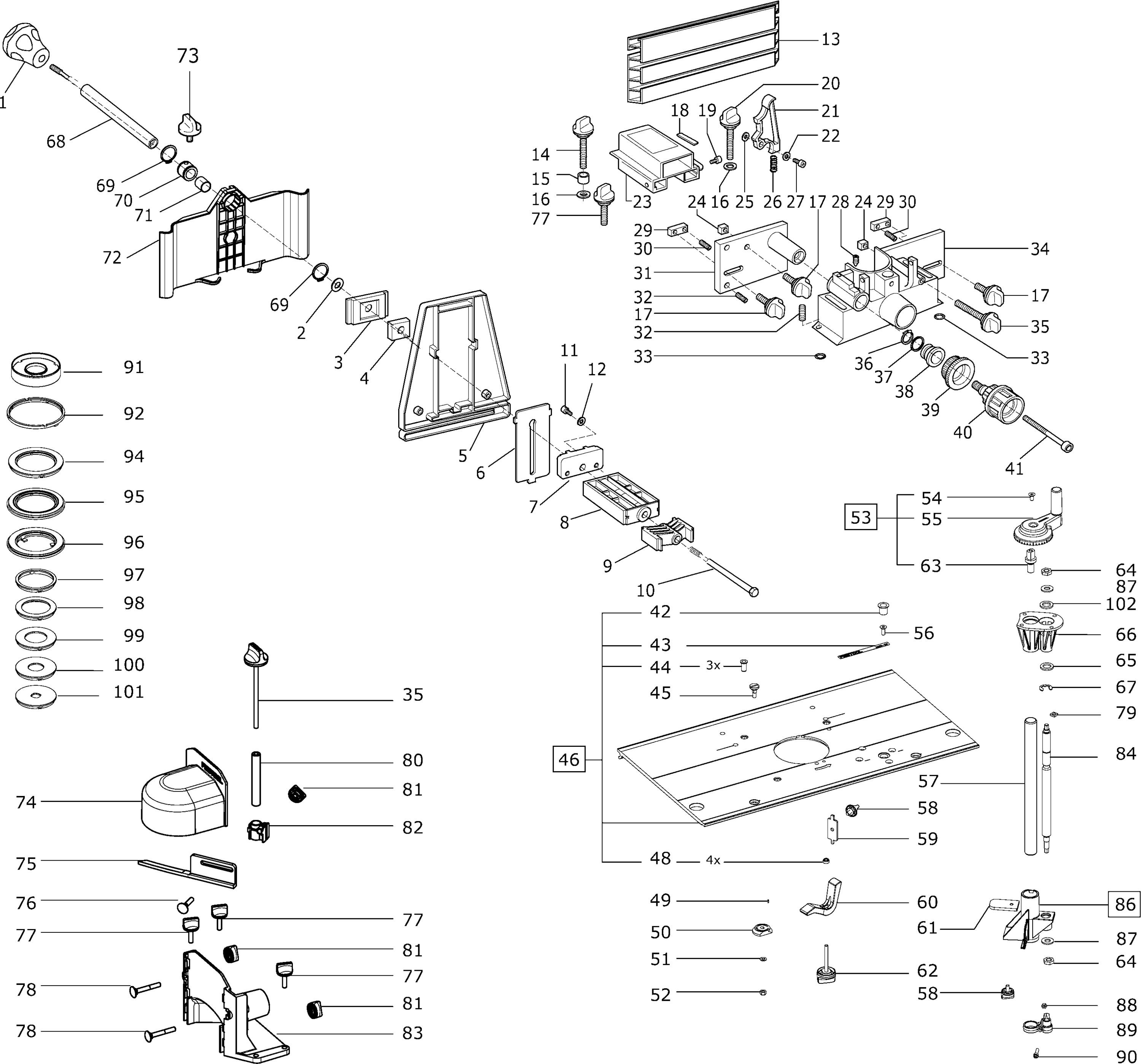

Technical drawing of model Festool 494836 (CMS-OF)

Spare parts list of model Festool 494836 (CMS-OF)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Handle CS 70 EB
1	487555	7.78	9.41

Disc DIN 9021-8,4-100 HV
2	219049	1.51	1.83

Head piece BASIS 5 A
3	457150	5.62	6.80

Joint piece BASIS 5 A
4	443148	1.87	2.26

Joint piece BASIS 5 A
5	442771	26.86	32.50

Cover BASIS 5 A
6	457859	12.80	15.49

Plate BASIS 5 A
7	457151	5.62	6.80

Slip piece BASIS 5 A
8	442772	6.34	7.67

Clamping elemen BASIS 5 A
9	442754	4.90	5.93

Ventilation scr CMS
10	496214	41.14	49.78

Oval head screw PT-4,0x12-KT15
11	219071	1.51	1.83

Disc DIN 125-A-4,3-140 HV
12	200576	1.51	1.83

RULER BASIS 5 A
13	463100	50.70	61.35

Rotary knob D34 M6x95 blau
14	485666	8.78	10.62

Distance bush BASIS 5 A
15	442202	5.11	6.18

Disc DIN 9021-6,4-100 HV
16	228546	1.51	1.83

Rotation knob CS 70
17	10734068	2.18	2.64

SUPPORT RSM-EA
18	436021	1.51	1.83

Shoulder screw DIN 927-M5x8-5.8
19	228765	1.51	1.83

Rotary knob D34 M6x70 blau
20	485665	8.42	10.19

RATCHET BASIS 5 A
21	442777	1.58	1.91

Disc DIN 7349-4,3-100 HV
22	228542	1.51	1.83

Cover BASIS 5 A
23	486331	78.17	94.59

NUT BASIS 5 A
24	442207	4.03	4.88

Disc DIN 125-B-6,4-140 HV
25	200578	1.51	1.83

Compression spr ST-300
26	216897	1.94	2.35

Oval head screw DIN 7985-M4x8-4.8
27	203806	1.51	1.83

Grub screw DIN 914-M6x8-45H
28	772439	1.51	1.83

NUT BASIS 5 A
29	466335	7.99	9.67

Grub screw DIN 551-M6x12-14H
30	442597	1.51	1.83

Plate BASIS
31	10012647	60.86	73.64

Grub screw DIN 551-M8x10-PA6.6
32	400618	1.51	1.83

O-ring 5x2-NBR-70SHORE
33	204551	1.51	1.83

HOUSING GH-BASIS 5
34	486654	138.06	167.05

Rotary knob D34 M6x111blau
35	485667	7.92	9.58

Circlip DIN 471-20x1,2
36	200352	1.51	1.83

Shim ring DIN 988-20x28x1,5
37	228760	1.51	1.83

Bush BASIS 5 A
38	442204	20.21	24.45

SCALE RING BASIS 5 A
39	442203	6.55	7.93

Adjusting wheel CMS-OF ET-BG
40	10465965	82.04	99.27

Ch. head screw DIN 912-M6x90-8.8
41	228764	1.51	1.83

Bush IGUS GFM-1214-17
42	473748	10.87	13.15

No longer available, no replacement
43	473804

Adapter CMS-OF
44	10004928	5.04	6.10

BOLT BASIS 4
45	437177	24.20	29.28

No longer available, no replacement
46	495303

NUT BASIS 6 PEM-S-M6-2
48	455808	1.51	1.83

Dowel pin DIN 7343-2x8-ST
49	227448	1.51	1.83

FLANGE BASIS 4
50	437176	2.16	2.61

Disc DIN 125-B-6,4-140 HV
51	200578	1.51	1.83

Hexagon nut DIN 985-M6-04
52	228541	1.51	1.83

Crank CMS-OF ET-BG
53	495304	47.67	57.68

Countersink DIN 7991-M6x12-8.8
54	401022	1.51	1.83

Crank CMS-OF
55	495095	10.08	12.20

Countersink DIN 7991-M6x16-8.8
56	400990	1.51	1.83

Support CMS-OF
57	473331	28.31	34.26

Button KF 4 E D 23 M6x10 blau
58	436195	1.80	2.18

Adjustment shee CMS-OF
59	473344	6.26	7.57

Clamping suppor CMS-OF
60	473323	11.35	13.73

Guide plate CMS-OF
61	473343	8.42	10.19

Rotary knob D34 M6x55 blau
62	494878	2.38	2.88

Crankshaft CMS-OF
63	473547	27.23	32.95

Hexagon nut DIN 439-M10x1-LH-PR87
64	401020	4.10	4.96

Disc DIN 433-15-140 HV
65	400991	1.51	1.83

Bearing CMS-OF
66	473334	6.70	8.11

Lock washer DIN 6799-12
67	400992	1.51	1.83

GUIDE TUBE BASIS 5 A
68	465522	25.17	30.46

Circlip DIN 471-25x1,2
69	400636	1.51	1.83

Bush BASIS 5 A
70	465524	14.88	18.00

Bushing 15x17x20 GGB 1520 DP4
71	471691	10.66	12.90

CHIP FLIGHT PRO BASIS 5 A
72	464655	13.13	15.89

Rotary knob D34 M6x15,5 blau
73	482110	2.38	2.88

GEAR COVER CMS-OF
74	472932	8.64	10.45

Stop rail,right CMS-OF
75	473324	3.82	4.62

Cup square bolt DIN 603-M6x30-4.6
76	771793	1.51	1.83

Rotary knob SF-OF D 23 M6x23 blau
77	486243	2.38	2.88

Cup square bolt DIN 603-M6x40-4.6
78	228534	1.51	1.83

Square nut DIN 562-M6-11H
79	452453	1.51	1.83

Guide tube CMS
80	473325	9.94	12.03

Rotary knob KF 4 E D 23 M6 / 8T
81	440712	2.88	3.48

CLAMP CMS-OF
82	473326	1.66	2.01

Extractor conne CMS-OF
83	472933	15.37	18.60

Spindle CMS-OF
84	473746	49.37	59.74

Slide CMS-OF2200 ET-BG
86	495553	35.94	43.49

Disc DIN 134-10,5
87	401016	1.51	1.83

Hexagon nut DIN 934-M5-08
88	200717	1.51	1.83

Cable clamp CMS-OF
89	474458	2.09	2.53

Ch. head screw DIN 912-M5x18-8.8
90	202824	1.51	1.83

BLADE HOUSING OF 2200 EB
91	473449	9.29	11.24

Centering ring CMS-OF
92	473808	5.90	7.14

Cover D 74
94	473812	5.90	7.14

Centering ring CMS-OF 1400
95	473809	7.42	8.98

Centering ring CMS-OF 1010
96	473810	6.62	8.01

Cover D 64
97	469881	4.61	5.58

Cover D 52
98	469882	6.77	8.19

Cover D 40
99	469883	5.04	6.10

Cover D 28
100	469884	5.26	6.36

Cover D 16
101	469885	5.33	6.45

Bearing CMS-OF
102	475635	3.67	4.44
