Here you will find all available parts and drawings of the 'Festool 490124 ( CMB120 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

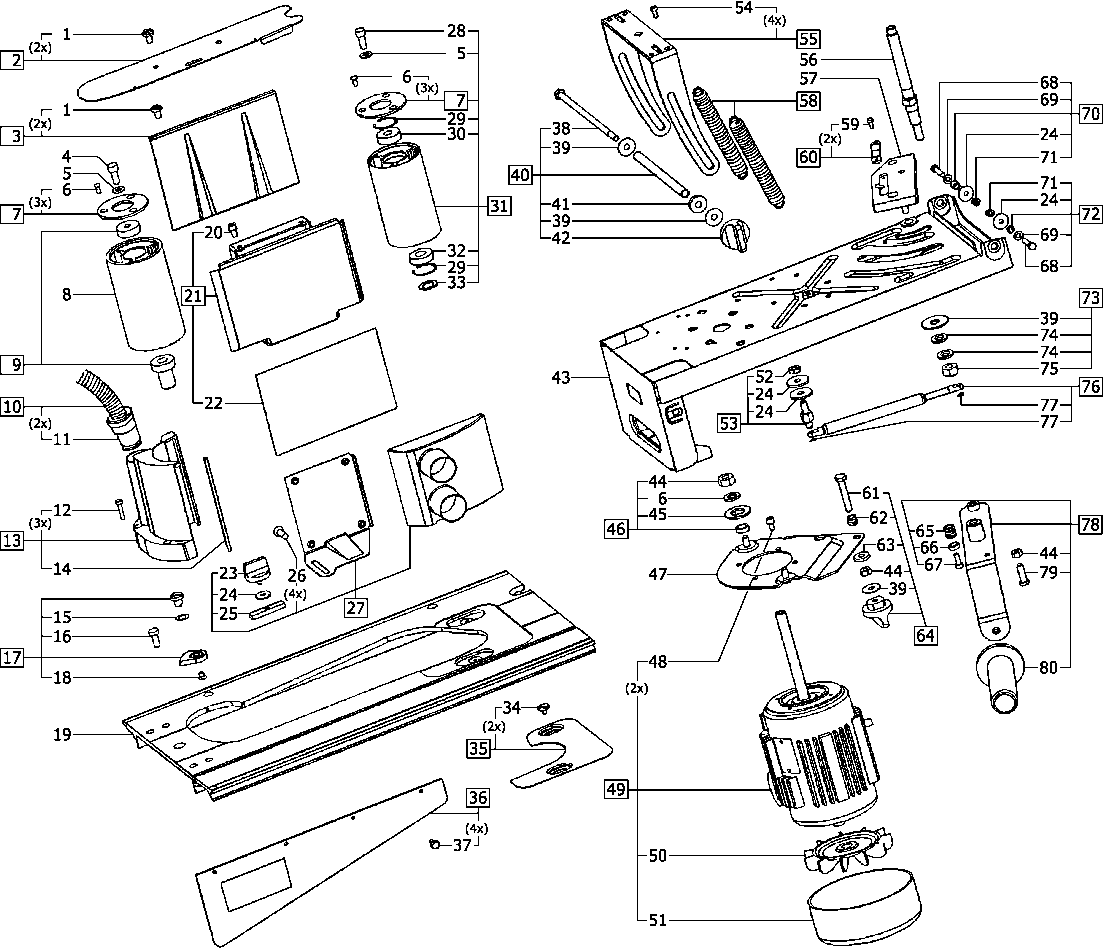

Technical drawing of model Festool 490124 ( CMB120 )

Spare parts list of model Festool 490124 ( CMB120 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Flat head screw DIN 85-M5x8-4.8
1 400331 1.39 1.68
SPACER CMB 120 UP
2 488205 40.78 49.34
ANGLE PLATE CMB 120
3 488185 46.22 55.93
Ch. head screw DIN 912-M8x20LH-8.8
4 400347 8.38 10.14
Disc DIN 125-B-8,4-140 HV
5 228601 1.39 1.68
Countersink M5x12-TAPTITE-T15
6 219056 1.39 1.68
COVER CMB 120 DRIVE
7 488202 18.15 21.96
Driving roller CMB 120
8 487815 89.66 108.49
DRIVE SLEEVE CMB 120
9 488203 76.23 92.24
HOSE CMB 120
10 488219 51.18 61.93
Sleeve D 27 DREHMUFFE - AS
11 438448 13.67 16.54
Oval head screw M5x25-TAPTITE-PZV
12 400389 1.39 1.68
HOOD CMB 120
13 488201 46.58 56.36
Steel wire BASIS 3 A
14 448972 16.21 19.61
Spring washer DIN 137-A-7
15 223862 1.39 1.68
SCREW CMB 120
16 449817 2.90 3.51
FLANGE CMB 120
17 488200 45.74 55.35
Countersink DIN 965-M4x6-4.8
18 400346 1.39 1.68
BASE PLATE CMB 120
19 487614 237.04 286.82
Allen screw CS 70 EB M6X12 SG-RIPP
20 449888 1.39 1.68
SHEET METAL CMB 120
21 488186 85.67 103.66
GRAPHITE PLAT CMB 120
22 487965 24.08 29.14
Rotary knob D34 M6x11,5 blau
23 482098 2.04 2.47
Disc DIN 440-R-6,6-100 HV
24 400325 1.39 1.68
RETAIN. INSERT CMB 120
25 449546 12.34 14.93
Countersink PT-5,0x16-KT15
26 439494 1.39 1.68
ADDIT. HOOD CMB 120
27 488207 68.85 83.31
Ch. head screw DIN 912-M8x14-8.8
28 228639 1.39 1.68
Circlip DIN 472-32x1,2
29 401246 1.39 1.68
Ball bearing 6201 DDUCM D8 AS2SM
30 228659 8.11 9.81
ROLLER CMB 120
31 488204 78.04 94.43
BALL BEARING 6002 DDU C3 FA.NSK
32 228758 9.58 11.59
SPACER 15,8x21,8x0,2 L+MN 1100
33 228759 1.39 1.68
Flat head screw DIN 921-M5x8-5.8
34 204120 1.78 2.15
TABLE INSERT CMB 120
35 488206 47.19 57.10
GUARD RAIL CMB 120
36 488184 64.13 77.60
Oval head screw M4x8-TAPTITE-T15
37 228570 1.39 1.68
Hex head cap sc DIN 931-M8x200-8.8
38 400302 5.68 6.87
Disc DIN 9021-8,4-100 HV
39 219049 1.39 1.68
DEPTH LOCKING CMB 120
40 488198 46.58 56.36
SLEEVE BASIS 3 A
41 448863 13.92 16.84
Rotary knob Basis Plus D 40 M8 5+12T
42 483162 5.41 6.55
MAIN SUPPORT CMB 120
43 488187 161.54 195.46
Hexagon nut DIN 934-M8-08
44 200719 1.39 1.68
Spring washer DIN 137-B-12
45 400294 1.39 1.68
WASHER CMB 120
46 488189 24.32 29.43
MOTOR SWING CMB 120
47 487626 45.38 54.91
Ch. head screw DIN 912-M6x12-10.9
48 200684 1.39 1.68
No information available, not orderable
49 488188
FAN CMB 120
50 451165 64.25 77.74
CAP CMB 120
51 451166 72.96 88.28
Hexagon nut DIN 934-M6-10
52 228689 1.39 1.68
BOLT CMB 120
53 488193 44.04 53.29
Ch. head screw DIN 6912-M5x12-8.8
54 400432 1.39 1.68
U-BOW CMB 120
55 488183 50.70 61.35
Axis CMB 120
56 447693 52.88 63.98
Clamping plate CMB 120
57 201822 137.34 166.18
TEWNSION SPRING CMB 120
58 488199 25.65 31.04
Oval head screw DIN 7985-M4x10-4.8
59 228767 1.39 1.68
PLATE CMB 120
60 488191 32.06 38.79
Hex head cap sc DIN 933-M8x50-CUZN39PB3
61 400374 3.70 4.48
Compression spr 1,80x12,00x16,9 DIN 2098
62 448646 3.83 4.63
Disc DIN 7349-8,4-100 HV
63 228527 1.39 1.68
KNOP CMB 120
64 488190 27.22 32.94
Compression spr 1,60x14,10x24,0 DIN 2098
65 449205 3.36 4.07
RING BASIS 3 A
66 449089 5.21 6.30
Ch. head screw DIN 912-M6x12-10.9
67 200684 1.39 1.68
Ch. head screw DIN 912-M6x25-10.9
68 200128 1.39 1.68
Disc DIN 125-B-6,4-140 HV
69 200578 1.39 1.68
SWIVELLING AXLE CMB 120 BEHIND
70 488197 22.99 27.82
Hexagon nut DIN 985-M6-04
71 228541 1.39 1.68
SWIVELLING AXLE CMB 120 IN FRONT OF
72 488196 22.99 27.82
FIXING PARTS CMB 120
73 488195 25.65 31.04
PLATE SPRING A 16x8,2x0,9 DIN 2093
74 400375 1.39 1.68
Hexagon nut DIN 985-M8-04
75 200735 1.39 1.68
GAS PRES.SPRING CMB 120
76 488192 78.29 94.73
Circlip DIN 471-6x0,7
77 200616 1.39 1.68
CLAMPING LEVER CMB 120
78 488194 78.04 94.43
Ch. head screw DIN 84-M8x25-CUZN37
79 400431 1.85 2.24
Auxiliary handle
80 487865 10.01 12.11
Cable with plug CMB 120
81 448644 24.80 30.01
