Here you will find all available parts and drawings of the 'Festool 10011312 (CM150)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

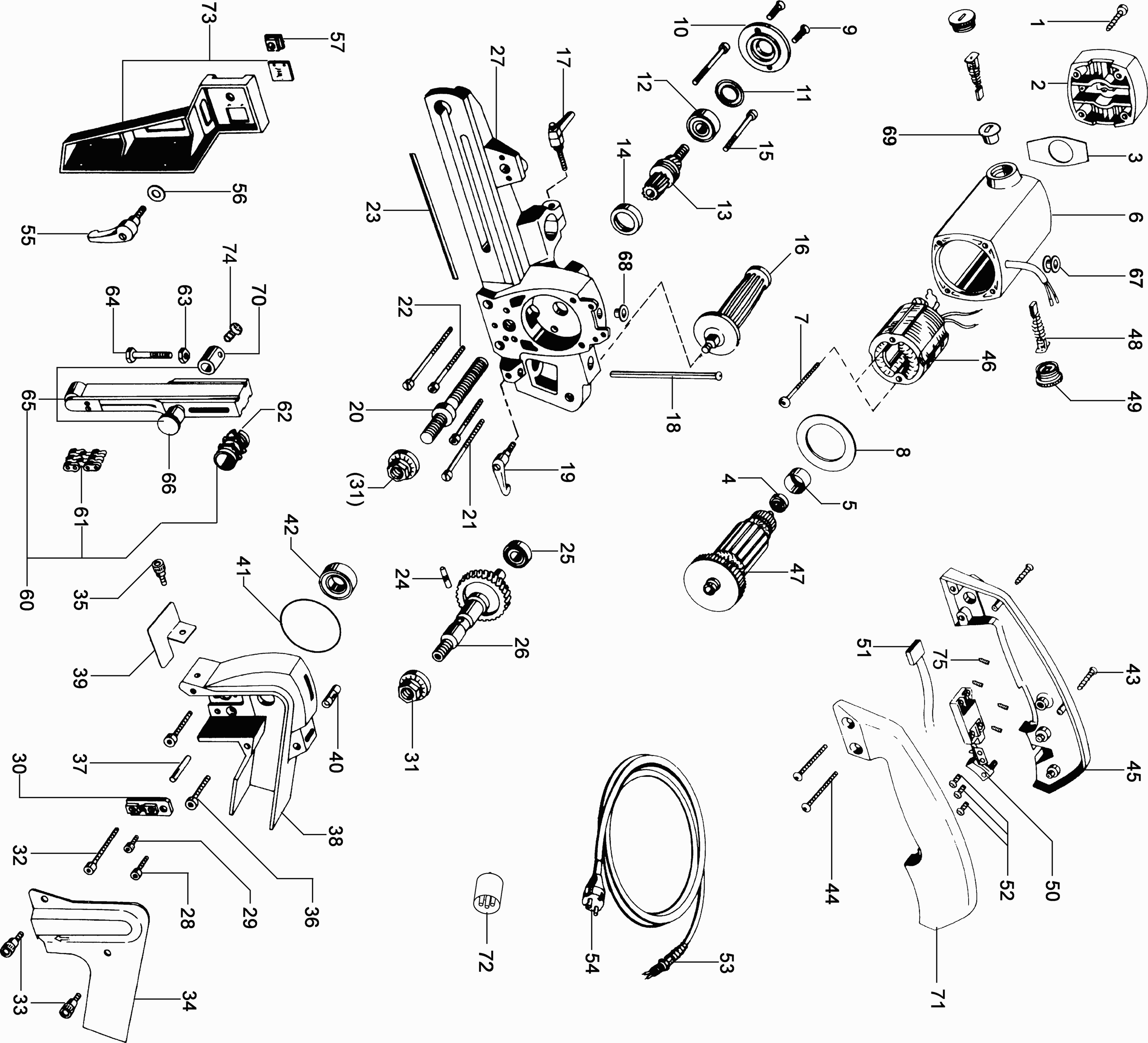

Technical drawing of model Festool 10011312 (CM150)
Spare parts list of model Festool 10011312 (CM150)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw 5x35 | ||||
| 1 | 634298 | 2.59 | 3.13 | |
| Cap PLP 245 E | ||||
| 2 | 633109 | 10.08 | 12.20 | |
| Plate | ||||
| 3 | 298492 | 1.87 | 2.26 | |
| BALL BEARING 6001 2RSR ISOFLEX LDS18 | ||||
| 4 | 425575 | 11.66 | 14.11 | |
| Ring | ||||
| 5 | 761263 | 10.15 | 12.28 | |
| Motor frame CMP 150 | ||||
| 6 | 633296 | 150.77 | 182.43 | |
| Oval head screw 5x75 | ||||
| 7 | 634301 | 4.25 | 5.14 | |
| Airguide shim CSP 132 E | ||||
| 8 | 632904 | 5.33 | 6.45 | |
| Countersunk bolt M5 x 16 | ||||
| 9 | 414417 | 1.51 | 1.83 | |
| Cover | ||||
| 10 | 459954 | 10.15 | 12.28 | |
| Nilos ring,spec 6003JV | ||||
| 11 | 298468 | 8.42 | 10.19 | |
| Bearing 6202 2RS1 TN9/GWF4 VP178 | ||||
| 12 | 614869 | 11.81 | 14.29 | |
| Pinion | ||||
| 13 | 632953 | 189.12 | 228.84 | |
| Felt ring | ||||
| 14 | 633003 | 18.76 | 22.70 | |
| Allen screw M5x50 DIN 912 | ||||
| 15 | 761446 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 16 | --- | |||
| Clamping lever M6x25 | ||||
| 17 | 632988 | 27.10 | 32.79 | |
| Depth stop | ||||
| 18 | 631922 | 53.24 | 64.42 | |
| No information available, not orderable | ||||
| 19 | 632961 | |||
| Threaded bolt | ||||
| 20 | 631965 | 91.36 | 110.55 | |
| Allen screw M5x75 EN 1207 | ||||
| 21 | 761469 | 3.02 | 3.65 | |
| Allen screw M5x50 DIN 912 | ||||
| 22 | 761446 | 1.51 | 1.83 | |
| Scale plate | ||||
| 23 | 632023 | 22.51 | 27.24 | |
| Grooved pin 5x20 | ||||
| 24 | 433195 | 1.51 | 1.83 | |
| Ball bearing 6201 DDUCM D8 AS2SM | ||||
| 25 | 228659 | 8.86 | 10.72 | |
| No information available, not orderable | ||||
| 26 | 631981 | |||
| No information available, not orderable | ||||
| 27 | xxx | |||
| Allen screw M6x12 | ||||
| 28 | 433136 | 2.02 | 2.44 | |
| Allen screw M6x10 | ||||
| 29 | 433128 | 1.51 | 1.83 | |
| Connecting memb | ||||
| 30 | 632120 | 109.51 | 132.51 | |
| Hexagon nut M 12 | ||||
| 31 | 631973 | 14.16 | 17.13 | |
| Allen screw M6x25 DIN 7984 | ||||
| 32 | 832650 | 1.51 | 1.83 | |
| Cheese-head scr M5x12-H | ||||
| 33 | 430137 | 1.51 | 1.83 | |
| Safety guard co | ||||
| 34 | 632112 | 87.36 | 105.71 | |
| Cheese-head scr M5x12-H | ||||
| 35 | 430137 | 1.51 | 1.83 | |
| Allen screw M5x20 DIN 912 | ||||
| 36 | 761440 | 1.51 | 1.83 | |
| Taper grooved p 5x20 | ||||
| 37 | 430846 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 38 | 632104 | |||
| Protection | ||||
| 39 | 631957 | 42.35 | 51.24 | |
| Tubular spirit | ||||
| 40 | 632007 | 21.66 | 26.21 | |
| O-ring 86x1,2 | ||||
| 41 | 433152 | 3.17 | 3.84 | |
| BALL BEARING 6004 2RS DIN 625 | ||||
| 42 | 401595 | 11.74 | 14.21 | |
| Self-tapping sc ST 4,2x25-C-H | ||||
| 43 | 428361 | 1.51 | 1.83 | |
| Oval head screw M5x40 ISO 7380 | ||||
| 44 | 632031 | 2.38 | 2.88 | |
| Handle CSP 165 E | ||||
| 45 | 779663 | 13.67 | 16.54 | |
| Stator CMP 150 | ||||
| 46 | 633215 | 213.93 | 258.86 | |
| Complete armatu CMP 150 | ||||
| 47 | 632903 | 410.07 | 496.18 | |
| Brush-set PLP 245 E | ||||
| 48 | 627021 | 45.25 | 54.75 | |
| Plain Cap Brush Holder | ||||
| 49 | 298522 | 4.25 | 5.14 | |
| Switch Marquardt 1269.0501 | ||||
| 50 | 779767 | 38.60 | 46.71 | |
| Capacitor | ||||
| 51 | 761264 | 48.76 | 59.00 | |
| Oval head screw 4x12-Z/KU | ||||
| 52 | 430145 | 1.51 | 1.83 | |
| Cord guard | ||||
| 53 | 631949 | 30.37 | 36.75 | |
| Cord with plug H07RN-F2x2,5x10000 | ||||
| 54 | 729035 | 89.66 | 108.49 | |
| No longer available, no replacement | ||||
| 55 | 664014 | |||
| Disc DIN 125-A-8,4-140 HV | ||||
| 56 | 761517 | 1.51 | 1.83 | |
| Sliding block M8x10 | ||||
| 57 | 433160 | 33.88 | 40.99 | |
| FREESKETTING GA MF-CM 28X40X100 A | ||||
| 60 | 769548 | 1208.90 | 1462.77 | |
| FREESKETTING GA MF-CM 28X35X100 A | ||||
| 60 | 769547 | 853.00 | 1032.13 | |
| FREESKETTING MC-CM 28X35/40X100 A | ||||
| 61 | 769551 | 382.00 | 462.22 | |
| Wheel f. m. ch. PN-CMP 28x35/40 | ||||
| 62 | 633127 | 84.70 | 102.49 | |
| Nut M6 | ||||
| 63 | 614469 | 1.51 | 1.83 | |
| Hexagon screw M6x35 EN 24017 | ||||
| 64 | 830217 | 1.51 | 1.83 | |
| Guide f. m. ch. MH-CMP 28x35x100 | ||||
| 65 | 633038 | 534.34 | 646.55 | |
| Guide f. m. ch. MH-CMP 30x30x125 | ||||
| 65 | 838398 | 516.19 | 624.59 | |
| Guide f. m. ch. MH-CMP 28x40x100 | ||||
| 65 | 633046 | 503.48 | 609.21 | |
| Stauffer lubric "R 1/8""" | ||||
| 66 | 722340 | 31.82 | 38.50 | |
| Protective ring PLP 245 E | ||||
| 67 | 841918 | 1.87 | 2.26 | |
| Protective ring DH 80/100/40 | ||||
| 68 | 624261 | 12.34 | 14.93 | |
| Brush holder | ||||
| 69 | 298514 | 17.55 | 21.24 | |
| No information available, not orderable | ||||
| 70 | xxx | |||
| Handle CMP 150 | ||||
| 71 | 626906 | 24.44 | 29.57 | |
| Seitenanschlag MP 150 ET-BG | ||||
| 73 | 628650 | 268.02 | 324.30 | |
| Countersunk scr M5x10 | ||||
| 74 | 411256 | 1.51 | 1.83 | |
| Screw M3,5x7 | ||||
| 75 | 767036 | 1.51 | 1.83 | |
