Here you will find all available parts and drawings of the 'Festool 768266 (CL-MS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

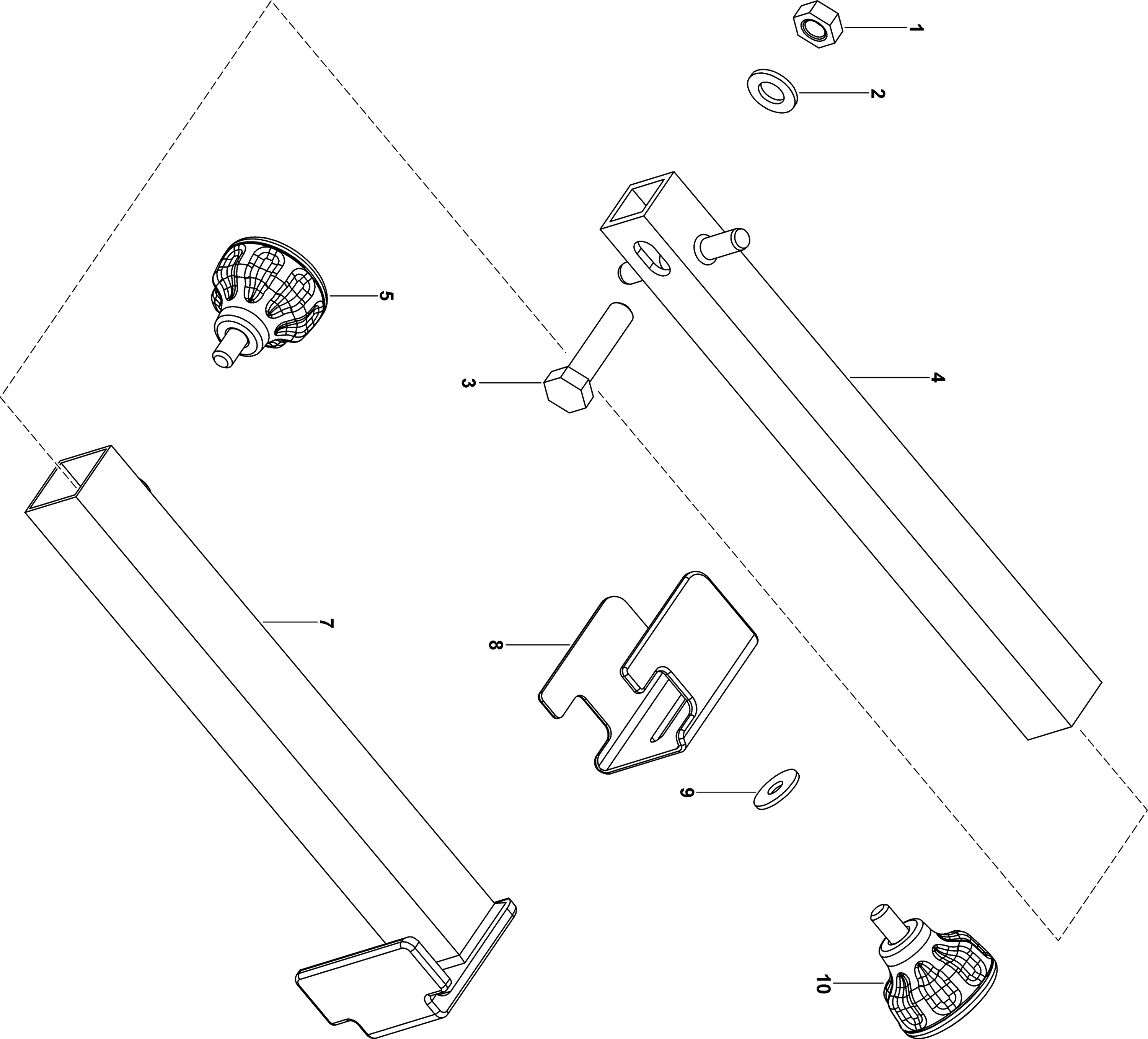

Technical drawing of model Festool 768266 (CL-MS)
Spare parts list of model Festool 768266 (CL-MS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 616018 | |||
| No information available, not orderable | ||||
| 2 | xxx | |||
| Screw M12x50 MSP 57 | ||||
| 3 | 624860 | 1.66 | 2.01 | |
| Lower hook CL-MSP | ||||
| 4 | 624855 | 44.17 | 53.45 | |
| Screw MS 57 | ||||
| 5 | 10010415 | 11.42 | 13.82 | |
| Upper hook CL-MSP | ||||
| 7 | 624858 | 47.92 | 57.98 | |
| Pressure hook CL-MSP | ||||
| 8 | 624861 | 32.31 | 39.10 | |
| Disc DIN 9021-8,4-100 HV | ||||
| 9 | 219049 | 1.51 | 1.83 | |
| Handle CS 70 EB | ||||
| 10 | 487555 | 7.78 | 9.41 | |
