Here you will find all available parts and drawings of the 'Festool 496703 ( C12LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

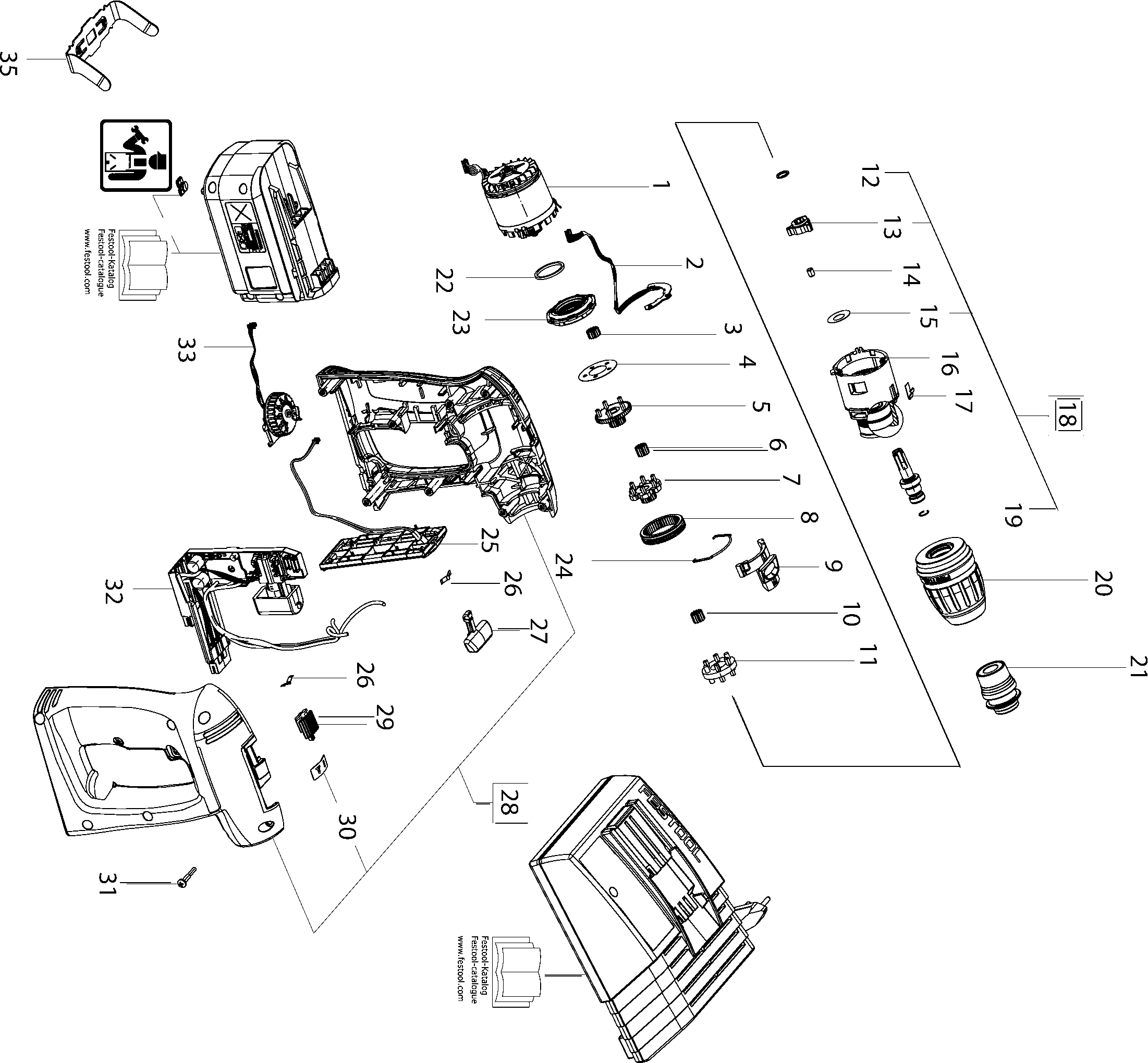

Technical drawing of model Festool 496703 ( C12LI )
Spare parts list of model Festool 496703 ( C12LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor C 12 ECM | ||||
| 1 | 497103 | 215.26 | 260.46 | |
| Electronics C15 ET-BG | ||||
| 2 | 204985 | 29.89 | 36.17 | |
| Planet 1 T 12/T 15 | ||||
| 3 | 474681 | 1.39 | 1.68 | |
| Disc T 12 | ||||
| 4 | 469888 | 1.39 | 1.68 | |
| Carrier 1 T 12 | ||||
| 5 | 494004 | 6.00 | 7.26 | |
| Planet 2 TDK 12 | ||||
| 6 | 457744 | 1.39 | 1.68 | |
| Carrier 2 TDK 12 | ||||
| 7 | 490459 | 3.96 | 4.79 | |
| Switching ring T 12 | ||||
| 8 | 474913 | 6.47 | 7.83 | |
| Slide T 12 | ||||
| 9 | 494510 | 6.86 | 8.30 | |
| Planet TDK 12 (3) | ||||
| 10 | 457748 | 1.39 | 1.68 | |
| Carrier TDK 12 | ||||
| 11 | 490460 | 4.75 | 5.75 | |
| Circlip SW 8-SEEGER | ||||
| 12 | 206666 | 1.39 | 1.68 | |
| Carrier TDK 12 | ||||
| 13 | 457751 | 2.04 | 2.47 | |
| Cylinder roller D 4,5x6 | ||||
| 14 | 457767 | 1.58 | 1.91 | |
| Compensating wa C 12 | ||||
| 15 | 469816 | 1.39 | 1.68 | |
| Gear housing T 12 ET-BG | ||||
| 16 | 495197 | 35.94 | 43.49 | |
| Spring C 12 | ||||
| 17 | 466084 | 1.75 | 2.12 | |
| GEAR SHAFT TDK | ||||
| 18 | 493282 | 27.83 | 33.67 | |
| Circlip CDD 7,2-SEEGER | ||||
| 19 | 446416 | 1.39 | 1.68 | |
| Snelspanboorkop KC 13-1/2-K-FFP | ||||
| 20 | 769067 | 61.38 | 74.27 | |
| Tool chuck | ||||
| 21 | 492135 | 29.87 | 36.14 | |
| Conical nipple T 12 | ||||
| 22 | 469516 | 2.18 | 2.64 | |
| Ring gear T 12 | ||||
| 23 | 469515 | 5.35 | 6.47 | |
| Switching clip TDK 12 | ||||
| 24 | 457754 | 1.39 | 1.68 | |
| Insert piece C 12/C 15 | ||||
| 25 | 496706 | 24.32 | 29.43 | |
| Plate spring TDK 12 | ||||
| 26 | 457753 | 1.39 | 1.68 | |
| Change-over swi C 12/C 15 | ||||
| 27 | 496707 | 4.42 | 5.35 | |
| Housing set C 12/C15 Li FL ET-BG | ||||
| 28 | 498645 | 35.70 | 43.20 | |
| Slide T 12 | ||||
| 29 | 494511 | 3.70 | 4.48 | |
| Adhesive label T 12 B/S | ||||
| 30 | 472017 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x22-PZV | ||||
| 31 | 400174 | 1.39 | 1.68 | |
| Electronics C 12 Li FL ET-BG | ||||
| 32 | 498618 | 128.50 | 155.48 | |
| Adjustment whee C 15 | ||||
| 33 | 497105 | 34.61 | 41.88 | |
| No information available, not orderable | ||||
| 34 | 498336 | |||
| Retaining bow BPC 15 | ||||
| 35 | 478516 | 5.02 | 6.07 | |
| No information available, not orderable | ||||
| 36 | 499335 | |||
