Here you will find all available parts and drawings of the 'Festool 490454 ( C12 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

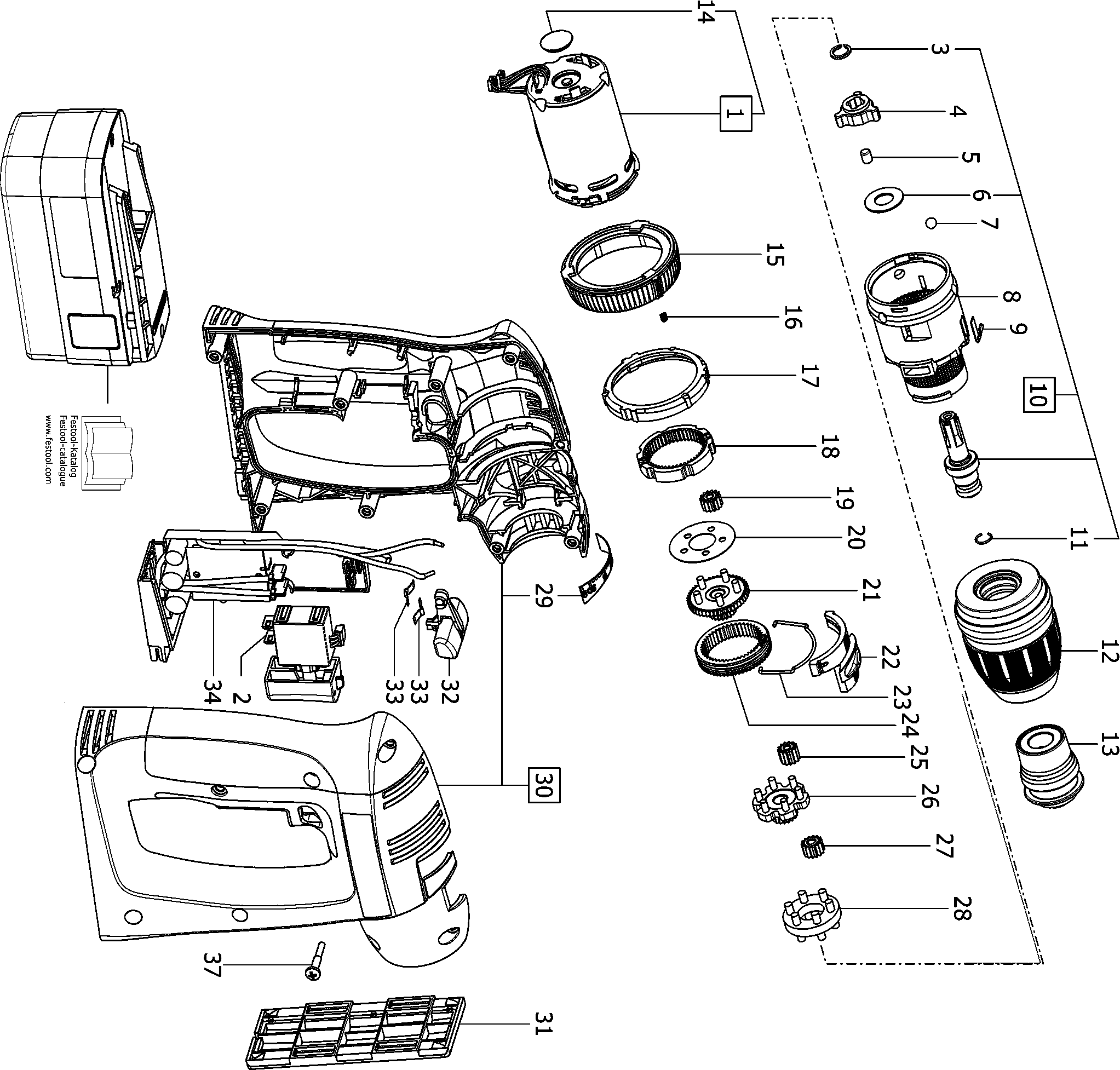

Technical drawing of model Festool 490454 ( C12 )
Spare parts list of model Festool 490454 ( C12 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor C 12 KOMPL. ET-BG | ||||
| 1 | 493407 | 215.26 | 260.46 | |
| SWITCH MODULE C 12 COMPLET | ||||
| 2 | 470345 | 25.53 | 30.89 | |
| Circlip SW 8-SEEGER | ||||
| 3 | 206666 | 1.39 | 1.68 | |
| Carrier TDK 12 | ||||
| 4 | 457751 | 2.04 | 2.47 | |
| Cylinder roller D 4,5x6 | ||||
| 5 | 457767 | 1.58 | 1.91 | |
| Compensating wa C 12 | ||||
| 6 | 469816 | 1.39 | 1.68 | |
| Ball DIN 5401-5-X40CR13 | ||||
| 7 | 200863 | 1.39 | 1.68 | |
| Gear housing TDK 12 ET-BG KOMPLETT | ||||
| 8 | 491830 | 48.40 | 58.56 | |
| Spring C 12 | ||||
| 9 | 466084 | 1.75 | 2.12 | |
| GEAR SHAFT TDK | ||||
| 10 | 493282 | 27.83 | 33.67 | |
| Circlip CDD 7,2-SEEGER | ||||
| 11 | 446416 | 1.39 | 1.68 | |
| Snelspanboorkop KC 13-1/2-K-FFP | ||||
| 12 | 769067 | 61.38 | 74.27 | |
| Tool chuck | ||||
| 13 | 492135 | 29.87 | 36.14 | |
| No information available, not orderable | ||||
| 14 | 465875 | |||
| Thumbwheel TDK 12 | ||||
| 15 | 457740 | 2.38 | 2.88 | |
| Spring TDK 12 | ||||
| 16 | 457766 | 1.39 | 1.68 | |
| RING TDK 12 DREHMOMENT | ||||
| 17 | 459427 | 7.66 | 9.27 | |
| No information available, not orderable | ||||
| 18 | 493462 | |||
| Planet 1 TDK 12 | ||||
| 19 | 457742 | 1.39 | 1.68 | |
| WASHER TDK 12 | ||||
| 20 | 461904 | 1.39 | 1.68 | |
| STEG 1 TDK 12 COMPLET | ||||
| 21 | 490458 | 4.82 | 5.83 | |
| SLIDE TDK 12 | ||||
| 22 | 457755 | 1.39 | 1.68 | |
| Switching clip TDK 12 | ||||
| 23 | 457754 | 1.39 | 1.68 | |
| SWITCHING RING TDK 12 | ||||
| 24 | 457743 | 2.90 | 3.51 | |
| Planet 2 TDK 12 | ||||
| 25 | 457744 | 1.39 | 1.68 | |
| Carrier 2 TDK 12 | ||||
| 26 | 490459 | 3.96 | 4.79 | |
| Planet TDK 12 (3) | ||||
| 27 | 457748 | 1.39 | 1.68 | |
| Carrier TDK 12 | ||||
| 28 | 490460 | 4.75 | 5.75 | |
| LABEL TDK | ||||
| 29 | 459433 | 1.75 | 2.12 | |
| HOUSING C 12 ET-BG | ||||
| 30 | 493406 | 38.96 | 47.14 | |
| Inlays C 12 | ||||
| 31 | 465846 | 17.54 | 21.22 | |
| Despatcher C 12 KOMPLETT | ||||
| 32 | 490901 | 4.36 | 5.28 | |
| Plate spring TDK 12 | ||||
| 33 | 457753 | 1.39 | 1.68 | |
| ELECTRONIC CARD C12 ET-BG | ||||
| 34 | 493313 | 150.04 | 181.55 | |
| No information available, not orderable | ||||
| 35 | 499335 | |||
| No information available, not orderable | ||||
| 36 | 491821 | |||
| Oval head screw PT-3,5x22-PZV | ||||
| 37 | 400174 | 1.39 | 1.68 | |
