Here you will find all available parts and drawings of the 'Festool 200188 (BR10)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

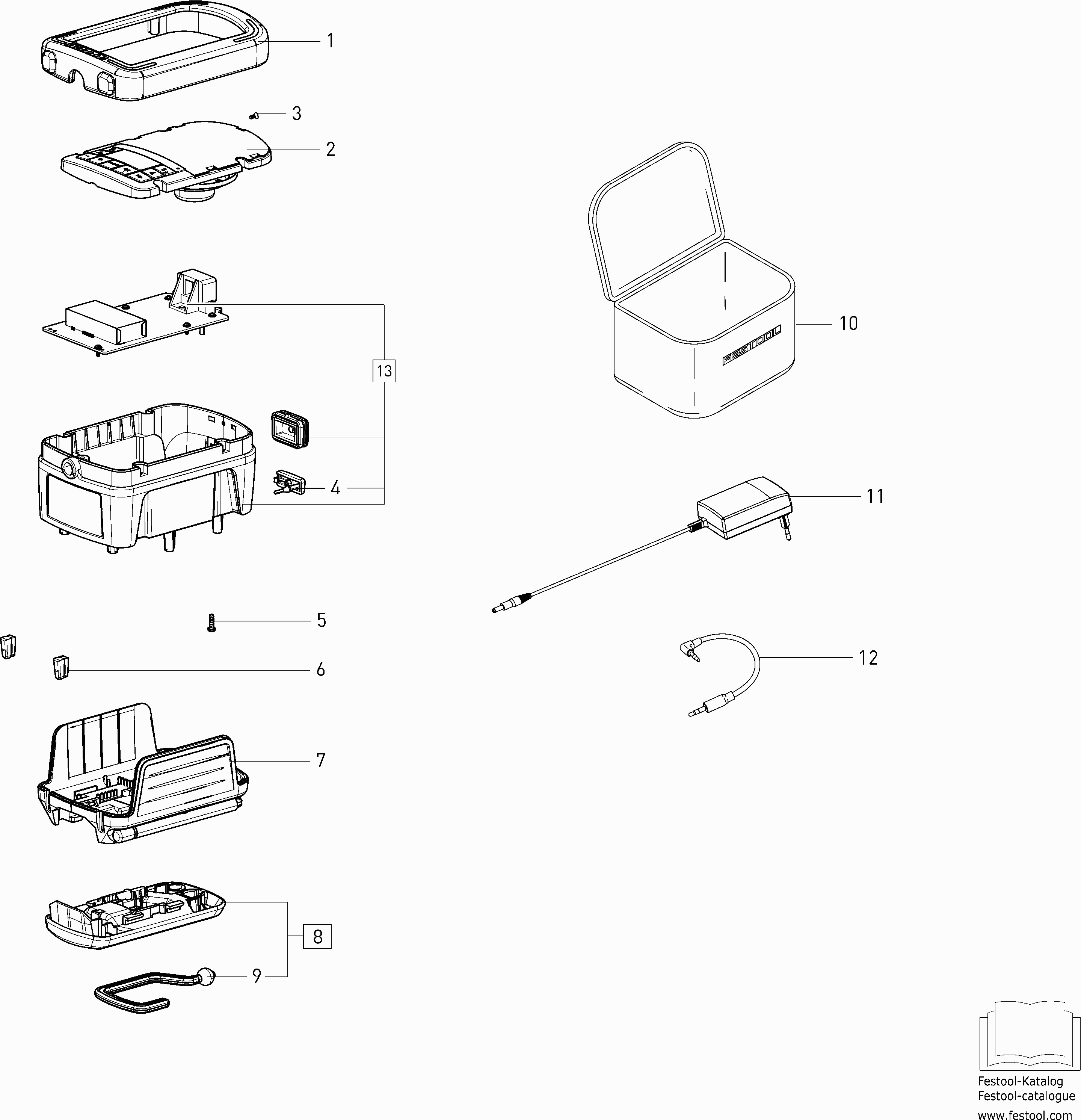

Technical drawing of model Festool 200188 (BR10)
Spare parts list of model Festool 200188 (BR10)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Frame BR10 | ||||
| 1 | 201830 | 19.24 | 23.28 | |
| Front plate BR10 | ||||
| 2 | 201829 | 63.04 | 76.28 | |
| Screw PT 2,6x6 BR10 | ||||
| 3 | 201837 | 1.51 | 1.83 | |
| Cover BR10 AUX-IN | ||||
| 4 | 201832 | 4.97 | 6.01 | |
| Screw PTP 3,0x10 BR10 | ||||
| 5 | 201836 | 2.52 | 3.05 | |
| Rubber foot BR10 | ||||
| 6 | 201838 | 2.38 | 2.88 | |
| Casing box BR10 | ||||
| 7 | 201831 | 47.19 | 57.10 | |
| Case lid KAL 1000 | ||||
| 8 | 498848 | 22.87 | 27.67 | |
| Suspension hook KAL | ||||
| 9 | 701293 | 11.95 | 14.46 | |
| Bag BR10 | ||||
| 10 | 201839 | 27.35 | 33.09 | |
| Adapter plug EU ET-BG | ||||
| 11 | 10472432 | 30.13 | 36.46 | |
| Cable BR10 AUX-IN | ||||
| 12 | 201833 | 9.65 | 11.68 | |
| Casing box BR 10 | ||||
| 13 | 10414404 | 96.07 | 116.24 | |
