Here you will find all available parts and drawings of the 'Festool 10673286 (BHC18)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

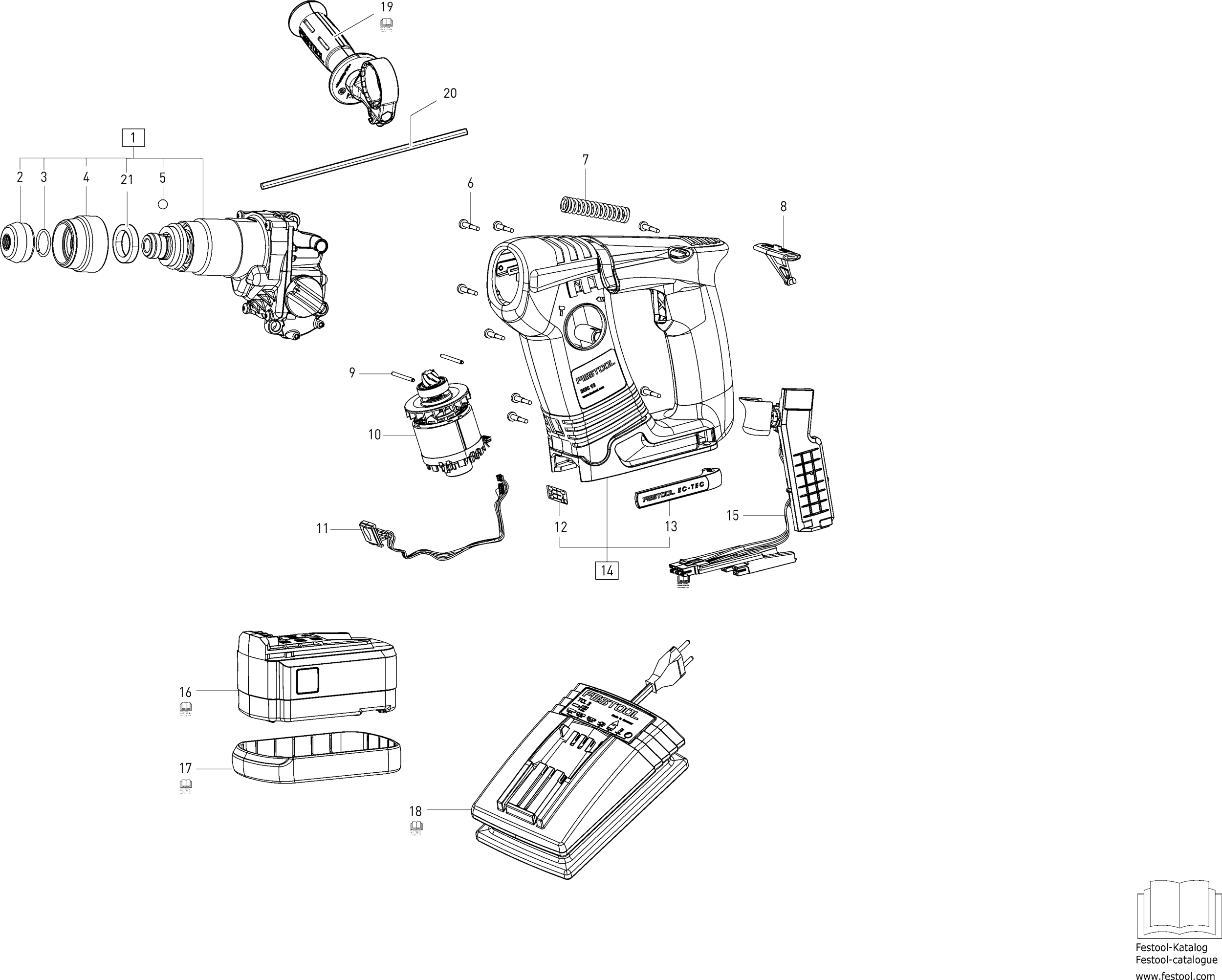

Technical drawing of model Festool 10673286 (BHC18)
Spare parts list of model Festool 10673286 (BHC18)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear BHC 18 ET-BG | ||||
| 1 | 719654 | 261.24 | 316.10 | |
| Cover CHP 2 E | ||||
| 2 | 614809 | 4.68 | 5.66 | |
| Circlip CHP 26 PLUS | ||||
| 3 | 763116 | 2.59 | 3.13 | |
| Collet CHP 26 PLUS | ||||
| 4 | 763117 | 5.18 | 6.27 | |
| Ball CHP 26 PLUS | ||||
| 5 | 763166 | 1.87 | 2.26 | |
| Oval head screw PT-3,5x22-KT15 | ||||
| 6 | 473901 | 1.51 | 1.83 | |
| Compression spr BHC 18 | ||||
| 7 | 10000605 | 2.66 | 3.22 | |
| Change-over swi BHC | ||||
| 8 | 767835 | 4.68 | 5.66 | |
| Cylinder pin 2,5 M 6X34 | ||||
| 9 | 10001374 | 1.58 | 1.91 | |
| Motor BHC 18 | ||||
| 10 | 10012837 | 175.69 | 212.58 | |
| LED display BHC 18 | ||||
| 11 | 10012957 | 30.61 | 37.04 | |
| Label BHC 18 | ||||
| 12 | 705438 | 2.02 | 2.44 | |
| Clip BHC 18 | ||||
| 13 | 10012838 | 22.02 | 26.64 | |
| Housing set BHC 18 | ||||
| 14 | 10011985 | 51.18 | 61.93 | |
| Electronics BHC 18 | ||||
| 15 | 10011986 | 124.39 | 150.51 | |
| Rod DRP 13 ET | ||||
| 20 | 717311 | 9.14 | 11.06 | |
| Closure Disc BHC 18 | ||||
| 21 | 10041398 | 8.06 | 9.75 | |
