Here you will find all available parts and drawings of the 'Festool 484753 ( BESCHERMKAPSH-RAS115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

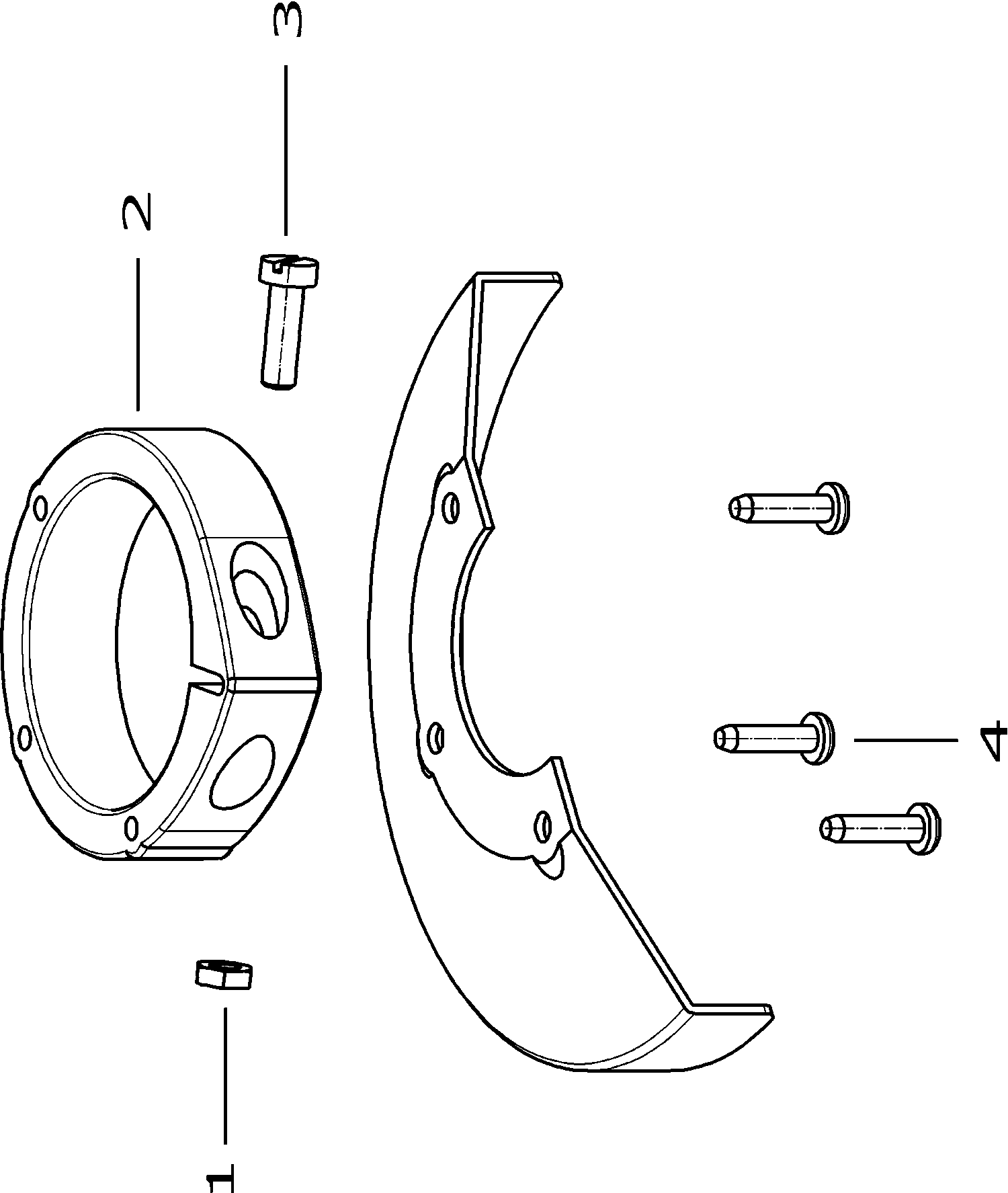

Technical drawing of model Festool 484753 ( BESCHERMKAPSH-RAS115 )
Spare parts list of model Festool 484753 ( BESCHERMKAPSH-RAS115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagon nut DIN 439-M5 | ||||
| 0001 | 200600 | 1.39 | 1.68 | |
| Hexagon nut DIN 439-M5 | ||||
| 1 | 200600 | 1.39 | 1.68 | |
| LOCKING RING WS 115.05.E | ||||
| 0002 | 440505 | 24.20 | 29.28 | |
| LOCKING RING WS 115.05.E | ||||
| 2 | 440505 | 24.20 | 29.28 | |
| Ch. head screw DIN 84-M5x16-4.8 | ||||
| 0003 | 228562 | 1.39 | 1.68 | |
| Ch. head screw DIN 84-M5x16-4.8 | ||||
| 3 | 228562 | 1.39 | 1.68 | |
| Oval head screw PT-4,0x16-KT15 | ||||
| 0004 | 228713 | 1.39 | 1.68 | |
| Oval head screw PT-4,0x16-KT15 | ||||
| 4 | 228713 | 1.39 | 1.68 | |
