Here you will find all available parts and drawings of the 'Festool 768717 (BC-RG150)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

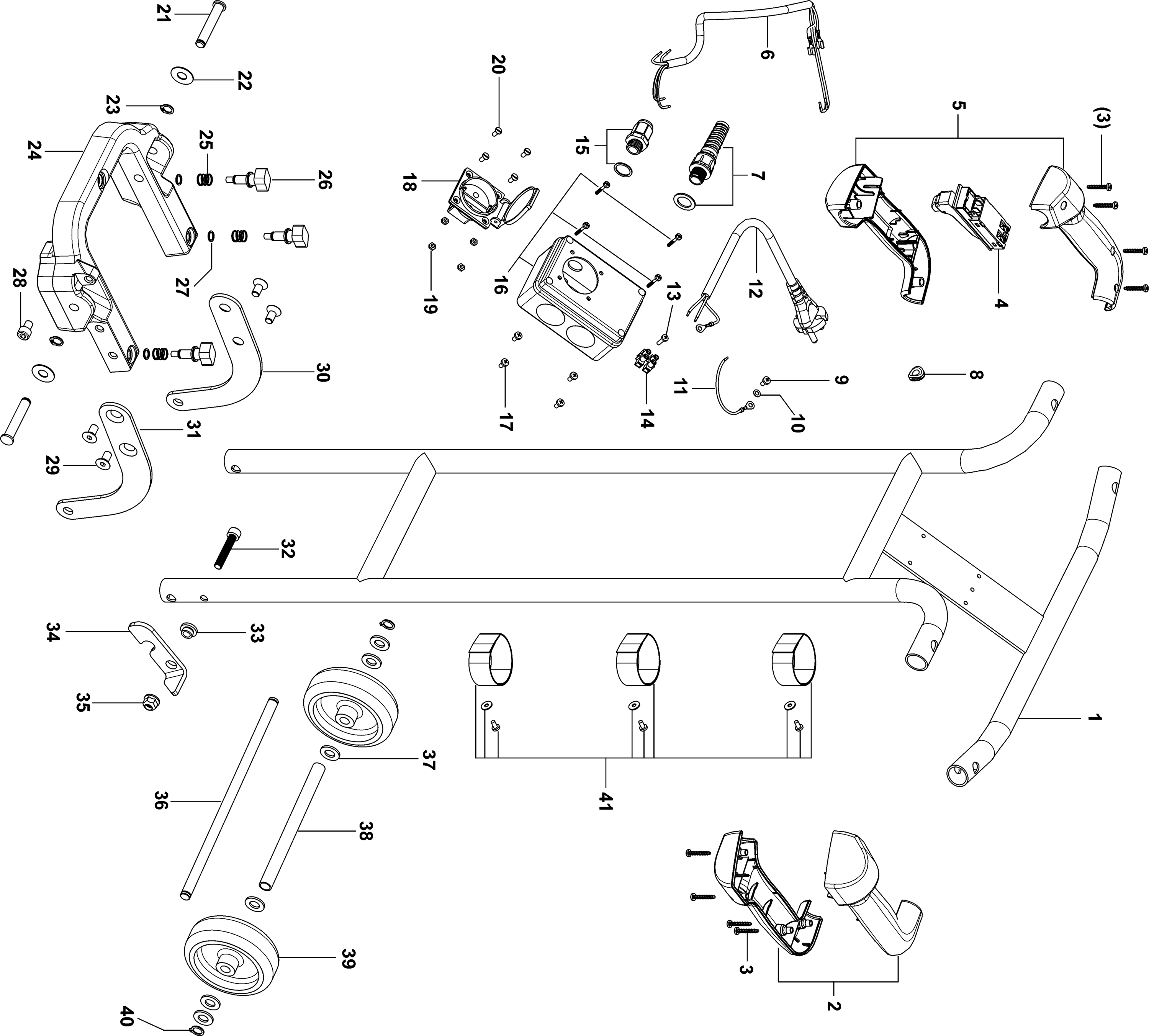

Technical drawing of model Festool 768717 (BC-RG150)
Spare parts list of model Festool 768717 (BC-RG150)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Side panel BC-RG 150 | ||||
| 1 | 768913 | 208.36 | 252.12 | |
| Grip RG 150 E links | ||||
| 2 | 768903 | 20.45 | 24.74 | |
| Screw PT 40x25 K-TORX | ||||
| 3 | 614772 | 1.51 | 1.83 | |
| Switch Marquardt 2200.0107-00 | ||||
| 4 | 768755 | 28.44 | 34.41 | |
| Grip RG 150 E rechts | ||||
| 5 | 768906 | 20.45 | 24.74 | |
| Coupler BG-RGP 150 | ||||
| 6 | 60403854 | 13.31 | 16.11 | |
| Socket F0602PG1610 | ||||
| 7 | 779158 | 2.81 | 3.40 | |
| Socket RGP 150-16 E | ||||
| 8 | 60403836 | 1.87 | 2.26 | |
| Screw M4x10 TORX | ||||
| 9 | 614420 | 1.51 | 1.83 | |
| Lock washer M4 DIN 6798-A | ||||
| 10 | 60403791 | 1.51 | 1.83 | |
| Conductor BG-RGP 150 | ||||
| 11 | 60403788 | 1.58 | 1.91 | |
| Mains cable BG-RGP 150 | ||||
| 12 | 779147 | 44.04 | 53.29 | |
| Screw 3.5x13-F-x | ||||
| 13 | 626782 | 1.51 | 1.83 | |
| Biscuit connect ML 060.10 | ||||
| 14 | 621139 | 7.63 | 9.23 | |
| Socket TVM Pg 9-02 | ||||
| 15 | 60403787 | 2.09 | 2.53 | |
| Box BG-RGP 150 | ||||
| 16 | 60403858 | 34.73 | 42.02 | |
| Screw M4x8 PZV DIN 7985 | ||||
| 17 | 614321 | 1.80 | 2.18 | |
| Plug socket BG-RGP 150 | ||||
| 18 | 60403853 | 23.96 | 28.99 | |
| Nut M4 DIN 555 BN 81 | ||||
| 19 | 60403789 | 1.51 | 1.83 | |
| Screw M4x10 DIN 963 A BN 1066 | ||||
| 20 | 60403786 | 1.51 | 1.83 | |
| Tappet BG-RGP 150 | ||||
| 21 | 779157 | 11.59 | 14.02 | |
| Disc 10,5x25x1,2 | ||||
| 22 | 779149 | 1.51 | 1.83 | |
| Circlip DIN 471-10x1 | ||||
| 23 | 761558 | 1.51 | 1.83 | |
| Weight BC-RG 150 | ||||
| 24 | 768912 | 138.42 | 167.49 | |
| Compression spr RGP 150-16 E | ||||
| 25 | 779360 | 3.31 | 4.01 | |
| Butterfly screw BG-RG 150 Komplet | ||||
| 26 | 768864 | 11.38 | 13.77 | |
| Circlip 9 E-SW | ||||
| 27 | 779864 | 1.51 | 1.83 | |
| Screw M8x12 DIN 912 | ||||
| 28 | 779857 | 1.51 | 1.83 | |
| Screw M8x16 DIN 7991 | ||||
| 29 | 60403737 | 1.51 | 1.83 | |
| Carrier BG-RGP 150 | ||||
| 30 | 766491 | 19.00 | 22.99 | |
| Carrier BG-RGP 150 | ||||
| 31 | 766492 | 18.88 | 22.84 | |
| Screw M8x45 DIN 912 | ||||
| 32 | 614464 | 1.51 | 1.83 | |
| Bush BG-RGP 150 | ||||
| 33 | 779856 | 8.21 | 9.93 | |
| Catch BG-RGP 150 | ||||
| 34 | 60403852 | 13.13 | 15.89 | |
| Nut M8 DIN 6926 | ||||
| 35 | 60403817 | 1.51 | 1.83 | |
| Axis BG-RGP 150 | ||||
| 36 | 766489 | 11.95 | 14.46 | |
| Disc DIN 125-A-8,4-140 HV | ||||
| 37 | 761517 | 1.51 | 1.83 | |
| spacer tube BG-RGP 150 | ||||
| 38 | 766490 | 12.28 | 14.86 | |
| Wheel BG-RGP 150 | ||||
| 39 | 766488 | 19.48 | 23.57 | |
| Circlip DIN 471-8x0,8 | ||||
| 40 | 200617 | 1.51 | 1.83 | |
| Repairing kit BG-RGP 150 | ||||
| 41 | 764626 | 21.05 | 25.47 | |
