Here you will find all available parts and drawings of the 'Festool 202857 (BASISAPPARAAT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

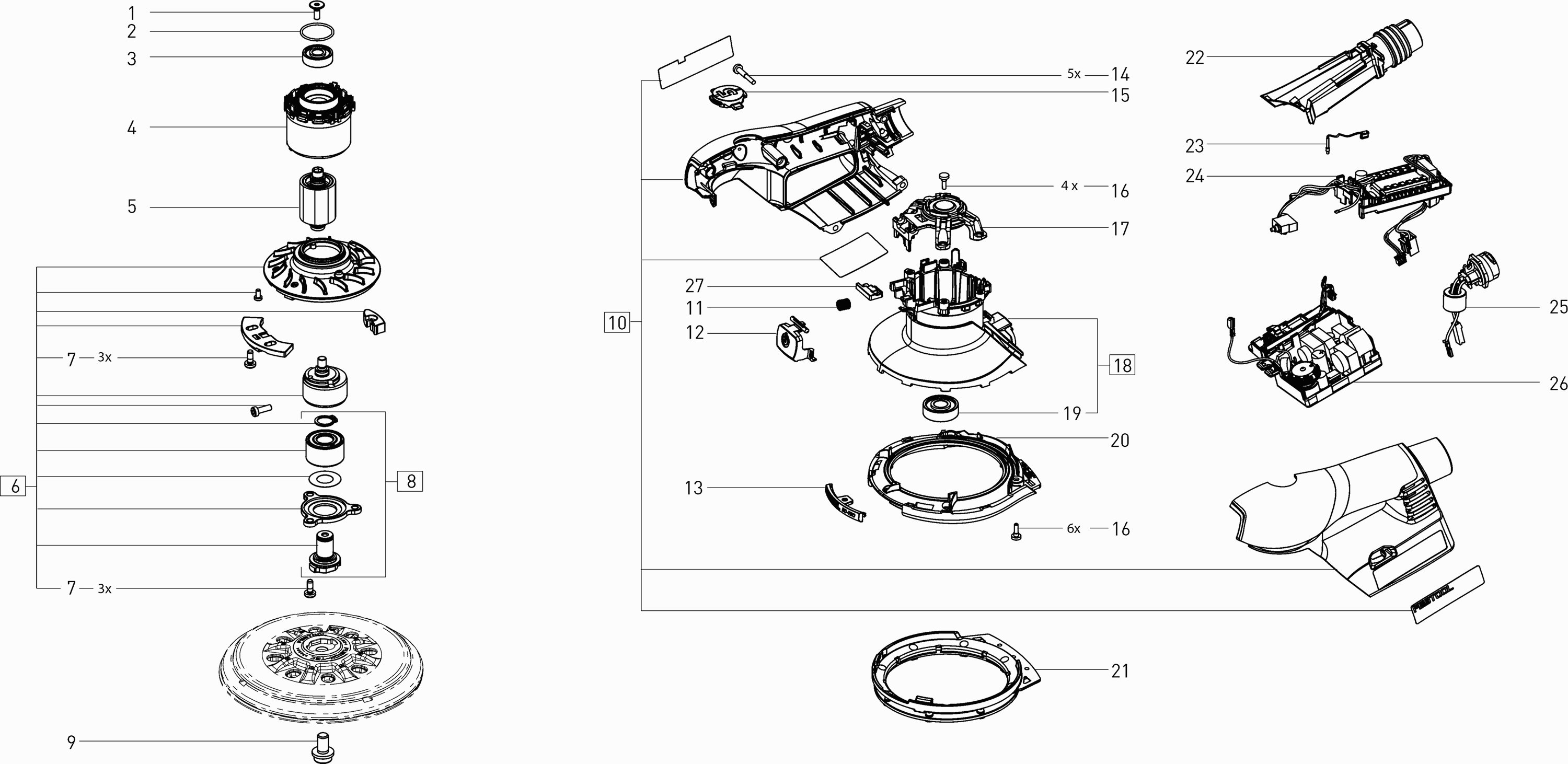

Technical drawing of model Festool 202857 (BASISAPPARAAT)
Spare parts list of model Festool 202857 (BASISAPPARAAT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw M 4x12 T15 | ||||
| 1 | 10006302 | 1.51 | 1.83 | |
| O-ring 22x1,5-EPDM-70SHORE | ||||
| 2 | 10006642 | 1.51 | 1.83 | |
| Ball bearing 608 2Z LHT42 | ||||
| 3 | 401523 | 5.04 | 6.10 | |
| Rotor ETS 150 EC | ||||
| 5 | 500330 | 120.52 | 145.83 | |
| Fan ETS 150 EC | ||||
| 6 | 500333 | 133.95 | 162.08 | |
| Oval head screw DIN 7985-M4x10-8.8-PR30+ | ||||
| 7 | 228733 | 1.51 | 1.83 | |
| Bearing ETS 150 EC | ||||
| 8 | 500397 | 78.53 | 95.02 | |
| Ch. head screw ZUBEH R | ||||
| 9 | 401165 | 1.51 | 1.83 | |
| half shell ETS 150 EC | ||||
| 10 | 500329 | 55.90 | 67.64 | |
| Compr. spring DIN 2098-0,70x7,50x14,7 | ||||
| 11 | 444754 | 1.51 | 1.83 | |
| Compr. spring 3D poliert ETS EC 150 | ||||
| 11 | 10212370 | 1.51 | 1.83 | |
| Switching jack ETS 150 EC | ||||
| 12 | 10006676 | 1.51 | 1.83 | |
| Label ETS 150EC Festool EC-TEC | ||||
| 13 | 10009396 | 6.70 | 8.11 | |
| Oval head screw PT-3,5x22-KT15 | ||||
| 14 | 473901 | 1.51 | 1.83 | |
| Housing insert ETS 150 EC Hub 5 | ||||
| 15 | 10006662 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 16 | 219031 | 7.32 | 8.86 | |
| Motor retainer ETS 150 EC | ||||
| 17 | 10004466 | 2.59 | 3.13 | |
| Motor frame ETS 150 EC | ||||
| 18 | 500334 | 54.33 | 65.74 | |
| BALL BEARING 6000 DDU-C3 D8S L (NSK) | ||||
| 19 | 789575 | 6.91 | 8.36 | |
| Apron ETS 150 EC | ||||
| 20 | 10006651 | 3.82 | 4.62 | |
| Collar ETS 150 EC | ||||
| 21 | 10014093 | 19.97 | 24.16 | |
| Channel ETS 150 EC | ||||
| 22 | 10025116 | 13.07 | 15.81 | |
| NTC resistor ETS EC 150 | ||||
| 23 | 704459 | 8.64 | 10.45 | |
| Electronics ETS 150 EC 120V | ||||
| 24 | 500255 | 127.53 | 154.31 | |
| Socket housing ETS 150 EC 120V | ||||
| 25 | 705195 | 11.62 | 14.06 | |
| Electronics ETS 150 EC HV 120V | ||||
| 26 | 500257 | 127.53 | 154.31 | |
| Buffer ETS EC 150 | ||||
| 27 | 10016727 | 1.51 | 1.83 | |
