Here you will find all available parts and drawings of the 'Festool 489576 (BasisSAS500)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

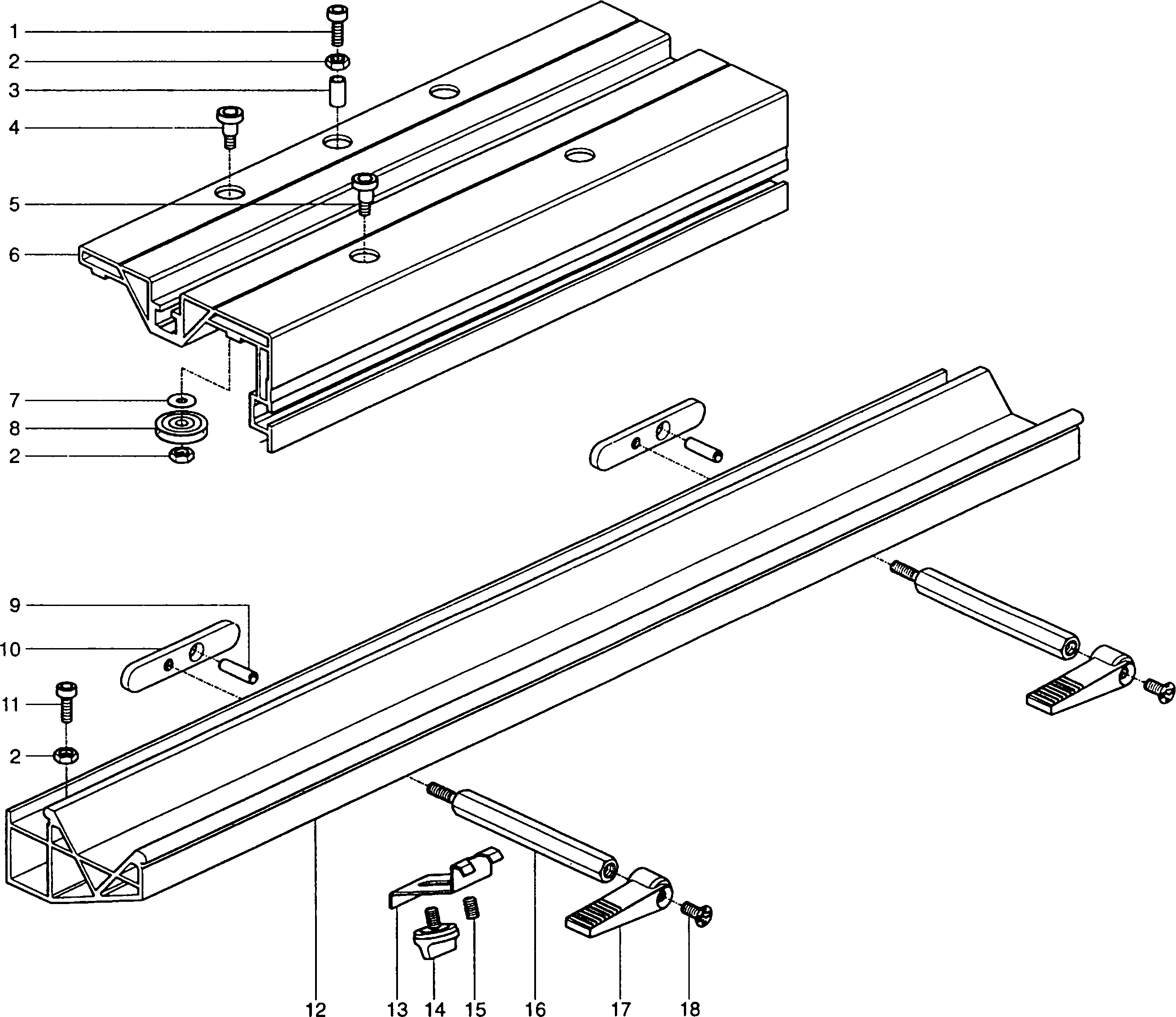

Technical drawing of model Festool 489576 (BasisSAS500)
Spare parts list of model Festool 489576 (BasisSAS500)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ch. head screw DIN 912-M6x22-10.9 | ||||
| 1 | 200689 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M6-10 | ||||
| 2 | 228689 | 1.51 | 1.83 | |
| SLEEVE BASIS SAS 500 | ||||
| 3 | 457255 | 9.07 | 10.97 | |
| SCREW BASIS SAS 500 M 6 | ||||
| 4 | 455398 | 7.42 | 8.98 | |
| ECCENTRIC SCREW BASIS SAS 500 M 6 | ||||
| 5 | 455399 | 11.95 | 14.46 | |
| Carriage BASIS SAS 500 | ||||
| 6 | 455170 | 111.20 | 134.55 | |
| Shim ring DIN 988-6x12x0,5 | ||||
| 7 | 400135 | 1.51 | 1.83 | |
| ROLLER BASIS 1 A | ||||
| 8 | 442024 | 8.21 | 9.93 | |
| Dowel pin DIN 7346-6x16-ST | ||||
| 9 | 402934 | 1.51 | 1.83 | |
| SPACER BASIS 1 A 14x6x80 | ||||
| 10 | 443841 | 7.63 | 9.23 | |
| Socket head screw DIN 912-M6x10-8.8 | ||||
| 11 | 228547 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 12 | 455167 | |||
| FIXING PLATE BASIS SAS 500 | ||||
| 13 | 457913 | 5.88 | 7.11 | |
| Button KF 4 E D 23 M6x10 blau | ||||
| 14 | 436195 | 1.80 | 2.18 | |
| Grub screw DIN 913-M6x10-45H | ||||
| 15 | 772405 | 1.51 | 1.83 | |
| HEX SHAFT BASIS SAS 500 | ||||
| 16 | 455356 | 13.07 | 15.81 | |
| Lever AP 55 E | ||||
| 17 | 438944 | 1.73 | 2.09 | |
| Countersink DIN 965-M6x10-4.8-PR30 | ||||
| 18 | 402365 | 1.51 | 1.83 | |
