Here you will find all available parts and drawings of the 'Festool 483691 (BasisKA2000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

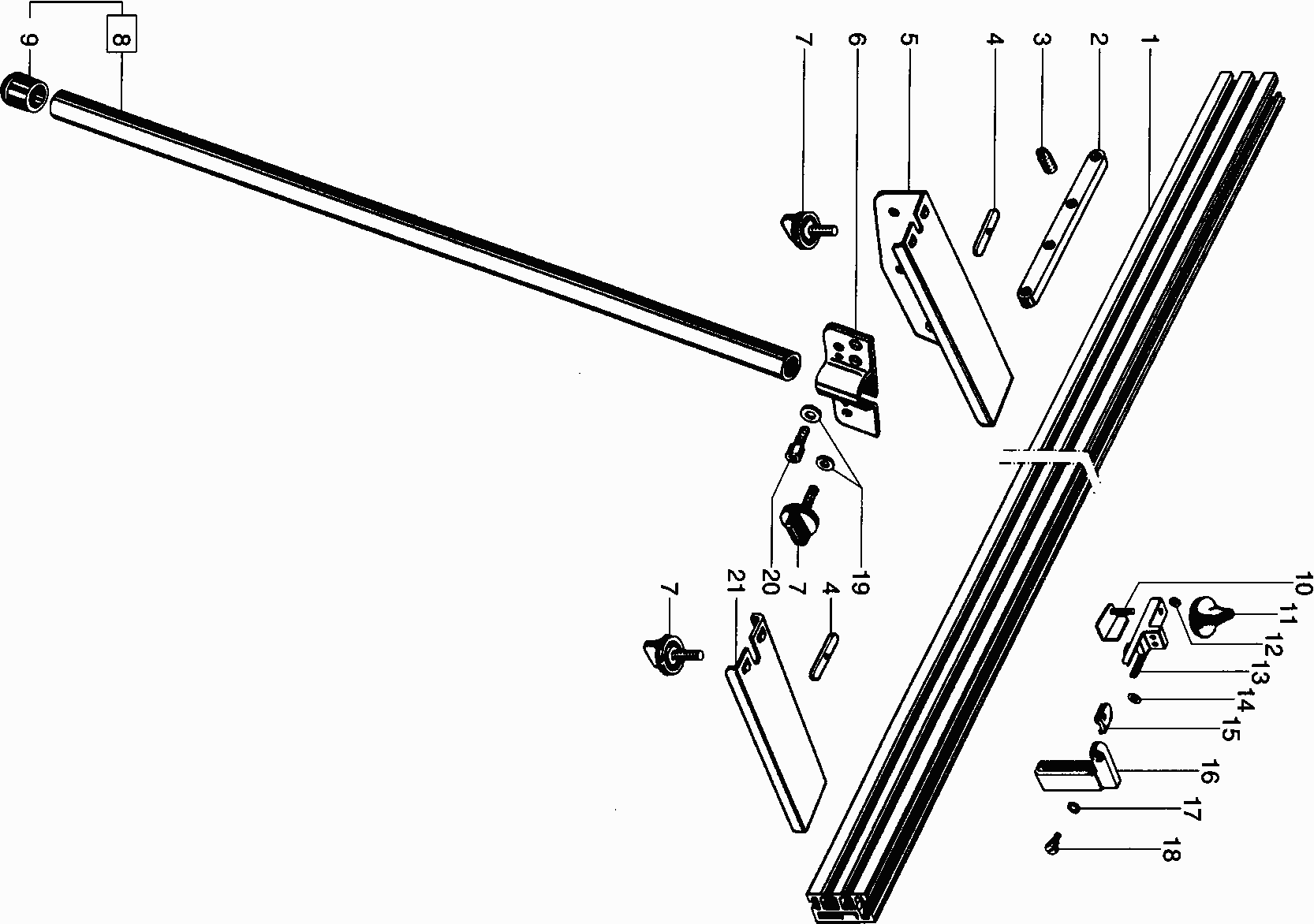

Technical drawing of model Festool 483691 (BasisKA2000)
Spare parts list of model Festool 483691 (BasisKA2000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | xxx | |||
| HEX SCREW FST 660 14x9x250 | ||||
| 2 | 439774 | 22.63 | 27.38 | |
| Grub screw DIN 913-M8x10-45H | ||||
| 3 | 772415 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 4 | xxx | |||
| FIXING PLATE BASIS 1 | ||||
| 5 | 437672 | 34.73 | 42.02 | |
| Bushing FST 660 | ||||
| 6 | 439771 | 10.01 | 12.11 | |
| Rotary knob D34 M6x11,5 blau | ||||
| 7 | 482098 | 2.38 | 2.88 | |
| No information available, not orderable | ||||
| 8 | xxx | |||
| RUBBER FOOT BASIS 1 | ||||
| 9 | 437674 | 2.30 | 2.78 | |
| No information available, not orderable | ||||
| 10 | xxx | |||
| Rotary knob BASIS 2 D34 M6/11T | ||||
| 11 | 483350 | 7.27 | 8.80 | |
| Hexagon nut DIN 439-M5 | ||||
| 12 | 200600 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 13 | xxx | |||
| Shim ring DIN 988-5x10x0,2 | ||||
| 14 | 228550 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 15 | xxx | |||
| No information available, not orderable | ||||
| 16 | xxx | |||
| O-ring 7x1,5-NBR-75SHORE | ||||
| 17 | 200916 | 1.51 | 1.83 | |
| Flat head screw DIN 923-M5x10-4.8 | ||||
| 18 | 772531 | 4.25 | 5.14 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 19 | 228546 | 1.51 | 1.83 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 20 | 200684 | 1.51 | 1.83 | |
| SUPPORT BASIS 1 | ||||
| 21 | 437671 | 16.21 | 19.61 | |
