Here you will find all available parts and drawings of the 'Festool 492505 ( BASIS6A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

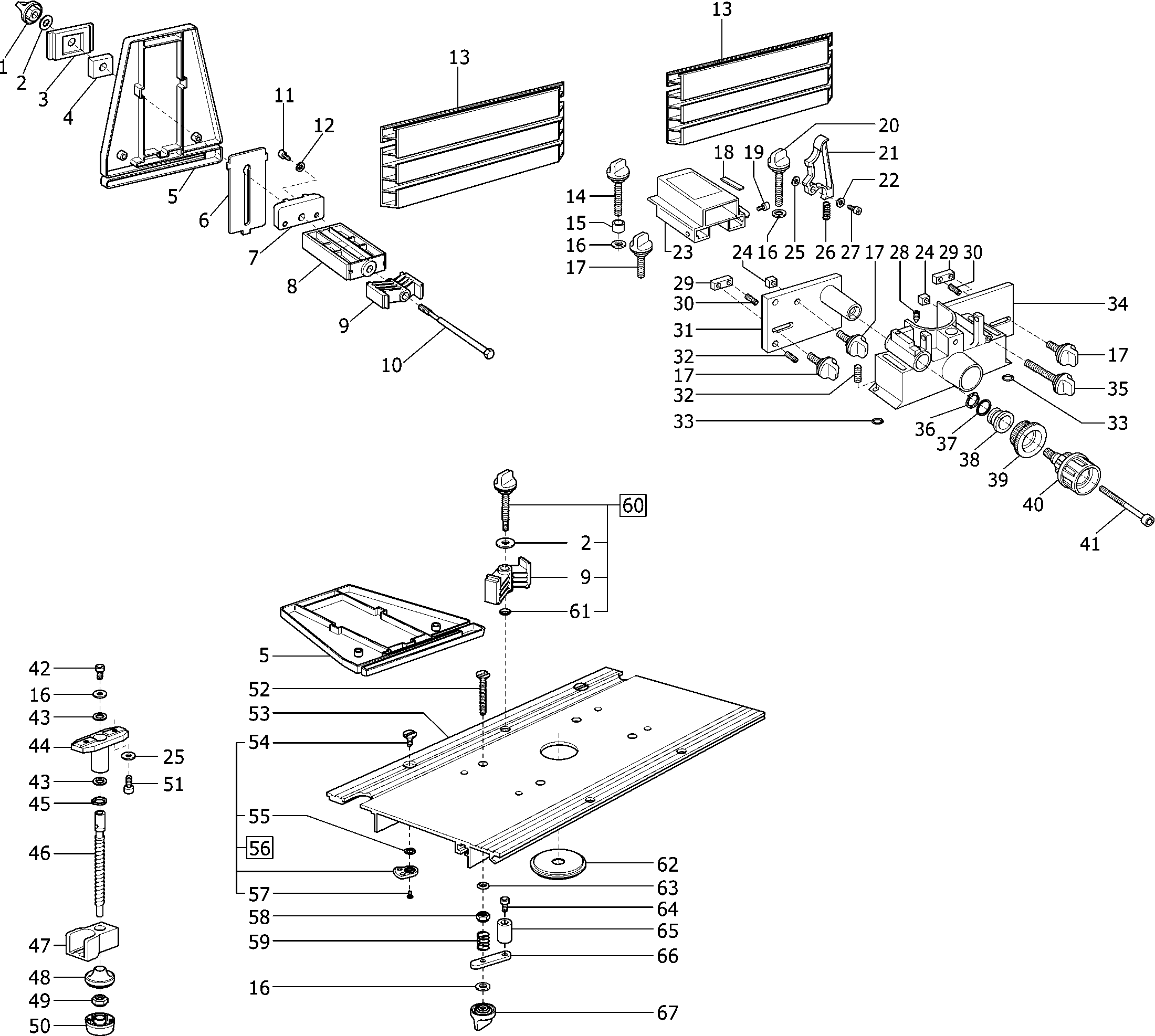

Technical drawing of model Festool 492505 ( BASIS6A )

Spare parts list of model Festool 492505 ( BASIS6A )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
1 442677
Disc DIN 9021-8,4-100 HV
2 219049 1.39 1.68
Head piece BASIS 5 A
3 457150 5.15 6.23
Joint piece BASIS 5 A
4 443148 1.72 2.08
Joint piece BASIS 5 A
5 442771 26.31 31.84
Cover BASIS 5 A
6 457859 11.74 14.21
Plate BASIS 5 A
7 457151 5.15 6.23
Slip piece BASIS 5 A
8 442772 5.81 7.03
Clamping elemen BASIS 5 A
9 442754 4.30 5.20
SCREW BASIS 5 A
10 442907 10.56 12.78
Oval head screw PT-4,0x12-KT15
11 219071 1.39 1.68
Disc DIN 125-A-4,3-140 HV
12 200576 1.39 1.68
RULER BASIS 5 A
13 463100 50.70 61.35
Rotary knob D34 M6x95 blau
14 485666 8.05 9.74
Distance bush BASIS 5 A
15 442202 4.49 5.43
Disc DIN 9021-6,4-100 HV
16 228546 1.39 1.68
Rotation knob CS 70
17 10734068 2.18 2.64
SUPPORT RSM-EA
18 436021 1.39 1.68
Shoulder screw DIN 927-M5x8-5.8
19 228765 1.39 1.68
Rotary knob D34 M6x70 blau
20 485665 7.73 9.35
RATCHET BASIS 5 A
21 442777 1.39 1.68
Disc DIN 7349-4,3-100 HV
22 228542 1.39 1.68
Cover BASIS 5 A
23 486331 55.78 67.49
NUT BASIS 5 A
24 442207 3.50 4.24
Disc DIN 125-B-6,4-140 HV
25 200578 1.39 1.68
Compression spr ST-300
26 216897 1.78 2.15
Oval head screw DIN 7985-M4x8-4.8
27 203806 1.39 1.68
Grub screw DIN 914-M6x8-45H
28 772439 1.39 1.68
NUT BASIS 5 A
29 466335 7.32 8.86
Grub screw DIN 551-M6x12-14H
30 442597 1.39 1.68
Plate BASIS
31 10012647 60.86 73.64
Grub screw DIN 551-M8x10-PA6.6
32 400618 1.39 1.68
O-ring 5x2-NBR-70SHORE
33 204551 1.39 1.68
HOUSING GH-BASIS 5
34 486654 98.62 119.33
Rotary knob D34 M6x111blau
35 485667 7.26 8.78
Circlip DIN 471-20x1,2
36 200352 1.39 1.68
Shim ring DIN 988-20x28x1,5
37 228760 1.39 1.68
Bush BASIS 5 A
38 442204 20.21 24.45
SCALE RING BASIS 5 A
39 442203 5.74 6.95
Adjusting wheel CMS-OF ET-BG
40 10465965 58.56 70.86
Ch. head screw DIN 912-M6x90-8.8
41 228764 1.39 1.68
Ch. head screw DIN 912-M6x16-10.9
42 200685 1.39 1.68
SPACER BASIS 2
43 437082 1.85 2.24
No information available, not orderable
44 444079
Circlip DIN 471-14x1
45 200621 1.39 1.68
SPINDLE BASIS 6 A
46 465868 40.90 49.49
DRIVING PIN BASIS 5
47 437388 2.51 3.04
KNOB BASE KF 4 E M8
48 436191 5.77 6.98
Hexagon nut DIN 934-M8-08
49 200719 1.39 1.68
KNOB (FRONT HAL KF 4 E
50 436189 4.64 5.61
Ch. head screw DIN 912-M6x14-8.8
51 228577 1.39 1.68
Countersink DIN 965-M6x45-4.8
52 400620 1.39 1.68
No information available, not orderable
53 493892
Flange nut BASIS A/T
54 447731 12.22 14.79
Spring washer DIN 137-A-7
55 223862 1.39 1.68
FLANGE CMB 120
56 488200 45.74 55.35
Countersink DIN 965-M4x6-4.8
57 400346 1.39 1.68
Hexagon nut DIN 439-M6
58 200601 1.39 1.68
SPRING DIN 2098-1,10x14,00x30,0
59 457063 2.04 2.47
No longer available, no replacement
60 486707
Circlip SW 8-SEEGER
61 206666 1.39 1.68
SLEEVE BASIS 6
62 455733 18.51 22.40
Sleeve Ø66 Of1400
62 466075 16.82 20.35
Disc DIN 125-B-6,4-140 HV
63 200578 1.39 1.68
No information available, not orderable
64 xxx
BOLT BASIS 6 A
65 465881 3.96 4.79
No information available, not orderable
66 xxx
Rotary knob BASIS 2 D34 M6/11T
67 483350 6.67 8.07
