Festool Basis 6 spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 490056 (BASIS6)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

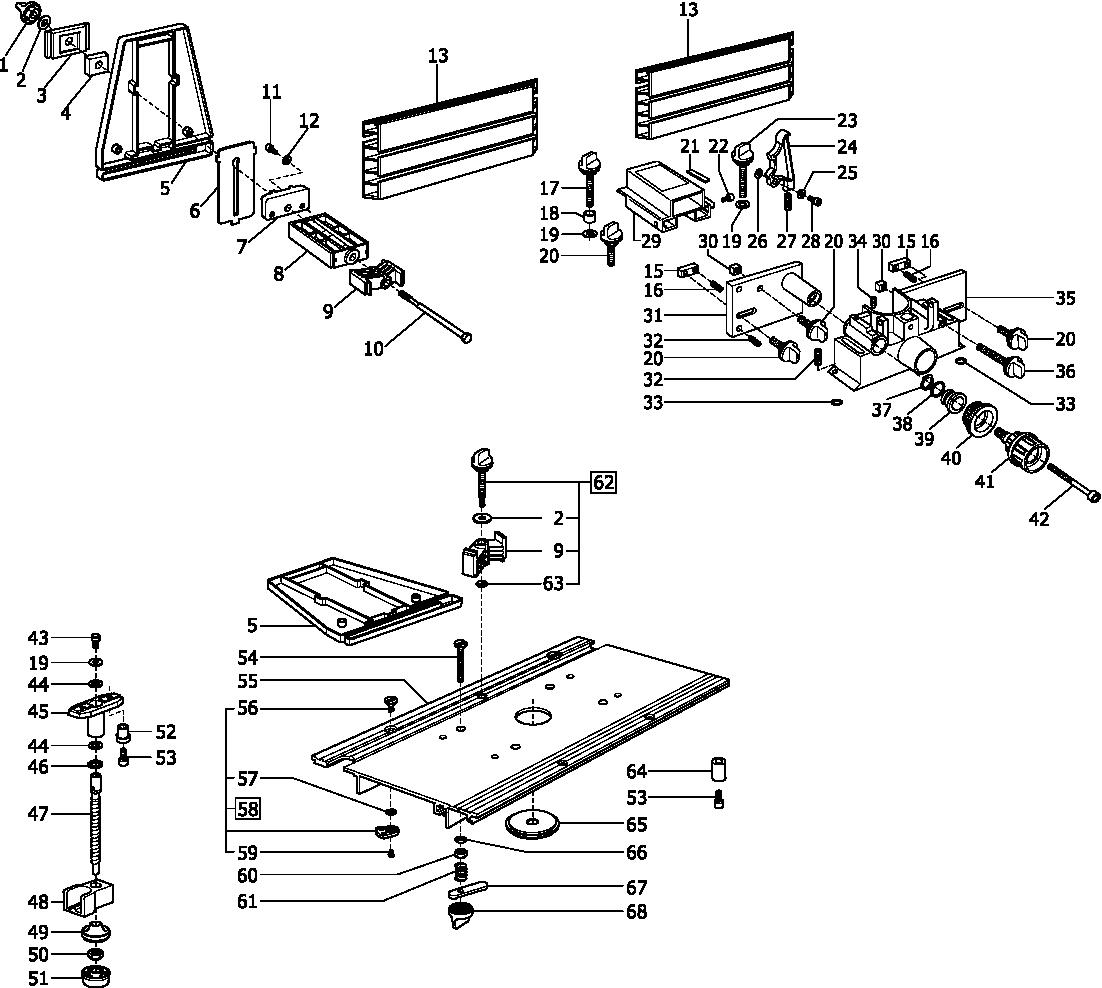

Technical drawing of model Festool 490056 (BASIS6)

Spare parts list of model Festool 490056 (BASIS6)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

No information available, not orderable
1	442677

Disc DIN 9021-8,4-100 HV
2	219049	1.51	1.83

Head piece BASIS 5 A
3	457150	5.62	6.80

Joint piece BASIS 5 A
4	443148	1.87	2.26

Joint piece BASIS 5 A
5	442771	26.86	32.50

Cover BASIS 5 A
6	457859	12.80	15.49

Plate BASIS 5 A
7	457151	5.62	6.80

Slip piece BASIS 5 A
8	442772	6.34	7.67

Clamping elemen BASIS 5 A
9	442754	4.90	5.93

SCREW BASIS 5 A
10	442907	11.52	13.94

Oval head screw PT-4,0x12-KT15
11	219071	1.51	1.83

Disc DIN 125-A-4,3-140 HV
12	200576	1.51	1.83

RULER BASIS 5 A
13	463100	50.70	61.35

NUT BASIS 5 A
15	466335	7.99	9.67

Grub screw DIN 551-M6x12-14H
16	442597	1.51	1.83

Rotary knob D34 M6x95 blau
17	485666	8.78	10.62

Distance bush BASIS 5 A
18	442202	5.11	6.18

Disc DIN 9021-6,4-100 HV
19	228546	1.51	1.83

Rotation knob CS 70
20	10734068	2.18	2.64

SUPPORT RSM-EA
21	436021	1.51	1.83

Shoulder screw DIN 927-M5x8-5.8
22	228765	1.51	1.83

Rotary knob D34 M6x70 blau
23	485665	8.42	10.19

RATCHET BASIS 5 A
24	442777	1.58	1.91

Disc DIN 7349-4,3-100 HV
25	228542	1.51	1.83

Disc DIN 125-B-6,4-140 HV
26	200578	1.51	1.83

Compression spr ST-300
27	216897	1.94	2.35

Oval head screw DIN 7985-M4x8-4.8
28	203806	1.51	1.83

Cover BASIS 5 A
29	486331	78.17	94.59

NUT BASIS 5 A
30	442207	4.03	4.88

Plate BASIS
31	10012647	60.86	73.64

Grub screw DIN 551-M8x10-PA6.6
32	400618	1.51	1.83

O-ring 5x2-NBR-70SHORE
33	204551	1.51	1.83

Grub screw DIN 914-M6x8-45H
34	772439	1.51	1.83

HOUSING GH-BASIS 5
35	486654	138.06	167.05

Rotary knob D34 M6x111blau
36	485667	7.92	9.58

Circlip DIN 471-20x1,2
37	200352	1.51	1.83

Shim ring DIN 988-20x28x1,5
38	228760	1.51	1.83

Bush BASIS 5 A
39	442204	20.21	24.45

Adjusting wheel CMS-OF ET-BG
40	10465965	82.04	99.27

SCALE RING BASIS 5 A
40	442203	6.55	7.93

No information available, not orderable
41	485583

Ch. head screw DIN 912-M6x90-8.8
42	228764	1.51	1.83

Ch. head screw DIN 912-M6x16-10.9
43	200685	1.51	1.83

SPACER BASIS 2
44	437082	2.02	2.44

Lager
45	444079	3.31	4.01

Circlip DIN 471-14x1
46	200621	1.51	1.83

SPINDLE BASIS 2
47	437062	35.21	42.60

DRIVING PIN BASIS 5
48	437388	2.74	3.32

KNOB BASE KF 4 E M8
49	436191	6.70	8.11

Hexagon nut DIN 934-M8-08
50	200719	1.51	1.83

KNOB (FRONT HAL KF 4 E
51	436189	5.18	6.27

No information available, not orderable
52	xxx

Ch. head screw DIN 912-M6x22-10.9
53	200689	1.51	1.83

Countersink DIN 965-M6x45-4.8
54	400620	1.51	1.83

No information available, not orderable
55	xxx

Flange nut BASIS A/T
56	447731	13.13	15.89

Spring washer DIN 137-A-7
57	223862	1.51	1.83

FLANGE CMB 120
58	488200	45.74	55.35

Countersink DIN 965-M4x6-4.8
59	400346	1.51	1.83

Hexagon nut DIN 439-M6
60	200601	1.51	1.83

SPRING DIN 2098-1,10x14,00x30,0
61	457063	2.23	2.70

No longer available, no replacement
62	486707

Circlip SW 8-SEEGER
63	206666	1.51	1.83

No information available, not orderable
64	xxx

SLEEVE BASIS 6
65	455733	18.51	22.40

Disc DIN 125-B-6,4-140 HV
66	200578	1.51	1.83

No information available, not orderable
67	xxx

Rotary knob D34 M6/8T blue
68	440713	3.10	3.75
