Here you will find all available parts and drawings of the 'Festool 488773 (BASIS5A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

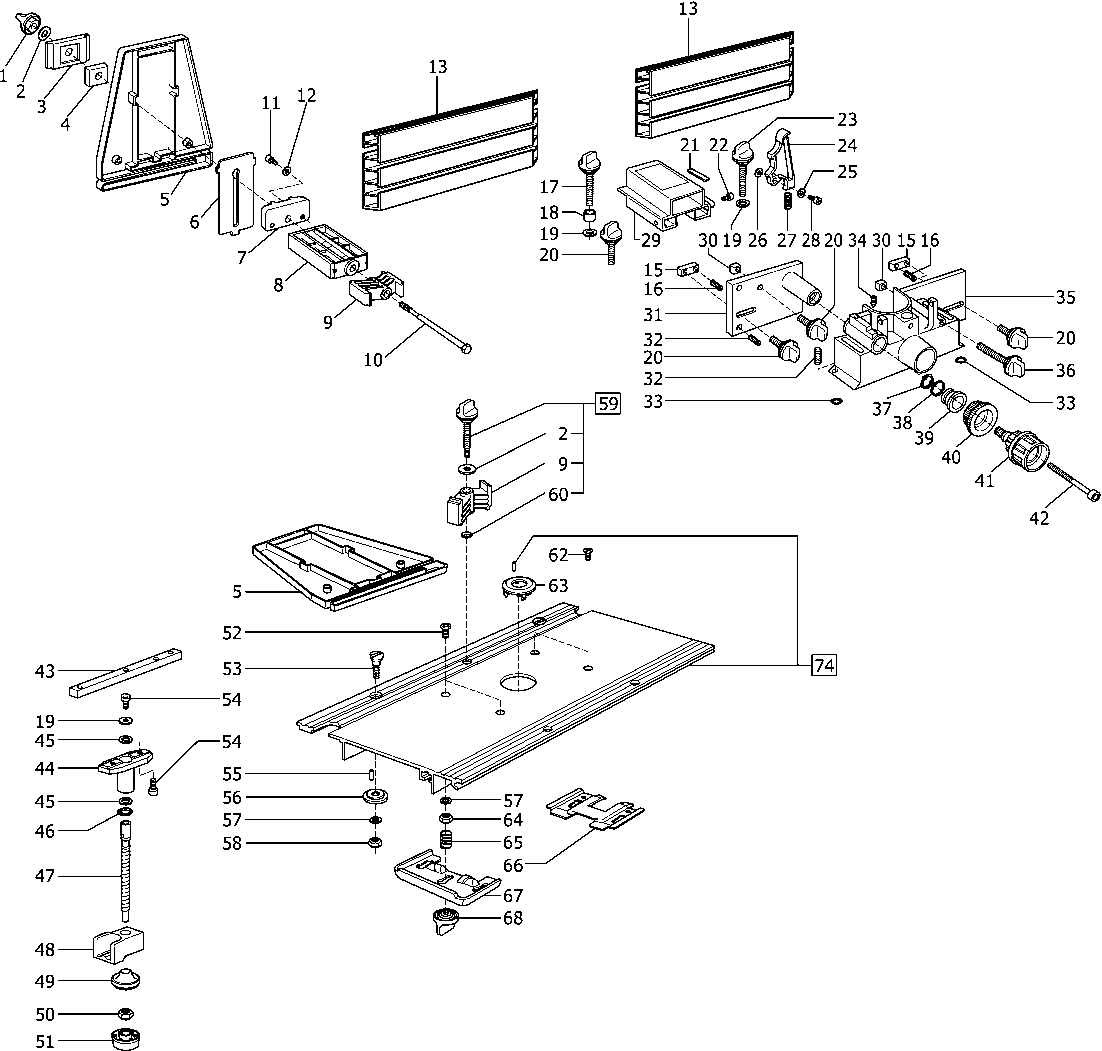

Technical drawing of model Festool 488773 (BASIS5A)
Spare parts list of model Festool 488773 (BASIS5A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 442677 | |||
| Disc DIN 9021-8,4-100 HV | ||||
| 2 | 219049 | 1.51 | 1.83 | |
| Head piece BASIS 5 A | ||||
| 3 | 457150 | 5.62 | 6.80 | |
| Joint piece BASIS 5 A | ||||
| 4 | 443148 | 1.87 | 2.26 | |
| Joint piece BASIS 5 A | ||||
| 5 | 442771 | 26.86 | 32.50 | |
| Cover BASIS 5 A | ||||
| 6 | 457859 | 12.80 | 15.49 | |
| Plate BASIS 5 A | ||||
| 7 | 457151 | 5.62 | 6.80 | |
| Slip piece BASIS 5 A | ||||
| 8 | 442772 | 6.34 | 7.67 | |
| Clamping elemen BASIS 5 A | ||||
| 9 | 442754 | 4.90 | 5.93 | |
| SCREW BASIS 5 A | ||||
| 10 | 442907 | 11.52 | 13.94 | |
| Oval head screw PT-4,0x12-KT15 | ||||
| 11 | 219071 | 1.51 | 1.83 | |
| Disc DIN 125-A-4,3-140 HV | ||||
| 12 | 200576 | 1.51 | 1.83 | |
| RULER BASIS 5 A | ||||
| 13 | 463100 | 50.70 | 61.35 | |
| NUT BASIS 5 A | ||||
| 15 | 466335 | 7.99 | 9.67 | |
| Grub screw DIN 551-M6x12-14H | ||||
| 16 | 442597 | 1.51 | 1.83 | |
| Rotary knob D34 M6x95 blau | ||||
| 17 | 485666 | 8.78 | 10.62 | |
| Distance bush BASIS 5 A | ||||
| 18 | 442202 | 5.11 | 6.18 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 19 | 228546 | 1.51 | 1.83 | |
| Rotation knob CS 70 | ||||
| 20 | 10734068 | 2.18 | 2.64 | |
| SUPPORT RSM-EA | ||||
| 21 | 436021 | 1.51 | 1.83 | |
| Shoulder screw DIN 927-M5x8-5.8 | ||||
| 22 | 228765 | 1.51 | 1.83 | |
| Rotary knob D34 M6x70 blau | ||||
| 23 | 485665 | 8.42 | 10.19 | |
| RATCHET BASIS 5 A | ||||
| 24 | 442777 | 1.58 | 1.91 | |
| Disc DIN 7349-4,3-100 HV | ||||
| 25 | 228542 | 1.51 | 1.83 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 26 | 200578 | 1.51 | 1.83 | |
| Compression spr ST-300 | ||||
| 27 | 216897 | 1.94 | 2.35 | |
| Oval head screw DIN 7985-M4x8-4.8 | ||||
| 28 | 203806 | 1.51 | 1.83 | |
| Cover BASIS 5 A | ||||
| 29 | 486331 | 78.17 | 94.59 | |
| NUT BASIS 5 A | ||||
| 30 | 442207 | 4.03 | 4.88 | |
| Plate BASIS | ||||
| 31 | 10012647 | 60.86 | 73.64 | |
| Grub screw DIN 551-M8x10-PA6.6 | ||||
| 32 | 400618 | 1.51 | 1.83 | |
| O-ring 5x2-NBR-70SHORE | ||||
| 33 | 204551 | 1.51 | 1.83 | |
| Grub screw DIN 914-M6x8-45H | ||||
| 34 | 772439 | 1.51 | 1.83 | |
| HOUSING GH-BASIS 5 | ||||
| 35 | 486654 | 138.06 | 167.05 | |
| Rotary knob D34 M6x111blau | ||||
| 36 | 485667 | 7.92 | 9.58 | |
| Circlip DIN 471-20x1,2 | ||||
| 37 | 200352 | 1.51 | 1.83 | |
| Shim ring DIN 988-20x28x1,5 | ||||
| 38 | 228760 | 1.51 | 1.83 | |
| Bush BASIS 5 A | ||||
| 39 | 442204 | 20.21 | 24.45 | |
| Adjusting wheel CMS-OF ET-BG | ||||
| 40 | 10465965 | 82.04 | 99.27 | |
| SCALE RING BASIS 5 A | ||||
| 40 | 442203 | 6.55 | 7.93 | |
| No information available, not orderable | ||||
| 41 | 485583 | |||
| Ch. head screw DIN 912-M6x90-8.8 | ||||
| 42 | 228764 | 1.51 | 1.83 | |
| CLAMP RAIL BASIS 5 A | ||||
| 43 | 442214 | 16.21 | 19.61 | |
| Lager | ||||
| 44 | 444079 | 3.31 | 4.01 | |
| SPACER BASIS 2 | ||||
| 45 | 437082 | 2.02 | 2.44 | |
| Circlip DIN 471-14x1 | ||||
| 46 | 200621 | 1.51 | 1.83 | |
| SPINDLE BASIS 2 | ||||
| 47 | 437062 | 35.21 | 42.60 | |
| DRIVING PIN BASIS 5 | ||||
| 48 | 437388 | 2.74 | 3.32 | |
| KNOB BASE KF 4 E M8 | ||||
| 49 | 436191 | 6.70 | 8.11 | |
| Hexagon nut DIN 934-M8-08 | ||||
| 50 | 200719 | 1.51 | 1.83 | |
| KNOB (FRONT HAL KF 4 E | ||||
| 51 | 436189 | 5.18 | 6.27 | |
| Countersink DIN 965-M6x25-4.8 | ||||
| 52 | 403038 | 1.51 | 1.83 | |
| BOLT BASIS 4 | ||||
| 53 | 437177 | 24.20 | 29.28 | |
| Ch. head screw DIN 912-M6x16-10.9 | ||||
| 54 | 200685 | 1.51 | 1.83 | |
| Dowel pin DIN 7343-2x8-ST | ||||
| 55 | 227448 | 1.51 | 1.83 | |
| FLANGE BASIS 4 | ||||
| 56 | 437176 | 2.16 | 2.61 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 57 | 200578 | 1.51 | 1.83 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 58 | 228541 | 1.51 | 1.83 | |
| No longer available, no replacement | ||||
| 59 | 486707 | |||
| Circlip SW 8-SEEGER | ||||
| 60 | 206666 | 1.51 | 1.83 | |
| Countersink DIN 965-M6x20-4.8 | ||||
| 62 | 228529 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 63 | xxx | |||
| Hexagon nut DIN 439-M6 | ||||
| 64 | 200601 | 1.51 | 1.83 | |
| Spring VL -4-1/4 | ||||
| 65 | 207813 | 1.51 | 1.83 | |
| BRACKET BASIS 4 ABSAUGSEITE | ||||
| 66 | 437161 | 30.01 | 36.31 | |
| No longer available, no replacement | ||||
| 67 | 437172 | |||
| Rotary knob BASIS 2 D34 M6/11T | ||||
| 68 | 483350 | 7.27 | 8.80 | |
| No longer available, no replacement | ||||
| 74 | 493828 | |||
