Here you will find all available parts and drawings of the 'Festool 486498 ( BASIS1A/T )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

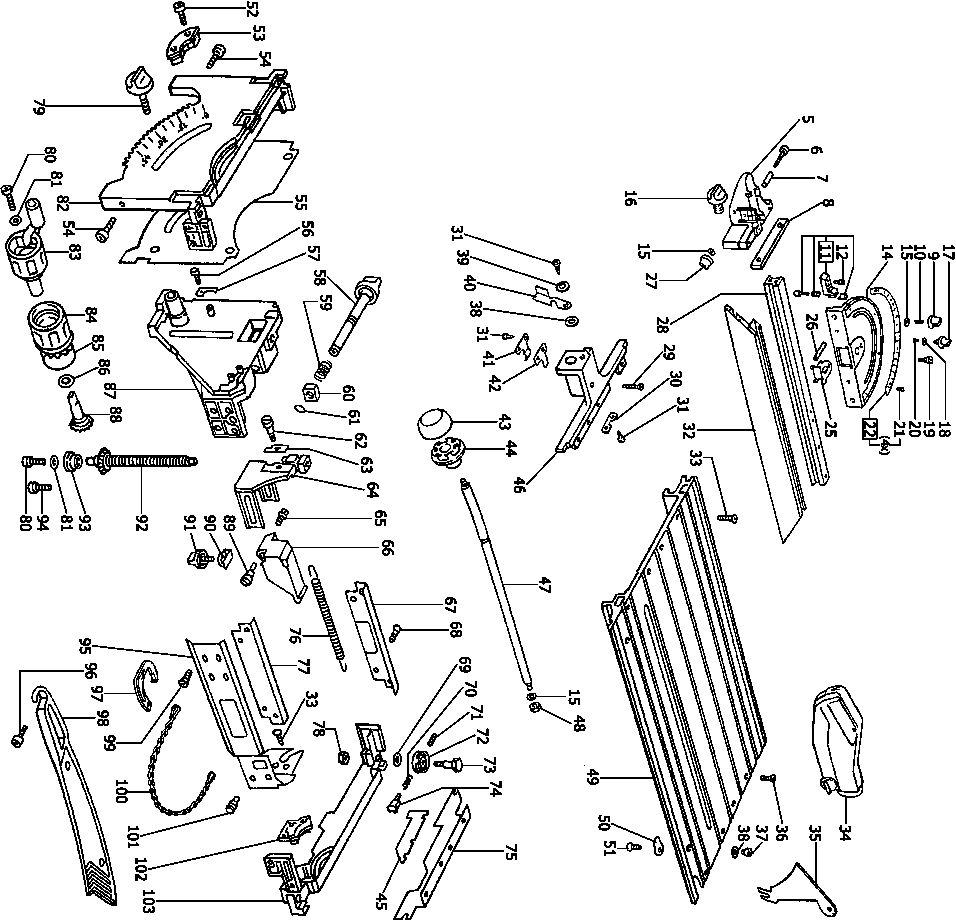

Technical drawing of model Festool 486498 ( BASIS1A/T )

Spare parts list of model Festool 486498 ( BASIS1A/T )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
CLAMPING PIECE BASIS WRA 500
5 490276 79.74 96.49
Cup square bolt DIN 603-M6x40-4.6
6 228534 1.39 1.68
Spacer CS 70 EB
7 448066 8.52 10.31
SPRING BASIS 1 A/T
8 458559 15.25 18.45
Rotary knob D34 M6/8T blue
9 440713 2.71 3.28
Stud M6x20 DIN 938 5.8
10 464525 1.39 1.68
Support device CS 70 EB
11 489181 26.86 32.50
Ch. head screw DIN 912-M6x12-10.9
12 200684 1.39 1.68
Swivel Section CS 70 EB ET-BG
14 10699976 43.56 52.71
Swiv. segment CS 70 EB
14 448014 30.13 36.46
Disc DIN 9021-6,4-100 HV
15 228546 1.39 1.68
Rotary knob D34 M6x27,5 blau
16 486202 2.57 3.11
Rotary knob D34 Exz.10 blue
17 487755 8.45 10.22
Disc CS 70 EB
18 448471 3.30 3.99
Flat head screw CS 70 EB
19 448065 4.03 4.88
Countersink M4x8-TAPTITE-T15
20 219043 1.39 1.68
Oval head screw M4x6-DUO-TAPTITE-PZV
21 400348 1.39 1.68
GRADUATED SCALE CS 70 EB
22 488156 21.78 26.35
Clamping plate CS 50 EB
25 10023711 4.68 5.66
Dowel pin DIN 7346-5x12-ST
26 228692 1.39 1.68
Rotary knob BASIS 2 D34 M6/11T
27 483350 6.67 8.07
GUIDE PROFILE CS 70 EB
28 465708 31.34 37.92
No information available, not orderable
29 xxx
No information available, not orderable
30 xxx
Oval head screw PT-4,0x12-KT15
31 219071 1.39 1.68
Stop Profile CS 70 ET-BG
32 10711280 28.19 34.11
Countersink PT-4,0x10-KT15
33 219102 1.39 1.68
GUARD BASIS 1 A VOLLST.
34 485762 46.46 56.22
No information available, not orderable
35 xxx
Countersunk screw DIN 965-M4x10-4.8-TORX
36 228727 1.39 1.68
Flange nut BASIS A/T
37 447731 12.22 14.79
Spring washer DIN 137-A-7
38 223862 1.39 1.68
Disc DIN 9021-4,3-100 HV
39 403100 1.39 1.68
No information available, not orderable
40 xxx
No information available, not orderable
41 xxx
No information available, not orderable
42 xxx
Upper section o CS 70 EB
43 447534 1.78 2.15
HANDLE DOWN CS 70 EB
44 488523 2.64 3.19
No information available, not orderable
45 xxx
No information available, not orderable
46 xxx
No information available, not orderable
47 xxx
Hexagon nut DIN 439-M6
48 200601 1.39 1.68
PROFILE PLATE BASIS 1 A/T VOLLST.
49 455124 153.06 185.20
FLANGE BASIS 4
50 447657 7.66 9.27
Countersink DIN 965-M4x6-4.8
51 400346 1.39 1.68
Oval head screw M5x14-TAPTITE-T15
52 228686 1.39 1.68
No information available, not orderable
53 xxx
SCREW M5x16 POWERLOK
54 228617 1.39 1.68
No information available, not orderable
55 xxx
Oval head screw M4x10-TAPTITE-KT15
56 228738 1.39 1.68
SPACER AP 55 E
57 439275 2.04 2.47
THREADED SPINDL BASIS 1 A VOLLST.
58 486626 26.02 31.48
SPRING DIN 2098-0,80x27,40x85,0
59 444053 2.30 2.78
NUT BASIS 1 A/T M 16
60 448735 5.62 6.80
No longer available, no replacement
61 200926
Flat head screw DIN 923-M5x11,5-4.8
62 400012 3.96 4.79
No information available, not orderable
63 xxx
ADJ. NUT BASIS 1 A/T VOLLST.
64 487662 56.14 67.93
No information available, not orderable
65 xxx
No longer available, no replacement
66 441837
No information available, not orderable
67 xxx
Countersink M5x12-TAPTITE-T15
68 219056 1.39 1.68
Shim ring DIN 988-6x12x0,5
69 400135 1.39 1.68
No information available, not orderable
70 xxx
No information available, not orderable
71 228655
ROLLER BASIS 1 A
72 442024 7.52 9.10
No information available, not orderable
73 xxx
No information available, not orderable
74 xxx
No information available, not orderable
75 xxx
No longer available, no replacement
76 440273
No information available, not orderable
77 xxx
Hexagon nut DIN 934-M6-10
78 228689 1.39 1.68
Rotation knob CS 70
79 10734068 2.18 2.64
Oval head screw DIN 7985-M5x12-4.8
80 400063 1.39 1.68
Disc DIN 9021-5,3-100 HV
81 216412 1.39 1.68
No information available, not orderable
82 xxx
No information available, not orderable
83 xxx
No information available, not orderable
84 439333
No information available, not orderable
85 xxx
No information available, not orderable
86 xxx
No information available, not orderable
87 xxx
No longer available, no replacement
88 490450
No information available, not orderable
89 xxx
No information available, not orderable
90 xxx
Rotary knob SFS-RS 1 D 23 M6x12 blau
91 438320 8.90 10.77
SPINDLE BASIS 1 A/T
92 490431 30.61 37.04
Bearing BASIS 1 A/T
93 459137 9.84 11.91
Oval head screw M5x12-TAPTITE-T25
94 400683 1.39 1.68
No information available, not orderable
95 xxx
Ch. head screw DIN 912-M8x40-10.9
96 204485 1.39 1.68
Clamp OF 1 E ET-BG
97 200498 8.90 10.77
Workpiece hold CS 70 EB
98 450199 6.60 7.99
No information available, not orderable
99 xxx
CHAIN BASIS 1 A
100 440158 3.43 4.15
No information available, not orderable
101 xxx
No information available, not orderable
102 xxx
No information available, not orderable
103 xxx
