Festool Ap 85 Eb 230V spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 489940 (AP85EB230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

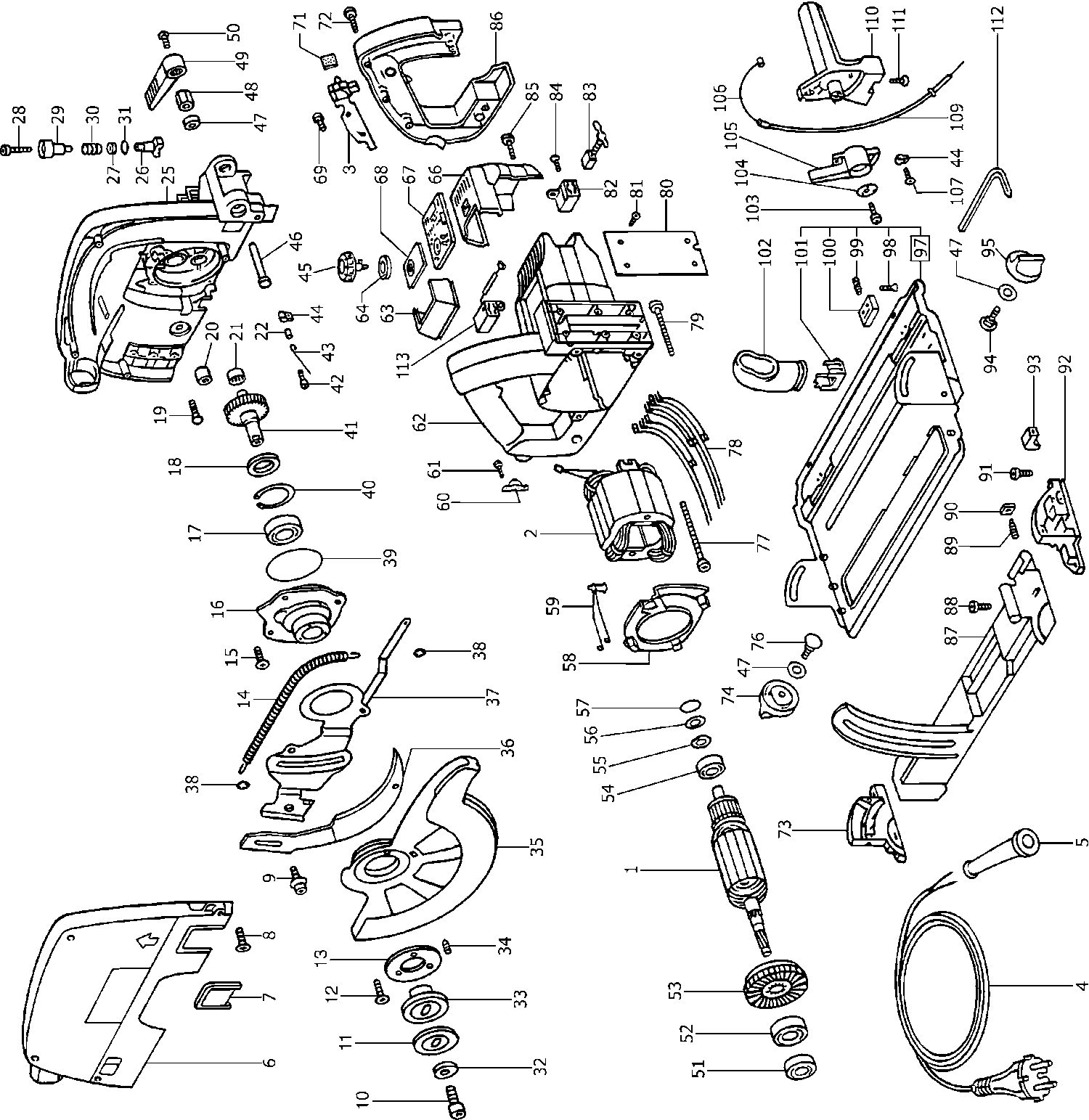

Technical drawing of model Festool 489940 (AP85EB230V)

Spare parts list of model Festool 489940 (AP85EB230V)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

ARMATURE 230V AP 85 EB
1	493791	210.78	255.04

FIELD COIL AP 85 E ET-BG
2	495626	139.15	168.37

SWITCH CARD AP 55 EB
3	489830	81.43	98.53

Mains cable H07 RN-F EURO
4	637685	22.99	27.82

Cable conduit RTR 1409
5	432436	1.51	1.83

Cover SP 85/45 EB
6	638721	44.29	53.59

BLADE COVER WIN AP 55 E
7	438943	4.46	5.40

Countersink M4x16-TAPTITE-KT15
8	228732	1.51	1.83

SWING GUARD STO AP 85 E
9	440506	9.79	11.85

Ch. head screw DIN 912-M8x25-10.9
10	200693	1.51	1.83

No longer available, no replacement
11	441732

Countersink M4x8-TAPTITE-T15
12	219043	1.51	1.83

FLANGE AXP 85
13	435057	10.37	12.55

SPRING AP 85 E
14	442275	9.22	11.16

Countersink M4x12-TAPTITE-T15
15	219053	1.51	1.83

BEARING COVER AP 85 E
16	439907	29.89	36.17

Ball bearing 6202 2RS DIN 625
17	789775	10.08	12.20

SEAL DG 20x35x5/01Z01
18	440009	15.49	18.74

Cup square bolt DIN 603-M8x25-4.6
19	400553	1.51	1.83

BUFFER AXP 130
20	714434	5.40	6.53

BUSH BK 1212
21	410229	9.43	11.41

RING AP 85 E
22	441219	6.73	8.14

Schutzhaube SP 85/45 EB
25	637523	120.52	145.83

No information available, not orderable
26	440085

SPACER AP 55 E
27	440546	1.51	1.83

Oval head screw DIN 7985-M4x35-4.8
28	228660	1.51	1.83

SPINDLE STOP KN AP 55 E
29	440441	3.67	4.44

SPRING DIN 2098-1,60x17,20x16,5
30	440729	1.51	1.83

O-ring 8x2,2-NBR-75SHORE
31	400013	1.51	1.83

Disc DIN 7349-8,4-100 HV
32	228527	1.51	1.83

No longer available, no replacement
33	441733

Grub screw DIN 914-M4x6-45H
34	224954	1.39	1.68

PENDULUM COVER AP 85 E
35	442276	85.31	103.23

Spacer wedge AP 85 E
36	439887	65.46	79.21

GUIDE AP 85 E
37	489083	39.33	47.59

Tooth ring ZA-5-SEEGER
38	234883	1.51	1.83

O-ring 71,5x1,5-NBR-75SHORE
39	200973	1.51	1.83

Circlip JV 35x1,5-SEEGER
40	205454	3.10	3.75

Gear shaft AP 85 E
41	445440	63.04	76.28

Oval head screw M4x16-TAPTITE-T15
42	219075	1.51	1.83

STRIPPER AP 85 E
43	441218	5.35	6.47

CLIP AP 85 E
44	440685	4.68	5.66

ADJUSTING WHEEL AP 55 E
45	440991	5.54	6.70

BOLT AP 85 E
46	439903	9.29	11.24

Disc DIN 9021-8,4-100 HV
47	219049	1.51	1.83

NUT AP 85 E
48	439911	6.55	7.93

LEVER AP 85 E
49	439922	2.74	3.32

Countersink M5x10-TAPTITE-KT15
50	219044	1.51	1.83

BALL BEARING 608 2Z C3 DIN 625
51	228559	4.68	5.66

Ball bearing 6201 DDU C3 E D8 MA7S-M
52	400065	9.14	11.06

FAN AP 85 E VOLLST.
53	483808	21.90	26.50

BALL BEARING 6000 2Z C3 DIN 625
54	789573	9.36	11.33

WASHER TN 232012
55	411613	1.51	1.83

Shim ring DIN 988-19x26x0,5
56	434608	1.51	1.83

COVER AP 85 E
57	441327	1.58	1.91

GUIDE AP 88 E
58	438048	3.10	3.75

COIL AP 85 E VOLLST.
59	486780	49.37	59.74

Cable clamp RTK-S
60	431899	1.51	1.83

Oval head screw PT-3,5x16-KT15
61	228663	1.51	1.83

Motor frame SP 85/45 EB
62	637525	42.59	51.53

Enclosure CSP 85/45 EB
63	637528	8.64	10.45

Spacer AP 88 E
64	438509	1.58	1.91

MOTOR HOUSING C AP 88 E
66	438172	8.06	9.75

No information available, not orderable
67	488601

Viewing Window AP 88 E
68	438198	2.66	3.22

Oval head screw PS 2 E M3x 6,5
69	228718	1.51	1.83

MOLTOPRENE PLAT 30x15x8
71	410394	1.44	1.74

Oval head screw PT-4,0x25-KT15
72	228580	1.51	1.83

No information available, not orderable
73	xxx

Rotary knob Basis Plus D 40 M8 5+12T
74	483162	5.90	7.14

Cup square bolt DIN 603-M8x35-4.6
76	215007	1.51	1.83

Oval head screw PT-5,0x70-KT15
77	228709	1.51	1.83

No information available, not orderable
78	490030

Ch. head screw M5x40-TAPTITE
79	203780	1.87	2.26

COVER AP 85 E
80	440010	6.05	7.32

Oval head screw PT-4,0x12-KT15
81	219071	1.51	1.83

Brush holder AXP 85
82	482182	17.30	20.93

BRUSH AP 85 EB
83	488920	17.55	21.24

Oval head screw PT-4.0x20-KT15
84	228567	1.51	1.83

Oval head screw PT-4,0x25-KT15
85	228580	1.51	1.83

No information available, not orderable
86	xxx

PIVOT FRAME AP 85 E
87	439892	54.81	66.32

SCREW M5x16 POWERLOK
88	228617	1.51	1.83

Grub screw DIN 915-M4x8-45H
89	229949	1.51	1.83

Square nut DIN 562-M4-11H
90	773030	1.51	1.83

Oval head screw DIN 7985-M4x10-8.8-PR30+
91	228733	1.51	1.83

No information available, not orderable
92	xxx

CLAMPING PIECE AP 85 E
93	439899	7.73	9.35

Cup square bolt DIN 603-M8x50-4.6
94	771800	1.51	1.83

Rotary knob Basis Plus D 40 M8 5+12T
95	483162	5.90	7.14

No longer available, no replacement
97	637735

Countersink PT-4,0x10-KT15
98	219102	1.51	1.83

Grub screw DIN 551-M6x12-14H
99	442597	1.51	1.83

GUIDE SUPPORT AT 65 E
100	443971	1.51	1.83

FS ADJUST AP 65 E
101	442809	1.58	1.91

CHIP DEFLECTOR AW-AP 55
102	439696	8.71	10.54

Oval head screw PT-5,0x18-KT15
103	228694	1.51	1.83

WASHER AP 85 E
104	440675	1.51	1.83

No information available, not orderable
105	xxx

SEAL AP 85 E
106	440690	5.83	7.05

Oval head screw PT-4,0x10-T15
107	228729	1.51	1.83

CABLE PROTECTOR AP 85 E
109	440691	14.16	17.13

Auxiliary handl CSP 85/45 EB
110	637534	11.95	14.46

Countersink PT-5,0x16-KT15
111	439494	1.51	1.83

Pin key AT 55 E SW 6
112	439274	4.18	5.06

Brush holder AP 85 EB
113	487464	17.55	21.24
