Here you will find all available parts and drawings of the 'Festool 487093 ( AP55EB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

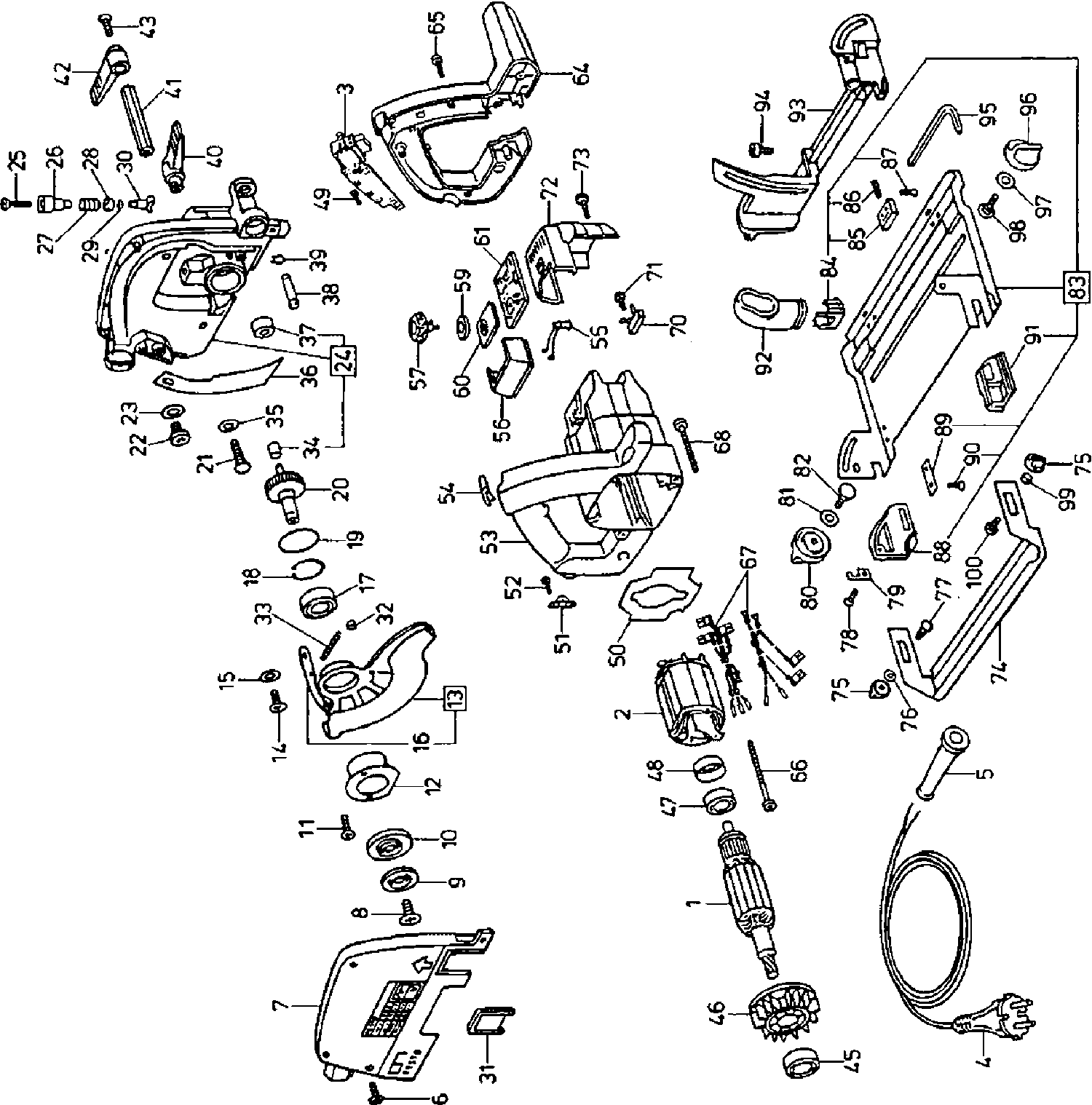

Technical drawing of model Festool 487093 ( AP55EB )

Spare parts list of model Festool 487093 ( AP55EB )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
ARMATURE 230V AP 55 E 230V ET-BG
1 493218 128.99 156.08
FIELD COIL ATF 55 EB 230V ET-BG
2 493221 74.90 90.63
SWITCH CARD AP 55 EB
3 489830 81.43 98.53
CABLE WITH PLUG AP 55 DIN-H05RN-F
4 457408 28.07 33.96
Cable conduit RTR 1409
5 432436 1.39 1.68
Countersink M4x10-TAPTITE-KT15
6 228736 1.39 1.68
No information available, not orderable
7 xxx
SCREW AF 45 E
8 439269 1.85 2.24
FLANGE ATF 55 E
9 440089 5.63 6.81
No information available, not orderable
10 xxx
Countersink M4x10-TAPTITE-KT15
11 228736 1.39 1.68
No information available, not orderable
12 xxx
No information available, not orderable
13 488077
Countersink M4x10-TAPTITE-KT15
14 228736 1.39 1.68
No information available, not orderable
15 xxx
No information available, not orderable
16 xxx
Ball bearing 6201 DDUCM D8 AS2SM
17 228659 8.11 9.81
Circlip DIN 472-32x1,2
18 401246 1.39 1.68
O-ring 33x1,5-NBR-70SHORE
19 215499 1.39 1.68
GEAR AP 55 E
20 441034 49.73 60.17
SCREW AP 65 E
21 444362 1.39 1.68
No information available, not orderable
22 xxx
Disc DIN 9021-6,4-100 HV
23 228546 1.39 1.68
No information available, not orderable
24 487572
Oval head screw DIN 7985-M4x40-4.8
25 228591 1.39 1.68
SPINDLE STOP KN AP 55 E
26 440441 3.04 3.68
Pressure Sprin GRA-1/4-B
27 201134 1.39 1.68
Supporting ring AP 65 E
28 444142 1.39 1.68
O-RING 12,8x3,2 PERBUNAN
29 444234 1.39 1.68
Lock bolt AP 65 E
30 444114 8.98 10.87
BLADE COVER WIN AP 55 E
31 438943 3.82 4.62
No information available, not orderable
32 xxx
SPRING AP 55 E
33 440723 1.45 1.75
SLEEVE AP 55 E
34 439042 2.33 2.82
Disc DIN 7349-6,4
35 402935 1.39 1.68
BLADE KEEL AP 55 E
36 440035 6.53 7.90
BUFFER AXP 130
37 714434 4.49 5.43
No information available, not orderable
38 xxx
No information available, not orderable
39 xxx
LEVER AP 55 E VOLLST.
40 486639 7.00 8.47
HEX SHAFT AP 55 E
41 438950 12.70 15.37
Lever AP 55 E
42 438944 1.51 1.83
Countersink DIN 965-M6x10-4.8-PR30
43 402365 1.39 1.68
Ball bearing 6000 Z1D1 DIN 625
45 228798 5.68 6.87
Fan HL 850 E
46 715024 2.11 2.55
BALL BEARING 608 2Z C3 DIN 625
47 228559 4.30 5.20
Bearing ring AT 55 E
48 438613 1.39 1.68
Oval head screw PS 2 E M3x 6,5
49 228718 1.39 1.68
AIR CONDUCT AP 55 E
50 457606 11.42 13.82
Cable clamp RS 3
51 439288 1.39 1.68
Oval head screw PT-3,5x16-KT15
52 228663 1.39 1.68
MOTOR HOUSING AP 55 EB 2 BLATT
53 446281 22.14 26.79
No information available, not orderable
54 xxx
ELECTRIC WIRE AT 65 EB VOLLST.
55 486744 14.88 18.00
COVER AT 55 E
56 438607 4.01 4.85
ADJUSTING WHEEL AP 55 E
57 440991 4.88 5.90
Spacer AP 88 E
59 438509 1.45 1.75
Viewing Window AP 88 E
60 438198 2.45 2.96
ELECTRONIC CARD AP 55 E
61 488598 77.44 93.70
HANDLE SEGMENT AT 55 E
64 438637 11.68 14.13
Oval head screw PT-4,0x25-KT15
65 228580 1.39 1.68
Oval head screw PT-4,0x60-KT15
66 228708 1.39 1.68
No information available, not orderable
67 487128
Ch. head screw M5x40-TAPTITE
68 203780 1.66 2.01
BRUSH HOLDER AP 65 E
70 488915 17.54 21.22
Oval head screw PT-3,5x8-T15
71 219047 1.39 1.68
MOTOR HOUSING C AP 55
72 439824 9.17 11.10
Oval head screw PT-4,0x25-KT15
73 228580 1.39 1.68
BASE PLATE SECT AP 55 E
74 438857 17.54 21.22
Rotary knob KF 4 E D 23 M6 / 8T
75 440712 2.51 3.04
Disc DIN 7349-6,4
76 402935 1.39 1.68
Flat head screw M6 x 12
77 228592 1.39 1.68
Countersunk screw DIN 965-M4x10-4.8-TORX
78 228727 1.39 1.68
SPACER AP 55 E
79 439275 2.04 2.47
Rotary knob D34 M6/8T blue
80 440713 2.71 3.28
Disc DIN 9021-6,4-100 HV
81 228546 1.39 1.68
Flat head screw M6 x 25
82 228603 1.39 1.68
Guide plate ATF 55 E VOLLST.
83 484685 49.30 59.65
FS ADJUST AP 65 E
84 442809 1.45 1.75
GUIDE SUPPORT AT 65 E
85 443971 1.39 1.68
Grub screw DIN 551-M6x12-14H
86 442597 1.39 1.68
Countersink PT-4,0-10-PZV
87 400014 1.39 1.68
PIVOT INSERT AP 55 E HINTEN
88 438855 2.30 2.78
THREADED PLATE AP 55 E
89 439789 1.85 2.24
Countersunk screw DIN 965-M4x10-4.8-TORX
90 228727 1.39 1.68
PIVOT INSERT AP 55 E VORNE
91 438856 1.92 2.32
CHIP DEFLECTOR AW-AP 55
92 439696 7.99 9.67
PIVOT FRAME AP 55 E 2 BLATT
93 439012 68.85 83.31
SCREW M5x16 POWERLOK
94 228617 1.39 1.68
Key AP 55 E MIT ZAPFEN
95 439236 3.70 4.48
Rotary knob D34 M6/8T blue
96 440713 2.71 3.28
Disc DIN 9021-6,4-100 HV
97 228546 1.39 1.68
Flat head screw M6 x 12
98 228592 1.39 1.68
SPACER AP 55 E
99 439715 2.04 2.47
Cup square bolt DIN 603-M6x20-4.6
100 228661 1.39 1.68
