Here you will find all available parts and drawings of the 'Festool 200107 ( AG125-14DE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

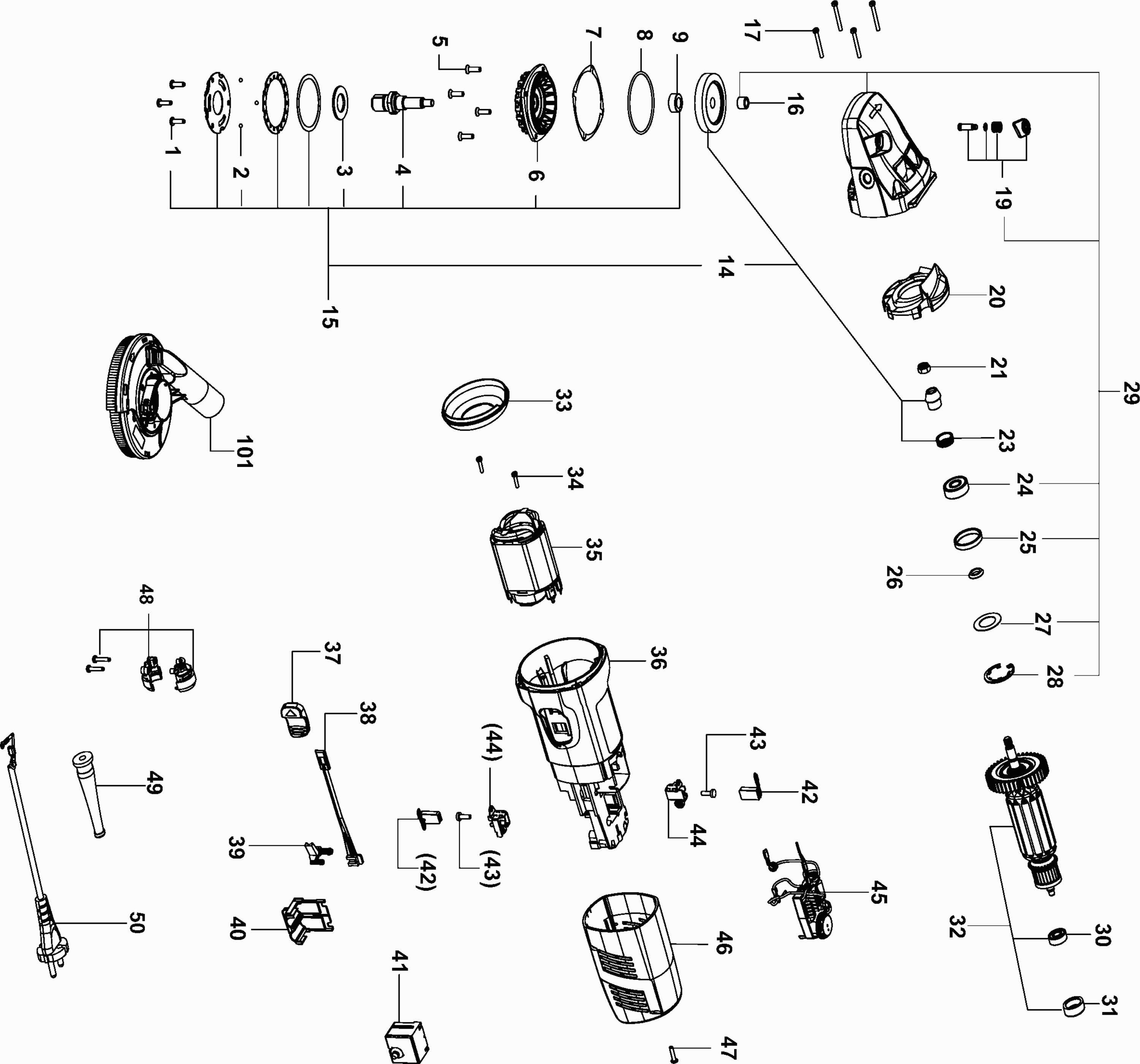

Technical drawing of model Festool 200107 ( AG125-14DE )
Spare parts list of model Festool 200107 ( AG125-14DE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-3,5x14-KT15 | ||||
| 1 | 400468 | 1.39 | 1.68 | |
| Ball 3-40 CSN 02 3680 | ||||
| 2 | 614482 | 1.39 | 1.68 | |
| Sealing ring AGP 125-14 CQ | ||||
| 3 | 632008 | 1.39 | 1.68 | |
| Spindle DSG-AG 125 | ||||
| 4 | 10014551 | 13.98 | 16.92 | |
| Screw M4x16 DIN 7500 | ||||
| 5 | 625565 | 1.39 | 1.68 | |
| Bearing cover Suhner | ||||
| 6 | 779980 | 11.71 | 14.17 | |
| Washer AGP 125-14 CQ | ||||
| 7 | 624978 | 1.45 | 1.75 | |
| Ring 50x2 | ||||
| 8 | 615245 | 1.39 | 1.68 | |
| Distance ring AGP 125-14 CQ | ||||
| 9 | 623979 | 2.90 | 3.51 | |
| Gear DSC-AG 125 Plus ET-BG | ||||
| 14 | 769411 | 29.40 | 35.57 | |
| Bearing cover DSC-AG 125 FH ET-BG | ||||
| 15 | 500836 | 71.39 | 86.38 | |
| Needle bush HK 0609 | ||||
| 16 | 615247 | 4.42 | 5.35 | |
| Screw 4x30 ECO-SYN BN 90907 | ||||
| 17 | 625549 | 1.39 | 1.68 | |
| blocking pin DSC-AG 125 FH ET-BG | ||||
| 19 | 500837 | 11.95 | 14.46 | |
| Air conduction AG 125-14 D | ||||
| 20 | 10015092 | 2.64 | 3.19 | |
| Nut M7 BN 161 | ||||
| 21 | 625264 | 1.39 | 1.68 | |
| sealing screw EBU 15 | ||||
| 23 | 593960 | 1.39 | 1.68 | |
| LAGER 629-A-4T1xDD MC5 E | ||||
| 24 | 623814 | 5.74 | 6.95 | |
| Bearing bush AGP 125-14 CQ | ||||
| 25 | 628208 | 1.39 | 1.68 | |
| Distance ring AGP 125-14 D | ||||
| 26 | 634503 | 2.26 | 2.73 | |
| Washer 18x30x0,5 | ||||
| 27 | 633983 | 2.04 | 2.47 | |
| Safety ring 32 JL | ||||
| 28 | 625263 | 2.57 | 3.11 | |
| Gear housing DSC-AG 125 FH ET-BG | ||||
| 29 | 500838 | 71.87 | 86.96 | |
| Ball bearing 607T1XDD12MC5E D8SL5 | ||||
| 30 | 400680 | 5.21 | 6.30 | |
| Bearing bush AG 125-14 D | ||||
| 31 | 10010954 | 1.39 | 1.68 | |
| Balanced rotor AG 125-14 DE | ||||
| 32 | 500839 | 74.78 | 90.48 | |
| Air guide washe AGP 125-14 CQ | ||||
| 33 | 623987 | 2.18 | 2.64 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 34 | 219069 | 1.39 | 1.68 | |
| Field assembly AGP125-14 NARExVOLLST. | ||||
| 35 | 618903 | 37.99 | 45.97 | |
| Motor frame AG 125-14 DE | ||||
| 36 | 10011770 | 13.07 | 15.81 | |
| Lever AG 125-14 D Schalter | ||||
| 37 | 768473 | 1.72 | 2.08 | |
| Pull rod AGP 125-14 CQ | ||||
| 38 | 623984 | 1.39 | 1.68 | |
| Lever AGP 125-14 CQ | ||||
| 39 | 623985 | 1.39 | 1.68 | |
| Switch cover AGP 125-14 D | ||||
| 40 | 632489 | 1.78 | 2.15 | |
| Switch Marquardt 1246.3221 8A | ||||
| 41 | 707454 | 11.62 | 14.06 | |
| Brush AGP 125-14 D | ||||
| 42 | 627036 | 10.56 | 12.78 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 43 | 219031 | 1.39 | 1.68 | |
| Brush holder AGP 125-14 CQ | ||||
| 44 | 626025 | 8.64 | 10.45 | |
| Electronics AG 125-14 DE | ||||
| 45 | 769336 | 72.12 | 87.27 | |
| Cap AG 125-14 DE | ||||
| 46 | 706769 | 13.67 | 16.54 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 47 | 228663 | 1.39 | 1.68 | |
| Clamping DSC-AG 125 Plus ET-BG | ||||
| 48 | 769370 | 3.89 | 4.71 | |
| Cable sleeve EHL 65 E | ||||
| 49 | 450353 | 1.85 | 2.24 | |
| Mains cable H07 RN-F EURO | ||||
| 50 | 10014479 | 24.32 | 29.43 | |
