Here you will find all available parts and drawings of the 'Festool 10020077 ( AFZUIGKAP )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

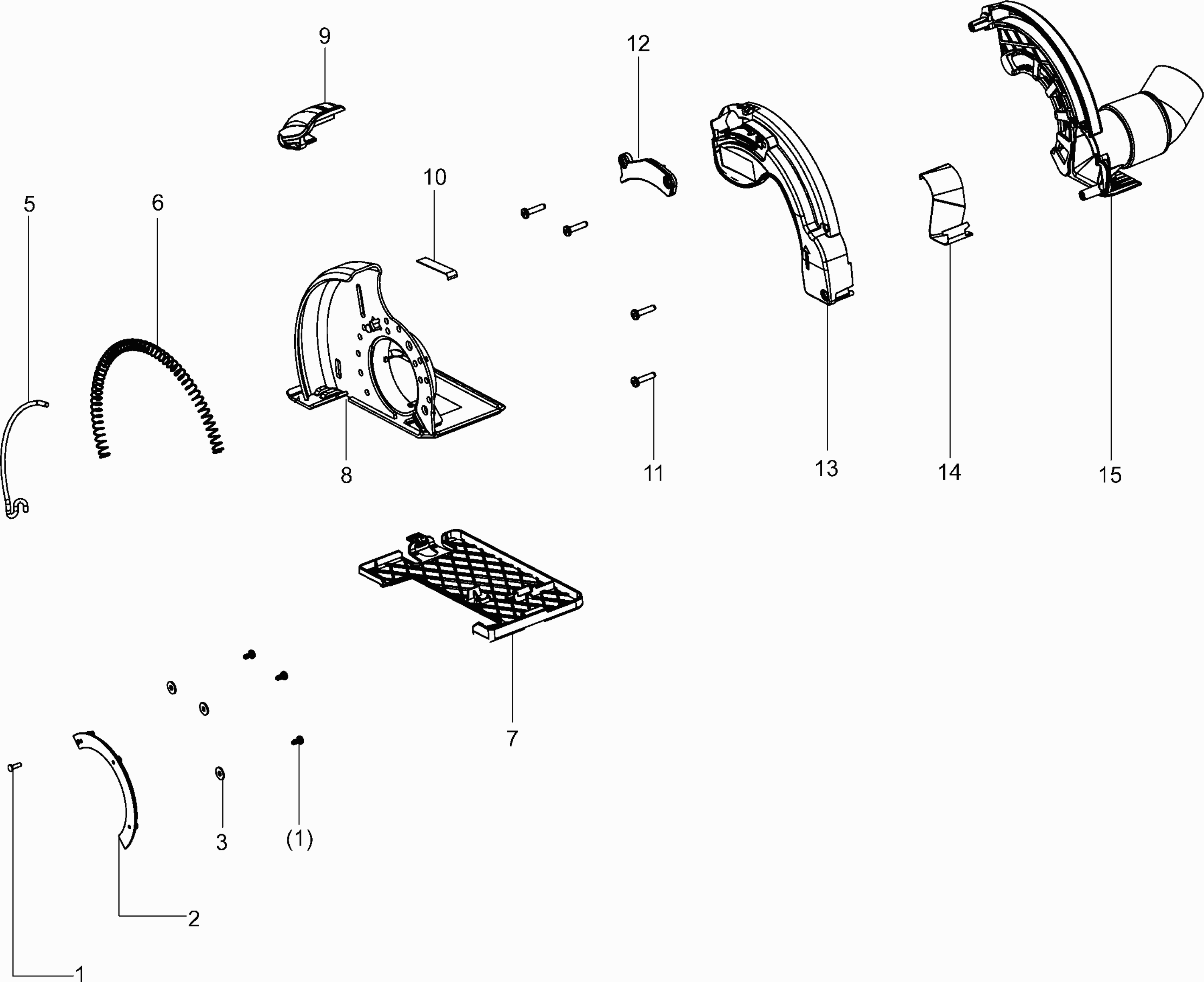

Technical drawing of model Festool 10020077 ( AFZUIGKAP )
Spare parts list of model Festool 10020077 ( AFZUIGKAP )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw PT 3,0x6 TORX | ||||
| 1 | 637849 | 1.39 | 1.68 | |
| Guide spring DCC-AG 125 FH | ||||
| 2 | 10012091 | 2.83 | 3.42 | |
| Disc BN 729 3,2/9/0,8 | ||||
| 3 | 10015202 | 1.39 | 1.68 | |
| Mandrel DCC-AG 125 FH | ||||
| 5 | 10012090 | 5.21 | 6.30 | |
| Spring AG-AS Mini | ||||
| 6 | 10014492 | 3.50 | 4.24 | |
| Protect. board DSC-AG 125 FH | ||||
| 7 | 10015607 | 6.94 | 8.40 | |
| Table for hand- DCC-AG FH | ||||
| 8 | 10012083 | 84.10 | 101.76 | |
| Lever DCC-AG 125 FH | ||||
| 9 | 10012086 | 3.50 | 4.24 | |
| Spring DCC-AG 125 FH | ||||
| 10 | 10015206 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 11 | 228663 | 1.39 | 1.68 | |
| Cover DCC-AG 125 FH | ||||
| 12 | 10014570 | 2.64 | 3.19 | |
| Cover DCC-AG 125 FH | ||||
| 13 | 10012085 | 5.02 | 6.07 | |
| Board DCC-AG 125 FH | ||||
| 14 | 10014250 | 13.19 | 15.96 | |
| Pendulum guard DCC-AG 125 FH mit CT | ||||
| 15 | 10039770 | 14.16 | 17.13 | |
