Here you will find all available parts and drawings of the 'Festool 583171 (Afzuigarm)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

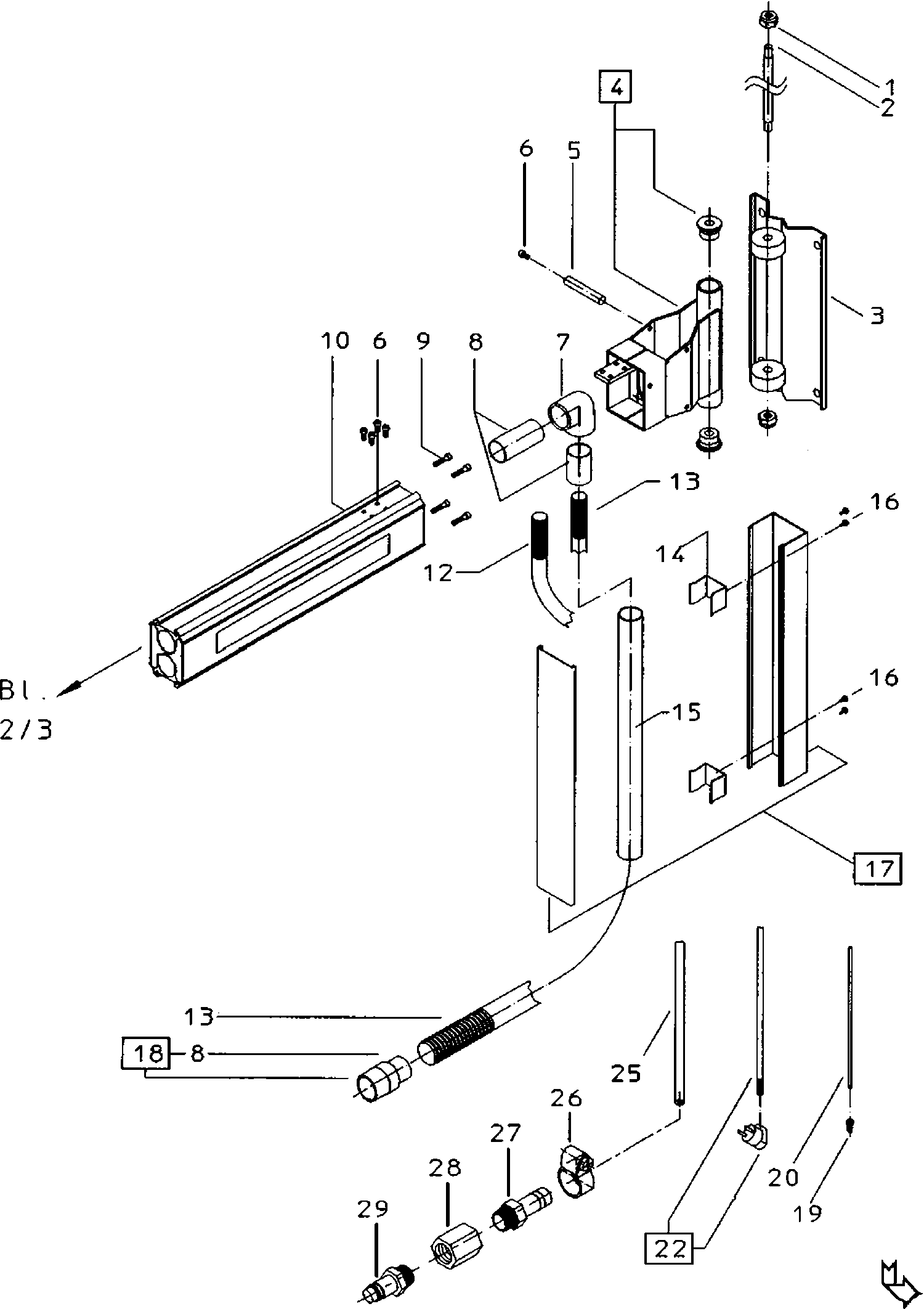

Technical drawing of model Festool 583171 (Afzuigarm)
Spare parts list of model Festool 583171 (Afzuigarm)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 200738 | |||
| Axis ASA | ||||
| 2 | 495835 | 73.69 | 89.16 | |
| Bracket ASA | ||||
| 3 | 495837 | 302.26 | 365.73 | |
| No information available, not orderable | ||||
| 4 | 489012 | |||
| No information available, not orderable | ||||
| 5 | xxx | |||
| Cheese head scr M8x20 A3H | ||||
| 6 | 400153 | 6.98 | 8.45 | |
| Fitting ASA 5000 | ||||
| 7 | 445460 | 31.82 | 38.50 | |
| Pipe ASA 5000 | ||||
| 8 | 445461 | 13.43 | 16.25 | |
| Ch. head screw DIN 912-M8x35-8.8 | ||||
| 9 | 200695 | 1.51 | 1.83 | |
| Carrier ASA 5000 | ||||
| 10 | 445452 | 422.65 | 511.41 | |
| No information available, not orderable | ||||
| 12 | 449908 | |||
| Protective hose ASA 5000 | ||||
| 13 | 445459 | 53.85 | 65.16 | |
| Pipe squeezing ASA 5000 | ||||
| 14 | 445456 | 38.84 | 47.00 | |
| Pipe ASA 5000 2000 MM | ||||
| 15 | 445472 | 117.13 | 141.73 | |
| RIVET A4x16 DIN 7337 | ||||
| 16 | 400152 | 5.98 | 7.24 | |
| Installation du | ||||
| 17 | 445473 | 145.32 | 175.84 | |
| Connecting piec ASA 5000 kpl. | ||||
| 18 | 489397 | 38.72 | 46.85 | |
| No information available, not orderable | ||||
| 19 | 2150 | |||
| No information available, not orderable | ||||
| 25 | 495750 | |||
| HOSE CLIP SK-10...16 | ||||
| 26 | 9274 | 3.77 | 4.56 | |
| No information available, not orderable | ||||
| 27 | xxx | |||
| Muff QM-3/8-3/8 ET-BG | ||||
| 28 | 200477 | 30.25 | 36.60 | |
| No information available, not orderable | ||||
| 29 | xxx | |||
| Angle holder ASA | ||||
| 60 | 445450 | 290.64 | 351.67 | |
| Blind rivet ASA 5000 | ||||
| 61 | 445469 | 8.93 | 10.81 | |
| Clip ASA 5000 | ||||
| 62 | 445467 | 23.23 | 28.11 | |
| Hose ASA 5000 | ||||
| 63 | 445466 | 61.47 | 74.38 | |
| KABELBINDER 9x275mmLG. | ||||
| 64 | 446862 | 7.34 | 8.88 | |
| Pipe ASA 5000 | ||||
| 65 | 445468 | 70.18 | 84.92 | |
| No information available, not orderable | ||||
| 66 | xxx | |||
| No information available, not orderable | ||||
| 67 | 446861 | |||
| No information available, not orderable | ||||
| 68 | 453418 | |||
| No information available, not orderable | ||||
| 69 | 446454 | |||
| HOUSING ASA 5000 COMPL. | ||||
| 71 | 488509 | 104.67 | 126.65 | |
| No information available, not orderable | ||||
| 72 | xxx | |||
| No information available, not orderable | ||||
| 73 | xxx | |||
| No information available, not orderable | ||||
| 74 | xxx | |||
| Hexagon nut DIN 934-M5-08 | ||||
| 75 | 200717 | 1.51 | 1.83 | |
| CONNECTION ASA 5000 | ||||
| 76 | 446460 | 54.45 | 65.88 | |
| No information available, not orderable | ||||
| 77 | xxx | |||
| No information available, not orderable | ||||
| 78 | 453283 | |||
| GUARD HOSE MKV-PG 21 1650MM LG. | ||||
| 80 | 449907 | 29.40 | 35.57 | |
| No information available, not orderable | ||||
| 82 | 445680 | |||
| No information available, not orderable | ||||
| 83 | 491859 | |||
| No information available, not orderable | ||||
| 84 | xxx | |||
| Hexagon nut DIN 934-M8-08 | ||||
| 85 | 200719 | 1.51 | 1.83 | |
| Cap ASA 5000 | ||||
| 86 | 463766 | 7.06 | 8.54 | |
| No information available, not orderable | ||||
| 87 | 491860 | |||
| Ch. head screw DIN 912-M8x16-8.8 | ||||
| 88 | 400146 | 1.66 | 2.01 | |
| No information available, not orderable | ||||
| 89 | xxx | |||
| No information available, not orderable | ||||
| 92 | xxx | |||
| No information available, not orderable | ||||
| 93 | xxx | |||
| No information available, not orderable | ||||
| 94 | xxx | |||
| No information available, not orderable | ||||
| 95 | 455119 | |||
| CONNECTION EAA 3/EW ASA 5000 | ||||
| 97 | 489401 | 146.29 | 177.01 | |
| OVAL HEAD SCREW DIN 7985-M5X10-4.8 | ||||
| 98 | 228508 | 1.51 | 1.83 | |
| Ch. head screw DIN 912-M5x14-8.8 | ||||
| 100 | 400569 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M5-08 | ||||
| 101 | 200717 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 104 | xxx | |||
