Here you will find all available parts and drawings of the 'Festool 492767 ( AFZUIGARM )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

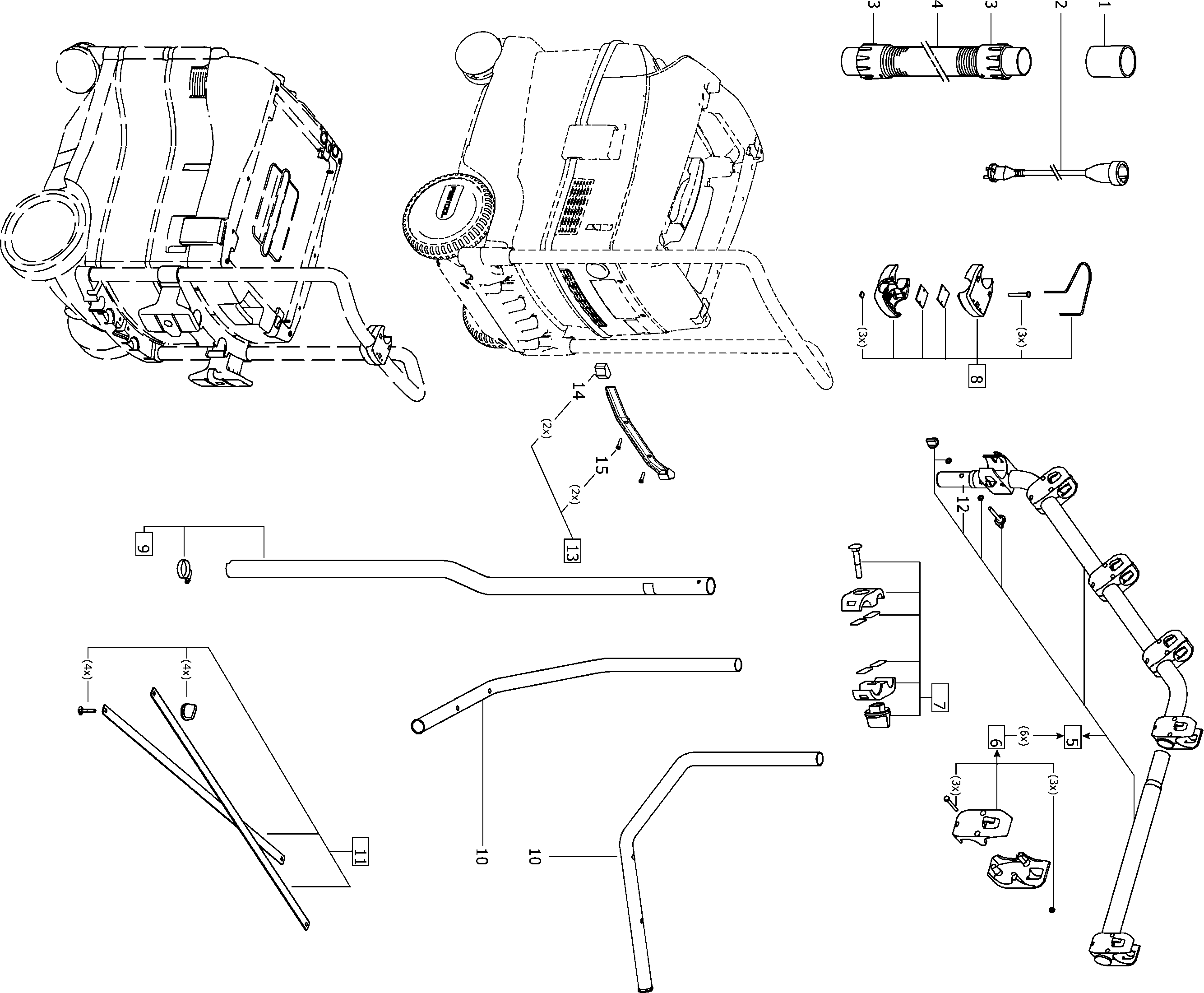

Technical drawing of model Festool 492767 ( AFZUIGARM )
Spare parts list of model Festool 492767 ( AFZUIGARM )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Connector sleeve | ||||
| 1 | 493047 | 21.56 | 26.09 | |
| Extension charg CT-ASA EU-H07RN-F 1,5M | ||||
| 2 | 492650 | 28.68 | 34.70 | |
| Rotating adapter | ||||
| 3 | 452896 | 39.36 | 47.63 | |
| No information available, not orderable | ||||
| 4 | 452386 | |||
| Tubes CT-ASA | ||||
| 5 | 492789 | 141.33 | 171.01 | |
| Hose clamp CT-ASA ET-BG | ||||
| 6 | 492782 | 18.51 | 22.40 | |
| TUBE SUPPORT CT-ASA | ||||
| 7 | 492784 | 29.16 | 35.28 | |
| TUBE SUPPORT RH-CT | ||||
| 8 | 492786 | 29.40 | 35.57 | |
| TUBE CT-ASA FEST ET-BG | ||||
| 9 | 492791 | 67.03 | 81.11 | |
| SUPPORT CT-ASA | ||||
| 10 | 492783 | 27.59 | 33.38 | |
| STRUT CT-ASA | ||||
| 11 | 493040 | 43.56 | 52.71 | |
| AXLE CT-ASA | ||||
| 12 | 465796 | 55.30 | 66.91 | |
| Support AB-CT26/36-ASA/SB | ||||
| 13 | 496780 | 70.54 | 85.35 | |
| rubber piece CT26/36-ASA/SB | ||||
| 14 | 478561 | 17.91 | 21.67 | |
| Oval head screw PT 5x20 PZ | ||||
| 15 | 477335 | 2.57 | 3.11 | |
