Here you will find all available parts and drawings of the 'Festool 488560 (Aanslagruiter)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

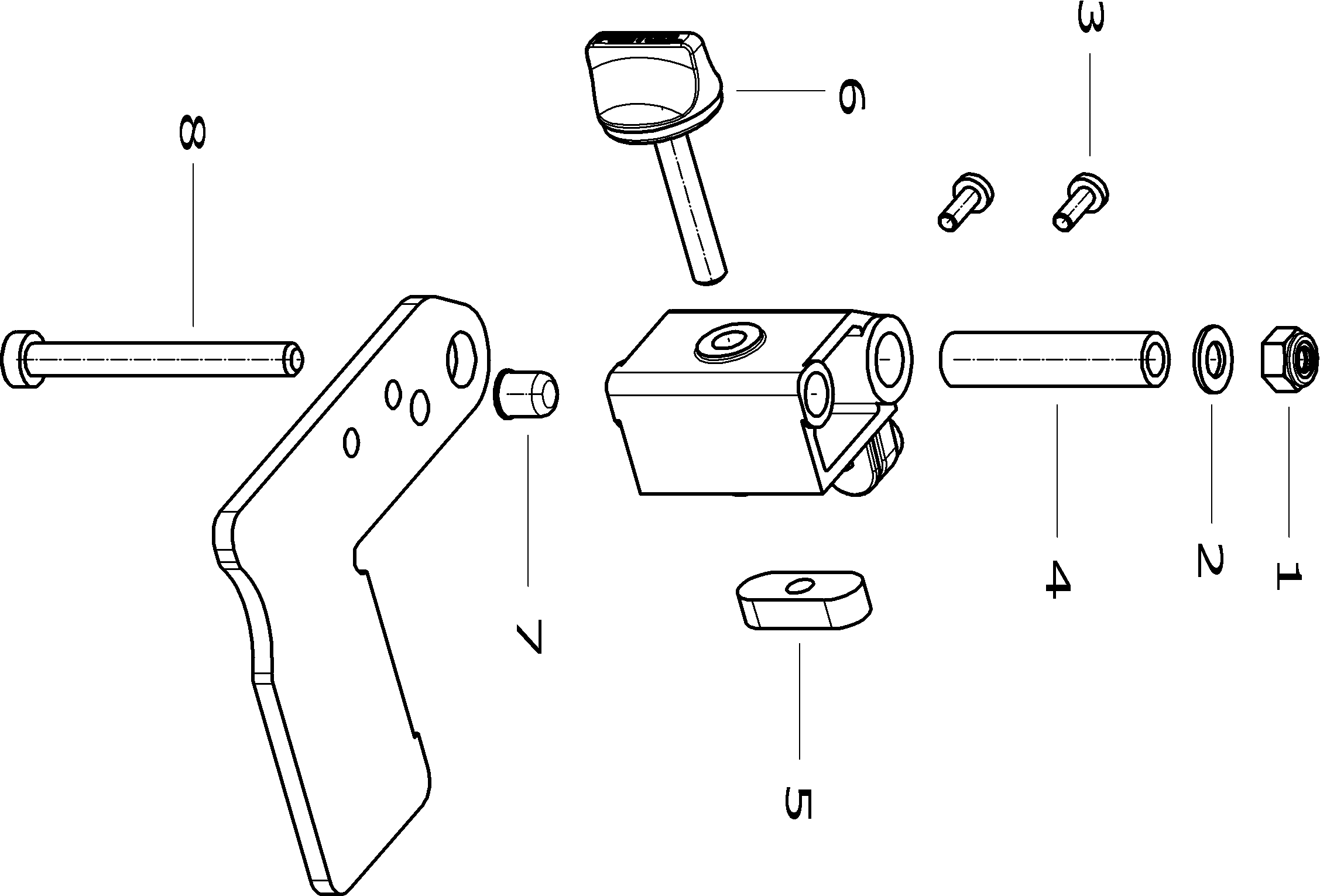

Technical drawing of model Festool 488560 (Aanslagruiter)
Spare parts list of model Festool 488560 (Aanslagruiter)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hexagon nut DIN 985-M6-04 | ||||
| 1 | 228541 | 1.51 | 1.83 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 2 | 200578 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 3 | 219031 | 7.32 | 8.86 | |
| Axis CS 70 KA | ||||
| 4 | 451132 | 7.92 | 9.58 | |
| SPRING CS 70 KA 10x6x25 | ||||
| 5 | 451630 | 4.54 | 5.49 | |
| Rotary knob CS 70 KA D 23 M6x33 bla | ||||
| 6 | 451659 | 2.23 | 2.70 | |
| FLEXIBLE KNIFE CS 70 EB 2208.008 | ||||
| 7 | 400287 | 5.47 | 6.62 | |
| Ch. head screw DIN 7984-M6x55 | ||||
| 8 | 400501 | 1.51 | 1.83 | |
