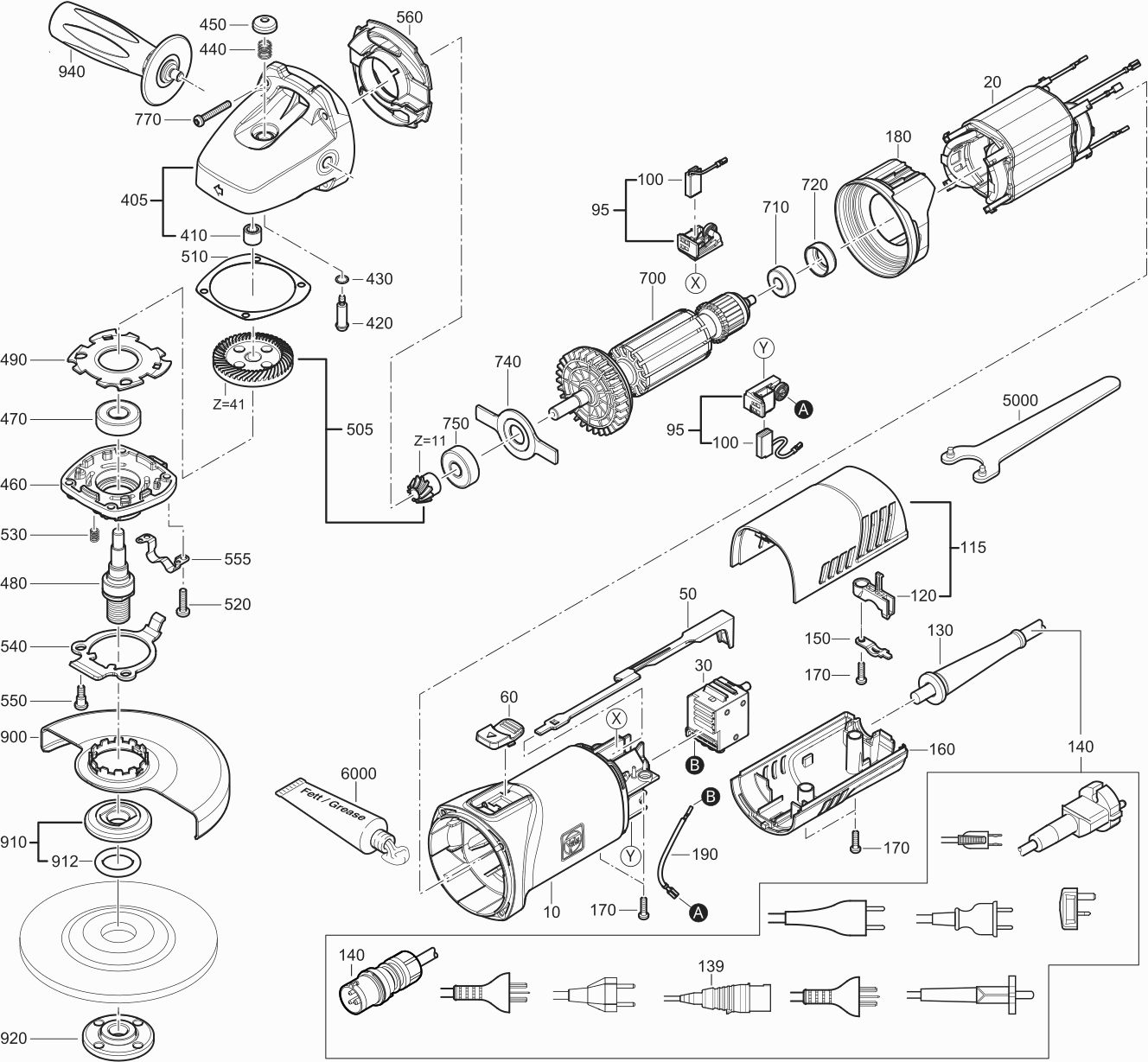

Technical drawing of model Fein 72217700230 (WSG11-125)
Spare parts list of model Fein 72217700230 (WSG11-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31901175000 | 32.54 | 39.37 | |
| Stator | ||||
| 20 | 51279005230 | 41.47 | 50.18 | |
| Switch | ||||
| 30 | 30701300000 | 16.91 | 20.46 | |
| Control rod | ||||
| 50 | 32816080000 | 2.71 | 3.28 | |
| Slide switch | ||||
| 60 | 32805306000 | 4.10 | 4.96 | |
| Brush holder | ||||
| 95 | 30712096010 | 10.16 | 12.29 | |
| Carbon brush | ||||
| 100 | 30711158000 | 7.38 | 8.93 | |
| Cover | ||||
| 115 | 32427154010 | 13.40 | 16.21 | |
| Cable clamping piece | ||||
| 120 | 32431047000 | 1.56 | 1.89 | |
| Cable grommet | ||||
| 130 | 31413282000 | 2.93 | 3.55 | |
| Assembled cables | ||||
| 140 | 30707544010 | 12.63 | 15.28 | |
| Cable clamping piece | ||||
| 150 | 32431043002 | 1.56 | 1.89 | |
| Cover | ||||
| 160 | 32427152000 | 6.19 | 7.49 | |
| Screw | ||||
| 170 | 43072000000 | 1.56 | 1.89 | |
| Air guide ring | ||||
| 180 | 31428179000 | 6.41 | 7.76 | |
| Gearbox housing | ||||
| 405 | 31206146030 | 44.02 | 53.26 | |
| Needle sleeve | ||||
| 410 | 41705006006 | 4.52 | 5.47 | |
| Bolt | ||||
| 420 | 30217335005 | 6.61 | 8.00 | |
| Sealing ring | ||||
| 430 | 40612137008 | 1.56 | 1.89 | |
| Spiral spring | ||||
| 440 | 30901357005 | 1.67 | 2.02 | |
| Pushbutton | ||||
| 450 | 32805200008 | 2.71 | 3.28 | |
| Bearing plate | ||||
| 460 | 32419153010 | 22.33 | 27.02 | |
| Grooved ball bearing | ||||
| 470 | 41701010054 | 7.24 | 8.76 | |
| Shaft | ||||
| 480 | 33406299001 | 17.86 | 21.61 | |
| Plate | ||||
| 490 | 32416115000 | 2.29 | 2.77 | |
| Bevel gear | ||||
| 505 | 33809238020 | 33.18 | 40.15 | |
| Washer (0.1MM) | ||||
| 510 | 32624122020 | 1.56 | 1.89 | |
| Screw | ||||
| 520 | 43064024043 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 530 | 30901340001 | |||
| Lever | ||||
| 540 | 32805312000 | 4.32 | 5.23 | |
| Screw | ||||
| 550 | 33024073000 | 1.04 | 1.26 | |
| Clamp | ||||
| 555 | 30907074000 | 2.09 | 2.53 | |
| Air guide ring | ||||
| 560 | 31428180000 | 4.10 | 4.96 | |
| Armature | ||||
| 700 | 53279002230 | 72.73 | 88.00 | |
| Grooved ball bearing | ||||
| 710 | 41701001260 | 5.77 | 6.98 | |
| Bearing bush | ||||
| 720 | 30507236000 | 2.93 | 3.55 | |
| Plate | ||||
| 740 | 32416117000 | 2.29 | 2.77 | |
| Grooved ball bearing | ||||
| 750 | 41701207260 | 6.19 | 7.49 | |
| Screw | ||||
| 770 | 43074012000 | 1.56 | 1.89 | |
| Safety hood | ||||
| 900 | 31810288010 | 12.21 | 14.77 | |
| Grinding disc flange | ||||
| 910 | 63801182010 | 12.25 | 14.82 | |
| Sealing ring | ||||
| 912 | 40612000007 | 1.56 | 1.89 | |
| Grinding disc flange | ||||
| 920 | 63802052000 | 11.52 | 13.94 | |
| No longer available, no replacement | ||||
| 940 | 32119107016 | |||
| Pin-type face spanner | ||||
| 5000 | 62910022002 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Pipe (SW0002, L 110 MM, OD 130 MM, ID 120 MM) | ||||
| 7002 | 64101002004 | 61.89 | 74.89 | |
| Drawing-off plate (SW0010) | ||||
| 7010 | 64102069007 | 72.73 | 88.00 | |
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7016 | 64104150008 | 116.75 | 141.27 | |
| Pressure piece (SW0038) | ||||
| 7038 | 64122003000 | 13.08 | 15.83 | |
| Assembly aid (SW0045) | ||||
| 7045 | 64122121010 | 23.92 | 28.94 | |
| Chuck cone (SW0081, ID 19 MM, M 6) | ||||
| 7081 | 64107019007 | 96.98 | 117.35 | |
| Chuck cone (SW0084, ID 26 MM, M 6) | ||||
| 7084 | 64107026000 | 111.01 | 134.32 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
