Here you will find all available parts and drawings of the 'Fein 72211029238 (WSB25-180X)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

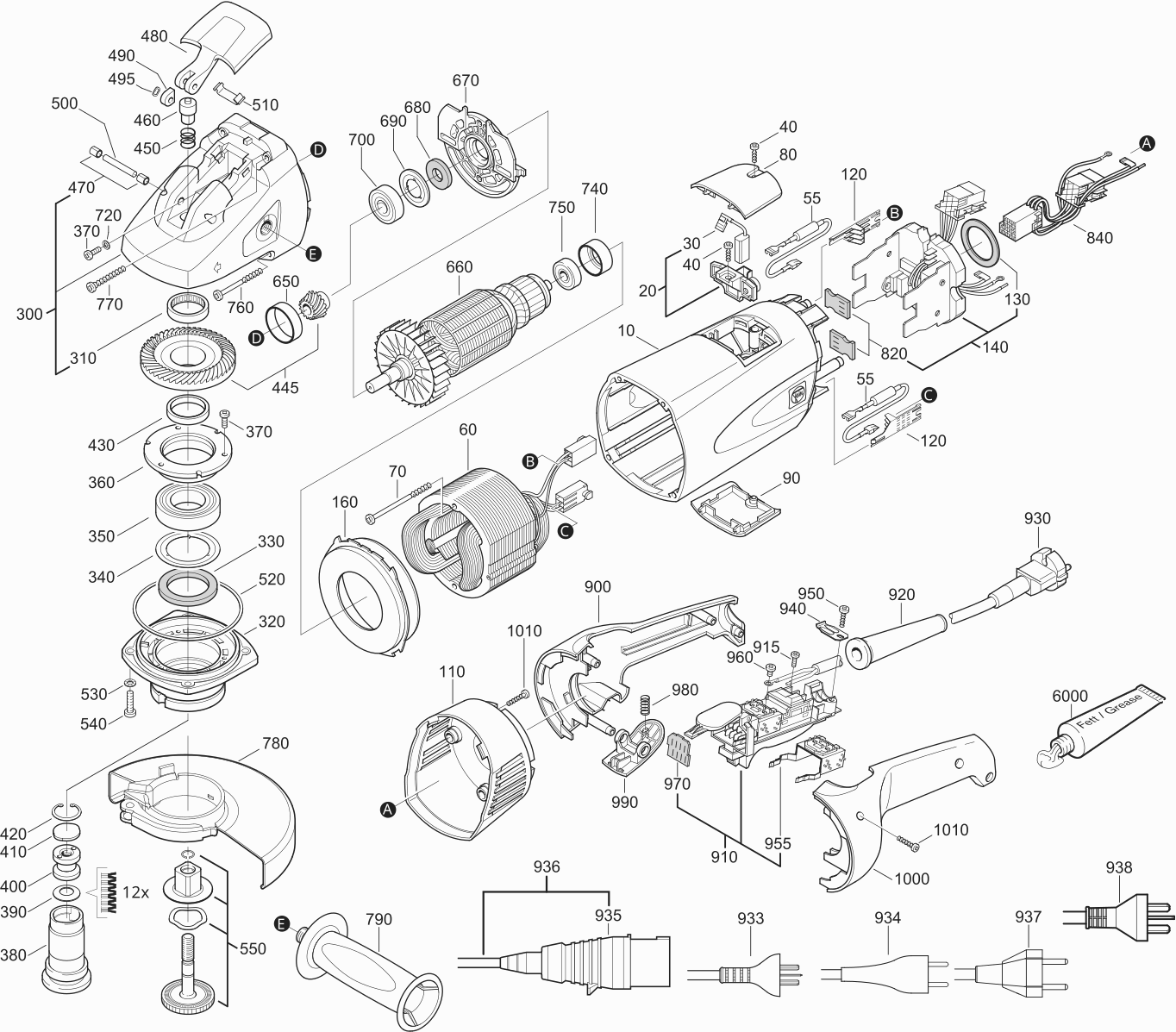

Technical drawing of model Fein 72211029238 (WSB25-180X)
Spare parts list of model Fein 72211029238 (WSB25-180X)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903210002 | 48.49 | 58.67 | |
| Brush holder | ||||
| 20 | 30712090019 | 18.50 | 22.38 | |
| Carbon brush | ||||
| 30 | 30711137006 | 11.35 | 13.73 | |
| Screw | ||||
| 40 | 43070027000 | 1.56 | 1.89 | |
| Choke | ||||
| 55 | 30764128009 | 6.19 | 7.49 | |
| Stator | ||||
| 60 | 51275004234 | 139.08 | 168.29 | |
| Screw | ||||
| 70 | 43072001009 | 1.56 | 1.89 | |
| Cover | ||||
| 80 | 32427113009 | 5.15 | 6.23 | |
| Cover | ||||
| 90 | 32427115001 | 7.10 | 8.59 | |
| Housing | ||||
| 110 | 31207242002 | 16.59 | 20.07 | |
| Base plate | ||||
| 120 | 31428132004 | 1.25 | 1.51 | |
| Pressure piece | ||||
| 130 | 31415092003 | 1.56 | 1.89 | |
| Electronics | ||||
| 140 | 30762610990 | 142.91 | 172.92 | |
| Air guide ring | ||||
| 160 | 31428133008 | 6.19 | 7.49 | |
| Gearbox housing | ||||
| 300 | 31206115035 | 123.77 | 149.76 | |
| Needle sleeve | ||||
| 310 | 41705036003 | 8.90 | 10.77 | |
| Bearing plate | ||||
| 320 | 32419135000 | 39.56 | 47.87 | |
| Felt ring | ||||
| 330 | 30601105004 | 1.67 | 2.02 | |
| Disc | ||||
| 340 | 32411080005 | 2.09 | 2.53 | |
| Grooved ball bearing | ||||
| 350 | 41701025023 | 14.67 | 17.75 | |
| Plate | ||||
| 360 | 32416102002 | 9.47 | 11.46 | |
| Screw | ||||
| 370 | 43064002043 | 1.56 | 1.89 | |
| Shaft | ||||
| 380 | 33406286006 | 39.56 | 47.87 | |
| Cup spring package | ||||
| 390 | 30905073015 | 14.04 | 16.99 | |
| Pressure piece | ||||
| 400 | 30220059006 | 11.14 | 13.48 | |
| Disc | ||||
| 410 | 32414112005 | 1.56 | 1.89 | |
| Circlip | ||||
| 420 | 42616066001 | 1.04 | 1.26 | |
| Ring | ||||
| 430 | 32601270000 | 4.52 | 5.47 | |
| Bevel gear | ||||
| 445 | 33809231013 | 77.84 | 94.19 | |
| Spiral spring | ||||
| 450 | 30901342003 | 1.56 | 1.89 | |
| Bolt | ||||
| 460 | 30217336008 | 8.50 | 10.28 | |
| Bush | ||||
| 470 | 30507200002 | 2.29 | 2.77 | |
| Lever | ||||
| 480 | 32805172007 | 21.37 | 25.86 | |
| Eccentric ring | ||||
| 490 | 32636040002 | 4.10 | 4.96 | |
| Disc | ||||
| 495 | 42446021000 | 1.04 | 1.26 | |
| Bolt | ||||
| 500 | 30216138007 | 1.46 | 1.77 | |
| Locking spring | ||||
| 510 | 30907055006 | 2.71 | 3.28 | |
| Disc | ||||
| 520 | 32624118022 | 2.51 | 3.04 | |
| Circlip | ||||
| 530 | 42443004057 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 540 | 43064009054 | 1.04 | 1.26 | |
| Clamping unit | ||||
| 550 | 63802183025 | 52.25 | 63.22 | |
| Bush | ||||
| 650 | 30507169007 | 2.51 | 3.04 | |
| Armature | ||||
| 660 | 53275001231 | 172.26 | 208.43 | |
| Plate | ||||
| 670 | 32416103006 | 9.74 | 11.79 | |
| Felt ring | ||||
| 680 | 30601050002 | 1.56 | 1.89 | |
| Disc | ||||
| 690 | 32411083001 | 1.56 | 1.89 | |
| Grooved ball bearing | ||||
| 700 | 41701213096 | 16.27 | 19.69 | |
| Circlip | ||||
| 720 | 42443003043 | 1.56 | 1.89 | |
| Bush | ||||
| 740 | 30507168003 | 2.51 | 3.04 | |
| Grooved ball bearing | ||||
| 750 | 41701207033 | 8.50 | 10.28 | |
| Screw | ||||
| 760 | 43070029002 | 1.04 | 1.26 | |
| Screw | ||||
| 770 | 43070030004 | 1.04 | 1.26 | |
| Safety hood | ||||
| 780 | 31810245020 | 40.19 | 48.63 | |
| Handle | ||||
| 790 | 32119032002 | 10.08 | 12.20 | |
| Pressure piece | ||||
| 820 | 31415089009 | 1.56 | 1.89 | |
| Connecting Cable | ||||
| 840 | 30719594019 | 20.42 | 24.71 | |
| Handle half shell | ||||
| 900 | 31204167000 | 11.10 | 13.43 | |
| Switch | ||||
| 910 | 30701232025 | 90.60 | 109.63 | |
| Fillister head screw | ||||
| 915 | 43041001994 | 1.56 | 1.89 | |
| Cable grommet | ||||
| 920 | 31413094007 | 2.93 | 3.55 | |
| Assembled cables | ||||
| 930 | 30707387012 | 16.27 | 19.69 | |
| Cable clamping piece | ||||
| 940 | 32431042008 | 1.56 | 1.89 | |
| Screw | ||||
| 950 | 43070035002 | 1.56 | 1.89 | |
| Connecting piece | ||||
| 955 | 30717203014 | 18.50 | 22.38 | |
| Fillister head screw | ||||
| 960 | 43041016042 | 1.56 | 1.89 | |
| Seal | ||||
| 970 | 31415090001 | 1.04 | 1.26 | |
| Spiral spring | ||||
| 980 | 30901343007 | 1.56 | 1.89 | |
| Switch pushbutton | ||||
| 990 | 32816057007 | 2.93 | 3.55 | |
| Handle half shell | ||||
| 1000 | 31204168008 | 11.10 | 13.43 | |
| Screw | ||||
| 1010 | 43070031003 | 1.56 | 1.89 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Pipe (SW0002, L 110 MM, OD 130 MM, ID 120 MM) | ||||
| 7002 | 64101002004 | 61.89 | 74.89 | |
| Drawing-off plate (SW0011) | ||||
| 7011 | 64102070009 | 72.09 | 87.23 | |
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7016 | 64104150008 | 116.75 | 141.27 | |
| Assembly aid (SW0045) | ||||
| 7045 | 64122121010 | 23.92 | 28.94 | |
| Chuck cone (SW0084, ID 26 MM, M 6) | ||||
| 7084 | 64107026000 | 111.01 | 134.32 | |
| Chuck cone (SW0086, ID 32 MM, M 8) | ||||
| 7086 | 64107032000 | 139.72 | 169.06 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
