Here you will find all available parts and drawings of the 'Fein 72212000237 ( WSB8-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

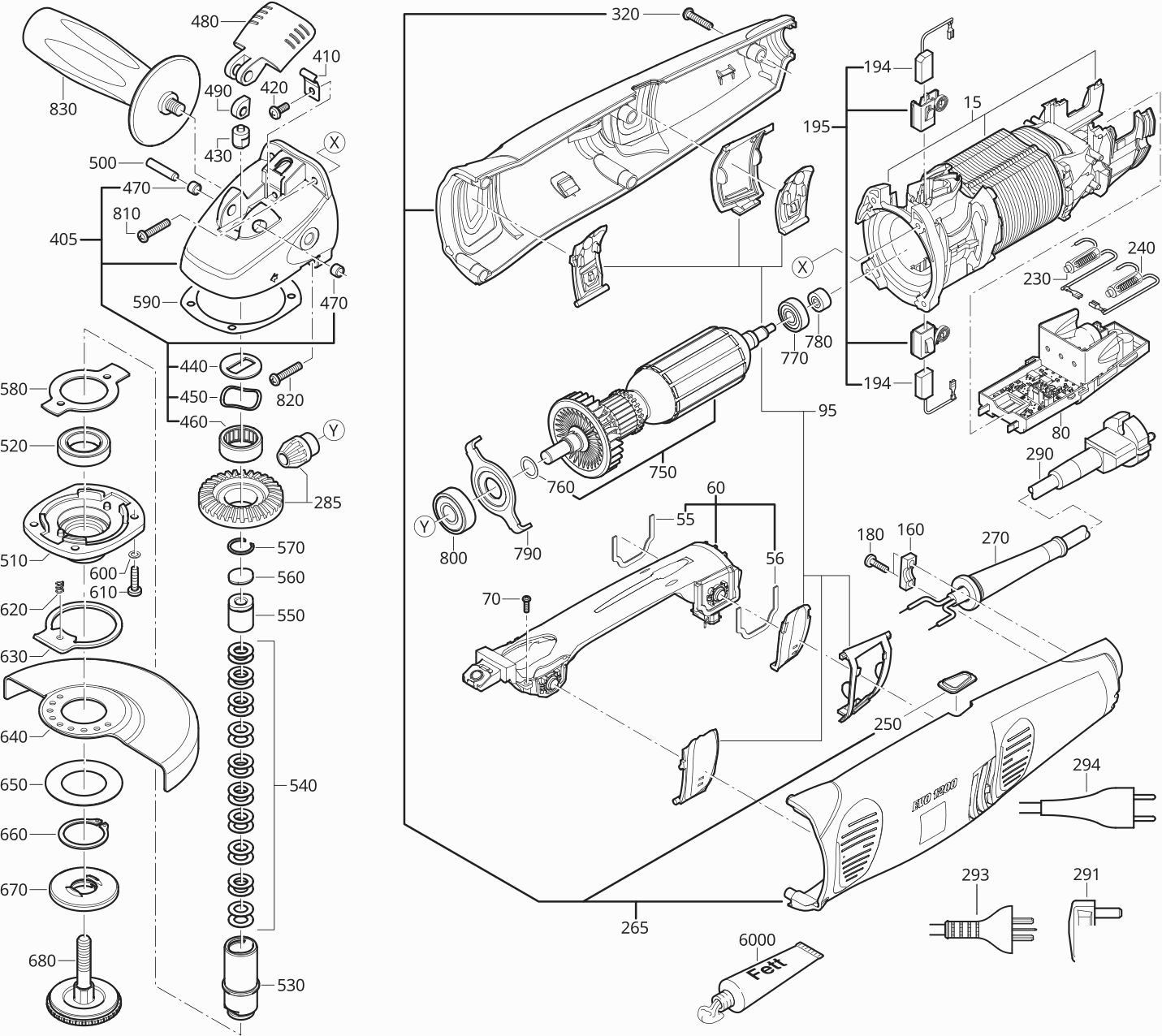

Technical drawing of model Fein 72212000237 ( WSB8-115 )
Spare parts list of model Fein 72212000237 ( WSB8-115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator unit | ||||
| 15 | 52277007237 | 74.01 | 89.55 | |
| Seal R | ||||
| 55 | 31415096000 | 1.04 | 1.26 | |
| Seal L | ||||
| 56 | 31415097000 | 1.04 | 1.26 | |
| Switch module KS5 | ||||
| 60 | 30701259990 | 103.36 | 125.07 | |
| Screw | ||||
| 70 | 43070044007 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 80 | 30762263996 | |||
| Switch pushbutton Set | ||||
| 95 | 32816061020 | 8.77 | 10.61 | |
| Cable clamping piece | ||||
| 160 | 32431026009 | 1.04 | 1.26 | |
| Screw | ||||
| 180 | 43070006008 | 1.04 | 1.26 | |
| Carbon Brush 220-230V, 50/60Hz | ||||
| 194 | 30711154000 | 8.90 | 10.77 | |
| Brush Holder Set 220V-230V, 50/60Hz | ||||
| 195 | 30712093110 | 24.88 | 30.10 | |
| Choke | ||||
| 230 | 30764136006 | 4.45 | 5.38 | |
| Choke | ||||
| 240 | 30764135003 | 4.73 | 5.72 | |
| No longer available, no replacement | ||||
| 250 | 32427123008 | |||
| Complete EVO motor housing | ||||
| 265 | 31912067010 | 37.64 | 45.54 | |
| Cable grommet | ||||
| 270 | 31413282000 | 2.93 | 3.55 | |
| Bevel gear Z=11/41 | ||||
| 285 | 33809227010 | 32.54 | 39.37 | |
| Cable with plug | ||||
| 290 | 30707403017 | 11.35 | 13.73 | |
| Screw | ||||
| 320 | 43070045001 | 1.04 | 1.26 | |
| Complete EVO gearbox housing | ||||
| 405 | 31206130030 | 95.70 | 115.80 | |
| Locking spring | ||||
| 410 | 30907066008 | 1.04 | 1.26 | |
| Fillister head screw | ||||
| 420 | 43064023045 | 0.90 | 1.09 | |
| Bolt | ||||
| 430 | 30217344000 | 5.77 | 6.98 | |
| Disc | ||||
| 440 | 32414114007 | 1.67 | 2.02 | |
| Spring washer | ||||
| 450 | 42446022003 | 1.04 | 1.26 | |
| Needle sleeve | ||||
| 460 | 41705032004 | 7.10 | 8.59 | |
| Bush | ||||
| 470 | 30507220000 | 2.51 | 3.04 | |
| Lever | ||||
| 480 | 32805199000 | 19.14 | 23.16 | |
| Eccentric ring | ||||
| 490 | 32636036004 | 3.68 | 4.45 | |
| Bolt | ||||
| 500 | 30216144007 | 1.04 | 1.26 | |
| Bearing plate | ||||
| 510 | 32419126008 | 23.29 | 28.18 | |
| Grooved ball bearing | ||||
| 520 | 41701108222 | 14.04 | 16.99 | |
| Shaft | ||||
| 530 | 33406298007 | 24.24 | 29.33 | |
| Cup spring package | ||||
| 540 | 30905067021 | 9.32 | 11.28 | |
| Pressure piece | ||||
| 550 | 30220061007 | 8.21 | 9.93 | |
| Disc | ||||
| 560 | 32414113009 | 2.09 | 2.53 | |
| Circlip | ||||
| 570 | 42615148009 | 1.04 | 1.26 | |
| Plate | ||||
| 580 | 32416109007 | 2.09 | 2.53 | |
| Disc | ||||
| 590 | 32624120028 | 1.46 | 1.77 | |
| Circlip M4 | ||||
| 600 | 42443003043 | 1.04 | 1.26 | |
| Screw | ||||
| 610 | 43064024043 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 620 | 30901340001 | |||
| Quick-release Lever | ||||
| 630 | 32805198006 | 4.32 | 5.23 | |
| No information available, not orderable | ||||
| 640 | 31810237001 | |||
| Cup spring | ||||
| 650 | 30905070000 | 1.88 | 2.27 | |
| Circlip | ||||
| 660 | 42616073005 | 1.04 | 1.26 | |
| INNER FLANGE | ||||
| 670 | 63801176011 | 8.07 | 9.76 | |
| OPSPANBOUT M8 (MSF640/644S) | ||||
| 680 | 63802178023 | 33.19 | 40.16 | |
| No longer available, no replacement | ||||
| 750 | 53277001237 | |||
| Circlip | ||||
| 760 | 42615081002 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 770 | 41701001260 | 5.77 | 6.98 | |
| Ring magnet | ||||
| 780 | 32172011004 | 9.32 | 11.28 | |
| Plate | ||||
| 790 | 32416108003 | 2.51 | 3.04 | |
| Grooved ball bearing | ||||
| 800 | 41701007266 | 9.05 | 10.95 | |
| Screw | ||||
| 810 | 43070043009 | 1.04 | 1.26 | |
| Screw | ||||
| 820 | 43070031003 | 1.04 | 1.26 | |
| ANTI-VIBRATIE HANDGREEP KLEIN | ||||
| 830 | 32119124010 | 10.32 | 12.49 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| No information available, not orderable | ||||
| 9020 | 34130054061 | |||
