Here you will find all available parts and drawings of the 'Fein 72055100230 ( WBP10 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

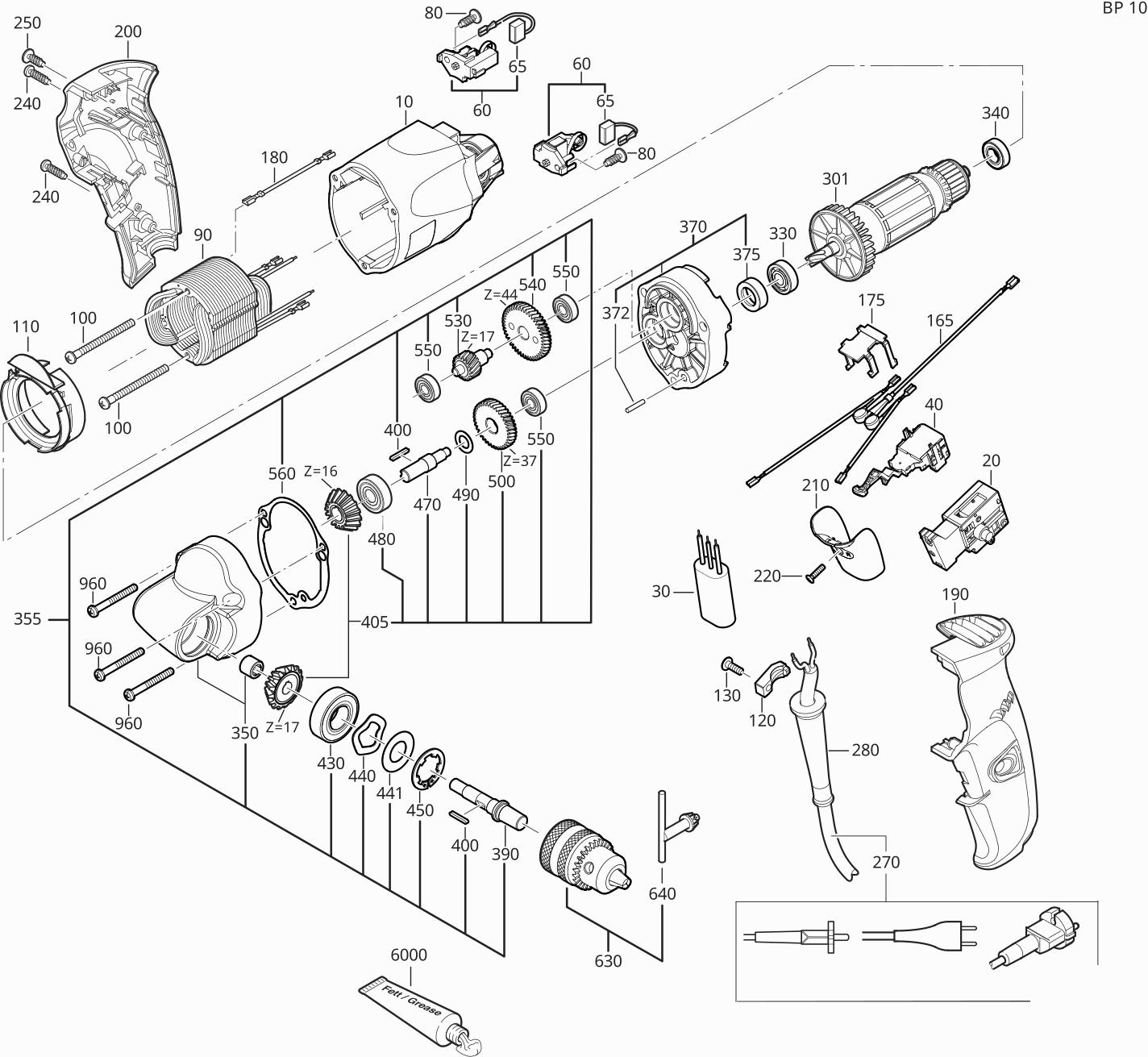

Technical drawing of model Fein 72055100230 ( WBP10 )
Spare parts list of model Fein 72055100230 ( WBP10 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31901138011 | 33.81 | 40.91 | |
| Switch | ||||
| 20 | 30701228002 | 53.59 | 64.84 | |
| Pin | ||||
| 20 | 40242051000 | 1.04 | 1.26 | |
| Capacitor | ||||
| 30 | 30722183018 | 7.80 | 9.44 | |
| Toggle switch | ||||
| 40 | 30701249004 | 16.91 | 20.46 | |
| Brush holder | ||||
| 60 | 30712089039 | 28.39 | 34.35 | |
| Carbon brush | ||||
| 65 | 30711165000 | 11.69 | 14.14 | |
| Screw | ||||
| 80 | 43070018009 | 1.04 | 1.26 | |
| Stator | ||||
| 90 | 51274014230 | 75.28 | 91.09 | |
| Screw | ||||
| 100 | 43070014000 | 1.04 | 1.26 | |
| Air guide ring | ||||
| 110 | 31428149008 | 8.08 | 9.78 | |
| Cable clamping piece | ||||
| 120 | 32431046000 | 1.67 | 2.02 | |
| Screw | ||||
| 130 | 43070006008 | 1.04 | 1.26 | |
| Radio shielding | ||||
| 165 | 30722188010 | 8.21 | 9.93 | |
| Holder | ||||
| 175 | 30240283000 | 4.10 | 4.96 | |
| Connecting Cable | ||||
| 180 | 30719729010 | 1.67 | 2.02 | |
| Handle half shell | ||||
| 190 | 31201136020 | 18.50 | 22.38 | |
| Handle half shell | ||||
| 200 | 31201137000 | 17.54 | 21.22 | |
| Switch pushbutton | ||||
| 210 | 32805191002 | 5.99 | 7.25 | |
| Countersunk screw | ||||
| 220 | 43066009038 | 1.04 | 1.26 | |
| Sheet metal screw | ||||
| 240 | 43046003009 | 1.04 | 1.26 | |
| Screw | ||||
| 250 | 43070007002 | 1.04 | 1.26 | |
| Cable with plug | ||||
| 270 | 30707343017 | 12.63 | 15.28 | |
| Cable grommet | ||||
| 280 | 31413233000 | 2.71 | 3.28 | |
| Armature | ||||
| 301 | 53274020230 | 112.29 | 135.87 | |
| Grooved ball bearing | ||||
| 330 | 41701117170 | 10.16 | 12.29 | |
| Grooved ball bearing | ||||
| 340 | 41701001260 | 5.77 | 6.98 | |
| Bearing | ||||
| 350 | 31508297010 | 60.61 | 73.34 | |
| Bearing | ||||
| 355 | 31508297020 | 341.97 | 413.78 | |
| Intermediate gear box | ||||
| 370 | 31506401020 | 45.30 | 54.81 | |
| Pin | ||||
| 372 | 40242051000 | 1.04 | 1.26 | |
| Bush | ||||
| 375 | 30507238000 | 1.46 | 1.77 | |
| Shaft | ||||
| 390 | 33401085000 | 49.13 | 59.45 | |
| Feather key | ||||
| 400 | 40221003006 | 1.25 | 1.51 | |
| Bevel gear | ||||
| 405 | 33809072017 | 127.60 | 154.40 | |
| Grooved ball bearing | ||||
| 430 | 41701207033 | 8.50 | 10.28 | |
| Disc | ||||
| 440 | 42446015000 | 1.04 | 1.26 | |
| Disc | ||||
| 441 | 32408346008 | 4.10 | 4.96 | |
| Circlip | ||||
| 450 | 42635003004 | 1.04 | 1.26 | |
| Shaft | ||||
| 470 | 33406078004 | 27.43 | 33.19 | |
| Grooved ball bearing | ||||
| 480 | 41701004015 | 6.19 | 7.49 | |
| Disc | ||||
| 490 | 32408152006 | 1.46 | 1.77 | |
| Gear-wheel | ||||
| 500 | 33657012006 | 21.05 | 25.47 | |
| Gear-wheel | ||||
| 530 | 33757008007 | 34.45 | 41.68 | |
| Gear-wheel | ||||
| 540 | 33657009002 | 28.39 | 34.35 | |
| Grooved ball bearing | ||||
| 550 | 41701202018 | 5.77 | 6.98 | |
| Seal | ||||
| 560 | 30610050000 | 2.51 | 3.04 | |
| BOORHOUDER TANDKRANS 10 B10 | ||||
| 630 | 63202044018 | 48.40 | 58.56 | |
| BOORKRUK 6 12 | ||||
| 640 | 62914002005 | 3.42 | 4.14 | |
| Screw | ||||
| 960 | 43072010009 | 1.04 | 1.26 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.86 | 2.25 | |
