Here you will find all available parts and drawings of the 'Fein 72109700234 (SCS6.3-19T)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

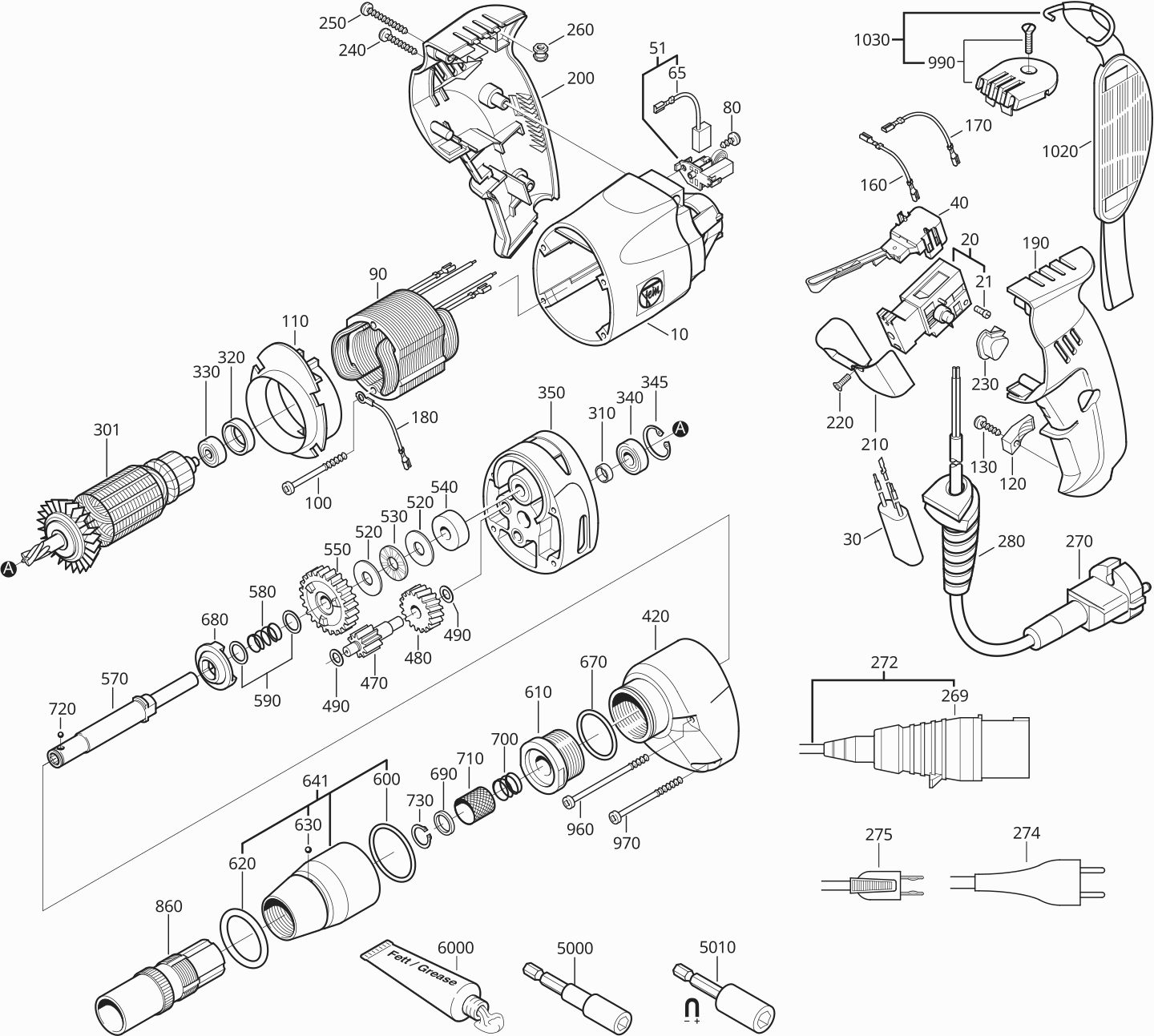

Technical drawing of model Fein 72109700234 (SCS6.3-19T)
Spare parts list of model Fein 72109700234 (SCS6.3-19T)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31901123015 | 37.00 | 44.77 | |
| Switch | ||||
| 20 | 30701228002 | 53.59 | 64.84 | |
| Cylinder head screw | ||||
| 21 | 43013052033 | 1.56 | 1.89 | |
| Capacitor | ||||
| 30 | 30722183018 | 7.80 | 9.44 | |
| Toggle switch | ||||
| 40 | 30701227004 | 18.18 | 22.00 | |
| Brush holder | ||||
| 51 | 30712089039 | 28.39 | 34.35 | |
| Carbon brush | ||||
| 65 | 30711165000 | 11.69 | 14.14 | |
| Screw | ||||
| 80 | 43070018009 | 1.56 | 1.89 | |
| Stator | ||||
| 90 | 51274008232 | 70.18 | 84.92 | |
| Screw | ||||
| 100 | 43070014000 | 1.87 | 2.26 | |
| Air guide ring | ||||
| 110 | 31428126004 | 3.68 | 4.45 | |
| Cable clamping piece | ||||
| 120 | 32431046000 | 1.67 | 2.02 | |
| Screw | ||||
| 130 | 43070006008 | 1.56 | 1.89 | |
| Connecting Cable | ||||
| 160 | 30719544014 | 1.56 | 1.89 | |
| Connecting cable | ||||
| 170 | 30719545018 | 1.56 | 1.89 | |
| Connecting cable | ||||
| 180 | 30719546011 | 1.25 | 1.51 | |
| Handle half shell | ||||
| 190 | 31201104003 | 14.36 | 17.38 | |
| Handle half shell | ||||
| 200 | 31201105007 | 14.36 | 17.38 | |
| Switch pushbutton | ||||
| 210 | 32805171004 | 5.99 | 7.25 | |
| Countersunk screw | ||||
| 220 | 43066006032 | 1.04 | 1.26 | |
| Stop button | ||||
| 230 | 32805168009 | 3.48 | 4.21 | |
| Sheet metal screw | ||||
| 240 | 43046028004 | 1.04 | 1.26 | |
| Screw | ||||
| 250 | 43070007002 | 1.56 | 1.89 | |
| Nut | ||||
| 260 | 42018019043 | 1.56 | 1.89 | |
| Assembled cables | ||||
| 270 | 30707343017 | 12.63 | 15.28 | |
| Cable grommet | ||||
| 280 | 31413219003 | 1.67 | 2.02 | |
| Armature | ||||
| 301 | 53274002233 | 131.43 | 159.03 | |
| Sealing ring | ||||
| 310 | 32612087002 | 2.71 | 3.28 | |
| Bearing bush | ||||
| 320 | 30507229007 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 330 | 41701235033 | 11.98 | 14.50 | |
| Grooved ball bearing | ||||
| 340 | 41701101031 | 15.31 | 18.53 | |
| Circlip | ||||
| 345 | 42644002007 | 1.56 | 1.89 | |
| Intermediate gear box | ||||
| 350 | 31506355024 | 93.15 | 112.71 | |
| Gearbox housing | ||||
| 420 | 31508246036 | 56.78 | 68.70 | |
| Shaft, toothed | ||||
| 470 | 33713067000 | 71.46 | 86.47 | |
| Gear-wheel | ||||
| 480 | 33663164001 | 51.68 | 62.53 | |
| Disc | ||||
| 490 | 32408243007 | 2.09 | 2.53 | |
| Disc | ||||
| 520 | 41719032007 | 1.56 | 1.89 | |
| Needle cage | ||||
| 530 | 41715042002 | 5.36 | 6.49 | |
| Disc | ||||
| 540 | 32601272002 | 2.51 | 3.04 | |
| Gear-wheel | ||||
| 550 | 33613126000 | 62.52 | 75.65 | |
| Tool holder | ||||
| 570 | 30104134004 | 130.15 | 157.48 | |
| Spiral spring | ||||
| 580 | 30901345009 | 1.56 | 1.89 | |
| Disc | ||||
| 590 | 32624119032 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 600 | 40612165008 | 1.67 | 2.02 | |
| Sleeve | ||||
| 610 | 31603046008 | 72.73 | 88.00 | |
| Sealing ring | ||||
| 620 | 40612163006 | 1.56 | 1.89 | |
| Ball | ||||
| 630 | 41708017002 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 641 | 30505068017 | |||
| Sealing ring | ||||
| 670 | 40612093004 | 1.56 | 1.89 | |
| Clutch ring | ||||
| 680 | 30102102007 | 15.31 | 18.53 | |
| Ring | ||||
| 690 | 32601242005 | 5.99 | 7.25 | |
| Spiral spring | ||||
| 700 | 30901315002 | 3.48 | 4.21 | |
| Sleeve | ||||
| 710 | 30503144002 | 9.47 | 11.46 | |
| Ball | ||||
| 720 | 41708015005 | 1.56 | 1.89 | |
| Circlip | ||||
| 730 | 42634002009 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 860 | 32127021113 | |||
| Screw | ||||
| 960 | 43072004004 | 1.04 | 1.26 | |
| Screw | ||||
| 970 | 43072002002 | 1.04 | 1.26 | |
| Pressure piece | ||||
| 990 | 30240233013 | 3.90 | 4.72 | |
| Holder | ||||
| 1020 | 63901011015 | 8.90 | 10.77 | |
| No information available, not orderable | ||||
| 1030 | 63901011037 | |||
| No information available, not orderable | ||||
| 5000 | 60505007009 | |||
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
