Here you will find all available parts and drawings of the 'Fein 72322500248 (RSS638-6)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

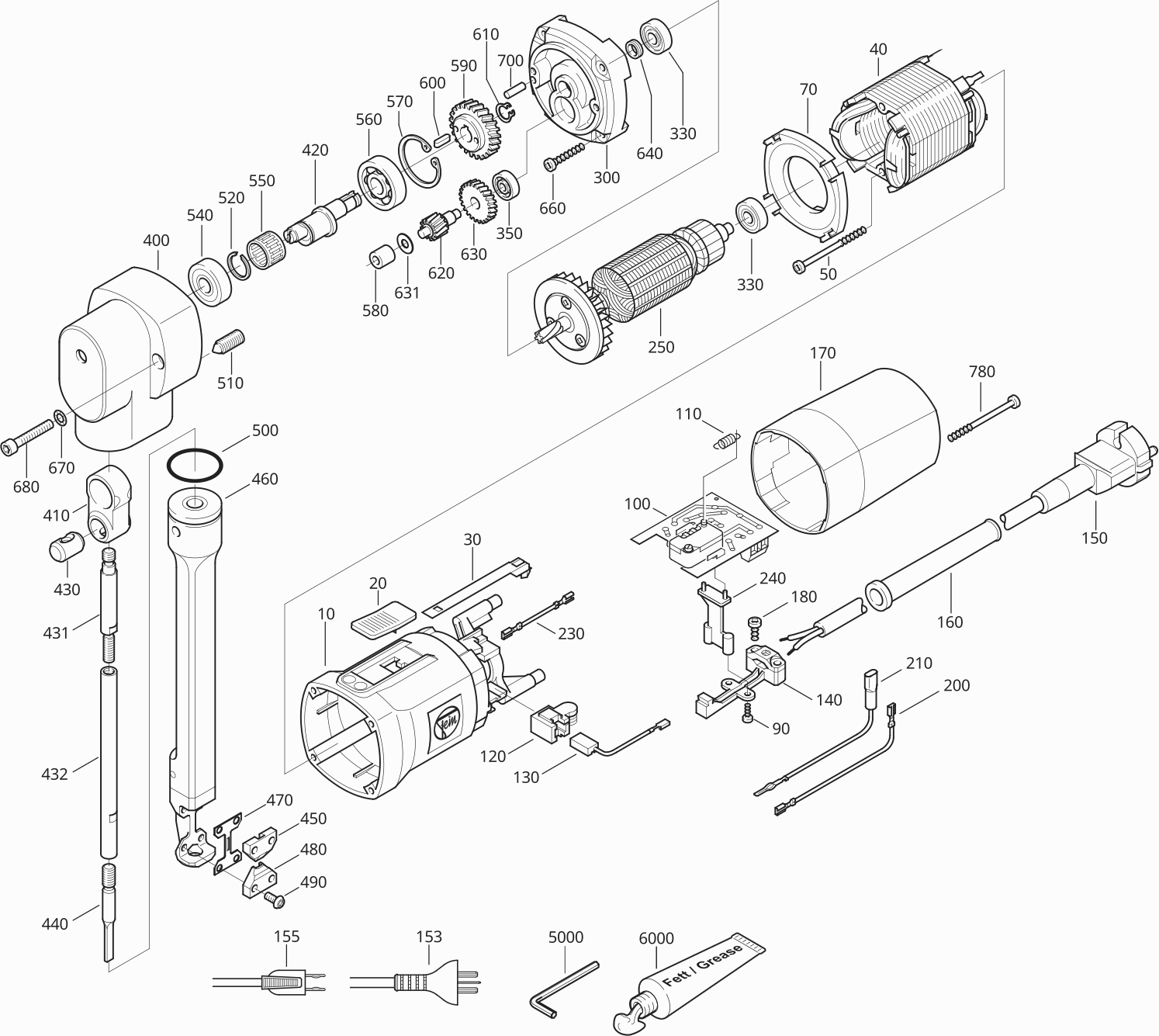

Technical drawing of model Fein 72322500248 (RSS638-6)
Spare parts list of model Fein 72322500248 (RSS638-6)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31901103008 | 63.16 | 76.42 | |
| Slide switch | ||||
| 20 | 32805128003 | 3.13 | 3.79 | |
| Control rod | ||||
| 30 | 32816040003 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 40 | 51270003240 | |||
| Screw | ||||
| 50 | 43070004001 | 1.04 | 1.26 | |
| Air guide ring | ||||
| 70 | 31428075007 | 4.10 | 4.96 | |
| Sheet metal screw | ||||
| 90 | 43046019009 | 1.04 | 1.26 | |
| Electronics | ||||
| 100 | 30762136008 | 77.84 | 94.19 | |
| Spiral spring | ||||
| 110 | 30902040004 | 2.93 | 3.55 | |
| Brush holder | ||||
| 120 | 30712086011 | 7.66 | 9.27 | |
| Carbon brush | ||||
| 130 | 30711127007 | 15.63 | 18.91 | |
| Cable clamping piece | ||||
| 140 | 32431036008 | 3.68 | 4.45 | |
| No information available, not orderable | ||||
| 150 | 30707174010 | |||
| Cable grommet | ||||
| 160 | 31413007007 | 2.51 | 3.04 | |
| Cover | ||||
| 170 | 31201072020 | 10.58 | 12.80 | |
| Screw | ||||
| 180 | 43070001006 | 1.87 | 2.26 | |
| No longer available, no replacement | ||||
| 200 | 30719339016 | |||
| Connecting Cable | ||||
| 210 | 30719340018 | 2.09 | 2.53 | |
| Connecting cable | ||||
| 230 | 30719448017 | 2.36 | 2.86 | |
| Holder | ||||
| 240 | 31428086009 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 250 | 53270003242 | |||
| No longer available, no replacement | ||||
| 300 | 31506333009 | |||
| Grooved ball bearing | ||||
| 330 | 41701001172 | 8.21 | 9.93 | |
| Grooved ball bearing | ||||
| 350 | 41701202018 | 5.77 | 6.98 | |
| No longer available, no replacement | ||||
| 400 | 31309062002 | |||
| No longer available, no replacement | ||||
| 410 | 31309063006 | |||
| No longer available, no replacement | ||||
| 420 | 31309064004 | |||
| Bolt | ||||
| 430 | 31308078001 | 80.39 | 97.27 | |
| No longer available, no replacement | ||||
| 431 | 31309117009 | |||
| No longer available, no replacement | ||||
| 432 | 31309118007 | |||
| No information available, not orderable | ||||
| 440 | 31309119001 | |||
| Punch guide | ||||
| 450 | 31309120003 | 136.53 | 165.20 | |
| No information available, not orderable | ||||
| 460 | 31309127017 | |||
| Plate | ||||
| 470 | 31309121002 | 18.03 | 21.82 | |
| No longer available, no replacement | ||||
| 480 | 31309122005 | |||
| Fillister head screw | ||||
| 490 | 31309123009 | 1.87 | 2.26 | |
| No longer available, no replacement | ||||
| 500 | 31309126004 | |||
| No longer available, no replacement | ||||
| 510 | 31309041001 | |||
| Circlip | ||||
| 520 | 42615104004 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 540 | 41701207055 | 13.72 | 16.60 | |
| Needle cage | ||||
| 550 | 41715043006 | 21.05 | 25.47 | |
| Grooved ball bearing | ||||
| 560 | 41701210021 | 6.19 | 7.49 | |
| Circlip | ||||
| 570 | 42616002008 | 1.04 | 1.26 | |
| Needle bearing | ||||
| 580 | 41706034001 | 32.54 | 39.37 | |
| No longer available, no replacement | ||||
| 590 | 33657151008 | |||
| Feather key | ||||
| 600 | 40221003006 | 1.56 | 1.89 | |
| Circlip | ||||
| 610 | 42616034007 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 620 | 33757072009 | |||
| No information available, not orderable | ||||
| 630 | 33657150009 | |||
| Disc | ||||
| 631 | 32408185009 | 2.71 | 3.28 | |
| Sealing ring | ||||
| 640 | 32612056001 | 2.36 | 2.86 | |
| Screw | ||||
| 660 | 43070010006 | 1.04 | 1.26 | |
| Circlip | ||||
| 670 | 42443004057 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 680 | 43035019059 | 1.56 | 1.89 | |
| Straight pin | ||||
| 700 | 40201036006 | 1.04 | 1.26 | |
| Screw | ||||
| 780 | 43070004001 | 1.04 | 1.26 | |
| Allen key (Winkel, HEX 4) | ||||
| 5000 | 62907010000 | 2.64 | 3.19 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
