Here you will find all available parts and drawings of the 'Fein 73601000403 (RSG18b)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

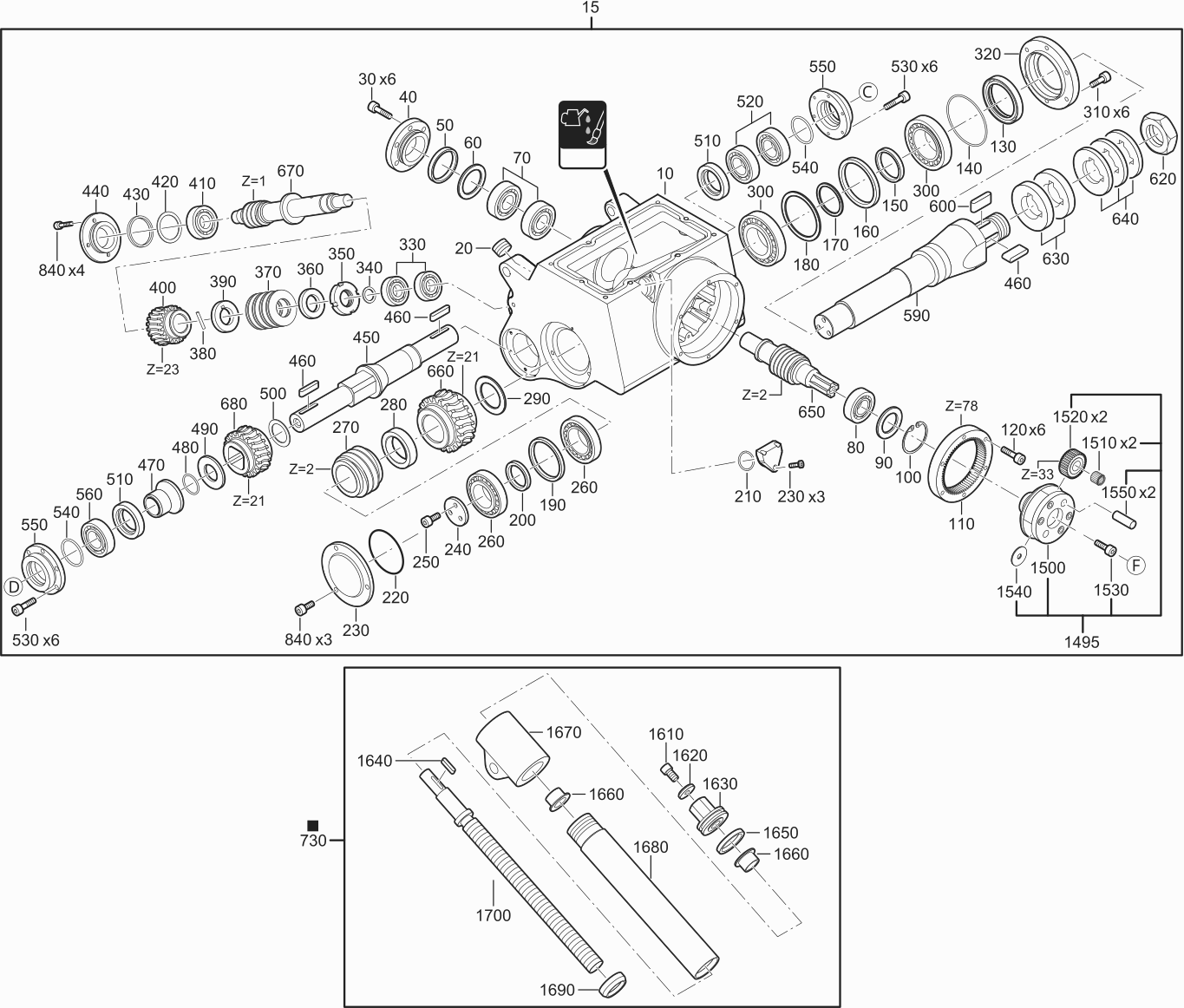

Technical drawing of model Fein 73601000403 (RSG18b)
Spare parts list of model Fein 73601000403 (RSG18b)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 10 | 31207063009 | 2873.55 | 3477.00 | |
| Gearbox | ||||
| 15 | 31207063030 | 8200.21 | 9922.25 | |
| Screw | ||||
| 20 | 43043001009 | 6.61 | 8.00 | |
| Cylinder head screw | ||||
| 30 | 43035032065 | 1.56 | 1.89 | |
| Cover | ||||
| 40 | 32419057000 | 130.15 | 157.48 | |
| Sealing ring | ||||
| 50 | 40612015004 | 3.34 | 4.04 | |
| Disc | ||||
| 60 | 32624012038 | 5.36 | 6.49 | |
| Disc | ||||
| 60 | 32624012022 | 4.52 | 5.47 | |
| Inclined ball bearing | ||||
| 70 | 41723002010 | 81.66 | 98.81 | |
| Grooved ball bearing | ||||
| 80 | 41701016011 | 13.08 | 15.83 | |
| Disc | ||||
| 90 | 32408211003 | 3.13 | 3.79 | |
| Circlip | ||||
| 100 | 42616022006 | 1.88 | 2.27 | |
| Gear-wheel | ||||
| 110 | 33804011006 | 218.20 | 264.02 | |
| Cylinder head screw | ||||
| 120 | 43035009044 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 130 | 40608000008 | 8.90 | 10.77 | |
| Sealing ring | ||||
| 140 | 40612018009 | 3.48 | 4.21 | |
| Ring | ||||
| 150 | 32601165003 | 59.33 | 71.79 | |
| Ring | ||||
| 160 | 32601167000 | 66.35 | 80.28 | |
| Disc | ||||
| 170 | 32624070024 | 3.90 | 4.72 | |
| Disc | ||||
| 180 | 32624080023 | 6.82 | 8.25 | |
| Ring | ||||
| 190 | 32601168008 | 54.87 | 66.39 | |
| Ring | ||||
| 200 | 32601166006 | 63.16 | 76.42 | |
| Sealing ring | ||||
| 220 | 40612021004 | 3.48 | 4.21 | |
| Cover | ||||
| 230 | 32419062006 | 111.01 | 134.32 | |
| Disc | ||||
| 240 | 32408452000 | 49.76 | 60.21 | |
| Cylinder head screw | ||||
| 250 | 43035031062 | 1.04 | 1.26 | |
| Tapered roller bearing | ||||
| 260 | 41713006007 | 84.22 | 101.91 | |
| Worm | ||||
| 270 | 33805006000 | 686.49 | 830.65 | |
| Ring | ||||
| 280 | 32601169002 | 44.66 | 54.04 | |
| Disc | ||||
| 290 | 32624071039 | 5.77 | 6.98 | |
| Disc | ||||
| 290 | 32624071023 | 3.76 | 4.55 | |
| Tapered roller bearing | ||||
| 300 | 41713008009 | 84.22 | 101.91 | |
| Cylinder head screw | ||||
| 310 | 43035086069 | 1.04 | 1.26 | |
| Cover | ||||
| 320 | 32419060004 | 206.71 | 250.12 | |
| Inclined ball bearing | ||||
| 330 | 41723001017 | 65.08 | 78.75 | |
| Disc | ||||
| 340 | 32624084033 | 4.87 | 5.89 | |
| Disc | ||||
| 340 | 32624084011 | 3.68 | 4.45 | |
| Disc | ||||
| 340 | 32624084027 | 2.71 | 3.28 | |
| Nut | ||||
| 350 | 42008021008 | 16.59 | 20.07 | |
| Ring | ||||
| 360 | 32601170004 | 35.73 | 43.23 | |
| Cup spring | ||||
| 370 | 30905022007 | 5.57 | 6.74 | |
| Straight pin | ||||
| 380 | 40201041003 | 1.04 | 1.26 | |
| Ring | ||||
| 390 | 32601171003 | 89.32 | 108.08 | |
| Worm | ||||
| 400 | 33807013000 | 349.62 | 423.04 | |
| Grooved ball bearing | ||||
| 410 | 41701222016 | 12.51 | 15.14 | |
| Disc | ||||
| 420 | 32624019011 | 5.99 | 7.25 | |
| Disc | ||||
| 420 | 32624019027 | 5.99 | 7.25 | |
| Sealing ring | ||||
| 430 | 40612022007 | 3.48 | 4.21 | |
| Cover | ||||
| 440 | 32419056006 | 90.60 | 109.63 | |
| Shaft | ||||
| 450 | 33406099006 | 1112.67 | 1346.33 | |
| Feather key | ||||
| 460 | 40221044000 | 3.48 | 4.21 | |
| Sleeve | ||||
| 470 | 30503064001 | 183.74 | 222.33 | |
| Sealing ring | ||||
| 480 | 40612016007 | 3.68 | 4.45 | |
| Disc | ||||
| 490 | 32408191009 | 13.08 | 15.83 | |
| Disc | ||||
| 500 | 32624072032 | 5.57 | 6.74 | |
| Disc | ||||
| 500 | 32624072026 | 1.67 | 2.02 | |
| Sealing ring | ||||
| 510 | 40608026009 | 48.49 | 58.67 | |
| Inclined ball bearing | ||||
| 520 | 41723003014 | 55.51 | 67.17 | |
| Cylinder head screw | ||||
| 530 | 43035005045 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 540 | 40612019003 | 2.09 | 2.53 | |
| Cover | ||||
| 550 | 32419061003 | 260.30 | 314.96 | |
| Grooved ball bearing | ||||
| 560 | 41701017015 | 21.05 | 25.47 | |
| Shaft | ||||
| 590 | 33406098002 | 1979.08 | 2394.69 | |
| Feather key | ||||
| 600 | 40221050005 | 5.57 | 6.74 | |
| Hex nut | ||||
| 620 | 42003009007 | 6.61 | 8.00 | |
| Disc | ||||
| 630 | 32408188004 | 77.84 | 94.19 | |
| Disc | ||||
| 640 | 32408187006 | 79.11 | 95.72 | |
| Worm | ||||
| 650 | 33806003000 | 950.62 | 1150.25 | |
| Worm | ||||
| 660 | 33807009002 | 788.57 | 954.17 | |
| Worm | ||||
| 670 | 33806005002 | 786.02 | 951.08 | |
| Worm | ||||
| 680 | 33807011003 | 798.78 | 966.52 | |
| Plate | ||||
| 710 | 32433027008 | 236.06 | 285.63 | |
| Mounting shaft | ||||
| 720 | 32715112003 | 95.70 | 115.80 | |
| Cylinder head screw | ||||
| 725 | 43033083066 | 1.56 | 1.89 | |
| Delivery fixture | ||||
| 730 | 30520068017 | 905.96 | 1096.21 | |
| Clamping unit | ||||
| 740 | 32715069041 | 460.64 | 557.37 | |
| Hexagon socket screw | ||||
| 750 | 43048054109 | 1.04 | 1.26 | |
| Disc | ||||
| 760 | 42401017104 | 1.56 | 1.89 | |
| Disc | ||||
| 770 | 32415059008 | 29.03 | 35.13 | |
| Hook and loop wheel | ||||
| 780 | 32715115009 | 94.42 | 114.25 | |
| Bolt | ||||
| 790 | 30217317004 | 42.75 | 51.73 | |
| Hinge | ||||
| 800 | 33406279012 | 521.88 | 631.47 | |
| Sleeve | ||||
| 810 | 30501340005 | 33.18 | 40.15 | |
| Circlip | ||||
| 820 | 42616023000 | 1.56 | 1.89 | |
| Crossbar | ||||
| 830 | 32715118013 | 940.41 | 1137.90 | |
| Cylinder head screw | ||||
| 840 | 43033083066 | 1.56 | 1.89 | |
| Bolt | ||||
| 850 | 30217213009 | 26.80 | 32.43 | |
| Bolt | ||||
| 860 | 30217316000 | 94.42 | 114.25 | |
| Inclined ball bearing | ||||
| 870 | 41711021008 | 59.97 | 72.56 | |
| Disc | ||||
| 880 | 32408378007 | 105.91 | 128.15 | |
| Disc | ||||
| 890 | 32715117006 | 123.77 | 149.76 | |
| Sleeve | ||||
| 900 | 32715122002 | 256.48 | 310.34 | |
| Hook and loop wheel | ||||
| 910 | 32715116002 | 118.67 | 143.59 | |
| Cylinder head screw | ||||
| 920 | 43035097059 | 1.56 | 1.89 | |
| Disc | ||||
| 930 | 32408374008 | 33.18 | 40.15 | |
| Hexagon socket screw | ||||
| 940 | 43001041105 | 1.25 | 1.51 | |
| Cover | ||||
| 950 | 32429120000 | 604.82 | 731.83 | |
| Cylinder head screw | ||||
| 970 | 43035037068 | 1.56 | 1.89 | |
| Pair of side plates | ||||
| 980 | 32715113016 | 1156.06 | 1398.83 | |
| Crossbar | ||||
| 990 | 30240361010 | 689.04 | 833.74 | |
| Disc | ||||
| 1000 | 42401020139 | 1.04 | 1.26 | |
| Hex nut | ||||
| 1010 | 42001034120 | 1.25 | 1.51 | |
| Thread bolt | ||||
| 1020 | 33021098000 | 35.73 | 43.23 | |
| Circlip | ||||
| 1030 | 42616013001 | 1.56 | 1.89 | |
| Shaft | ||||
| 1040 | 33406283010 | 918.72 | 1111.65 | |
| Disc | ||||
| 1050 | 32715120000 | 164.60 | 199.17 | |
| Circlip | ||||
| 1060 | 42616044006 | 1.56 | 1.89 | |
| Shaft | ||||
| 1070 | 33406336000 | 324.10 | 392.16 | |
| Disc | ||||
| 1080 | 32408376005 | 44.66 | 54.04 | |
| Sleeve | ||||
| 1090 | 30501339003 | 49.13 | 59.45 | |
| Hex nut | ||||
| 1100 | 30509052000 | 52.32 | 63.31 | |
| Disc | ||||
| 1110 | 32715121009 | 142.91 | 172.92 | |
| Screw | ||||
| 1120 | 43012051122 | 22.97 | 27.79 | |
| Bolt | ||||
| 1130 | 30217314003 | 14.67 | 17.75 | |
| Cylinder head screw | ||||
| 1140 | 43033084045 | 1.56 | 1.89 | |
| Thread bolt | ||||
| 1150 | 33021097002 | 117.39 | 142.04 | |
| Hinge | ||||
| 1160 | 30509019010 | 158.22 | 191.45 | |
| Safety hood | ||||
| 1170 | 31810234000 | 339.42 | 410.70 | |
| Stud bolt | ||||
| 1180 | 43007059080 | 4.94 | 5.98 | |
| Disc | ||||
| 1190 | 42401019085 | 1.56 | 1.89 | |
| Lever | ||||
| 1200 | 32170002005 | 47.21 | 57.12 | |
| Information sign | ||||
| 1210 | 32215103069 | 8.64 | 10.45 | |
| Rivet | ||||
| 1220 | 40204001009 | 1.04 | 1.26 | |
| Information sign | ||||
| 1230 | 32215026007 | 1.68 | 2.03 | |
| Information sign | ||||
| 1240 | 32215104067 | 9.96 | 12.05 | |
| MOTOR | ||||
| 1250 | 54399002153 | 1216.03 | 1471.40 | |
| Cable clamping piece | ||||
| 1260 | 30723053004 | 174.81 | 211.52 | |
| Cable with plug | ||||
| 1270 | 30707371017 | 164.60 | 199.17 | |
| Flange | ||||
| 1310 | 32436060002 | 525.71 | 636.11 | |
| Grooved ball bearing | ||||
| 1320 | 41701010010 | 7.66 | 9.27 | |
| Cylinder head screw | ||||
| 1330 | 43035048087 | 1.04 | 1.26 | |
| Gear-wheel | ||||
| 1340 | 33669025002 | 232.23 | 281.00 | |
| Disc | ||||
| 1350 | 42402010082 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 1360 | 43033077088 | 1.04 | 1.26 | |
| Shaft, toothed | ||||
| 1370 | 33811066000 | 232.23 | 281.00 | |
| Flange | ||||
| 1380 | 32436061001 | 648.21 | 784.33 | |
| Sealing ring | ||||
| 1400 | 40608062006 | 20.10 | 24.32 | |
| Planetary gear | ||||
| 1495 | 32715055021 | 884.27 | 1069.97 | |
| Planetary carrier | ||||
| 1500 | 32715055015 | 745.18 | 901.67 | |
| Needle cage | ||||
| 1510 | 41715016004 | 20.74 | 25.10 | |
| Gear-wheel | ||||
| 1520 | 33613071004 | 75.28 | 91.09 | |
| Cylinder head screw | ||||
| 1530 | 43033064066 | 1.56 | 1.89 | |
| Disc | ||||
| 1540 | 32402002000 | 13.08 | 15.83 | |
| Pin | ||||
| 1550 | 40242017000 | 3.48 | 4.21 | |
| Cylinder head screw | ||||
| 1610 | 43035029061 | 1.56 | 1.89 | |
| Disc | ||||
| 1620 | 32402001007 | 28.39 | 34.35 | |
| Clutch part | ||||
| 1630 | 30101026001 | 99.53 | 120.43 | |
| Feather key | ||||
| 1640 | 40221018002 | 9.32 | 11.28 | |
| Sealing ring | ||||
| 1650 | 40612020005 | 4.52 | 5.47 | |
| Bush | ||||
| 1660 | 31602087007 | 8.50 | 10.28 | |
| Bearing piece | ||||
| 1670 | 32715114005 | 290.93 | 352.03 | |
| Pipe | ||||
| 1680 | 30520068008 | 109.74 | 132.79 | |
| Ring | ||||
| 1690 | 30606008008 | 21.69 | 26.24 | |
| Thread bolt | ||||
| 1700 | 33406146004 | 265.41 | 321.15 | |
| Sealing ring | ||||
| 2050 | 40612017001 | 5.99 | 7.25 | |
| Clamping sleeve | ||||
| 3000 | 32715069013 | 170.98 | 206.89 | |
| Bolt | ||||
| 3010 | 32715071005 | 109.74 | 132.79 | |
| Cup spring | ||||
| 3020 | 30905023001 | 10.72 | 12.97 | |
| Ring | ||||
| 3030 | 32601172006 | 14.99 | 18.14 | |
| Pin | ||||
| 3040 | 40247005009 | 1.04 | 1.26 | |
| Ring bolt | ||||
| 3050 | 43040004165 | 38.28 | 46.32 | |
| Disc | ||||
| 3060 | 32624078049 | 7.24 | 8.76 | |
| Circlip | ||||
| 3070 | 42616048005 | 2.51 | 3.04 | |
| Ring bolt | ||||
| 3080 | 43040005004 | 38.92 | 47.09 | |
| Switching box (Switch Device) | ||||
| 5100 | 30702041014 | 2241.93 | 2712.74 | |
| Extension | ||||
| 5110 | 32715025009 | 100.80 | 121.97 | |
| Hex nut | ||||
| 5120 | 42001007053 | 1.56 | 1.89 | |
| Lock washer | ||||
| 5130 | 42439004051 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 5140 | 43002058056 | 1.04 | 1.26 | |
| Disc | ||||
| 5150 | 42402006059 | 1.04 | 1.26 | |
| Information sign | ||||
| 5160 | 32217376065 | 16.50 | 19.96 | |
| Switch | ||||
| 5170 | 30702041005 | 2111.78 | 2555.25 | |
| Clamp | ||||
| 5180 | 30230054022 | 154.40 | 186.82 | |
| Handle | ||||
| 5185 | 30230054038 | 199.06 | 240.86 | |
| No information available, not orderable | ||||
| 5200 | 33901031001 | |||
| No information available, not orderable | ||||
| 5300 | 32122007017 | |||
| Wedge | ||||
| 5450 | 63305006008 | 14.08 | 17.04 | |
| Wrench | ||||
| 5500 | 62901016002 | 23.92 | 28.94 | |
| Wrench | ||||
| 5600 | 62903010006 | 33.55 | 40.60 | |
| No information available, not orderable | ||||
| 5700 | 62911010000 | |||
| No information available, not orderable | ||||
| 5800 | 62906014000 | |||
| Chain | ||||
| 5900 | 30231029002 | 12.10 | 14.64 | |
| Bolt | ||||
| 5910 | 30217216004 | 3.48 | 4.21 | |
| Circlip | ||||
| 5920 | 42634020005 | 1.04 | 1.26 | |
| Bolt | ||||
| 6000 | 30217216004 | 3.48 | 4.21 | |
| Circlip | ||||
| 6100 | 42634020005 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 6200 | 32132009013 | |||
| No information available, not orderable | ||||
| 6300 | 32174009001 | |||
| No information available, not orderable | ||||
| 6400 | 32174010003 | |||
