Here you will find all available parts and drawings of the 'Fein 73601961000 ( RSGEx18B )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

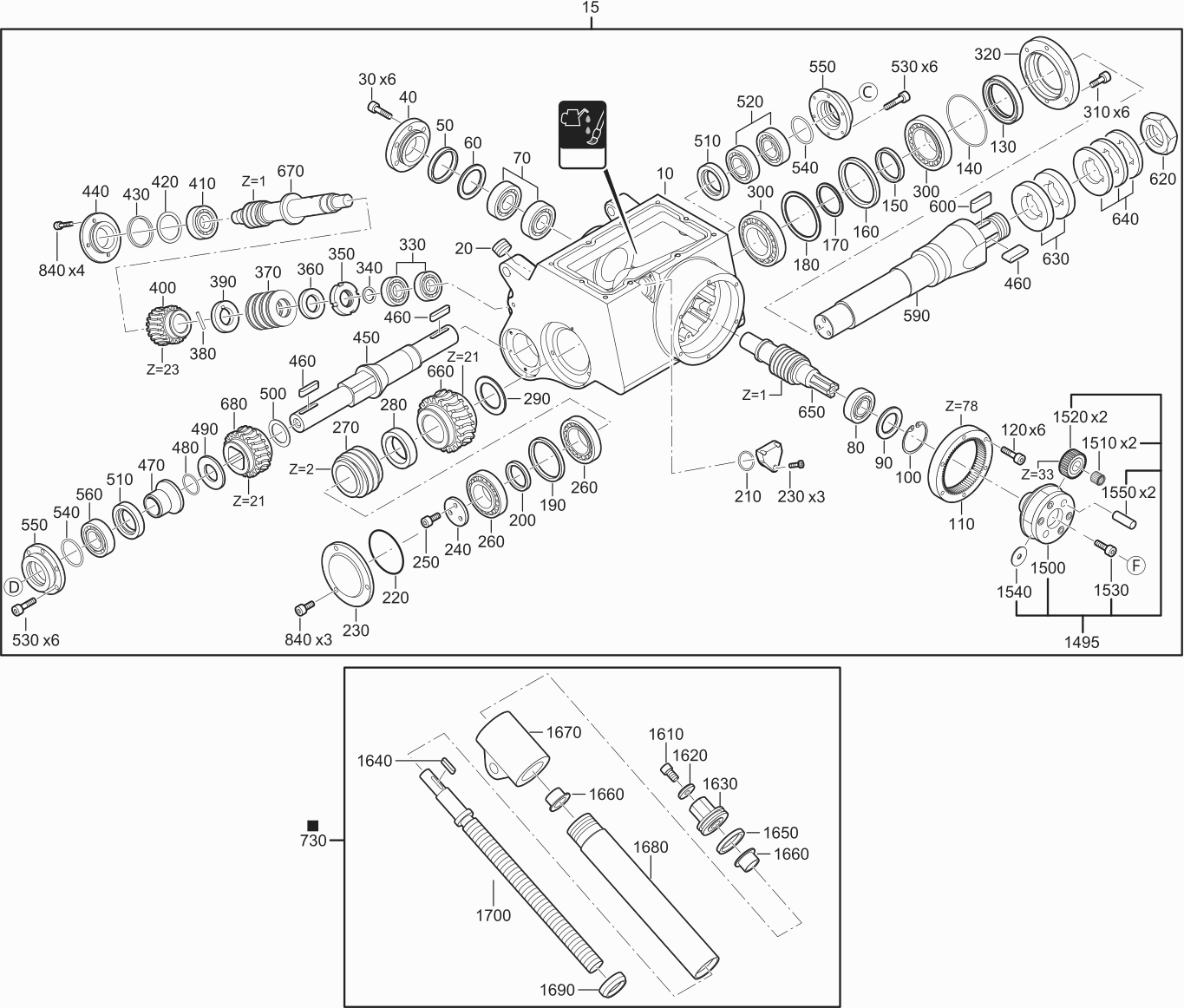

Technical drawing of model Fein 73601961000 ( RSGEx18B )

Spare parts list of model Fein 73601961000 ( RSGEx18B )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing
10 31207332000 2936.08 3552.66
Gearbox
15 31207332070 7632.90 9235.81
Screw
20 43043001009 6.61 8.00
Cover
40 32419057000 130.15 157.48
Sealing ring
50 40612015004 3.34 4.04
Disc
60 32624012038 5.36 6.49
Disc
60 32624012022 4.52 5.47
Inclined ball bearing
70 41723002010 81.66 98.81
Grooved ball bearing
80 41701016011 13.08 15.83
Disc
90 32408211003 3.13 3.79
Circlip
100 42616022006 1.88 2.27
Gear-wheel
110 33804011006 218.20 264.02
Cylinder head screw
120 43035009044 1.04 1.26
Sealing ring
130 40608000008 8.90 10.77
Sealing ring
140 40612018009 3.48 4.21
Ring
150 32601165003 59.33 71.79
Ring
160 32601167000 66.35 80.28
Disc
170 32624070024 3.90 4.72
Disc
180 32624080023 6.82 8.25
Ring
190 32601168008 54.87 66.39
Ring
200 32601166006 63.16 76.42
Sealing ring
220 40612021004 3.48 4.21
Disc
240 32408452000 49.76 60.21
Cylinder head screw
250 43035031062 1.04 1.26
Tapered roller bearing
260 41713006007 84.22 101.91
Worm
270 33805006000 686.49 830.65
Disc
290 32624071039 5.77 6.98
Disc
290 32624071023 3.76 4.55
Circlip
292 30229430000 13.72 16.60
Tapered roller bearing
300 41713008009 84.22 101.91
Hex nut
302 42001034120 1.25 1.51
Cylinder head screw
310 43035086069 1.04 1.26
Thread bolt
312 33024078000 47.21 57.12
Cover
320 32419060004 206.71 250.12
Lever
321 32170026000 28.39 34.35
Circlip
322 42616013001 1.04 1.26
Disc
323 32408453000 8.90 10.77
Inclined ball bearing
330 41723001017 65.08 78.75
Disc
340 32624084033 4.87 5.89
Disc
340 32624084011 3.68 4.45
Disc
340 32624084027 2.71 3.28
Nut
350 42008021008 16.59 20.07
Ring
360 32601170004 35.73 43.23
Cup spring
370 30905022007 5.57 6.74
Straight pin
380 40201041003 1.04 1.26
Ring
390 32601171003 89.32 108.08
Worm
400 33807013000 349.62 423.04
Grooved ball bearing
410 41701222016 12.51 15.14
Disc
420 32624019011 5.99 7.25
Disc
420 32624019027 5.99 7.25
Sealing ring
430 40612022007 3.48 4.21
Cover
440 32419056006 90.60 109.63
Shaft
450 33406099006 1112.67 1346.33
Feather key
460 40221044000 3.48 4.21
Sleeve
470 30503064001 183.74 222.33
Sealing ring
480 40612016007 3.68 4.45
Disc
490 32408191009 13.08 15.83
Disc
500 32624072032 5.57 6.74
Disc
500 32624072026 1.67 2.02
Sealing ring
510 40608026009 48.49 58.67
Inclined ball bearing
520 41723003014 55.51 67.17
Cylinder head screw
530 43035005045 1.04 1.26
Sealing ring
540 40612019003 2.09 2.53
Cover
550 32419061003 260.30 314.96
Grooved ball bearing
560 41701017015 21.05 25.47
Shaft
590 33406098002 1979.08 2394.69
Feather key
600 40221050005 5.57 6.74
Bush
602 30501387000 27.75 33.58
Bolt
610 30216163000 37.64 45.54
Ring
612 32601169002 44.66 54.04
Nut
615 42010000000 10.16 12.29
Hex nut
620 42003009007 6.61 8.00
Disc
630 32408188004 77.84 94.19
Cover
632 32419062006 111.01 134.32
Disc
640 32408187006 79.11 95.72
Seal
700 30610057000 29.67 35.90
Plate
710 32433027008 236.06 285.63
Hexagon socket screw
712 43001041105 1.25 1.51
Mounting shaft
720 32715112003 95.70 115.80
Circlip
762 42616044006 1.04 1.26
Circlip
782 42616046003 1.04 1.26
Disc
890 32103044000 130.15 157.48
Pair of side plates
980 32429180010 1306.80 1581.23
SCALE
985 30229431000 48.49 58.67
Crossbar
990 30240361010 689.04 833.74
Flange
995 30240360000 113.56 137.41
Shaft
1070 33406336000 324.10 392.16
Motor (54399005150)
1250 54399005150 798.60 966.31
Cable clamping piece
1260 30723057000 26.95 32.61
Cable with plug
1280 30707555010 183.74 222.33
Cable
1290 30706354010 160.78 194.54
Switch
1300 30732024017 2462.68 2979.84
Flange
1310 32436060002 525.71 636.11
Grooved ball bearing
1320 41701010010 7.66 9.27
Cylinder head screw
1330 43035048087 1.04 1.26
Gear-wheel
1340 33669025002 232.23 281.00
Disc
1350 42402010082 1.04 1.26
Cylinder head screw
1360 43033077088 1.04 1.26
Shaft, toothed
1370 33811066000 232.23 281.00
Flange
1380 32436061001 648.21 784.33
Sealing ring
1385 40612017001 5.99 7.25
Disc
1390 42401019085 1.04 1.26
Sealing ring
1400 40608062006 20.10 24.32
Hex nut
1430 42001039065 1.04 1.26
Lock washer
1440 42439005068 1.04 1.26
Disc (SW0014, OD 12 MM, ID 6.4 MM)
1450 42401018069 1.04 1.26
Cylinder head screw
1460 43033074065 1.04 1.26
Switching box
1470 30732028010 1471.80 1780.88
Planetary carrier
1500 32715055015 745.18 901.67
Needle cage
1510 41715016004 20.74 25.10
Gear-wheel
1520 33613071004 75.28 91.09
Cylinder head screw
1530 43033064066 1.04 1.26
Disc
1540 32402002000 13.08 15.83
Pin
1550 40242017000 3.48 4.21
Cylinder head screw
1610 43035029061 1.04 1.26
Disc
1620 32402001007 28.39 34.35
Clutch part
1630 30101026001 99.53 120.43
Feather key
1640 40221018002 9.32 11.28
Sealing ring
1650 40612020005 4.52 5.47
Bush
1660 31602087007 8.50 10.28
Bearing piece
1670 32715114005 290.93 352.03
Pipe
1680 30520068008 109.74 132.79
Ring
1690 30606008008 21.69 26.24
Thread bolt
1700 33406146004 265.41 321.15
Clamping sleeve
3000 32715069013 170.98 206.89
Bolt
3010 32715071005 109.74 132.79
Cup spring
3020 30905023001 10.72 12.97
Ring
3030 32601172006 14.99 18.14
Pin
3040 40247005009 1.04 1.26
Ring bolt
3050 43040004165 38.28 46.32
Disc
3060 32624078049 7.24 8.76
Circlip
3070 42616048005 2.51 3.04
Ring bolt
3080 43040005004 38.92 47.09
Switching box (Switch Device)
5100 30702041014 2241.93 2712.74
Extension
5110 32715025009 100.80 121.97
Hex nut
5120 42001007053 1.04 1.26
Lock washer
5130 42439004051 1.04 1.26
Cylinder head screw
5140 43002058056 1.04 1.26
Disc
5150 42402006059 1.04 1.26
Information sign
5160 32217376065 16.50 19.96
Switch
5170 30702041005 2111.78 2555.25
Clamp
5180 30230054022 154.40 186.82
Handle
5185 30230054038 199.06 240.86
Case
5200 33901031001 101.20 122.45
Crank
5300 32122007017 124.30 150.40
Assembly aid
5400 63305013002 167.20 202.31
Wrench
5420 62901016002 23.92 28.94
Wrench
5430 62903010006 33.55 40.60
Wrench
5440 62911010000 24.75 29.95
Socket wrench
5450 62906014000 45.10 54.57
Belt
5460 32174009001 55.00 66.55
Belt
5470 32174010003 67.10 81.19
Chain
5500 30231029002 12.10 14.64
Bolt
5510 30217216004 3.48 4.21
Circlip
5520 42634020005 1.04 1.26
No information available, not orderable
6000 04020600005
No information available, not orderable
6200 04010101004
