Here you will find all available parts and drawings of the 'Fein 72227500230 (RS17-70E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

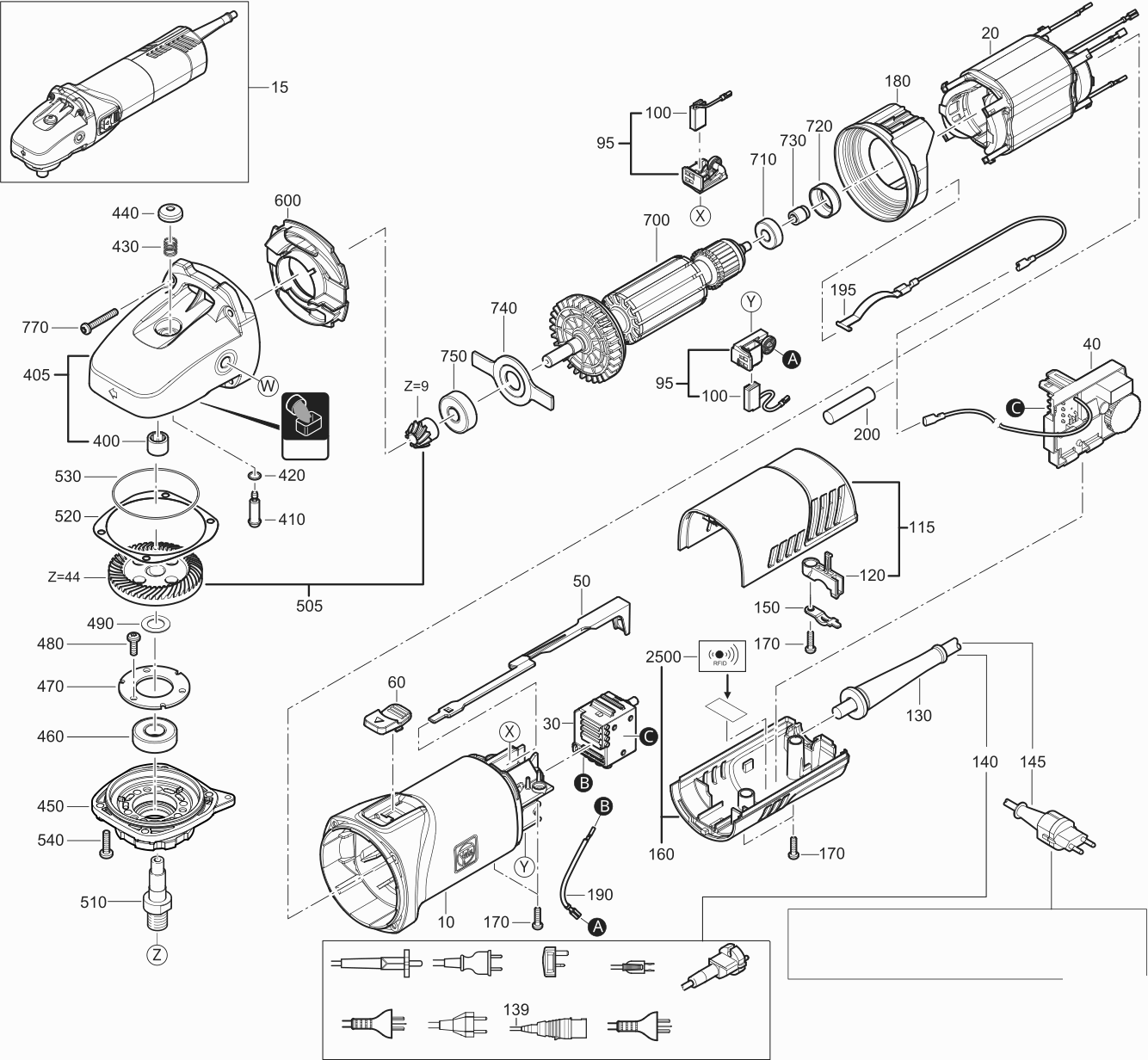

Technical drawing of model Fein 72227500230 (RS17-70E)
Spare parts list of model Fein 72227500230 (RS17-70E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31901175000 | 32.54 | 39.37 | |
| No information available, not orderable | ||||
| 15 | 72775900230 | |||
| Stator | ||||
| 20 | 51279004230 | 45.30 | 54.81 | |
| Switch | ||||
| 30 | 30701299000 | 25.20 | 30.49 | |
| Speed setting switch | ||||
| 40 | 30762557990 | 75.28 | 91.09 | |
| Control rod | ||||
| 50 | 32816080000 | 2.71 | 3.28 | |
| Slide switch | ||||
| 60 | 32805241000 | 3.68 | 4.45 | |
| Brush holder | ||||
| 95 | 30712096010 | 10.16 | 12.29 | |
| Carbon brush | ||||
| 100 | 30711158000 | 7.38 | 8.93 | |
| Cover | ||||
| 115 | 32427153010 | 15.31 | 18.53 | |
| Cable clamping piece | ||||
| 120 | 32431047000 | 1.56 | 1.89 | |
| Cable grommet | ||||
| 130 | 31413282000 | 2.93 | 3.55 | |
| Assembled cables | ||||
| 140 | 30707544010 | 12.63 | 15.28 | |
| No information available, not orderable | ||||
| 145 | 30707544020 | |||
| Cable clamping piece | ||||
| 150 | 32431043002 | 1.56 | 1.89 | |
| Cover | ||||
| 160 | 32427151010 | 7.68 | 9.29 | |
| Screw | ||||
| 170 | 43072000000 | 1.56 | 1.89 | |
| Air guide ring | ||||
| 180 | 31428179000 | 6.41 | 7.76 | |
| Needle sleeve | ||||
| 400 | 41705019001 | 8.21 | 9.93 | |
| Gearbox housing | ||||
| 405 | 31206166030 | 50.40 | 60.98 | |
| Bolt | ||||
| 410 | 30217335005 | 6.61 | 8.00 | |
| Sealing ring | ||||
| 420 | 40612137008 | 1.56 | 1.89 | |
| Spiral spring | ||||
| 430 | 30901357005 | 1.67 | 2.02 | |
| Pushbutton | ||||
| 440 | 32805200008 | 2.71 | 3.28 | |
| Bearing plate | ||||
| 450 | 32419166000 | 34.65 | 41.93 | |
| Grooved ball bearing | ||||
| 460 | 41701010054 | 7.24 | 8.76 | |
| Plate | ||||
| 470 | 32416118000 | 2.09 | 2.53 | |
| Screw | ||||
| 480 | 43064002043 | 1.56 | 1.89 | |
| Disc | ||||
| 490 | 32601281000 | 10.58 | 12.80 | |
| Bevel gear | ||||
| 505 | 33809247010 | 33.81 | 40.91 | |
| Shaft | ||||
| 510 | 33406349000 | 19.46 | 23.55 | |
| Washer | ||||
| 520 | 32624123060 | 2.29 | 2.77 | |
| Washer | ||||
| 520 | 32624123020 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 530 | 40612000009 | 1.56 | 1.89 | |
| Screw | ||||
| 540 | 43064024043 | 1.56 | 1.89 | |
| Air guide ring | ||||
| 600 | 31428180000 | 4.10 | 4.96 | |
| Armature | ||||
| 700 | 53279006230 | 80.39 | 97.27 | |
| Grooved ball bearing | ||||
| 710 | 41701001260 | 5.77 | 6.98 | |
| Bearing bush | ||||
| 720 | 30507236000 | 2.93 | 3.55 | |
| Magnet | ||||
| 730 | 32172014010 | 7.66 | 9.27 | |
| Plate | ||||
| 740 | 32416117000 | 2.29 | 2.77 | |
| Grooved ball bearing | ||||
| 750 | 41701207260 | 6.19 | 7.49 | |
| Screw | ||||
| 770 | 43074012000 | 1.56 | 1.89 | |
| Roller | ||||
| 815 | 31335027000 | 48.95 | 59.23 | |
| Nut | ||||
| 830 | 42019020087 | 6.61 | 8.00 | |
| Grinding arm | ||||
| 840 | 31335029000 | 151.80 | 183.68 | |
| Clamping sleeve | ||||
| 845 | 40238018001 | 1.56 | 1.89 | |
| Safety hood | ||||
| 850 | 31335026000 | 60.50 | 73.20 | |
| Tensioning arm | ||||
| 860 | 30240417000 | 59.40 | 71.87 | |
| Bolt | ||||
| 870 | 31335004002 | 18.50 | 22.38 | |
| Spring | ||||
| 880 | 31335003004 | 36.37 | 44.01 | |
| Handle | ||||
| 890 | 32119014000 | 38.50 | 46.58 | |
| Plate | ||||
| 895 | 31335024000 | 15.95 | 19.30 | |
| Cylinder head screw | ||||
| 900 | 43035136063 | 1.56 | 1.89 | |
| Screw | ||||
| 910 | 31335013003 | 11.48 | 13.89 | |
| Cylinder head screw | ||||
| 920 | 43035047089 | 1.56 | 1.89 | |
| Screw | ||||
| 930 | 43098705065 | 1.56 | 1.89 | |
| Disc | ||||
| 940 | 42401019085 | 1.56 | 1.89 | |
| Screw | ||||
| 960 | 30240422000 | 7.44 | 9.00 | |
| Disc | ||||
| 970 | 42402015002 | 2.09 | 2.53 | |
| Pressure piece | ||||
| 980 | 31335018000 | 10.58 | 12.80 | |
| Bush | ||||
| 990 | 31335023000 | 2.04 | 2.47 | |
| Screw | ||||
| 1000 | 43014000006 | 1.56 | 1.89 | |
| Cover | ||||
| 1010 | 31335025000 | 52.80 | 63.89 | |
| Shaft | ||||
| 1020 | 31335012009 | 99.53 | 120.43 | |
| Disc | ||||
| 1030 | 31335021000 | 1.56 | 1.89 | |
| Roller | ||||
| 1040 | 31335011006 | 283.27 | 342.76 | |
| Disc | ||||
| 1050 | 31335022000 | 1.56 | 1.89 | |
| Screw | ||||
| 1060 | 43098706180 | 1.56 | 1.89 | |
| Feather key | ||||
| 1070 | 40221056006 | 3.68 | 4.45 | |
| Information sign | ||||
| 2010 | 32217557000 | 3.12 | 3.78 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Wrench | ||||
| 5000 | 62901004006 | 3.54 | 4.28 | |
| Case | ||||
| 5100 | 33901133050 | 106.37 | 128.71 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| No information available, not orderable | ||||
| 6000 | 04010101004 | |||
| No information available, not orderable | ||||
| 6020 | 04012701000 | |||
| Pipe (SW0002, L 110 MM, OD 130 MM, ID 120 MM) | ||||
| 7002 | 64101002004 | 61.89 | 74.89 | |
| Drawing-off plate (SW0010) | ||||
| 7010 | 64102069007 | 72.73 | 88.00 | |
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7016 | 64104150008 | 116.75 | 141.27 | |
| Pressure piece (SW0038) | ||||
| 7038 | 64122003000 | 13.08 | 15.83 | |
| Assembly aid (SW0045) | ||||
| 7045 | 64122121010 | 23.92 | 28.94 | |
| Chuck cone (SW0081, ID 19 MM, M 6) | ||||
| 7081 | 64107019007 | 96.98 | 117.35 | |
| Chuck cone (SW0084, ID 26 MM, M 6) | ||||
| 7084 | 64107026000 | 111.01 | 134.32 | |
