Here you will find all available parts and drawings of the 'Fein 72342400230 ( PCS1000E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

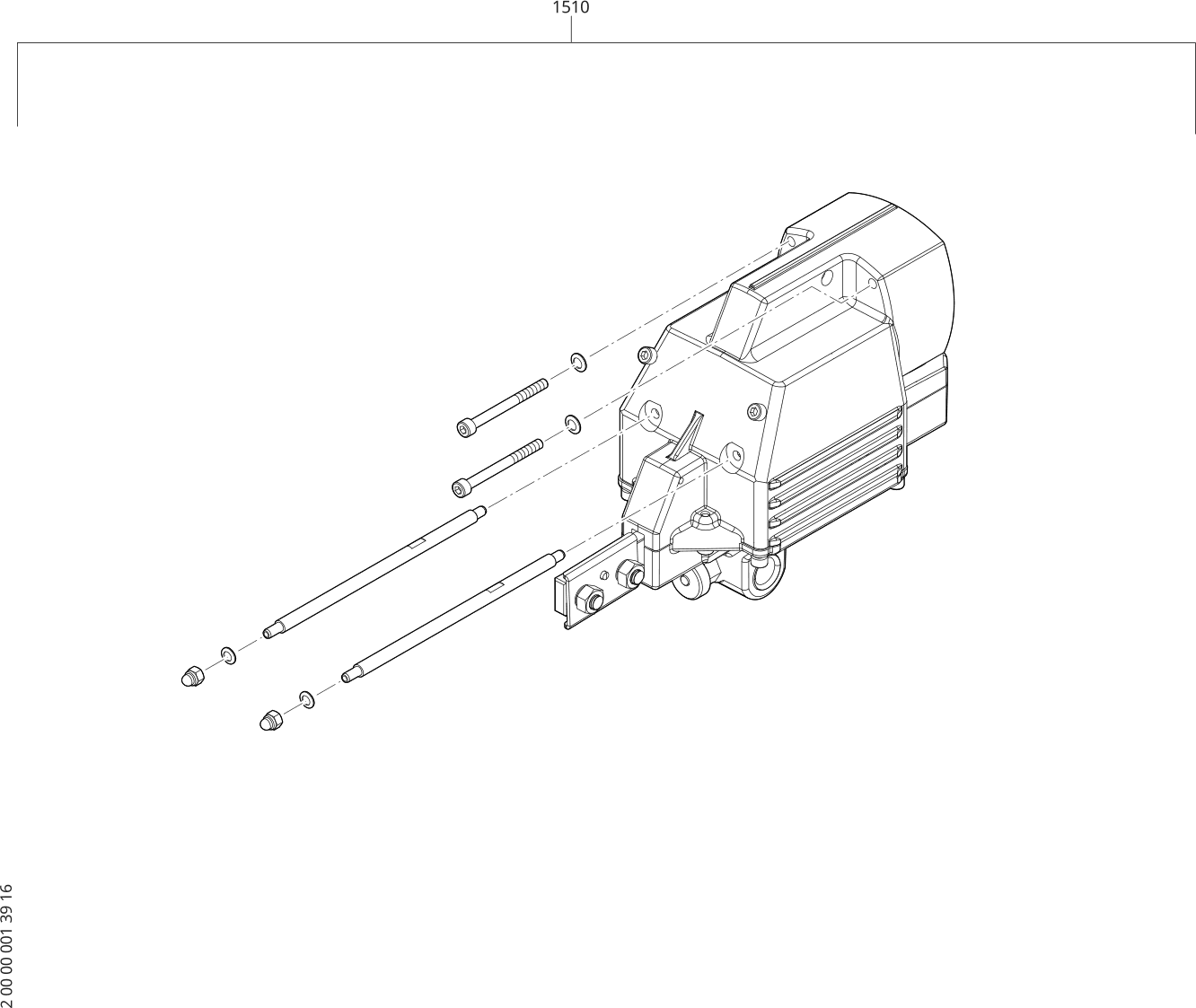

Technical drawing of model Fein 72342400230 ( PCS1000E )
Spare parts list of model Fein 72342400230 ( PCS1000E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 10 | 99100002782 | |||
| No information available, not orderable | ||||
| 20 | 99100002718 | |||
| No information available, not orderable | ||||
| 35 | 99100002531 | |||
| No information available, not orderable | ||||
| 45 | 99100002530 | |||
| No information available, not orderable | ||||
| 50 | 99100002529 | |||
| No information available, not orderable | ||||
| 75 | 99100002528 | |||
| No information available, not orderable | ||||
| 100 | 99100002445 | |||
| No information available, not orderable | ||||
| 101 | 99100002447 | |||
| No information available, not orderable | ||||
| 115 | 99100002781 | |||
| No information available, not orderable | ||||
| 490 | 99100002444 | |||
| No information available, not orderable | ||||
| 705 | 99100002455 | |||
| No information available, not orderable | ||||
| 800 | 99100002320 | |||
| No information available, not orderable | ||||
| 1010 | 99100002535 | |||
| No information available, not orderable | ||||
| 1030 | 99100002533 | |||
| Assembled cables | ||||
| 1080 | 30719886010 | 2.09 | 2.53 | |
| No information available, not orderable | ||||
| 1110 | 99100002532 | |||
| No information available, not orderable | ||||
| 1220 | 99100002454 | |||
| No information available, not orderable | ||||
| 1500 | 99100002203 | |||
| No information available, not orderable | ||||
| 1510 | 99100002208 | |||
| No information available, not orderable | ||||
| 5000 | 99100002264 | |||
| Wrench (13 MM) | ||||
| 5060 | 62901007007 | 8.76 | 10.60 | |
| Socket wrench (8 MM) | ||||
| 5070 | 62906009007 | 4.92 | 5.95 | |
| Cylinder head screw | ||||
| 5090 | 43035014056 | 1.56 | 1.89 | |
| Allen key (Winkel, HEX 4) | ||||
| 5110 | 62907010000 | 2.64 | 3.19 | |
| Saw blade (HSS-HD, L 600 MM) | ||||
| 5800 | 63503098001 | 56.54 | 68.41 | |
| Saw blade (HSS, L 600 MM) | ||||
| 5800 | 63503073006 | 48.40 | 58.56 | |
| Saw blade (HSS, L 500 MM) | ||||
| 5800 | 63503072002 | 39.82 | 48.18 | |
| Saw blade (HSS, L 400 MM) | ||||
| 5800 | 63503064005 | 19.36 | 23.43 | |
| Saw blade (HSS, L 300 MM) | ||||
| 5800 | 63503063007 | 14.08 | 17.04 | |
| Clamping unit (DO 100 - 325 MM) | ||||
| 5810 | 90702004006 | 446.49 | 540.25 | |
| Clamping unit (DO MAX 159 MM) | ||||
| 5820 | 90702001001 | 320.43 | 387.72 | |
| Clamping unit (PROFILE, W MAX 310 MM, H MAX 550 MM | ||||
| 5830 | 90702003008 | 359.59 | 435.10 | |
| Clamping unit (Drive, DO 80 - 400 MM) | ||||
| 5840 | 90702005000 | 2559.48 | 3096.97 | |
| Guide | ||||
| 5850 | 90606002009 | 353.98 | 428.32 | |
| Clamping jaw | ||||
| 5860 | 31327064008 | 65.12 | 78.80 | |
| Wedge | ||||
| 5870 | 63305006008 | 14.08 | 17.04 | |
