Here you will find all available parts and drawings of the 'Fein 78243600170 (MSHYO869-1B)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

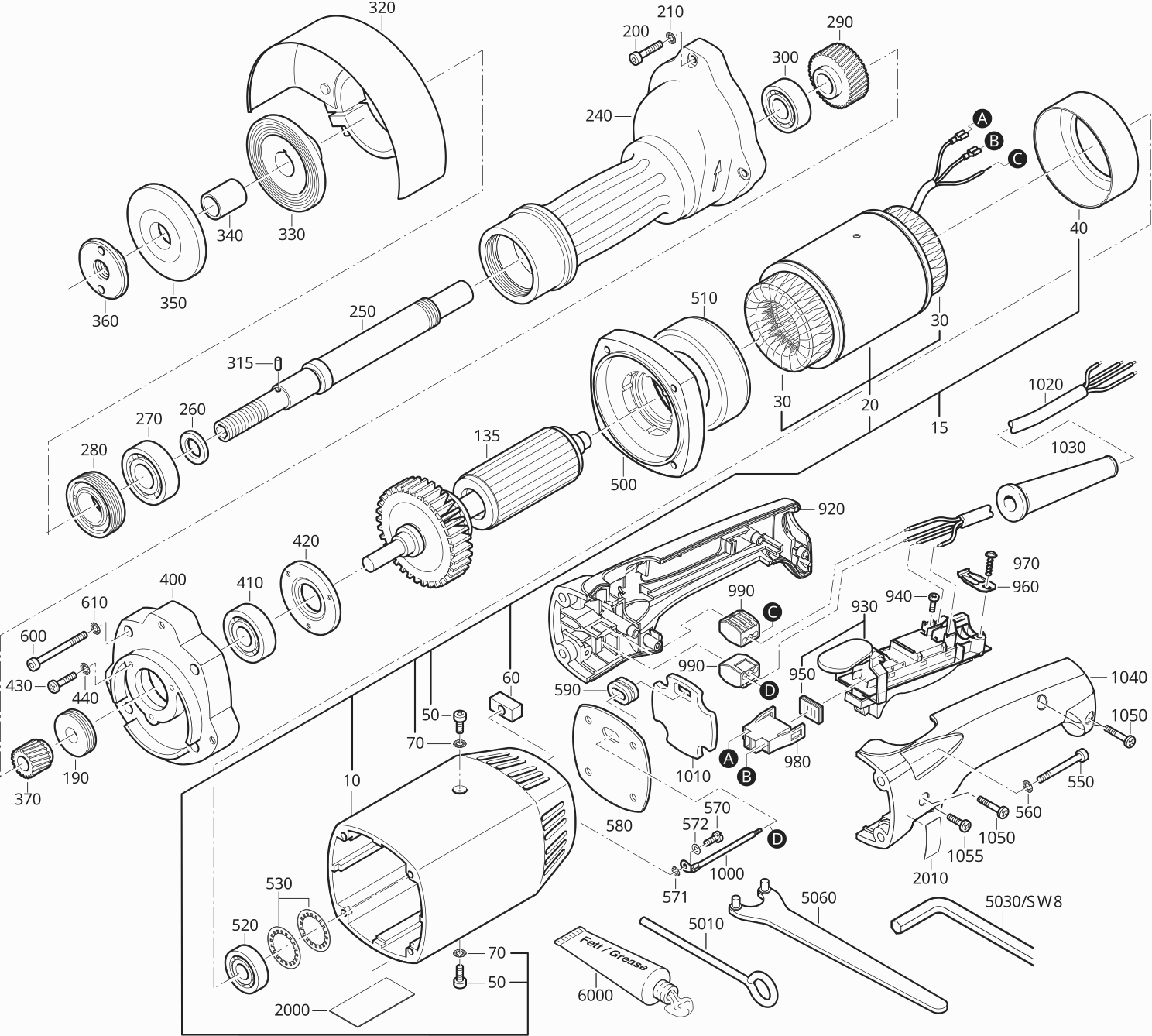

Technical drawing of model Fein 78243600170 (MSHYO869-1B)
Spare parts list of model Fein 78243600170 (MSHYO869-1B)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903141002 | 255.20 | 308.79 | |
| Motor housing with stat | ||||
| 15 | 52819004160 | 916.17 | 1108.57 | |
| Stator | ||||
| 20 | 51819004160 | 612.48 | 741.10 | |
| Ring | ||||
| 30 | 31419034005 | 5.99 | 7.25 | |
| Sleeve | ||||
| 40 | 30517009003 | 32.54 | 39.37 | |
| Cylinder head screw | ||||
| 50 | 43033008058 | 1.67 | 2.02 | |
| Plug | ||||
| 60 | 31415032009 | 6.19 | 7.49 | |
| Circlip | ||||
| 70 | 42443004057 | 1.56 | 1.89 | |
| Rotor | ||||
| 135 | 33502045016 | 479.78 | 580.53 | |
| Sealing ring | ||||
| 190 | 32612093002 | 26.80 | 32.43 | |
| Cylinder head screw (SW0018, HEX 5, M 6, L 25 MM) | ||||
| 200 | 43035034067 | 1.56 | 1.89 | |
| Circlip (SW0018, S 6) | ||||
| 210 | 42443005064 | 1.56 | 1.89 | |
| Collar bearing | ||||
| 240 | 31510062003 | 525.71 | 636.11 | |
| Shaft | ||||
| 250 | 33406182001 | 159.50 | 193.00 | |
| Disc | ||||
| 260 | 32408290006 | 27.12 | 32.82 | |
| Grooved ball bearing | ||||
| 270 | 41701228017 | 13.72 | 16.60 | |
| Thread ring | ||||
| 280 | 32618050002 | 49.13 | 59.45 | |
| No information available, not orderable | ||||
| 290 | 33663122003 | |||
| Grooved ball bearing | ||||
| 300 | 41701222038 | 17.86 | 21.61 | |
| Pin | ||||
| 315 | 40253008004 | 1.04 | 1.26 | |
| Safety hood | ||||
| 320 | 31810184009 | 400.66 | 484.80 | |
| Grinding disc flange | ||||
| 330 | 63801145002 | 84.22 | 101.91 | |
| Sleeve | ||||
| 340 | 30501283001 | 13.72 | 16.60 | |
| Grinding disc flange | ||||
| 350 | 63802145006 | 71.46 | 86.47 | |
| Thread ring | ||||
| 360 | 32009066000 | 44.02 | 53.26 | |
| Gear-wheel | ||||
| 370 | 33663123007 | 193.95 | 234.68 | |
| Intermediate gear box | ||||
| 400 | 31506250005 | 213.09 | 257.84 | |
| Grooved ball bearing | ||||
| 410 | 41701222022 | 11.98 | 14.50 | |
| Plate | ||||
| 420 | 32416080003 | 46.57 | 56.35 | |
| Fillister head screw | ||||
| 430 | 43041013047 | 1.56 | 1.89 | |
| Circlip | ||||
| 440 | 42443003043 | 1.56 | 1.89 | |
| Air guide ring | ||||
| 500 | 32602063006 | 74.01 | 89.55 | |
| Sleeve | ||||
| 510 | 30517010005 | 33.81 | 40.91 | |
| Grooved ball bearing | ||||
| 520 | 41701010026 | 7.80 | 9.44 | |
| Cup spring | ||||
| 530 | 30905035002 | 1.25 | 1.51 | |
| Cylinder head screw | ||||
| 550 | 43035020051 | 1.56 | 1.89 | |
| Circlip | ||||
| 560 | 42443004057 | 1.56 | 1.89 | |
| Flat headed screw | ||||
| 570 | 43003029048 | 1.56 | 1.89 | |
| Lock washer | ||||
| 571 | 42439013046 | 1.56 | 1.89 | |
| Disc | ||||
| 572 | 42404005048 | 1.56 | 1.89 | |
| Insulation board | ||||
| 580 | 31408056000 | 6.61 | 8.00 | |
| Insulating ring | ||||
| 590 | 31406033009 | 2.71 | 3.28 | |
| Cylinder head screw | ||||
| 600 | 43033018057 | 1.56 | 1.89 | |
| Circlip | ||||
| 610 | 42443004057 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 920 | 31204179010 | |||
| Switch | ||||
| 930 | 30701316010 | 54.87 | 66.39 | |
| Fillister head screw | ||||
| 940 | 43041035047 | 1.56 | 1.89 | |
| Seal | ||||
| 950 | 31324121000 | 8.63 | 10.44 | |
| Cable clamping piece | ||||
| 960 | 32431042008 | 1.56 | 1.89 | |
| Screw | ||||
| 970 | 43070035002 | 1.56 | 1.89 | |
| Housing | ||||
| 980 | 31324123000 | 7.10 | 8.59 | |
| Terminal | ||||
| 990 | 31412063000 | 3.48 | 4.21 | |
| Connecting cable | ||||
| 1000 | 30719640010 | 2.29 | 2.77 | |
| Plate | ||||
| 1010 | 30605042008 | 4.94 | 5.98 | |
| Cable | ||||
| 1020 | 30706335010 | 77.84 | 94.19 | |
| Cable grommet | ||||
| 1030 | 31413094007 | 2.93 | 3.55 | |
| Handle half shell | ||||
| 1040 | 31204180000 | 19.14 | 23.16 | |
| Screw | ||||
| 1050 | 43070031003 | 1.56 | 1.89 | |
| Screw | ||||
| 1055 | 43070038007 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 5030 | 62907030008 | |||
| Pin-type face spanner | ||||
| 5060 | 62910022002 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 6000 | 32160003135 | |||
| No information available, not orderable | ||||
| 9000 | 34101073060 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
