Here you will find all available parts and drawings of the 'Fein 78243902260 (MShyo852-3a)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

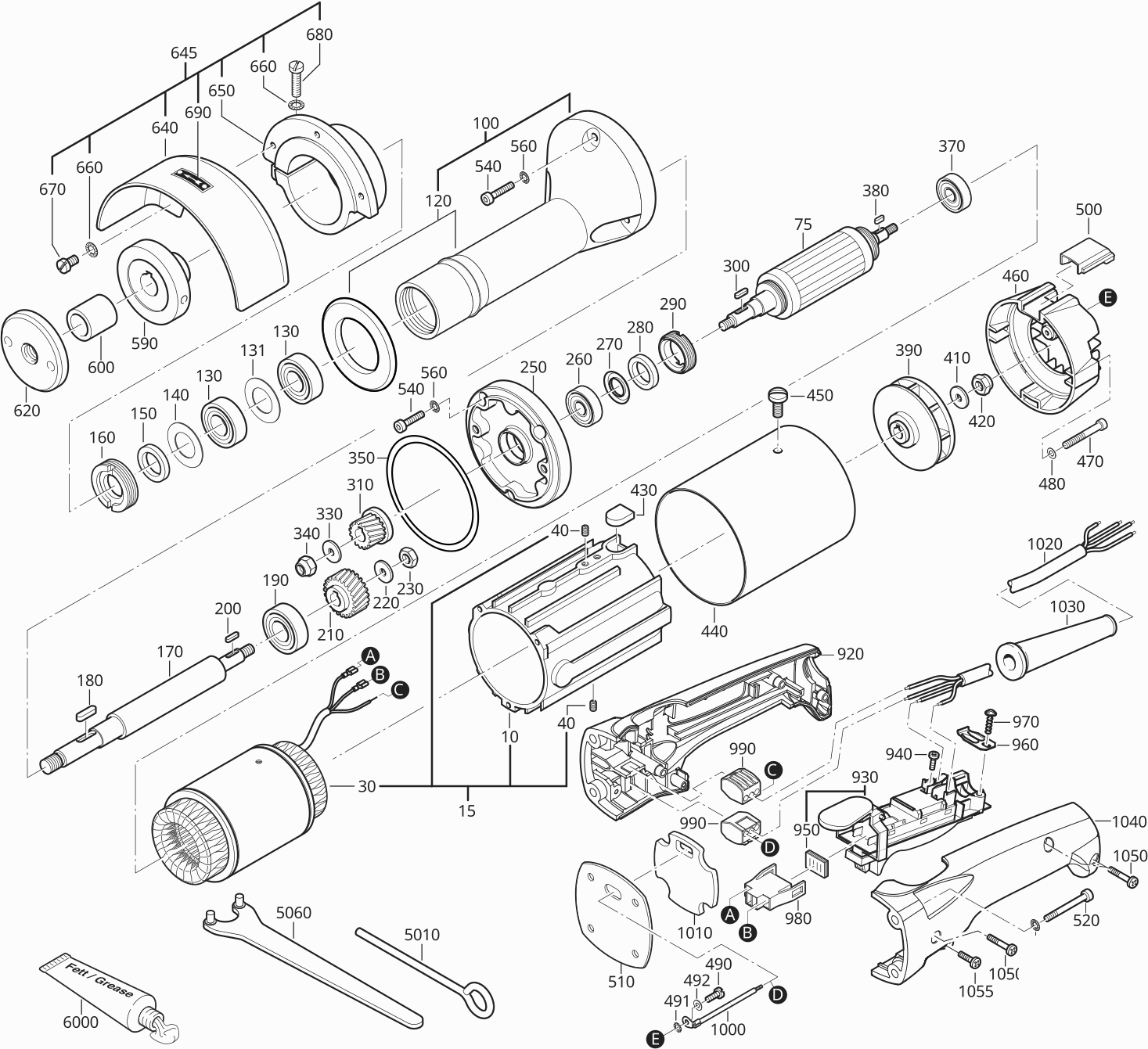

Technical drawing of model Fein 78243902260 (MShyo852-3a)
Spare parts list of model Fein 78243902260 (MShyo852-3a)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903098002 | 193.95 | 234.68 | |
| Motor housing with stat | ||||
| 15 | 52810006160 | 529.54 | 640.74 | |
| Stator | ||||
| 30 | 51810006160 | 422.36 | 511.06 | |
| Set screw | ||||
| 40 | 43011005051 | 1.25 | 1.51 | |
| Rotor | ||||
| 75 | 33502038012 | 255.20 | 308.79 | |
| Collar bearing | ||||
| 100 | 31510043018 | 366.21 | 443.11 | |
| Ring | ||||
| 120 | 31419024006 | 14.67 | 17.75 | |
| Grooved ball bearing | ||||
| 130 | 41717002002 | 85.49 | 103.44 | |
| Disc | ||||
| 131 | 32624058013 | 2.29 | 2.77 | |
| Disc | ||||
| 140 | 32411053004 | 6.41 | 7.76 | |
| Felt ring | ||||
| 150 | 30601056003 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 160 | 32613034007 | 29.03 | 35.13 | |
| Shaft | ||||
| 170 | 33406105005 | 95.70 | 115.80 | |
| Feather key | ||||
| 180 | 40223027008 | 1.46 | 1.77 | |
| Grooved ball bearing | ||||
| 190 | 41701010054 | 7.24 | 8.76 | |
| Feather key | ||||
| 200 | 40221015007 | 2.29 | 2.77 | |
| Gear-wheel | ||||
| 210 | 33665003008 | 145.46 | 176.01 | |
| Disc | ||||
| 220 | 42401019085 | 1.56 | 1.89 | |
| Hex nut | ||||
| 230 | 42001024007 | 1.04 | 1.26 | |
| Intermediate gear box | ||||
| 250 | 31506164002 | 116.12 | 140.51 | |
| Grooved ball bearing | ||||
| 260 | 41701010010 | 7.66 | 9.27 | |
| Disc | ||||
| 270 | 32411065005 | 3.68 | 4.45 | |
| Felt ring | ||||
| 280 | 30601076001 | 2.09 | 2.53 | |
| Sealing ring | ||||
| 290 | 32613037008 | 21.69 | 26.24 | |
| Feather key | ||||
| 300 | 40221008003 | 4.10 | 4.96 | |
| Gear-wheel | ||||
| 310 | 33665022011 | 146.74 | 177.56 | |
| Disc (SW0014, OD 12 MM, ID 6.4 MM) | ||||
| 330 | 42401018069 | 1.56 | 1.89 | |
| Hex nut | ||||
| 340 | 42002007004 | 2.51 | 3.04 | |
| Eccentric ring | ||||
| 350 | 32622009005 | 63.80 | 77.20 | |
| Grooved ball bearing | ||||
| 370 | 41701007038 | 8.90 | 10.77 | |
| Feather key | ||||
| 380 | 40221003006 | 1.56 | 1.89 | |
| Fan Wheel | ||||
| 390 | 31001085002 | 156.95 | 189.91 | |
| Disc | ||||
| 410 | 42402003067 | 1.04 | 1.26 | |
| Nut | ||||
| 420 | 42019008060 | 1.04 | 1.26 | |
| Seal | ||||
| 430 | 30605014003 | 5.36 | 6.49 | |
| Sleeve | ||||
| 440 | 30502059004 | 91.87 | 111.16 | |
| Flat headed screw | ||||
| 450 | 43003048058 | 1.04 | 1.26 | |
| Housing | ||||
| 460 | 31207047000 | 49.13 | 59.45 | |
| Cylinder head screw | ||||
| 470 | 43033016055 | 1.04 | 1.26 | |
| Circlip | ||||
| 480 | 42443004057 | 1.56 | 1.89 | |
| Flat headed screw | ||||
| 490 | 43003032042 | 1.04 | 1.26 | |
| Lock washer | ||||
| 491 | 42439013046 | 1.56 | 1.89 | |
| Disc | ||||
| 492 | 42404005048 | 1.56 | 1.89 | |
| Cover | ||||
| 500 | 32427036003 | 4.32 | 5.23 | |
| Insulation board | ||||
| 510 | 31408056000 | 6.61 | 8.00 | |
| Cylinder head screw | ||||
| 520 | 43033016055 | 1.04 | 1.26 | |
| Circlip | ||||
| 530 | 42443004057 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 540 | 43033012056 | 1.04 | 1.26 | |
| Circlip | ||||
| 560 | 42443004057 | 1.56 | 1.89 | |
| Grinding disc flange | ||||
| 590 | 63801096001 | 45.10 | 54.57 | |
| Sleeve | ||||
| 600 | 30501242001 | 9.00 | 10.89 | |
| Grinding disc flange | ||||
| 620 | 63802105000 | 29.81 | 36.07 | |
| Safety hood | ||||
| 640 | 31810107008 | 67.63 | 81.83 | |
| Safety hood | ||||
| 645 | 31810107023 | 149.29 | 180.64 | |
| Flange | ||||
| 650 | 31809038001 | 93.15 | 112.71 | |
| Circlip | ||||
| 660 | 42443004057 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 670 | 43002053059 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 680 | 43002057058 | 1.04 | 1.26 | |
| Information sign | ||||
| 690 | 32215026007 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 920 | 31204179010 | |||
| Switch | ||||
| 930 | 30701273010 | 114.84 | 138.96 | |
| Fillister head screw | ||||
| 940 | 43041035047 | 1.56 | 1.89 | |
| Seal | ||||
| 950 | 31324121000 | 8.63 | 10.44 | |
| Cable clamping piece | ||||
| 960 | 32431042008 | 1.56 | 1.89 | |
| Screw | ||||
| 970 | 43070035002 | 1.56 | 1.89 | |
| Housing | ||||
| 980 | 31324123000 | 7.10 | 8.59 | |
| Terminal | ||||
| 990 | 31412063000 | 3.48 | 4.21 | |
| Connecting cable | ||||
| 1000 | 30719640010 | 2.29 | 2.77 | |
| Plate | ||||
| 1010 | 30605042008 | 4.94 | 5.98 | |
| Cable | ||||
| 1020 | 30706338010 | 66.35 | 80.28 | |
| Cable grommet | ||||
| 1030 | 31413094007 | 2.93 | 3.55 | |
| Handle half shell | ||||
| 1040 | 31204180000 | 19.14 | 23.16 | |
| Screw | ||||
| 1050 | 43070031003 | 1.56 | 1.89 | |
| Screw | ||||
| 1055 | 43070038007 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 2000 | 32217441060 | |||
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Pin | ||||
| 5010 | 62913005004 | 11.98 | 14.50 | |
| Pin-type face spanner | ||||
| 5060 | 62910022002 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
