Here you will find all available parts and drawings of the 'Fein 78230300229 ( MSHO840-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

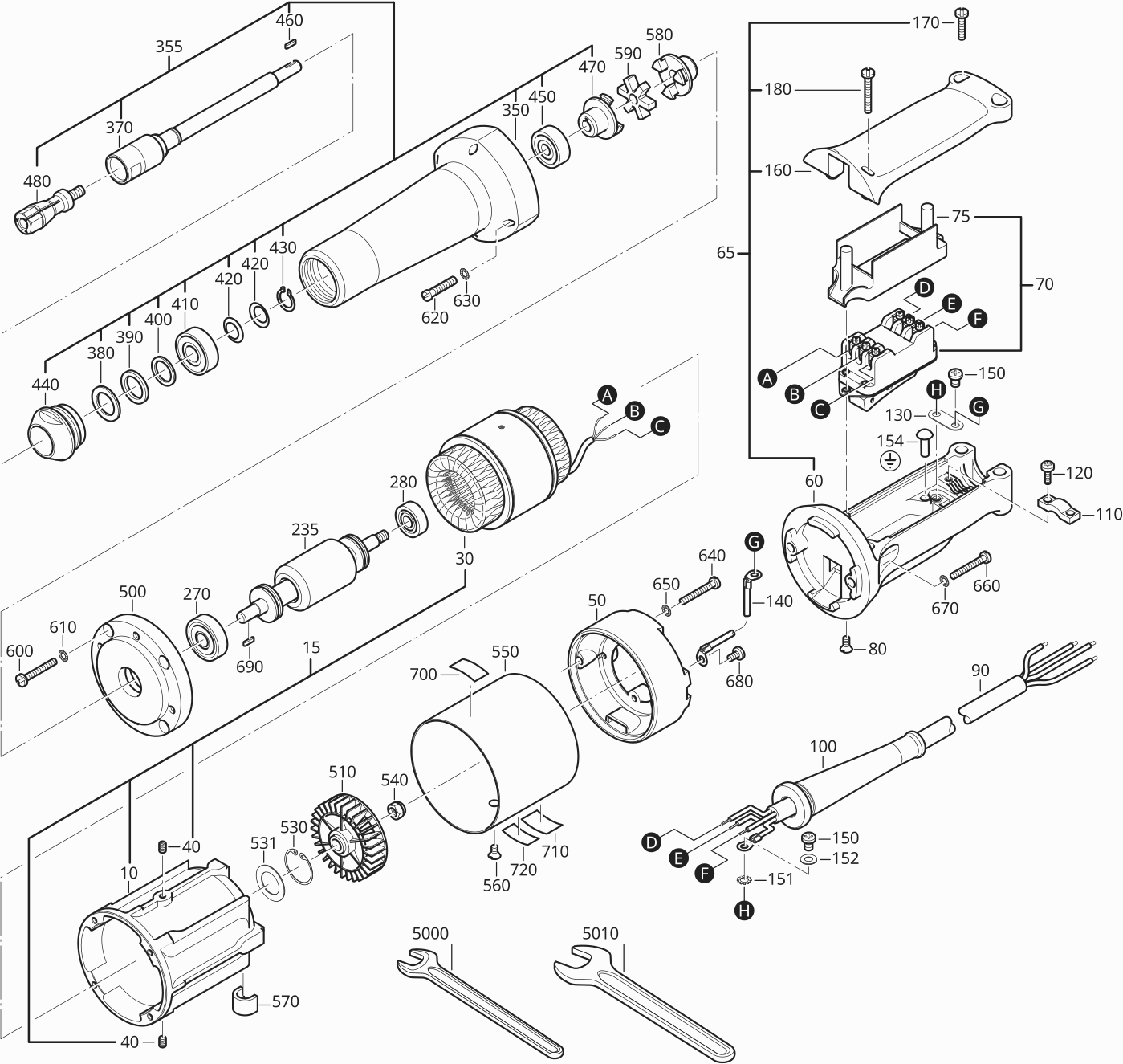

Technical drawing of model Fein 78230300229 ( MSHO840-2 )
Spare parts list of model Fein 78230300229 ( MSHO840-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903073007 | 140.36 | 169.84 | |
| No information available, not orderable | ||||
| 15 | 52803003375 | |||
| Stator | ||||
| 30 | 51803002375 | 412.15 | 498.70 | |
| Set screw M4X8 | ||||
| 40 | 43011002049 | 1.04 | 1.26 | |
| Housing | ||||
| 50 | 31207032008 | 84.22 | 101.91 | |
| Handle half shell | ||||
| 60 | 31204054001 | 37.00 | 44.77 | |
| Handle | ||||
| 65 | 31204054010 | 49.76 | 60.21 | |
| Switch 3Pole Including Dust Cap | ||||
| 70 | 30701043017 | 44.66 | 54.04 | |
| Cap | ||||
| 75 | 31428066001 | 9.05 | 10.95 | |
| Countersunk screw | ||||
| 80 | 43060003046 | 1.04 | 1.26 | |
| Cable | ||||
| 90 | 30706227011 | 62.52 | 75.65 | |
| Cable grommet | ||||
| 100 | 31413090003 | 3.48 | 4.21 | |
| Cable clamping piece | ||||
| 110 | 32431021007 | 1.04 | 1.26 | |
| Fillister head screw M3,5X10 | ||||
| 120 | 43041001994 | 1.04 | 1.26 | |
| Lug | ||||
| 130 | 32802042002 | 1.67 | 2.02 | |
| Connecting cable | ||||
| 140 | 30719023015 | 6.41 | 7.76 | |
| Fillister head screw | ||||
| 150 | 43041016042 | 1.04 | 1.26 | |
| Toothed washer | ||||
| 151 | 42439013046 | 1.04 | 1.26 | |
| Disc | ||||
| 152 | 42404005048 | 1.04 | 1.26 | |
| Rivet | ||||
| 154 | 32215029003 | 1.67 | 2.02 | |
| Handle half shell | ||||
| 160 | 31204053003 | 11.56 | 13.99 | |
| Flat headed screw | ||||
| 170 | 43003040049 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 180 | 43003042041 | 1.04 | 1.26 | |
| Rotor | ||||
| 235 | 33508031010 | 260.30 | 314.96 | |
| Grooved ball bearing | ||||
| 270 | 41701004246 | 6.61 | 8.00 | |
| Grooved ball bearing | ||||
| 280 | 41701001260 | 5.77 | 6.98 | |
| Collar bearing | ||||
| 350 | 31510042005 | 119.94 | 145.13 | |
| Collar bearing complete | ||||
| 355 | 31510042014 | 449.15 | 543.47 | |
| Shaft | ||||
| 370 | 33403047006 | 153.12 | 185.28 | |
| Disc | ||||
| 380 | 32408020008 | 3.48 | 4.21 | |
| Felt ring | ||||
| 390 | 30601047008 | 1.04 | 1.26 | |
| Disc | ||||
| 400 | 32411051007 | 2.29 | 2.77 | |
| Grooved ball bearing | ||||
| 410 | 41701020130 | 10.16 | 12.29 | |
| Cup spring | ||||
| 420 | 30905026006 | 1.25 | 1.51 | |
| Circlip | ||||
| 430 | 42616013001 | 1.04 | 1.26 | |
| Sleeve | ||||
| 440 | 30514078005 | 22.97 | 27.79 | |
| Grooved ball bearing | ||||
| 450 | 41701204095 | 14.67 | 17.75 | |
| Feather key | ||||
| 460 | 40221001009 | 1.67 | 2.02 | |
| Clutch part | ||||
| 470 | 30102045000 | 63.16 | 76.42 | |
| COLLETT 6MM | ||||
| 480 | 63207059006 | 27.36 | 33.11 | |
| Intermediate gear box | ||||
| 500 | 31506194009 | 117.39 | 142.04 | |
| Fan wheel | ||||
| 510 | 31004032003 | 13.72 | 16.60 | |
| Circlip | ||||
| 530 | 42616033009 | 1.04 | 1.26 | |
| Disc | ||||
| 531 | 32624034038 | 1.88 | 2.27 | |
| Disc | ||||
| 531 | 32624034022 | 1.67 | 2.02 | |
| Nut | ||||
| 540 | 42019008060 | 1.04 | 1.26 | |
| Sleeve | ||||
| 550 | 30502053003 | 75.28 | 91.09 | |
| Countersunk screw | ||||
| 560 | 43060002042 | 1.04 | 1.26 | |
| Seal | ||||
| 570 | 30605023004 | 3.34 | 4.04 | |
| Clutch part | ||||
| 580 | 30102045000 | 63.16 | 76.42 | |
| Clutch part | ||||
| 590 | 30102046003 | 11.87 | 14.36 | |
| Cylinder head screw | ||||
| 600 | 43002116041 | 1.04 | 1.26 | |
| Circlip M4 | ||||
| 610 | 42443003043 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 620 | 43002017999 | 1.04 | 1.26 | |
| Circlip | ||||
| 630 | 42443002992 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 640 | 43002041047 | 1.04 | 1.26 | |
| Circlip M4 | ||||
| 650 | 42443003043 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 660 | 43003042041 | 1.04 | 1.26 | |
| Circlip M4 | ||||
| 670 | 42443003043 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 680 | 43003029048 | 1.04 | 1.26 | |
| Feather key | ||||
| 690 | 40221001009 | 1.67 | 2.02 | |
| RFID CHIP | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| SLEUTEL ENKEL | ||||
| 5000 | 62901007007 | 6.64 | 8.03 | |
| SLEUTEL ENKEL | ||||
| 5010 | 62903002009 | 6.64 | 8.03 | |
| No information available, not orderable | ||||
| 9020 | 34130054061 | |||
