Here you will find all available parts and drawings of the 'Fein 78206400120 ( MSFO869-1D )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

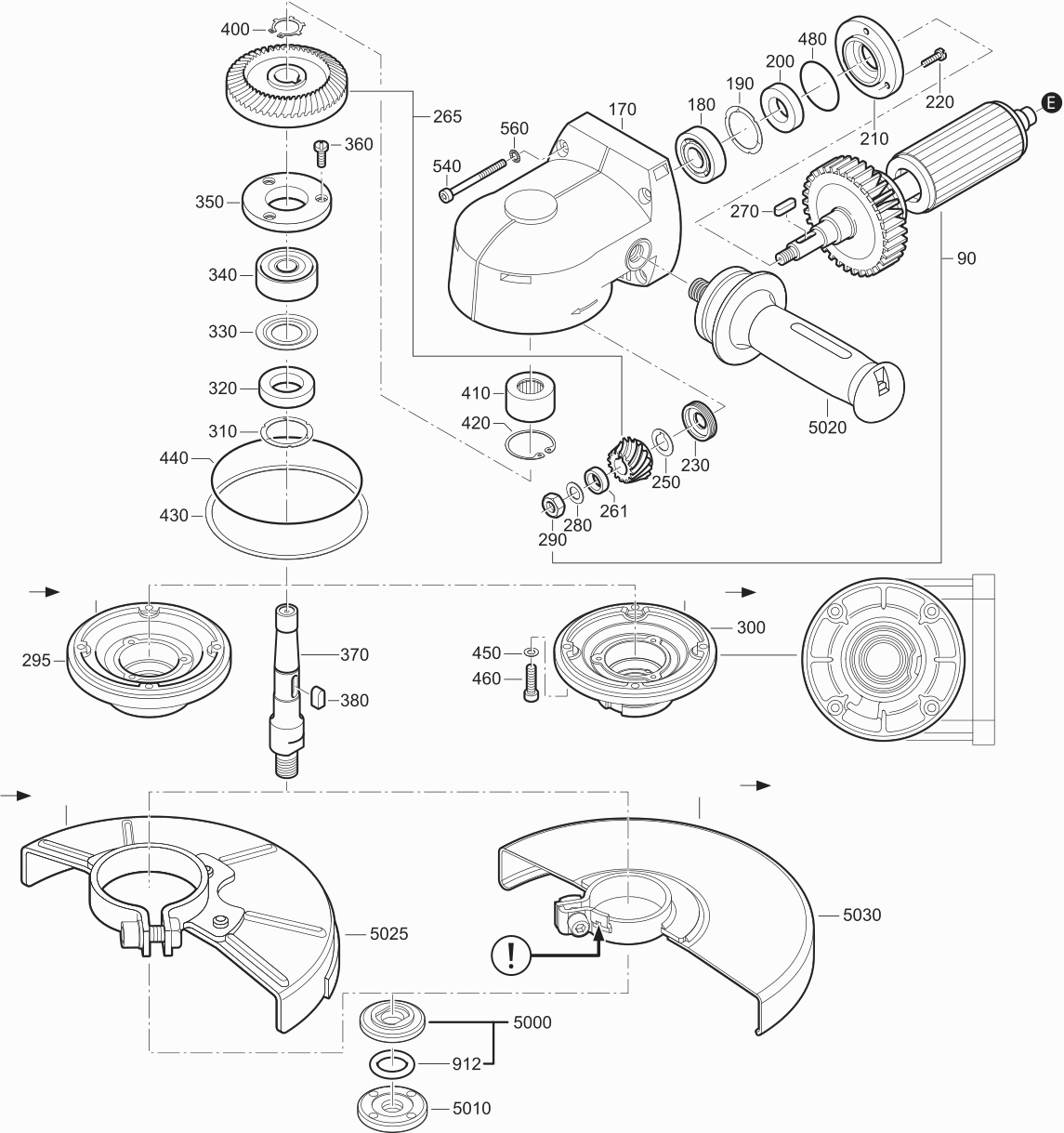

Technical drawing of model Fein 78206400120 ( MSFO869-1D )
Spare parts list of model Fein 78206400120 ( MSFO869-1D )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903141002 | 255.20 | 308.79 | |
| STATOR | ||||
| 20 | 51819004360 | 770.70 | 932.55 | |
| Ring | ||||
| 30 | 31419034005 | 5.99 | 7.25 | |
| Sleeve | ||||
| 40 | 30517009003 | 32.54 | 39.37 | |
| Cylinder head screw | ||||
| 50 | 43033008058 | 1.67 | 2.02 | |
| Rubber plug | ||||
| 60 | 31415032009 | 6.19 | 7.49 | |
| Circlip M5 | ||||
| 70 | 42443004057 | 1.04 | 1.26 | |
| Rotor | ||||
| 90 | 33508046020 | 502.74 | 608.32 | |
| Gearbox housing | ||||
| 170 | 31206079008 | 216.92 | 262.47 | |
| Grooved ball bearing | ||||
| 180 | 41701218024 | 7.80 | 9.44 | |
| Disc | ||||
| 190 | 32411062009 | 1.67 | 2.02 | |
| Felt ring | ||||
| 200 | 30601074004 | 1.04 | 1.26 | |
| Flange | ||||
| 210 | 32416067000 | 28.71 | 34.74 | |
| CYLINDER SCREW CPL | ||||
| 220 | 43050002049 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 230 | 32612103000 | 11.28 | 13.65 | |
| Disc | ||||
| 250 | 32624029032 | 2.09 | 2.53 | |
| Disc | ||||
| 250 | 32624029026 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 265 | 33809084018 | |||
| Feather key | ||||
| 270 | 40221017004 | 1.67 | 2.02 | |
| Circlip | ||||
| 280 | 30240313000 | 4.94 | 5.98 | |
| Nut | ||||
| 290 | 42019001088 | 8.90 | 10.77 | |
| Bearing plate | ||||
| 300 | 32419144010 | 86.77 | 104.99 | |
| Disc | ||||
| 310 | 32411062009 | 1.67 | 2.02 | |
| Felt ring | ||||
| 320 | 30601049000 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 330 | 42639008005 | 4.52 | 5.47 | |
| Grooved ball bearing | ||||
| 340 | 41701224024 | 10.58 | 12.80 | |
| Plate | ||||
| 350 | 32416058009 | 16.27 | 19.69 | |
| CYLINDER SCREW CPL | ||||
| 360 | 43050002049 | 1.04 | 1.26 | |
| Shaft | ||||
| 370 | 33406138007 | 82.94 | 100.36 | |
| Feather key | ||||
| 380 | 40223026004 | 2.29 | 2.77 | |
| Circlip | ||||
| 400 | 42641001002 | 0.90 | 1.09 | |
| Needle bearing | ||||
| 410 | 41706002002 | 32.54 | 39.37 | |
| Circlip | ||||
| 420 | 42616020004 | 1.04 | 1.26 | |
| Disc | ||||
| 430 | 32624055024 | 6.61 | 8.00 | |
| Disc | ||||
| 430 | 32624055030 | 5.57 | 6.74 | |
| Sealing ring | ||||
| 440 | 40612002009 | 3.68 | 4.45 | |
| Sealing ring | ||||
| 450 | 40611001002 | 1.88 | 2.27 | |
| Cylinder head screw M5X20 | ||||
| 460 | 43033012056 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 480 | 40612007002 | 1.88 | 2.27 | |
| Air guide ring | ||||
| 500 | 32602063006 | 74.01 | 89.55 | |
| Sleeve | ||||
| 510 | 30517010005 | 33.81 | 40.91 | |
| Grooved ball bearing | ||||
| 520 | 41701010026 | 7.80 | 9.44 | |
| Cup spring | ||||
| 530 | 30905035002 | 1.25 | 1.51 | |
| Cylinder head screw | ||||
| 540 | 43035022053 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 550 | 43035020051 | 1.04 | 1.26 | |
| Circlip M5 | ||||
| 560 | 42443004057 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 570 | 43003029048 | 1.04 | 1.26 | |
| Toothed washer | ||||
| 571 | 42439013046 | 1.04 | 1.26 | |
| Disc | ||||
| 572 | 42404005048 | 1.04 | 1.26 | |
| Insulation board | ||||
| 580 | 31408056000 | 6.61 | 8.00 | |
| Insulating ring | ||||
| 590 | 31406033009 | 2.71 | 3.28 | |
| Sealing ring | ||||
| 912 | 40612000007 | 1.04 | 1.26 | |
| Handle half shell | ||||
| 920 | 31204179010 | 18.16 | 21.97 | |
| Switch | ||||
| 930 | 30701316010 | 54.87 | 66.39 | |
| Fillister head screw | ||||
| 940 | 43041035047 | 1.25 | 1.51 | |
| Seal | ||||
| 950 | 31324121000 | 8.63 | 10.44 | |
| Cable clamping piece | ||||
| 960 | 31324122000 | 5.99 | 7.25 | |
| Screw | ||||
| 970 | 43070035002 | 1.04 | 1.26 | |
| Housing | ||||
| 980 | 31324123000 | 7.10 | 8.59 | |
| Terminal | ||||
| 990 | 31412063000 | 3.48 | 4.21 | |
| Connecting cable | ||||
| 1000 | 30719640010 | 2.29 | 2.77 | |
| Plate | ||||
| 1010 | 30605042008 | 4.94 | 5.98 | |
| Cable | ||||
| 1020 | 30706336010 | 133.98 | 162.12 | |
| Cable grommet | ||||
| 1030 | 31413095001 | 3.13 | 3.79 | |
| Upper half of handle shell | ||||
| 1040 | 31204180000 | 19.14 | 23.16 | |
| Screw | ||||
| 1050 | 43070031003 | 1.04 | 1.26 | |
| Screw | ||||
| 1055 | 43070038007 | 1.04 | 1.26 | |
| RFID CHIP | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| Grinding disc flange inside without traction | ||||
| 5000 | 63801182010 | 12.25 | 14.82 | |
| SLYPSCHYFFLENS BUI MET DRAAD | ||||
| 5010 | 63802052000 | 8.61 | 10.42 | |
| Handle TSC 55 | ||||
| 5020 | 32119117015 | 41.26 | 49.92 | |
| Safety hood | ||||
| 5030 | 31810269020 | 51.68 | 62.53 | |
| SLEUTEL ENKEL | ||||
| 5040 | 62903011005 | 4.08 | 4.94 | |
| SLEUTEL STIFT DUBBEL | ||||
| 5060 | 62910022002 | 4.08 | 4.94 | |
| No longer available, no replacement | ||||
| 6000 | 32160003135 | |||
| No information available, not orderable | ||||
| 9000 | 34101066060 | |||
| No information available, not orderable | ||||
| 9020 | 34130054061 | |||
