Here you will find all available parts and drawings of the 'Fein 78205100264 (MSf842-2c)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

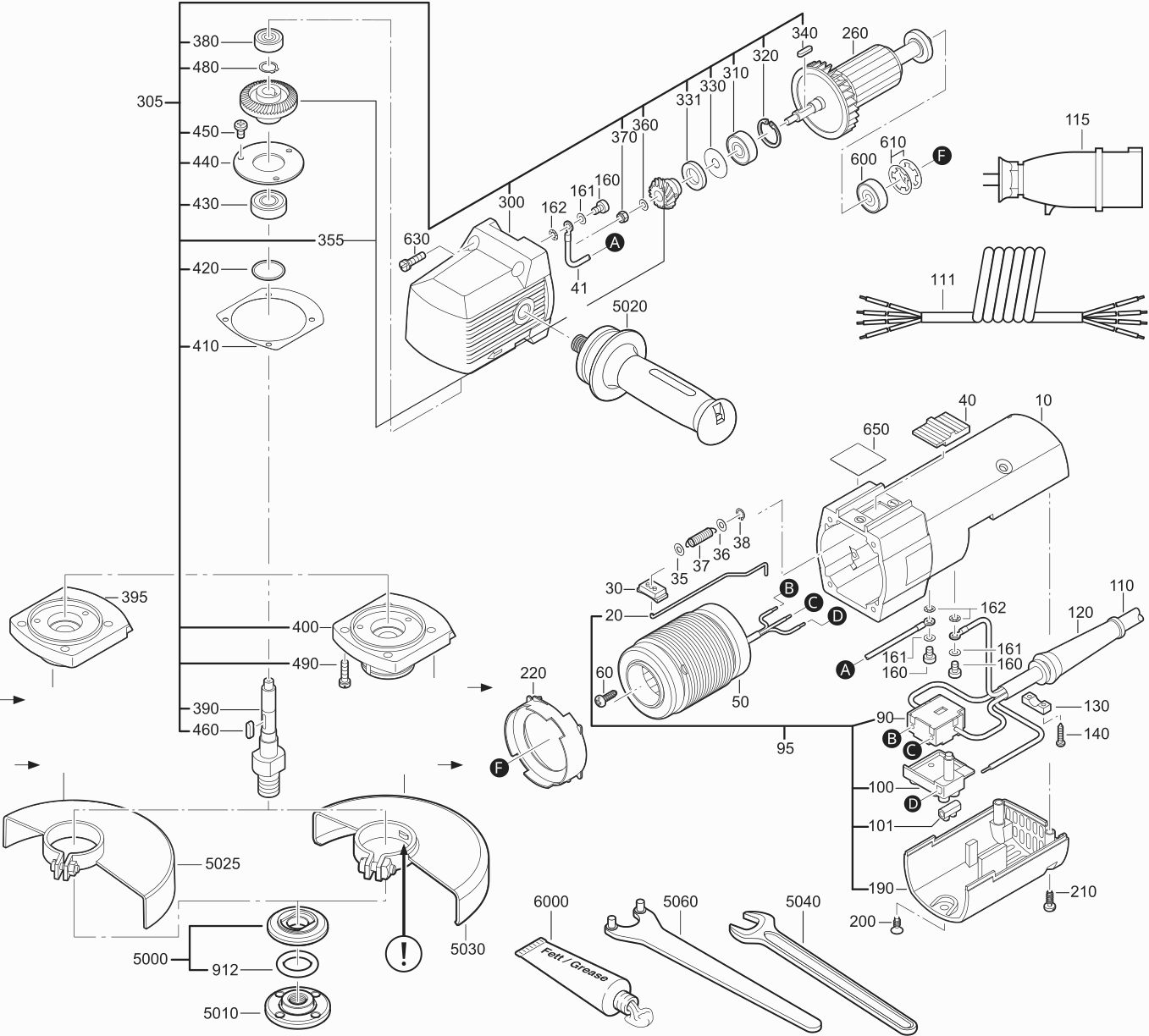

Technical drawing of model Fein 78205100264 (MSf842-2c)
Spare parts list of model Fein 78205100264 (MSf842-2c)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31901062009 | 105.91 | 128.15 | |
| Control rod | ||||
| 20 | 32816032006 | 2.51 | 3.04 | |
| Slider | ||||
| 30 | 32805068000 | 2.09 | 2.53 | |
| Slide switch | ||||
| 40 | 32805083001 | 2.51 | 3.04 | |
| Connecting Cable | ||||
| 41 | 30719288011 | 4.73 | 5.72 | |
| Stator | ||||
| 50 | 51829001165 | 418.53 | 506.42 | |
| Sheet metal screw | ||||
| 60 | 43046001002 | 1.56 | 1.89 | |
| Switch | ||||
| 90 | 30701133008 | 44.66 | 54.04 | |
| Switch | ||||
| 95 | 30701133017 | 53.59 | 64.84 | |
| Insulation board | ||||
| 100 | 31428039000 | 5.36 | 6.49 | |
| Terminal | ||||
| 101 | 32801022000 | 1.46 | 1.77 | |
| Cable | ||||
| 110 | 30706234019 | 90.60 | 109.63 | |
| Cable grommet | ||||
| 120 | 31413164009 | 2.51 | 3.04 | |
| Cable clamping piece | ||||
| 130 | 32431026009 | 1.87 | 2.26 | |
| Sheet metal screw | ||||
| 140 | 43046022003 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 160 | 43041016042 | 1.56 | 1.89 | |
| Disc | ||||
| 161 | 42404005048 | 1.56 | 1.89 | |
| Lock washer | ||||
| 162 | 42439013046 | 1.56 | 1.89 | |
| Cover | ||||
| 190 | 32427064003 | 13.40 | 16.21 | |
| Sheet metal screw | ||||
| 200 | 43067001000 | 1.04 | 1.26 | |
| Sheet metal screw | ||||
| 210 | 43046023007 | 1.04 | 1.26 | |
| Air guide ring | ||||
| 220 | 31428064004 | 5.77 | 6.98 | |
| Rotor | ||||
| 260 | 33502046019 | 243.72 | 294.90 | |
| Gearbox housing | ||||
| 300 | 31206091008 | 160.78 | 194.54 | |
| Gearbox housing | ||||
| 305 | 31206091039 | 479.78 | 580.53 | |
| Grooved ball bearing | ||||
| 310 | 41701207033 | 8.50 | 10.28 | |
| Circlip | ||||
| 320 | 42616001005 | 1.56 | 1.89 | |
| Disc | ||||
| 330 | 32624053038 | 2.29 | 2.77 | |
| Disc | ||||
| 330 | 32624053022 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 331 | 30602014004 | 17.23 | 20.85 | |
| Feather key | ||||
| 340 | 40221058008 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 355 | 33809159013 | |||
| Disc | ||||
| 360 | 42401002056 | 1.04 | 1.26 | |
| Nut | ||||
| 370 | 42019009051 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 380 | 41701204010 | 5.36 | 6.49 | |
| Shaft | ||||
| 390 | 33406174004 | 61.25 | 74.11 | |
| Bearing plate | ||||
| 400 | 32419148010 | 82.94 | 100.36 | |
| Disc | ||||
| 410 | 32624102038 | 5.36 | 6.49 | |
| Disc | ||||
| 410 | 32624102022 | 3.90 | 4.72 | |
| Sealing ring | ||||
| 420 | 42639003008 | 4.52 | 5.47 | |
| Grooved ball bearing | ||||
| 430 | 41701010026 | 7.80 | 9.44 | |
| Plate | ||||
| 440 | 32416081002 | 11.14 | 13.48 | |
| Fillister head screw | ||||
| 450 | 43064008044 | 1.04 | 1.26 | |
| Feather key | ||||
| 460 | 40221016000 | 1.25 | 1.51 | |
| Ring | ||||
| 480 | 42628009004 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 490 | 43050006048 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 600 | 41701204026 | 6.41 | 7.76 | |
| Cup spring | ||||
| 610 | 30905039001 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 630 | 43050006048 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 912 | 40612000007 | 1.56 | 1.89 | |
| Grinding disc flange | ||||
| 5000 | 63801182010 | 12.25 | 14.82 | |
| Grinding disc flange | ||||
| 5010 | 63802052000 | 11.52 | 13.94 | |
| No information available, not orderable | ||||
| 5020 | 32119118013 | |||
| Safety hood | ||||
| 5030 | 31810278020 | 67.63 | 81.83 | |
| Wrench | ||||
| 5040 | 62903002009 | 8.76 | 10.60 | |
| Pin-type face spanner | ||||
| 5060 | 62910022002 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
